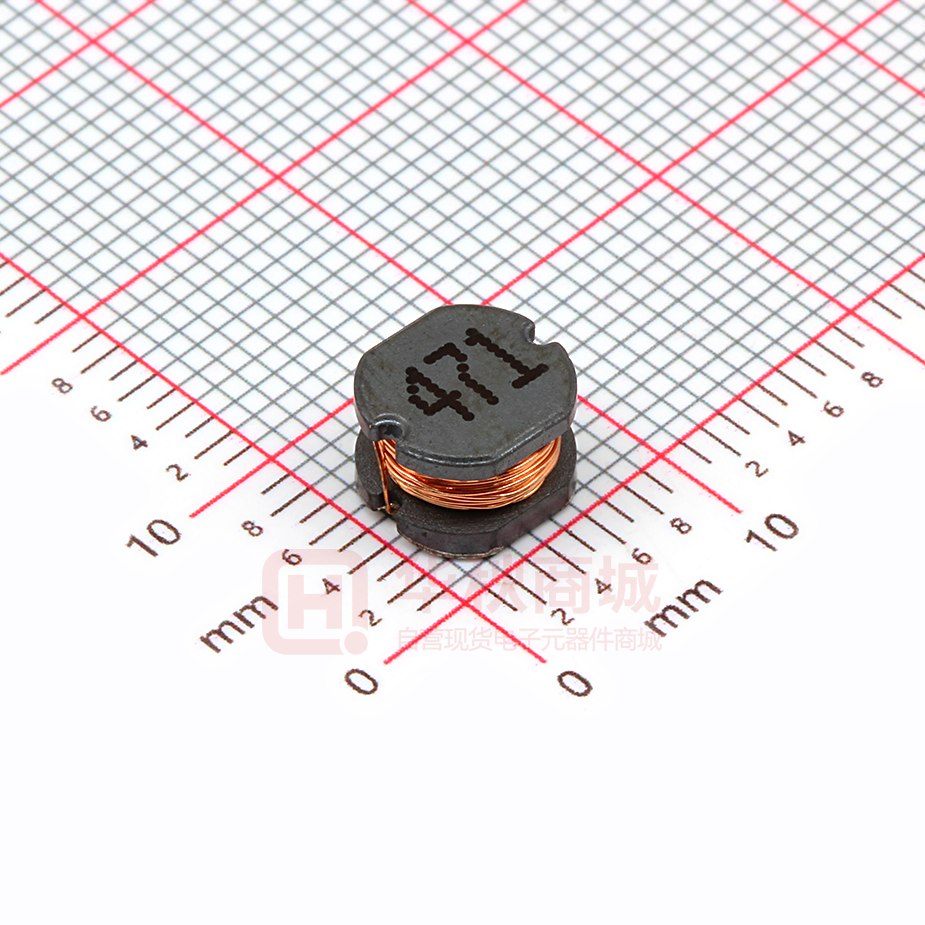

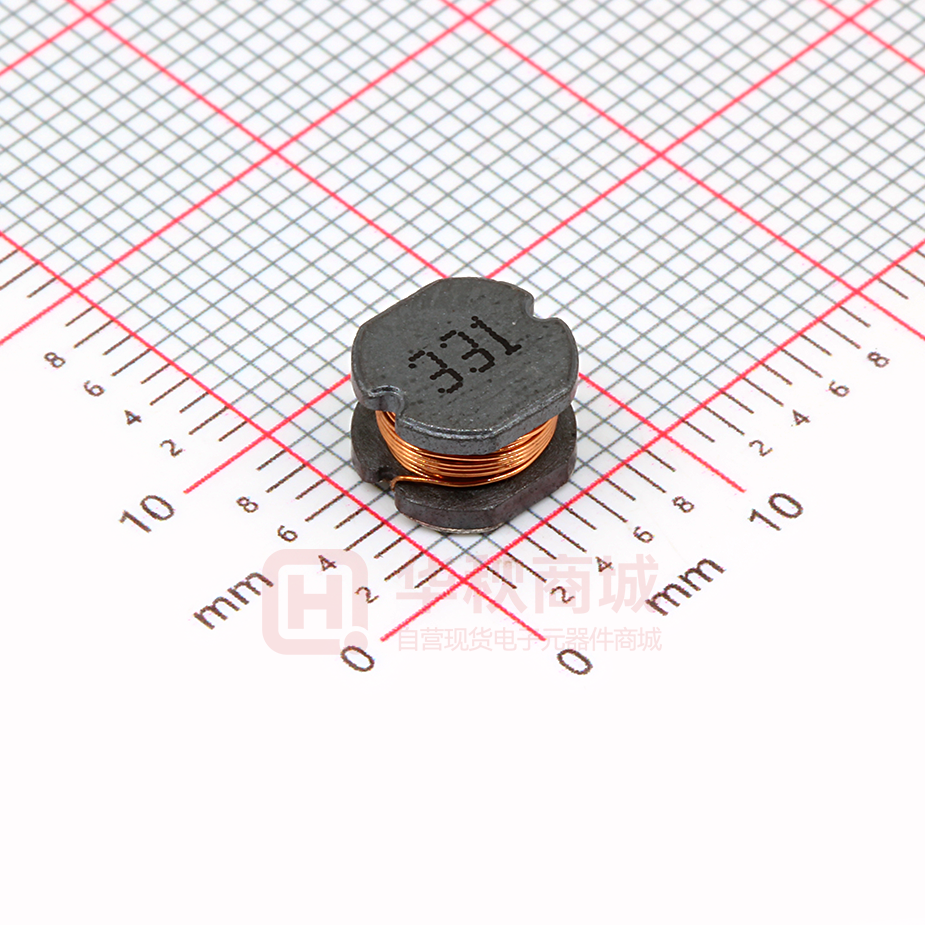

YP0705-471M

SMD Power Inductors -YP0705 Series ■ Features ● High current Type. ● Ferrite bobbin core and compact size. ● Low core loss for high frequency power application. ● Large terminal surface for good PCB bonding. ● Operating temperature:-40℃ ~ +125℃. ■ Applications ● Portable communication equipment. ● Notebook PC,digital carmera,LCD television set. ● Power supply for VTR,OA equipment. ● DC/DC converters. ■ Product Identification ⑴ ：Type ⑵ ：Dimensions ⑶ ：Inductance value ⑷：Inductance Tolerance：N=±30%,M=±20%，L=±15%，K=±10% ■ Shapes and Dimensions (Unit：mm) TYPE A B C D1 Ref. D2 Ref. E Ref. F Ref. YP0705 7.8±0.3 7.0±0.3 5.0±0.3 2.1 2.0 8.0 7.5 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -1- SMD Power Inductors -YP0705 Series ■ YP0705 Series Part Number Inductance (uH) L Test Frequency Max.DC Resistance Max.Rated Current (KHz) (Ω) (A) YP0705-1R0□ 1.00 100 0.012 7.00 YP0705-2R2□ 2.20 100 0.020 4.50 YP0705-3R3□ 3.30 100 0.023 4.00 YP0705-4R7□ 4.70 100 0.025 3.50 YP0705-5R6□ 5.60 100 0.034 3.30 YP0705-6R8□ 6.80 100 0.042 3.20 YP0705-8R2□ 8.20 100 0.070 3.10 YP0705-100□ 10.0 100 0.070 2.30 YP0705-120□ 12.0 100 0.080 2.00 YP0705-150□ 15.0 100 0.090 1.80 YP0705-180□ 18.0 100 0.100 1.60 YP0705-220□ 22.0 100 0.110 1.50 YP0705-270□ 27.0 100 0.120 1.30 YP0705-330□ 33.0 100 0.130 1.20 YP0705-390□ 39.0 100 0.160 1.10 YP0705-470□ 47.0 100 0.180 1.10 YP0705-560□ 56.0 100 0.240 0.94 YP0705-680□ 68.0 100 0.280 0.85 YP0705-820□ 82.0 100 0.370 0.78 YP0705-101□ 100 100 0.430 0.72 YP0705-121□ 120 100 0.470 0.66 YP0705-151□ 150 100 0.640 0.58 YP0705-181□ 180 100 0.710 0.51 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -2- SMD Power Inductors -YP0705 Series ■ YP0705 Series Part Number Inductance (uH) L Test Frequency Max.DC Resistance Max.Rated Current (KHz) (Ω) (A) YP0705-221□ 220 100 0.960 0.49 YP0705-271□ 270 100 1.110 0.42 YP0705-331□ 330 100 1.260 0.40 YP0705-391□ 390 100 1.770 0.36 YP0705-471□ 470 100 1.960 0.34 YP0705-561□ 560 100 2.000 0.33 YP0705-681□ 680 100 2.200 0.32 YP0705-821□ 820 100 2.900 0.25 YP0705-102□ 1000 100 3.600 0.23 YP0705-222□ 2200 100 7.440 0.15 ※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃) ※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃) ※ The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -3- SMD Power Inductors -YP0705 Series ■ Taping Dimensions(Unit:mm) TYPE W A B C D E P K Ref T MPQ YP0705 16±0.3 6.85±0.1 7.95±0.1 6.75 7.5±0.1 5.50±0.1 12.0±0.1 5.70 0.40±0.05 1000 ■ Reel Dimensions(Unit:mm) TYPE W W1 W2 W3 A B C D YP0705 330±2.0 16.4±1.50 22.4MAX 15.9 Min 13.0±0.50 21.0±0.80 2.0±0.50 100 Min 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -4- SMD Power Inductors -YP0705 Series ■ Direction of rolling ■ Cover tape peel off condition Cover tape peel force shall be 0.1N to 1.3N. Reference peel speed 300±10mm/min. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -5-
