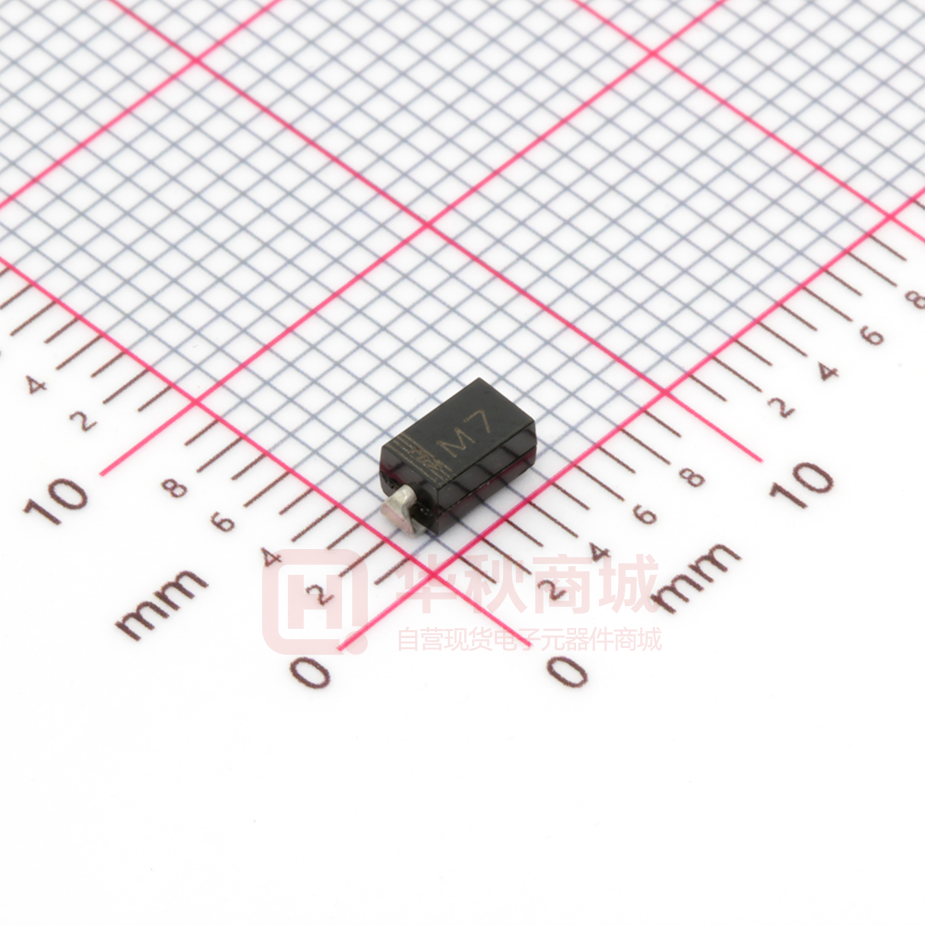

M7-SMA

DongGuan Tongke Electronic Co.,LTD M1 – M7 1.0A SURFACE MOUNT RECTIFIER Features ! ! ! ! ! ! Ideally Suited for Automatic Assembly B Low Forward Voltage Drop Surge Overload Rating to 30A Peak Low Power Loss A Built-in Strain Relief F Plastic Case Material has UL Flammability Classification Rating 94V-O C H G




















































































E SMA/DO-214AC Dim Min Max 2.90 A 2.50 B 4.60 4.00 1.60 C 1.40 D 0.152 0.305 E 4.80 5.28 F 2.00 2.44 G 0.051 0.203 H 0.76 1.52 All Dimensions in mm Mechanical Data ! ! ! ! ! ! Case: Molded Plastic Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 Polarity: Cathode Band or Cathode Notch Marking: Type Number Weight: 0.064 grams (approx.) Lead Free: For RoHS / Lead Free Version, Maximum Ratings and Electrical Characteristics Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current @TL = 100°C D @TA=25°C unless otherwise specified Symbol M1 M2 M3 M4 M5 M6 M7 Unit VRRM VRWM VR 50 100 200 400 600 800 1000 V VR(RMS) 35 70 140 280 420 560 700 V IO 1.0 A Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC Method) IFSM 30 A Forward Voltage @IF = 1.0A VFM 1.10 V @TA = 25°C @TA = 125°C IRM 5.0 200 µA Cj 15 pF R
JL 30 K/W Tj, TSTG -65 to +150 °C Peak Reverse Current At Rated DC Blocking Voltage Typical Junction Capacitance (Note 1) Typical Thermal Resistance (Note 2) Operating and Storage Temperature Range Note: 1. Measured at 1.0 MHz and applied reverse voltage of 4.0 V DC. 2. Mounted on P.C. Board with 8.0mm2 land area. M1 – M7 1 of 2 www.tongke888.com 400-6922-883 DongGuan Tongke Electronic Co.,LTD M1 – M7 IF, INSTANTANEOUS FORWARD CURRENT (A) IO, AVERAGE OUTPUT CURRENT (A) 1.0 0.8 0.6 0.4 0.2 Resistive or inductive load 0 40 60 80 100 120 140 160 180 10 1.0 0.1 Tj = 25ºC PULSE WIDTH = 300µs 2% DUTY CYCLE 0.01 0.6 IR, INSTANTANEOUS REVERSE CURRENT (µA) IFSM, PEAK FORWARD SURGE CURRENT (A) 8.3ms Single half sine-wave JEDEC Method 25 20 15 10 5 100 1.4 1.6 1000 100 Tj = 125°C 10 1.0 Tj = 25°C 0.1 0.01 0 40 80 120 PERCENT OF RATED PEAK REVERSE VOLTAGE (%) Fig. 4 Typical Reverse Characteristics NUMBER OF CYCLES @ 60Hz Fig. 3 Max Non-Repetitive Peak Fwd Surge Current M1 – M7 1.2 Fig. 2 Typical Forward Characteristics 30 10 1.0 VF, INSTANTANEOUS FORWARD VOLTAGE (V) TL , LEAD TEMPERATURE ( °C ) Fig. 1 Forward Current Derating Curve 1 0.8 2 of 2 www.tongke888.com 400-6922-883
