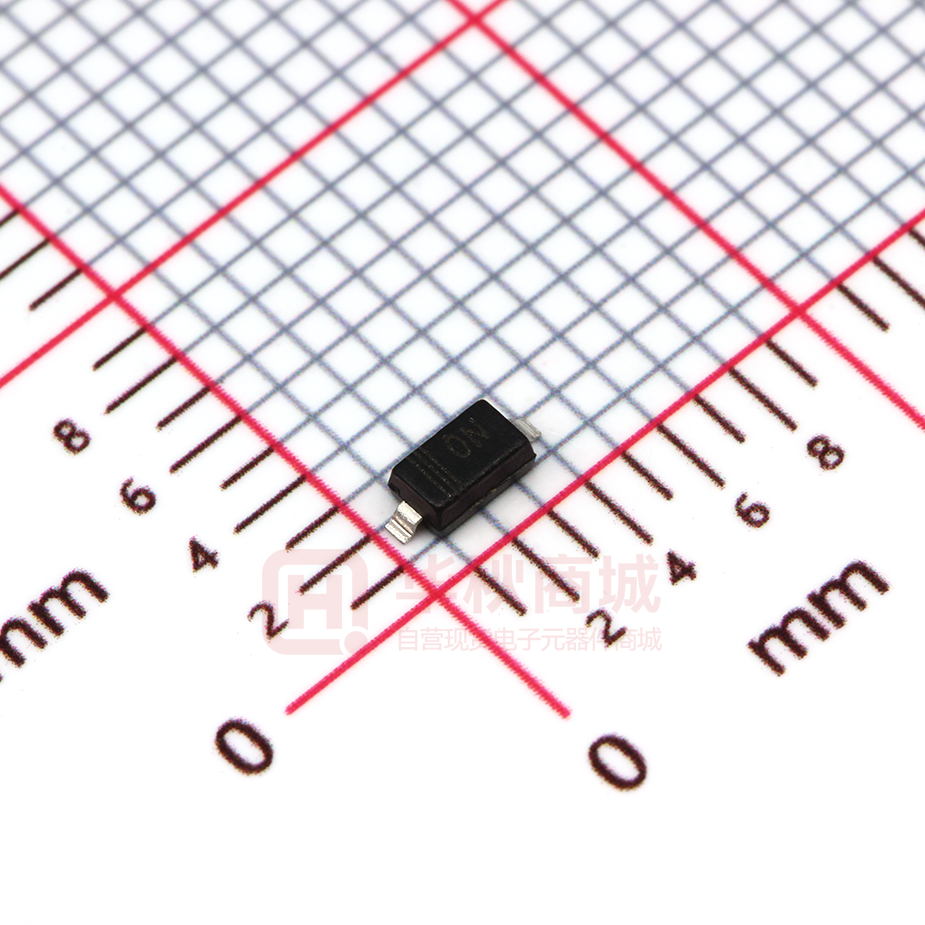

MM1Z24B

MM1Z2V2B~MM1Z39B SILICON PLANAR ZENER DIODES Features • Total power dissipation: max. 500 mW • Small plastic package suitable for surface mounted design • High reliability PINNING PIN DESCRIPTION 1 Cathode 2 Anode 2 1 Top View Simplified outline SOD-123 and symbol Absolute Maximum Ratings (Ta = 25 OC) Parameter Power Dissipation Junction Temperature Thermal Resistance Junction to Ambient Air bl Page 1 f 3 Ptot 500 mW Tj 150 O TStg - 55 to + 150 O Symbol Max. RthA 340 VF 0.9 C C co ue Parameter Forward Voltage at IF = 10 mA Unit lo Storage Temperature Range Characteristics at Ta = 25 OC Value ur Symbol Unit C/W O V REV01: 09/2011 Characteristics at Ta = 25 OC Zener Voltage Range 1) Type Marking Code Vznom l ZT V mA for Dynamic Impedance 2) Reverse Leakage Current ZZT (Max.) at I ZT IR (Max.) V Ω mA μA V VZT at VR 9B 2.2 5 2.1...2.4 100 5 120 0.7 MM1Z2V4B 9C 2.4 5 2.3…2.65 100 5 120 1 MM1Z2V7B 9D 2.7 5 2.65…2.95 110 5 120 1 MM1Z3V0B 9E 3.0 5 2.95…3.25 120 5 50 1 MM1Z3V3B 9F 3.3 5 3.25…3.55 120 5 20 1 MM1Z3V6B 9H 3.6 5 3.6…3.845 100 5 10 1 MM1Z3V9B 9J 3.9 5 3.89…4.16 100 5 5 1 MM1Z4V3B 9K 4.3 5 4.17…4.43 100 5 5 1 MM1Z4V7B 9M 4.7 5 4.55…4.75 100 5 2 1 MM1Z5V1B 9N 5.1 5 4.98…5.2 80 5 2 1.5 MM1Z5V6B 9P 5.6 5 5.49…5.73 60 5 1 2.5 MM1Z6V2B 9R 6.2 5 6.06…6.33 60 5 1 3 MM1Z6V8B 9X 6.8 5 6.65…6.93 40 5 0.5 3.5 MM1Z7V5B 9Y 7.5 5 7.28…7.6 30 5 0.5 4 MM1Z8V2B 9Z 8.2 5 8.02…8.36 30 5 0.5 5 MM1Z9V1B 0A 9.1 5 8.85…9.23 30 5 0.5 6 MM1Z10B 0B 10 5 9.77…10.21 30 5 0.1 7 MM1Z11B 0C 11 5 10.76…11.22 30 5 0.1 8 MM1Z12B 0D 12 MM1Z13B 0E 13 MM1Z15B 0F 15 MM1Z16B 0H MM1Z18B 0J MM1Z20B 0K MM1Z24B MM1Z27B lo co 11.74…12.24 30 5 0.1 9 12.91…13.49 37 5 0.1 10 5 14.81…15.47 42 5 0.1 11 ue 5 5 16 5 15.85…16.51 50 5 0.1 12 18 5 17.56…18.35 65 5 0.1 13 20 5 19.52…20.39 85 5 0.1 15 bl MM1Z22B ur MM1Z2V2B 0M 22 5 21.54…22.47 100 5 0.1 17 0N 24 5 23.72…24.78 120 5 0.1 19 0P 27 5 26.19…27.53 150 5 0.1 21 MM1Z30B 0R 30 5 29.19…30.69 200 5 0.1 23 MM1Z33B 0X 33 5 32.15…33.79 250 5 0.1 25 MM1Z36B 0Y 36 5 35.07…36.87 300 5 0.1 27 MM1Z39B 0Z 39 5 37…41 100 5 2 30 1) 2) VZ is tested with pulses(20 ms). ZZT is measured at IZ by given a very small A.C. current signal. Page 2 f 3 REV01: 09/2011 PACKAGE OUTLINE Plastic surface mounted package; 2 leads bl ue co lo ur SOD-123 Page 3 f 3 REV01: 09/2011
