SMD Power Inductors
-YPRH1204 Series
■ Features
● High current type.
● Ferrite bobbin core and compact size.
● Low core loss for high frequency power application.
● Large terminal surface for good PCB bonding.
● Operating temperature:-40℃ ~ +125℃.
■ Applications
● Portable communication equipment.
● Notebook PC,digital camera,LCD television set.
● Power supply for VTR,OA equipment.
● DC/DC converters.
■ Product Identification
⑴ :Type
⑵ :Dimensions
⑶ :Inductance value
⑷ :Inductance Tolerance;N=±30%,M=±20%,K=±10%
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-1-
SMD Power Inductors
-YPRH1204 Series
■ Shapes and Dimensions (Unit:mm)
TYPE
A
B
C max
D
E
F Ref.
G Ref.
H Ref.
YPRH1204
12.0±0.5
12.0±0.5
5.0
7.60±0.2
5.0
2.8
7.0
5.4
■ YPRH1204 Series
Part Number
Inductance
(uH)
L Test Frequency
Max.DC Resistance
MAX.Rated Current
(KHz)
(Ω)
(A)
YPRH1204-1R8□
1.80
100
0.011
9.00
YPRH1204-2R2□
2.20
100
0.012
8.20
YPRH1204-2R5□
2.50
100
0.0125
7.60
YPRH1204-3R3□
3.30
100
0.014
7.00
YPRH1204-3R9□
3.90
100
0.015
6.50
YPRH1204-4R7□
4.70
100
0.018
5.70
YPRH1204-5R6□
5.60
100
0.021
5.20
YPRH1204-6R8□
6.80
100
0.023
4.90
YPRH1204-8R2□
8.20
100
0.026
4.50
YPRH1204-100□
10.0
100
0.028
4.30
YPRH1204-120□
12.0
100
0.038
4.00

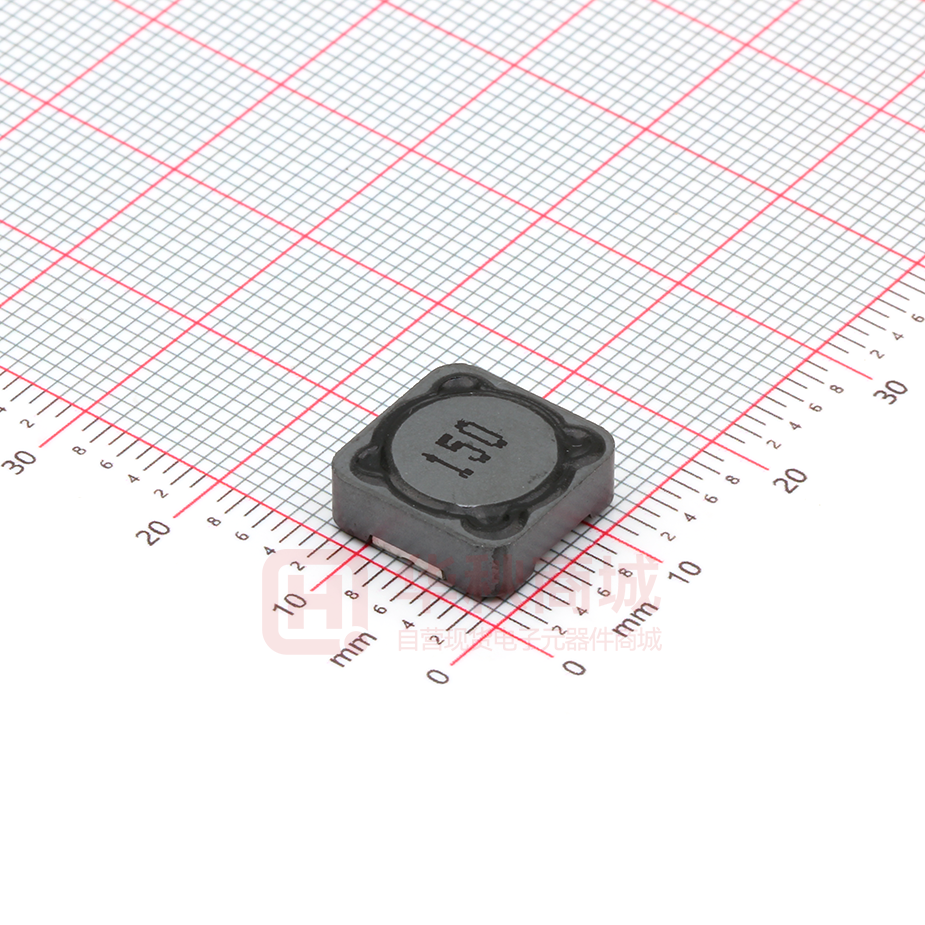

YPRH1204-150□
15.0
100
0.050
3.20
YPRH1204-180□
18.0
100
0.057
3.10
YPRH1204-220□
22.0
100
0.066
2.90
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-2-
SMD Power Inductors
-YPRH1204 Series
Part Number
Inductance
(uH)
L Test Frequency
Max.DC Resistance
MAX.Rated Current
(KHz)
(Ω)
(A)
YPRH1204-270□
27.0
100
0.080
2.80

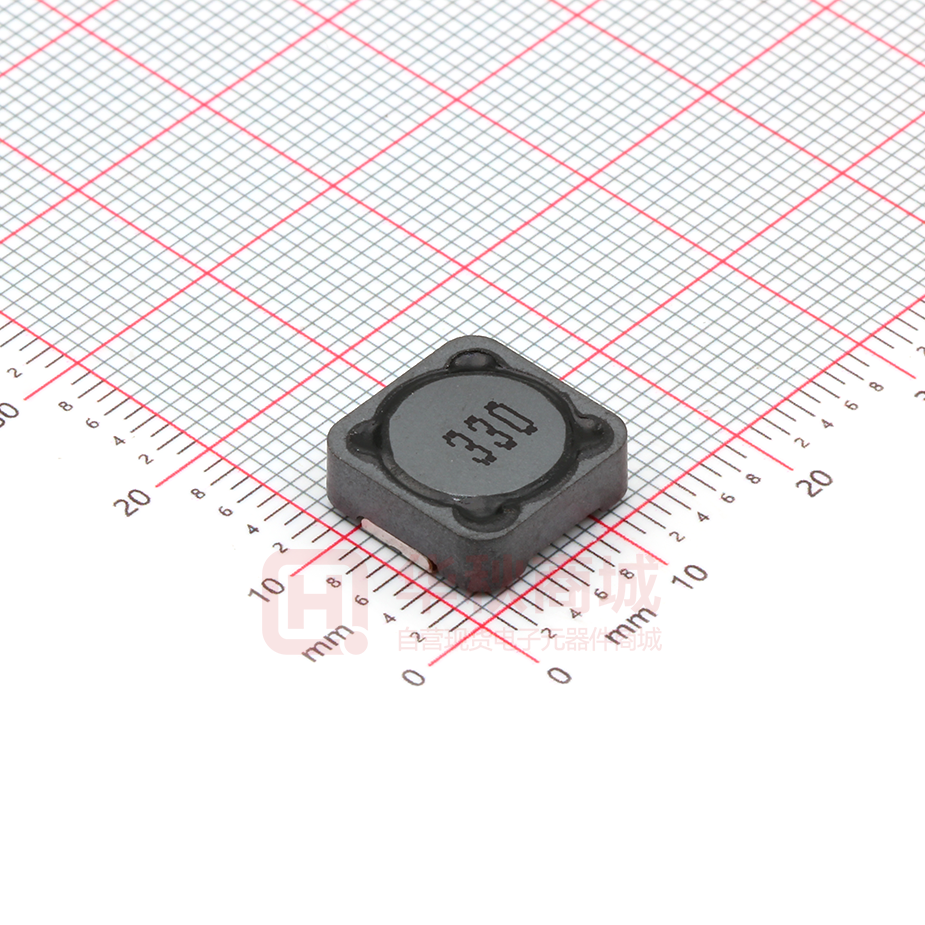

YPRH1204-330□
33.0
100
0.097
2.70
YPRH1204-390□
39.0
100
0.132
2.10
YPRH1204-470□
47.0
100
0.150
1.90
YPRH1204-560□
56.0
100
0.190
1.80
YPRH1204-680□
68.0
100
0.220
1.50
YPRH1204-820□
82.0
100
0.260
1.30
YPRH1204-101□
100
100
0.308
1.20
YPRH1204-121□
120
100
0.380
1.10
YPRH1204-151□
150
100
0.530
0.95
YPRH1204-181□
180
100
0.620
0.85
YPRH1204-221□
220
100
0.700
0.80
YPRH1204-271□
270
100
0.870
0.60
YPRH1204-331□
330
100
0.990
0.50
YPRH1204-471□
470
100
1.100
0.25
YPRH1204-102□
1000
100
2.870
0.20
※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃)
※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at
20℃)
※ The rated current is the DC current value that satisfies both of current value saturation current value and
temperature rise current value.
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-3-
SMD Power Inductors
-YPRH1204 Series
■ Taping Dimensions(Unit:mm)
TYPE
MPQ
W
A
B
C
D
E
P
K
T
YPRH1204
500
24±0.3
12.6±0.1
12.6±0.1
10.75
11.5±0.1
4.8±0.1
16±0.1
5.1 Ref
0.4±0.05
■ Reel Dimensions(Unit:mm)
TYPE
W
W1
W2
W3
A
B
C
D
YPRH1204
330±2.00
24.4±1.50
30.40 Max
23.90 Min
13.0±0.50
21.0±0.80
2.0±0.50
100 Min
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-4-
SMD Power Inductors
-YPRH1204 Series
■ Direction of rolling
■ Cover tape peel off condition
Cover tape peel force shall be 0.1N to 1.3N.
Reference peel speed 300±10mm/min.
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-5-
