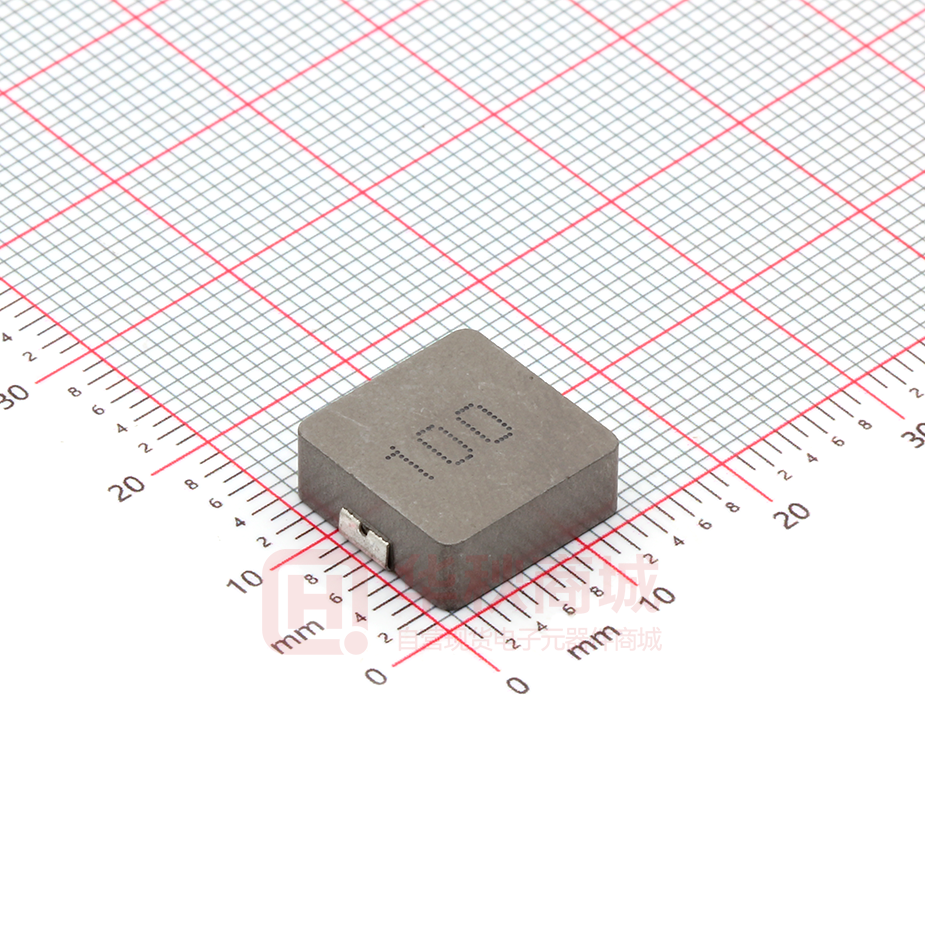

YSPI1350-100M

SMD Power Inductors -YSPI1350 Series ■ Features ● Molding Inductor. ● Low Profile,Low Temp. ● Large Current(Over 15A). ● Customize For Different Need. ● Operating temperature:-40℃ ~ +125℃. ■ Applications ● General Electronic. ● Video Device,TV,TFT. ● Power Module for PC. ● NB/Lap Top Computer. ● Server,VGA Card/Module. ■ Product Identification ⑴ ：Type ⑵ ：Dimensions ⑶ ：Inductance value ⑷ ：Inductance Tolerance：N=±30%,M=±20%，K=±10% 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -1- SMD Power Inductors -YSPI1350 Series ■ Shapes and Dimensions (Unit：mm) TYPE A B C Max. D E Ref. F Ref. G Ref. H Ref. YSPI1350 13.8±0.5 12.6±0.5 5.0 2.5±0.5 3.5±0.5 4.5 14.5 8.0 ■ YSPI1350 Series DC Resistance (mΩ) Heat Rating Saturation (uH) @100KHz Typ. Max. Current (A) Current (A) YSPI1350-R36□ 0.36 0.72 1.70 35.0 70.0 YSPI1350-R47□ 0.47 1.60 2.50 30.0 60.0 YSPI1350-R56□ 0.56 2.30 3.50 25.0 45.0 YSPI1350-R68□ 0.68 2.50 4.00 24.0 44.0 YSPI1350-R82□ 0.82 2.70 4.50 22.0 42.0 YSPI1350-1R0□ 1.00 3.10 5.00 22.0 28.0 YSPI1350-1R5□ 1.50 3.70 8.00 15.0 24.0 YSPI1350-2R2□ 2.20 5.20 11.00 13.0 23.0 YSPI1350-3R3□ 3.30 6.90 10.00 12.0 20.0 YSPI1350-4R7□ 4.70 10.00 13.00 12.0 18.0 YSPI1350-6R8□ 6.80 13.10 17.00 9.0 14.0 YSPI1350-100□ 10.0 21.00 28.00 7.0 13.0 YSPI1350-150□ 15.0 32.00 41.00 6.0 9.0 YSPI1350-220□ 22.0 51.00 66.00 5.0 7.0 YSPI1350-330□ 33.0 65.00 84.00 5.0 5.5 YSPI1350-470□ 47.0 85.00 110.00 4.0 4.5 Part Number Inductance 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -2- SMD Power Inductors -YSPI1350 Series ※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃) ※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃) ※ The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value. 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -3- SMD Power Inductors -YSPI1350 Series ■ Taping Dimensions(Unit:mm) TYPE W A B C D E P K Ref T MPQ YSPI1350 24±0.3 12.8±0.1 13.70±0.1 10.75 11.5±0.1 5.8±0.1 20±0.1 5.1 0.50±0.05 500 ■ Reel Dimensions(Unit:mm) TYPE W W1 W2 W3 A B C D YSPI1350 330±2.0 24.4±1.5 30.4MAX 23.9 Min 13.0±0.50 21.0±0.80 2.0±0.50 100 Min 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -4- SMD Power Inductors -YSPI1350 Series ■ Direction of rolling ■ Cover tape peel off condition Cover tape peel force shall be 0.1N to 1.3N. Reference peel speed 300±10mm/min. 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -5-
