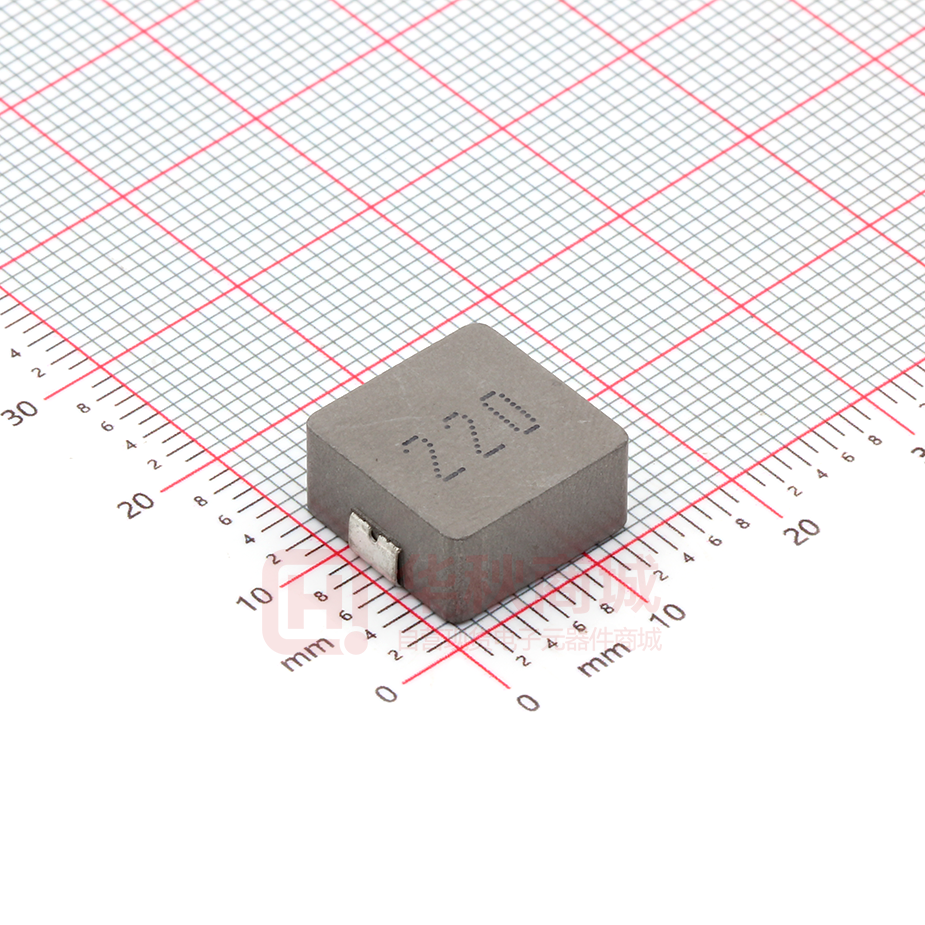

YSPI1365-220M

SMD Power Inductors -YSPI1365 Series ■ Features ● Molding Inductor. ● Low Profile,Low Temp. ● Large Current(Over 15A). ● Customize For Different Need. ● Operating temperature:-40℃ ~ +125℃. ■ Applications ● General Electronic. ● Video Device,TV,TFT. ● Power Module for PC. ● NB/Lap Top Computer. ● Server,VGA Card/Module. ■ Product Identification ⑴ ：Type ⑵ ：Dimensions ⑶ ：Inductance value ⑷ ：Inductance Tolerance：N=±30%,M=±20%，K=±10% 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -1- SMD Power Inductors -YSPI1365 Series ■ Shapes and Dimensions (Unit：mm) TYPE A B C Max. D E Ref. F Ref. G Ref. H Ref. YSPI1365 13.8±0.5 12.6±0.5 6.5 2.5±0.5 3.5±0.5 4.5 14.5 8.0 ■ YSPI1365 Series DC Resistance (mΩ) Heat Rating Saturation (uH) @100KHz Typ. Max. Current (A) Current (A) YSPI1365-R22□ 0.22 0.39 0.90 38.0 70.0 YSPI1365-R36□ 0.36 0.75 1.00 36.0 65.0 YSPI1365-R80□ 0.80 0.86 1.20 20.0 32.0 YSPI1365-2R2□ 2.20 4.70 6.10 17.0 26.0 YSPI1365-3R3□ 3.30 5.90 7.10 15.0 27.0 YSPI1365-5R6□ 5.60 9.00 12.00 12.0 24.0 YSPI1365-7R8□ 7.80 13.50 17.00 10.0 17.0 YSPI1365-100□ 10.0 15.00 18.00 8.0 12.0 YSPI1365-220□ 22.0 33.50 36.00 5.0 8.0 YSPI1365-330□ 33.0 48.00 57.00 4.0 6.0 YSPI1365-470□ 47.0 57.50 75.00 5.0 7.0 YSPI1365-560□ 56.0 74.00 95.00 3.0 4.5 YSPI1365-680□ 68.0 113.0 148.0 3.0 6.0 YSPI1365-101□ 100 240.0 310.0 2.5 4.0 YSPI1365-151□ 150 231.0 280.0 2.0 3.0 Part Number Inductance 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -2- SMD Power Inductors -YSPI1365 Series ※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃) ※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃) ※ The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value. 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -3- SMD Power Inductors -YSPI1365 Series ■ Taping Dimensions(Unit:mm) TYPE W A B C D E P K Ref T MPQ YSPI1365 24±0.3 12.8±0.1 13.70±0.1 10.75 11.5±0.1 7.0±0.1 20±0.1 6.7 0.50±0.05 500 ■ Reel Dimensions(Unit:mm) TYPE W W1 W2 W3 A B C D YSPI1365 330±2.0 24.4±1.5 30.4MAX 23.9 Min 13.0±0.50 21.0±0.80 2.0±0.50 100 Min 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -4- SMD Power Inductors -YSPI1365 Series ■ Direction of rolling ■ Cover tape peel off condition Cover tape peel force shall be 0.1N to 1.3N. Reference peel speed 300±10mm/min. 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -5-
