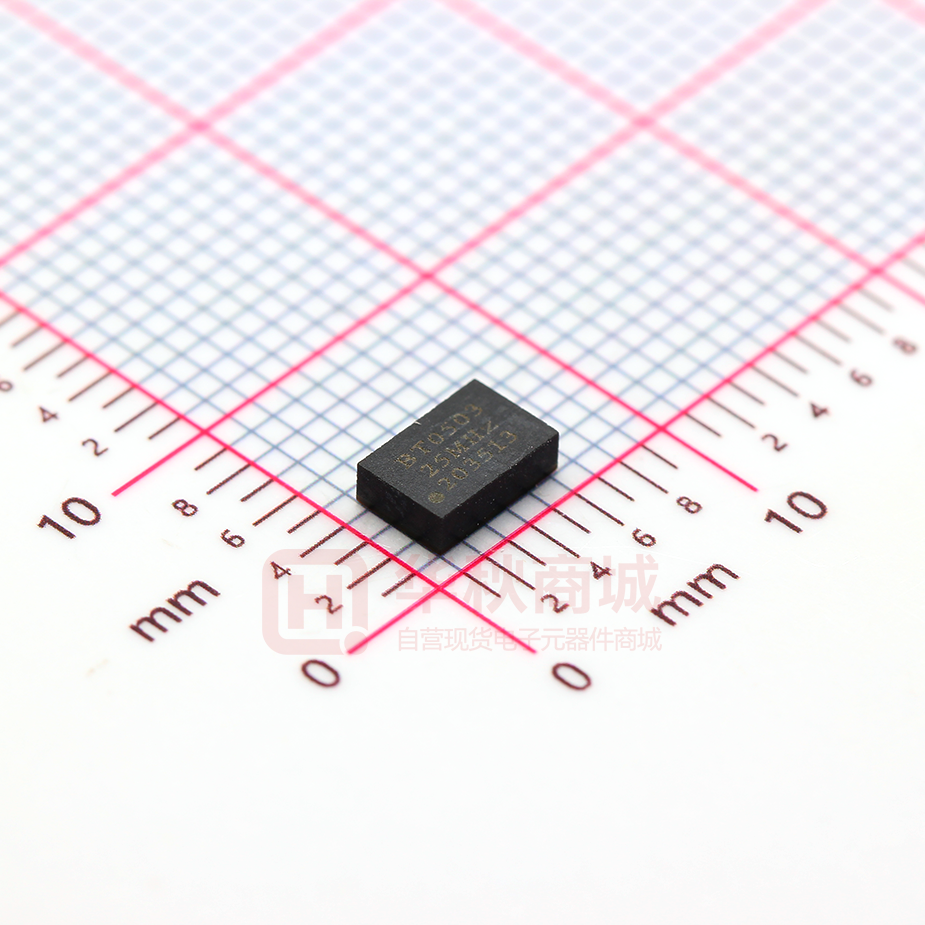

BT0503H3I507CN25A

BT0503 Temperature Compensated Crystal Oscillator Features Applications ● Ultra Stable ● Wide Temperature Range ● SMD Package (5.0×3.2mm) ● ● ● ● ● Base Stations Instrumentations Synthesizer SDH/SONET Medical Electronics BT0503 Specifications Parameter Supply Voltage Supply Current Min. Value Typ. Max. – 3.3 – V – 5 – V 3 – 6 mA Frequency Range Nominal Frequency Initial Frequency Tolerance Freq. Stability Vs. Temp. Clipped Sine Wave Output Level 10 ~ 52 Unit Conditions MHz 10, 12.8, 16.384, 19.2, 20, 24.576, 25, 26, 30.72, 40, 50 MHz ±0.05 – ±0.5 ppm At shipment, nominal EFC, +25℃ ±0.05 – ±0.5 ppm -20℃~+70℃ ±0.1 – ±0.5 ppm -40℃～+85℃ ±0.2 – ±1.0 ppm -50℃～+90℃ ±0.5 – ±1.0 ppm -55℃～+95℃ 0.8 – – Vp-p 10kΩ//10pF Load VOH 2.4 – – V LVCMOS Output, Load=15pf VOL – – 0.4 V LVCMOS Output, Load=15pf Duty Cycle 45 – 55 % ( VOH - VOL)/2 Rise/Fall Edge – – 6 ns LVCMOS Output, Load=15pf Load – – 15 pf RMS Jitter(By E5052B) – – 1.3 ps Supply Sensitivity – – ±0.1 Load Sensitivity – – ±0.2 – – ±1.0 ±0.3 – ±0.8 Customized – – -95 Offset 10Hz – – -120 Offset 100Hz – – -140 – – -145 Offset 10kHz – – -150 Offset 100kHz LVCMOS Aging/ First Year SSB Phase Noise @10MHz Control Voltage Range Frequency Turning Range 1.5 ± 1.0 ±5 Tuning Slope Non-linearity 12KHz~5MHz Vcc±5% ppm dBc/Hz Load±5% Standard Offset 1kHz At +25℃ V – ±12 ppm 10 % Positive – – 1/4 Release Date: Aug.30. 2016 BT0503 Temperature Compensated Crystal Oscillator Phase Noise @1KHz Freq. Range
