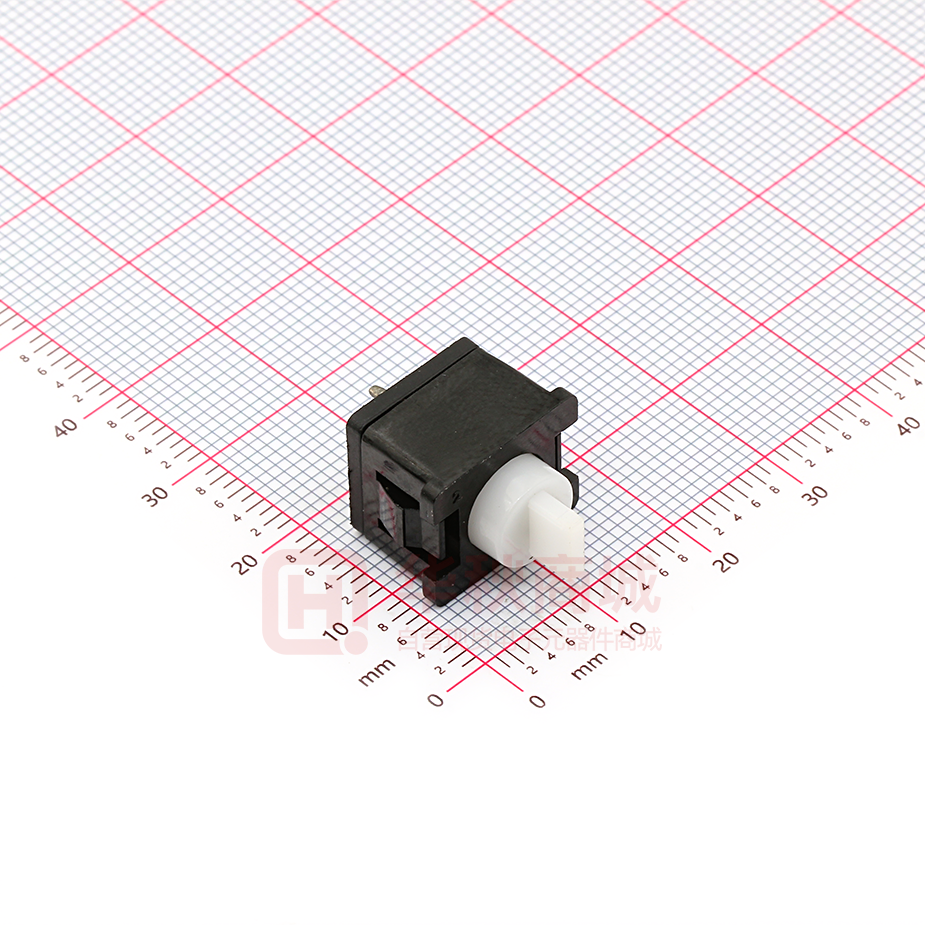

XKB11E01-W

12[0.472] 12[0.472] 7.9[0.311] 7.8[0.307] 1.75[0.068] 5.9[0.232] SPECIFICATIONS 7.0[0.276] 1.ELECTRICAL 10[0.394] 21[0.826] 3 [0,118] Contact rating Contact resistance Insulation resistance Dielectric strength 0.1A, 30VDC 50mWMax. 100MWMin. at 250VDC 250VAC Min. for 60 sec. 1,5 [0,059] 0.5[0.0197] 4.0[0.157] 0.6[0.023] 1.1[0.043] 4.2[0.165] 12.9[0.508] 5 4 3 2 1 ITEM Terminal Contact Base Cover Keystake 2 2 1 1 1 ag Plated Brass Phosphor Bronze PAPT NAMF TER‚NO QTY ag Plated Poly Pa66 Daicel MATERIAL FINISHING REMARK 2P ON-OFF ANGLAR X.X X.XX X.XXX X X X MARK DATE DESCRIPTION www.xk-dg.cn REVISIONS www.helloxkb.com REVISED ±5° ±0.2mm ±0.1mm ±0.05mm APPROVED UNSPECIFIED TOLERANCES www.helloxkb.cn DSND DATE SCALE: N/A MODEL TYPE: DWN DATE VIEW: CHKD DATE UNIT: mm/in APPD DATE SIZE: A4 KEY SWITCH XKB INDUSTRIAL PRECISION CO.,LIMITED PART NO.: DWG NO.: WEIGHT 1.0g XKB11E01 SHEET 1/1 REVISION A0
