SMQP104K350XXD2B1515

SMQP104K350XXD2B1515

  • 厂商:

    CHAMPION(全鹏)

  • 封装:

    CAP_D18X6MM_TM

  • 描述:

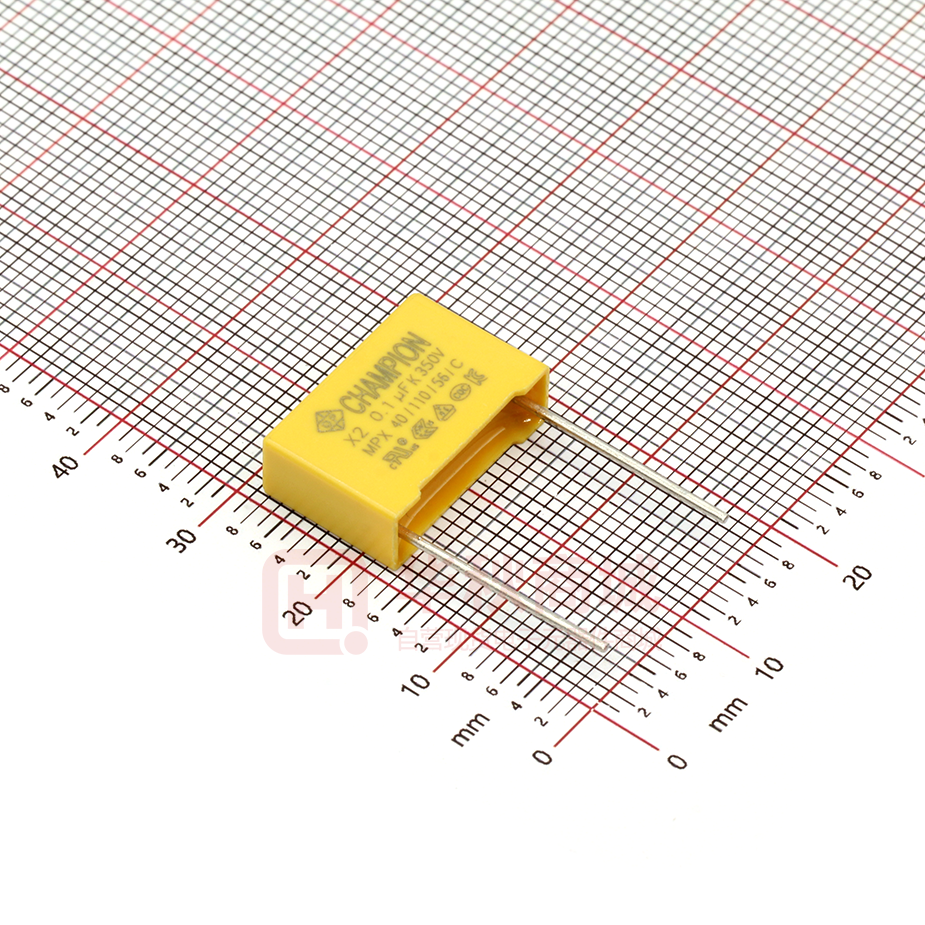

    安规电容 CAP_D18X6MM_TM 100nF ±10% 350V

  • 数据手册
  • 价格&库存
SMQP104K350XXD2B1515 数据手册
东 莞 市 全 鹏 电 子 科 技 有 限 公 司 DONGGUAN CHAMPION ELECTRONIC TECHNOLOGY CO., LTD. 承 认 书 ( APPROVAL SHEET) 品名 PART NAME METALLIZED POLYPROPYLENE FILM CAPACITOR ( MPX-QP) 承认规格 APPROVE ITEM 104K350V P=15mm 全鹏料号 CHAMPION PART NO SMQP104K350XXD2B1515 客户名称 CUSTOMER 华秋 客户料号 PART NO 2019.8.27 送样承认日期 DATE 承 认 印 APPROVAL STAMP 供 应 商 VENDER 东莞市全鹏电子科技有限公司 联系人:谢先生 联系电话:13929202898 东莞市茶山镇卢边恒兴昌工业园 B 栋 4 楼 TEL:0769-86862908 FAX:0769-86862918 www.champion-dg.com 客 戶 CUSTOMER 东莞市全鹏电子科技有限公司 文件名称 MPX Approval Sheet-QP (BOX-TYPE Metallized Polypropylene Film Interference Suppression Capacitor) 文件编号 QP-AP-28 版本 1/A 页码 07/01 1. Scope: This specification applied to capacitor for type MPX(BOX-TYPE Metallized Polypropylene Film Interference Suppression Capacitor) 2. Operation Temperature: -40℃ ~ +110℃ 3. Capacitance Range: 0.001uF ~ 4. 7uF 4. Capacitance Tolerance: ±5%(J)、±10%(K)、±20%(M) 5. Rated Voltage: 250VAC/275VAC/300VAC/310VAC/330VAC/350VAC(50~60 Hz) 6. Approvals File No Related Standard UL ENEC VDE UL 60384-14 EN60384-14: 2013 EN60384-14: 2006-04 IEC60384-14(ed.3) Certificate No E477525 ENEC-01273 40044148 Approved Monogram 东莞市全鹏电子科技有限公司 文件名称 MPX Approval Sheet-QP (BOX-TYPE Metallized Polypropylene Film Interference Suppression Capacitor) Related Standard CQC 文件编号 QP-AP-28 Certificate No 版本 1/A 页码 07/02 Approved Monogram CQC160011419 IEC60384-14:2005 91 SU03097-17001 SU03097-17002 KC60384-14(2015-09) KC SU03097-17003 KC60384-1(2015-09) SU03097-17004 SU03097-17005 7. CHAMPION Part No.: □□□□ 1 □□□ 2 (tape) □ 3 □□□ 4 (capacitance) (tolerance) □□□□ 5 □ 6 □□ 7 □□ 8 (Box Type) ( Rated Voltage ) (lead forming) (lead pitch) (lead length) 7-1 tape: Code SMQP Tape X2QP 7-2 Capacitance: Code 472 103 104 205 Capacitance 0.0047uF 0.01 uF 0.1uF 2.0 uF 东莞市全鹏电子科技有限公司 MPX Approval Sheet-QP (BOX-TYPE Metallized Polypropylene Film Interference Suppression Capacitor) 文件名称 文件编号 QP-AP-28 版本 1/A 页码 07/03 7-3 Tolerance: Code J K M Tolerance ±5% ±10% ±20% 7-4 Rated Voltage: 250 250VAC 275 275VAC 300 300VAC 310 310VAC 330 330VAC 350 350VAC 7-5BOX TYPE: Code Size(m m) XXB5 XXC2 XXC3 C5-1 10(W)×6(T)×12(H) 12(W)×5(T)×11(H) 13(W)×6(T)×12(H) 13(W)×8(T)×14(H) XXD7 XXD2 XXD4 XXD5 18(W)×10.8(T)×19(H) 18(W)×6(T)×12(H) 18(W)×8.4(T)×14.5(H) 18(W)×9.5(T)×15.5(H) XXE1 XXE2 XXE3 XXE6 26.5(W)×6(T)×15(H) 26.5(W)×7(T)×16.5(H) 26.5(W)×8.5(T)×17(H) 26(W)×12(T)×21.5(H) XXF1 XXF2 XXF3 XXF4 31.4(W)×11(T)×20(H) 31.5(W)×13(T)×22(H) 31(W)×14(T)×25(H) 32(W)×16(T)×25.5(H) Code Size(m m) Code Size(m m) Code Size(m m) 7-6Lead forming: Code B R U W T S Lead TAPING Forming TAPING 7-7 Lead Pitch:Showing the capacitor lead pitch, For example: Code 10 15 23 28 31 Pitch(mm) 10mm 15mm 22.5mm 27.5mm 31mm 7-8 Lead length: Showing the capacitor lead Length, For example: Code Length(m m) 04 08 10 15 25 30 40 4mm 8mm 10mm 15mm 25mm 30mm 40mm 东莞市全鹏电子科技有限公司 文件名称 MPX Approval Sheet-QP (BOX-TYPE Metallized Polypropylene Film Interference Suppression Capacitor) 文件编号 QP-AP-28 版本 1/A 页码 07/04 8. Specifications ( IEC60384-14) No Test items Performance Withstand voltage (Between Terminals) Test Method Shall be no abnormality 430% Rated Voltage DC Test 60sec. Shall be no abnormality UR×200%+1500VAC, 60sec. 8-1 Between terminal and Enclosure 8-2 Insulation resistance (Between Terminals) CR ≤ 0.33uF IR ≥ 15,000MΩ CR > 0.33uF IR ≥ 5,000 MΩ÷ C(uF) Measured at 100±15VDC, For 60sec / 25℃ 8-3 Capacitance Within the tolerance specified 1KHz, 1Vrms Max. at 25℃ 8-4 Dissipation Factor 0.001 (0.1%) Max. 1KHz, 1Vrms Max. at 25℃ 东莞市全鹏电子科技有限公司 文件名称 MPX Approval Sheet-QP (BOX-TYPE Metallized Polypropylene Film Interference Suppression Capacitor) 文件编号 QP-AP-28 版本 1/A 页码 07/05 8-5 8-6 Tense Strength of Terminal Bending Strength of Terminal No wire breakage and No 1. Load Force : 1.0 Kg Damage of 2. Holding Time : 10 Capacitor 1sec No wire breakage and No 1. Load Force : 0.5 Kg Damage of 2. Bending Time : 4 x 90 ゚ in Capacitor 5sec ± a. Solder temperature: 270 8-7 Solder-ability 95% Of The Surface Tinning ±5℃ b. Solder time: 2±0.5sec The terminal of capacitor shall be (1) Appearance : No Visible Damage 8-8 Heat Shock test (2) Withstand Voltage : Normal immersed in the melting solder. a. Solder temperature: 270 (3) Capacitance Change : ≤ ±3% ±5℃ of b. Solder time: 3±0.5sec The Initial Value c. Test Voltage: 150% of The Rate Voltage For 1min. (1) Appearance : No Visible Damage 8-9 Cold Resistance a. Test Temperature: -40℃ (2) Capacitance Change : ≤ 0~ -10% b. Test Times: 2Hrs of The Initial Value (1) Appearance : No Visible Damage (2) Withstand Voltage : Normal 8-1 0 Dry Heat Resistance (3) Capacitance Change : ≤ +5~ -2% Of The Initial Value (4) Insulation Resistance: ≥50%of the rated value a. TEST TEMPERATURE: 110℃ ± 2℃ b. Test Times: 2Hrs 东莞市全鹏电子科技有限公司 文件名称 MPX Approval Sheet-QP (BOX-TYPE Metallized Polypropylene Film Interference Suppression Capacitor) 文件编号 QP-AP-28 版本 1/A 页码 07/06 9. Dimensions: T(±0.5mm) W(±0.5mm) CAPACITOR BODY SIZE (Unit:mm) H (±0.5mm) CAP RV BOX TYPE W ±0.5 H ±0.5 T ±0.5 D ± 0.05 p ± 0.5 104 350 D2 18 12 6 0.8 15 A(±1mm) P±0.5mm B D±0.05mm R U W B RV Lead Style S TAPING (refer to next page) Customer Require model-A section±1mm CAP T K.R.U.Wmodel -A section ± K.R.U.W model-Bsect P(±0.5mm) ion±0.5mm 0.5mm 104 350 B 15 15 东莞市全鹏电子科技有限公司 版本 1/A 文件名称 MPX Approval Sheet-QP (BOX-TYPE Metallized Polypropylene Film Interference Suppression Capacitor) 文件编号 QP-AP-28 页码 07/07 10. Marking: CHAMPION CO.LOGO 0.1 CAPACITANCE K CAPAC.ITANCE TOLERANCE 350 RATED VOLTAGE V AC VOLTAGE BOX-TYPE METALLIZED X2 POLYPROPYLENE FILM G-Working Lowest Temperature (40℃) 40/110/56 M-Working highestTemperature(+110℃) F- Working Times (56days) 11.Storage conditions and duration Packaged capacitors should be kept in clean, ventilated, dry coffers, not near the heat source, not subject to direct sunlight, is strictly prohibited and chemical reagents, acid and harmful gas storage together. Capacitor at a temperature within the range 20 ~ 25 ℃, humidity less than 50% of the state of storage for one year.
SMQP104K350XXD2B1515 价格&库存

很抱歉,暂时无法提供与“SMQP104K350XXD2B1515”相匹配的价格&库存,您可以联系我们找货

免费人工找货
SMQP104K350XXD2B1515
  •  国内价格
  • 20+0.19240
  • 200+0.17940
  • 500+0.16640
  • 1000+0.15340
  • 3000+0.14690
  • 6000+0.13780

库存:485
