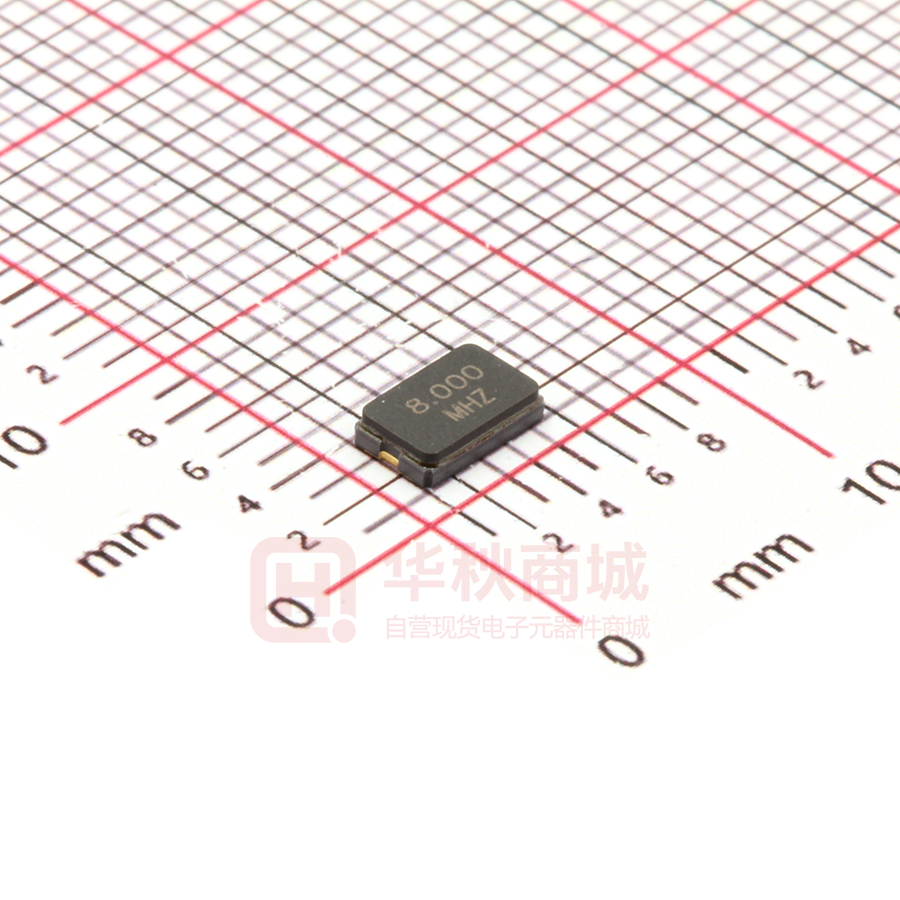

SMD-5032_2P 8M 20PF 30PPM 数据手册
深 圳 市 雅 晶 鑫 有 限 公 司
Shenzhen Yajingxin Electron Co.,Ltd
SPECIFICATION
FOR
APPROVAL
0.00
CUSTOMER
NOMINAL FREQUENCY
8~50MHZ
HOLDER TYPE
SMD-5032-2PIN
SPEC. NO. ( P/N )
CUSTOMER P/N
ISSUE DATE
APPROVED
Aug.3,2016
PREPARED
APPROVED BY CUSTOMER:
Please return one copy with approval toHLC
H0-R-4-014
QA
AVL Status
TYPE HF SEAM SEALED X'TAL
ELECTRICAL SPECIFICATIONS
HLC Parts Number :
Item
Symbol
Specifications
Min
Type
8~50
Max
Notes
Units
Nominal frequency
FO
Mode of Oscillation
OT
Load Capacitance
LC
20
pF
Frequency Tolerance
FT
± 20
ppm
at 25℃ ± 3℃
± 30
ppm
with working temperature
Reference to 25℃
Frequency Stability
MHz
Fundamental
Working temperature range
TR
-40~85
℃
Drive Level
DL
100
µW
Series Resonant Resistance RR CI/RR
Shunt Capacitance C0
Aging
Storage temperature range
Unit Weight
C0
Ω
7
pF
±3
ppm/yr.
-55 ~ 125
℃
g
Shenzhen Yajingxin Electron Co.,Ltd
H0-R-4-014
Max.
Shenzhen Yajingxin Electron Co.,Ltd
MARKING
中性
CODE
N
O
P
20 pF
22 pF
24 pF
Shenzhen Yajingxin Electron Co.,Ltd
H0-R-4-014
TYPE HF SEAM SEALED X'TAL
RELIABILITY SPECIFICATIONS
NO.
TEST ITEM
TEST METHODS
1
DROP TEST
Device are dropped from a height of 150 cm onto
2 mm thickness stainless plate executing 3 times
of random drops.
2
MECHANICAL SHOCK
Device are shocked to half sine wave (1000 G)
three mutually perpendicular axes each 3 times.
3
VIBRATION
Frequency range
Amplitude
Sweep Time
Test Time
4
SOLDERABILITY
MIL - STD - 20E Method 208C
Temperature
245℃±5℃
Material
H63A (Silver 2 ~ 3 %)
Immersion depth
0.5 mm minimum
Immersion time
3 ± 0.5 seconds
Flux
Rosin resin methyl
alcohol solvent ( 1 : 4 )
5
RESISTANCE TO
SOLDERING HEAT
MIL - SLD -202, Method 210, Condition I or J
10 sec immersion into 260 ± 5℃ solder pot,
above 180℃ is 90 ~ 120 sec.
6
LOW TEMP. STORAGE
Leave at - 55 ℃ ± 2℃ for 1000 ± 12 hours
7
HIGH TEMP. STORAGE
Leave at 125 ℃ ± 2℃ for 1000 ± 12 hours
8
THERMAL SHOCK
Total 100 cycles of the following temperature
cycle
10 ~ 2000 Hz
1.5 mm
20 minute
2 hours
1 cycle
125 ℃ ± 3 ℃
25 ℃
30 min
- 55 ℃ ± 3 ℃
30 min
10 min
Shenzhen Yajingxin Electron Co.,Ltd
H0-R-4-014
TYPE HF SEAM SEALED X'TAL
DIMENSIONS
Shenzhen Yajingxin Electron Co.,Ltd
H0-R-4-014
TYPE HF SEAM SEALED X'TAL
SUGGESTED IR REFLOW PROFILE
Total Time:200 Sec.Max
Solder melting point :185℃
PACKING
1. 230mm minimum leafer which consist of carrier and/or tape followed by a minimum of
160mm of empty carrier tape sealed with cover tape.
2. 160mm minimum trailer of empty carrier tape sealed with cover tape.
Shenzhen Yajingxin Electron Co.,Ltd
H0-R-4-014
TYPE HF SEAM SEALED X'TAL
PACKING
Begin
Close
Start
LABEL
1000pcs-Product Tape
End
inner packing carton
blue qualified label
storeroom label
storeroom label
storeroom label
deliver packing carton
(L29*W24*H30)
Green qualified label
Shenzhen Yajingxin Electron Co.,Ltd
H0-R-4-014
