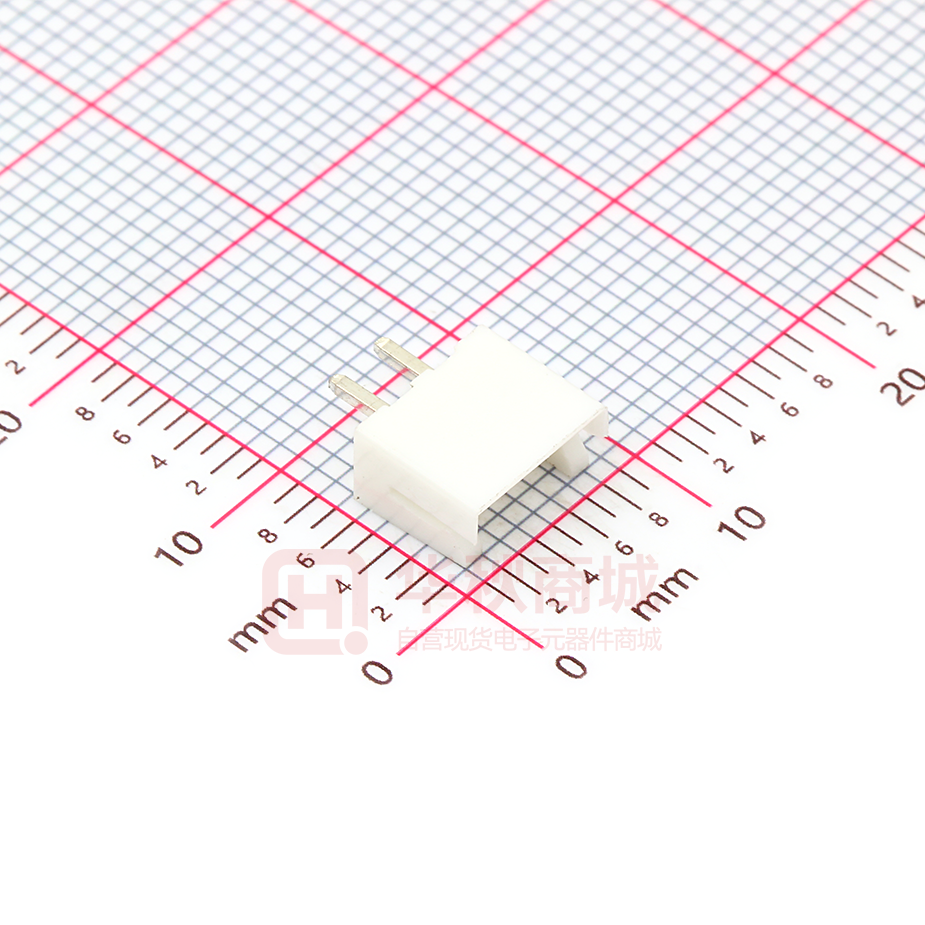

X2581WV-02-N0SN

1.70±0.15 Circuit 1 01 Specifications : Voltage rating: 250V AC / DC Current rating: 3A AC / DC Withstanding voltage: 800V AC/minute Temperature range: -25°C~+85°C Insulation resistance:≥1000MΩ Contact resistance: ≤10mΩ After environmental testing：≤20mΩ 02 B±0.30 11 03 5.20 04 07 08 6.00±0.30 4.60 0.64±0.10 3.30±0.25 3.90±0.25 09 0.90±0.10 0.90±0.10 With Kink With Reverse Kink 10 0.90±0.10 2.50±0.10 05 A±0.25 06 2.50±0.10 90 Ø 0. 0 ±0.1 X2581 W V X- XX X-N0 SN XX 1 PART N0 Nylon 66 UL 94V-0 Material Brass Tin-Plated 3 4 5 6 7 8 9 1 Series No. 2 Category：W-Wafer 3 Welding Board Angle：V-180° ; R-90° 4 Welding Way: Blank-DIP ; S-SMT 5 Row No.-Pin No.: XX-Single Row ; 2*XX-Double Row 6 Plug the Pin & Special No. : Blank-With Kink Poles A-Without Kink ; B-With Reverse Kink 7 Material: N0 -PA66 94V-0 8 Plating Category: G**-Gold Plated Contact V**- All Gold-Plated 01-Gold Flash 02-2u" 03-3u" 05-5u" 10-10u" 15-15u" SN-Bright Tin Plating (70u") SN1-Bright Tin Plating (120u" Min). 0-No Plating Material SW- Fog Tin Plating HS-Hight temperature Tin 9 Color : Blank-Natural Color Recommand PCB Layout X2581WV-XXX-N0SN 2 X2581H Material(Pin) Finish(Pin) Mates With XKB Housing 02 03 04 05 06 07 08 09 10 11 12 13 14 15 Without Kink Dimensions (mm) A 2.50 5.00 7.50 10.00 12.50 15.00 17.50 20.00 22.50 25.00 27.50 30.00 32.50 35.00 B 7.50 10.00 12.50 15.00 17.50 20.00 22.50 25.00 27.50 30.00 32.50 35.00 37.50 40.00 X2581WV-XXX-N0SN 2.50 mm Crimp Style connectors ＸＫＢ　ＩＮＤＵＳＴＲＩＡＬ　ＰＲＥＣＩＳＩＯＮ　ＣＯ．，ＬＩＭＩＴＥＤ
