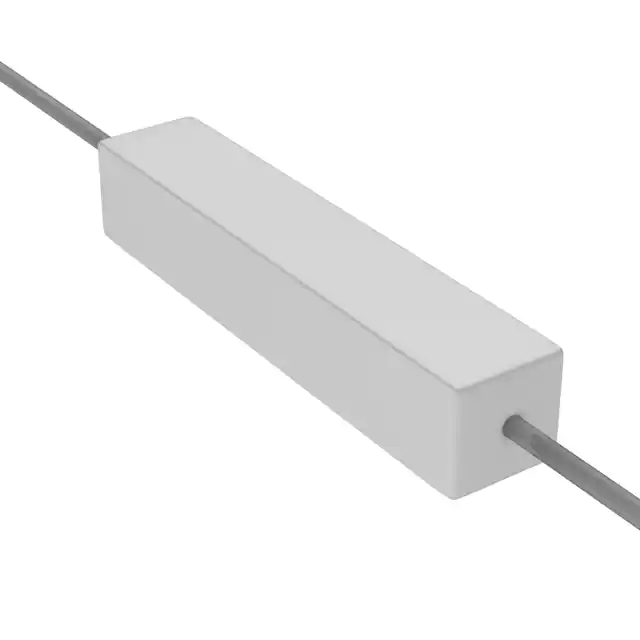

SQP10AJB-2R4

Through-hole resistors Axial Lead Type Cement Resistors Normal Style [ SQP Series ] Non-Inductive Style [ NSP Series ] FEATURES Power Rating 2W, 3W, 5W, 7W, 10W, 15W, 20W, 25W, 30W, 40W Resistance Tolerance ±5% T.C.R. ±300ppm/°C DERATING CURVE 25 40 70 Rated Load The materials used and the construction techniques ensure excellent flame resistance, arc resistance and moisture resistance as well as self-extinguishing capabilities. They will withstand the most rigorous loading test. (%) 155 275 °C 100 15W-40W 3W-5W 7W-10W 2W 80 60 40 (°C) 20 0 -50 As resistors in radio and television receivers, hazardous conditions such as smoking and redheat can be completely prevented by the proper choice of power resistors. Temperature Rise INTRODUCTION TEMPERATURE RISE 300 20W-40W 15W 10W 250 200 7W 5W 150 3W 100 2W 50 0 50 100 150 200 250 300 20 40 60 Ambient Temperature (°C) Unit: mm STYLE L 100 120 Rated Load (%) DIMENSIONS 32±3 80 32±3 W ød H DIMENSION Normal Non-Inductive L W H ød SQP200 NSP200 18±1.0 7.0±1.0 7.0±1.0 0.65±0.05 SQP300 NSP300 22±1.5 8.0±1.0 8.0±1.0 0.8±0.05 SQP500 NSP500 22±1.5 9.5±1.0 9.0±1.0 0.8±0.05 SQP700 NSP700 35±1.5 9.5±1.0 9.0±1.0 0.8±0.05 SQP10A NSP10A 48±1.5 9.5±1.0 9.0±1.0 0.8±0.05 SQP15A NSP15A 48±1.5 12.5±1.0 12.5±1.0 0.8±0.05 SQP20A NSP20A 60±5.0 12.5±1.0 12.5±1.0 0.8±0.05 SQP25A NSP25A 60±5.0 14.0±1.5 13.0±1.5 0.8±0.05 SQP30A NSP30A 77±5.0 18.0±1.5 17.0±1.5 0.8±0.05 SQP40A NSP40A 90±5.0 19.0±1.5 18.0±1.5 0.8±0.05 61 ELECTRICAL CHARACTERISTICS Normal Style STYLE SQP200 SQP300 SQP500 SQP700 SQP10A Power Rating at 25°C Power Rating at 40°C 3W 5W 7W SQP15A SQP20A SQP25A SQP30A SQP40A 15W 20W 25W 30W 40W 10W Power Rating at 70°C 2W Maximum Working Voltage 250V 350V 500V 1,000V Maximum Overload Voltage 500V 700V 1,000V 2,000V Voltage Proof on Insulation 500V 700V 1,000V 2,000V Resistance Range (Wirewound) 0.1Ω - 36Ω 0.1Ω - 68Ω 0.1Ω - 130Ω 0.1Ω - 330Ω 0.1Ω - 510Ω 0.1Ω - 680Ω 0.15Ω - 1KΩ Resistance Range (Metal Oxide Film) 39Ω - 1MΩ 75Ω - 1MΩ 150Ω - 1MΩ 360Ω - 1MΩ 560Ω - 1MΩ 750Ω - 1MΩ 1.2KΩ - 1MΩ NSP500 NSP700 NSP10A NSP15A NSP20A NSP25A NSP30A NSP40A 15W 20W 25W Operating Temp. Range -55°C to +155°C Temperature Coefficient ±300ppm/°C NON-INDUCTIVE STYLE STYLE NSP200 NSP300 Power Rating at 25°C Power Rating at 40°C Power Rating at 70°C Maximum Working Voltage 3W 5W 7W 30W 40W 10W 2W PxR Voltage Proof on Insulation 500V 700V Resistance Range (Wirewound) 0.08Ω - 10Ω 0.1Ω - 30Ω Operating Temp. Range -55°C to +155°C Temperature Coefficient ±300ppm/°C 1,000V 0.1Ω - 40Ω 0.15Ω - 65Ω 2,000V 0.25Ω - 100Ω 0.25Ω - 120Ω 0.36Ω - 160Ω Note: Special value is available on request ENVIRONMENTAL CHARACTERISTICS PERFORMANCE TEST TEST METHOD APPRAISE Short Time Overload IEC 60115-1 4.13 2.5 times RCWV for 5 Sec. ±2.0%+0.05Ω Voltage Proof on Insulation IEC 60115-1 4.7 in V-block for 60 Sec., test voltage by type By type Temperature Coefficient IEC 60115-1 4.8 -55°C to +155°C By type Insulation Resistance IEC 60115-1 4.6 in V-block for 60 Sec. >1,000MΩ Solderability IEC 60115-1 4.17 235±5°C for 3±0.5 Sec. 95% Min. coverage Solvent Resistance of Marking IEC 60115-1 4.30 IPA for 5±0.5 Min. with ultrasonic No deterioration of coatings and markings Robustness of Terminations IEC 60115-1 4.16 Direct load for 10 Sec. in the direction of the terminal leads ≥2.5kg (24.5N) Periodic-pulse Overload IEC 60115-1 4.39 4 times RCWV 10,000 cycles (1 Sec. on, 25 Sec. off) ±2.0%+0.05Ω Damp Heat Steady State IEC 60115-1 4.24 40±2°C, 90-95% RH for 56 days, loaded with 0.1 times RCWV ±5.0%+0.05Ω Endurance at 70°C IEC 60115-1 4.25 70±2°C at RCWV for 1,000 Hr. (1.5 Hr. on, 0.5 Hr. off) ±5.0%+0.05Ω Temperature Cycling IEC 60115-1 4.19 -55°C  Room Temp.  +155°C  Room Temp. (5 cycles) ±2.0%+0.05Ω Resistance to Soldering Heat IEC 60115-1 4.18 260±3°C for 10±1 Sec., immersed to a point 3±0.5mm from the body ±1.0%+0.05Ω Note: Rated Continuous Working Voltage (RCWV) =  Power Rating x Resistance Value or Max. working voltage listed above, whichever less. Revision: 201304 88 Explanations Of Ordering Code MFR -12 F Code 7 Tolerance T F Code 8 Packing Style Code 9 Temperature Coefficient of Resistance Code 1 - 3 Series Name Code 4 - 6 Power Rating See Index -05 = ød0.5mm P = ±0.02 % T = Tape/Box -06 = ød0.6mm A = ±0.05 % R = Tape/Reel - = Base on Spec. -07 = ød0.7mm B = ±0.1 % B = Bulk 52- 100R Code 10 - 12 Forming Type Code 13 - 17 Resistance Value 26- = 26mm 0R1 = 0.1 52- = 52.4mm 100R = 100 A = ±5 ppm/°C 73- = 73mm 10K = 10,000 81- = 81mm 10M = 10,000,000 -08 = ød0.8mm C = ±0.25% B = ±10 ppm/°C -10 = ød1.0mm D = ±0.5 % C = ±15 ppm/°C 91- = 91mm -14 = ød1.4mm F = ±1 % S = ± 20ppm/°C F = F Type -12 = 1/6W G = ±2 % D = ±25 ppm/°C FK = FK Type -25 = 1/4W J = ±5 % E = ±50 ppm/°C FKK = FKK Type 25S = 1/4WS K = ±10 % F = ±100 ppm/°C FFK = F-form Kink -50 = 1/2W - = Base on Spec. G = ±200 ppm/°C M = M-Type Forming 50S = 1/2WS H = ±250 ppm/°C MB = M-form W/flat 100 = 1W I = ±300 ppm/°C MT = MT Type Forming 1WS = 1WS J = ±350 ppm/°C MR = MR Type 200 = 2W AV = AVIsert 2WS = 2WS PN = PANAsert 204 = 0.4W 207 = 0.6W 300 = 3W 3WS = 3WS 3WM = 3WM 400 = 4W 500 = 5W 5WS = 5WS 5SS = 5WSS 700 = 7W 7WS = 7WS 10A = 10W 20A = 20W 30A = 30W 40A = 40W 50A = 50W 10S = 10WS 15A = 15W 25A = 25W 10B = 100W 25B = 250W EXCEPTION: • Cement series: • JPW series: : Special packing style code B: B  ulk with wirewound or metal oxide sub-assembly for resistance value W: Bulk with ceramic based wirewound sub-assembly for resistance value M: Bulk with metal oxide sub-assembly for resistance value F: Bulk with Fiberglass based wirewound sub-assembly for resistance value : Without forming code Example: SQP500JB-10R : without resistance value code Example: JPW-06-T-52-
