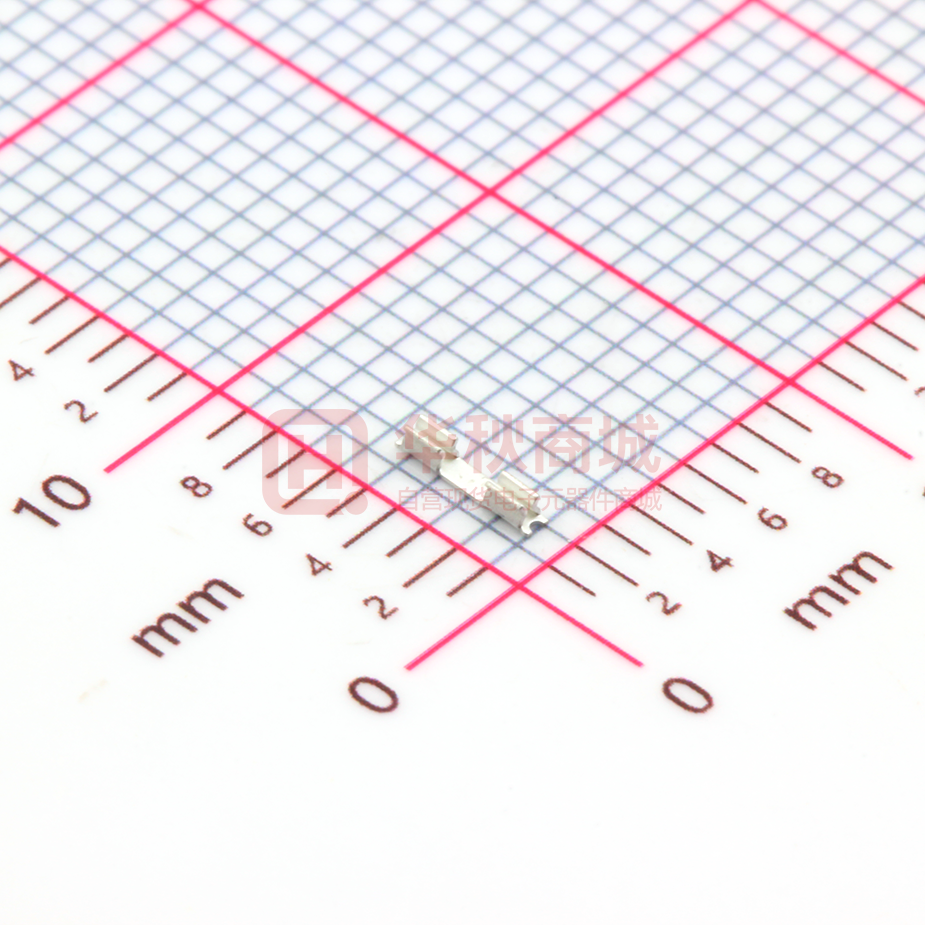

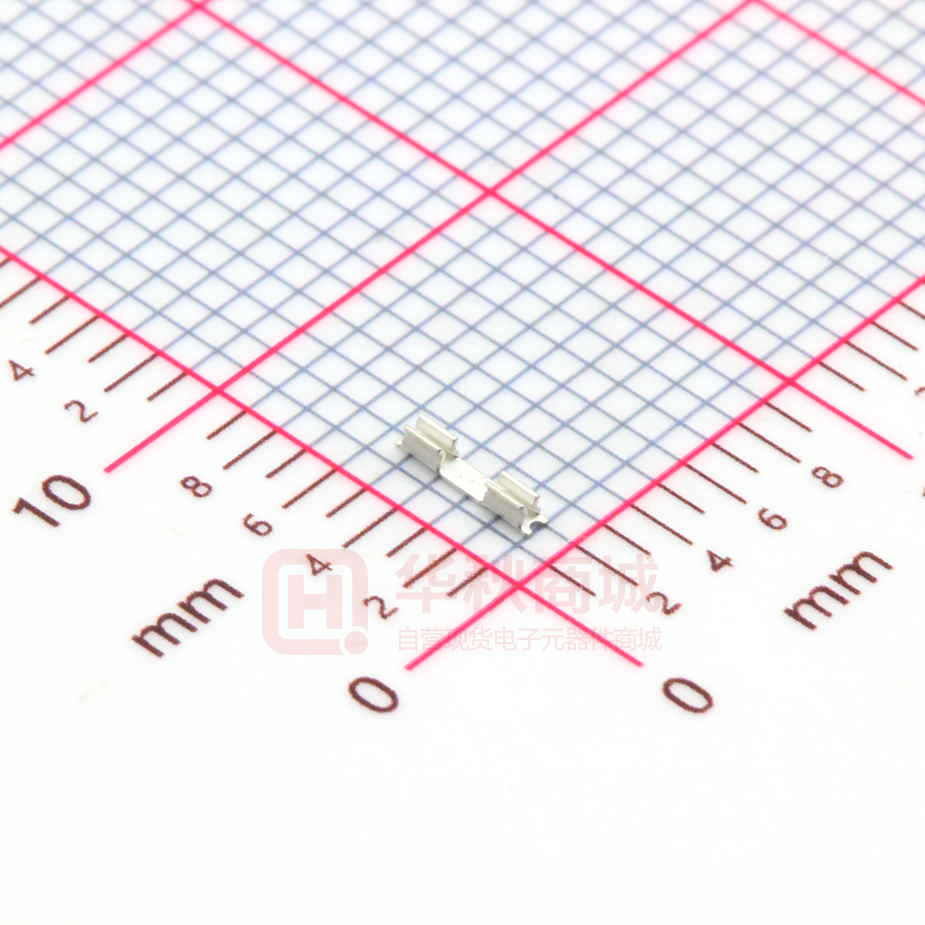

ICSRC4408SFR

R0 REVISION HISTORY REV DESCRIPTION A 신신 제제 pick-up부 형형 변변 B C 인인부 공공 변변0.7 +0.1 -0.15 1,2 ,2 4,4 1,5 2,7 1,75 ±0.1 D SHIELD CASE THICKNESS 0.2 ±0.02 => 0.2 +0.02 -0 2012.02.17 2012.03.30 P.K.KOH PK.KOH 4 ±0.1 2 ±0.05 1,2 0,3 +0.1 0 1,5 5,34 ±0.1 9,2 APPROVED P.K.KOH P.K.KOH TAPING 사양도 ( SCALE 4 /1 ) O 12 DATE 2010.08.12 2010.10.25 0,75 ±0.05 0,8 ±0.05 0,7 +0.02 -0.05 0,15 0,6 0,15 NOTES 1. MATERIAL : SUS301 2. MATERIAL THICKNESS :0.15t 3. FINISHED : Sn(100%) PLATING ON BOTH SIDE ( NI 0.5㎛ Sn 1.27㎛ ) 4. PACKING MATERIALS. - REEL : HIPS 0.3t - COVER TAPE : PS _ Q'TY/REEL : 10,000ea 5. AVAILABLE SHIELD CASE THICKNESS : 0.2 +0.02 -0 6. CONTACT RESISTANCE : MAX 300mmΩ +0.1 -0.05 SCALE 20/1 0,75 7. STENCIL THICKNESS : 0.12T 4,5 0,8 0,9 1 0,9 0,8 8. Maintain 90˚±3 while engage & disengage shield can & shield clip to prevent deformation & to maintain retention force of shield clip 0,8 0,75 DATA 4,4 RECOMMENDED PCB LAYOUT RECOMMENDED STENCIL LAYOUT APP. 2010.08.12 CHECK 2010.08.12 DESG. UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS TOLERANCES ARE ANGLES ± 0. 3° 0 ~ 1 ± 0.05 1 ~ 5 ± 0.1 5 ~ 10 ± 0.15 NAME LEE Solution Provider TITLE P.K.KO SIZE DWG NO SHIELD CLIP A3 ICSRC-4408 SFR FILE NAME: ICSRC-4408SFR.dft SCALE: WEIGHT: SHEET 1 OF 1 REV D
