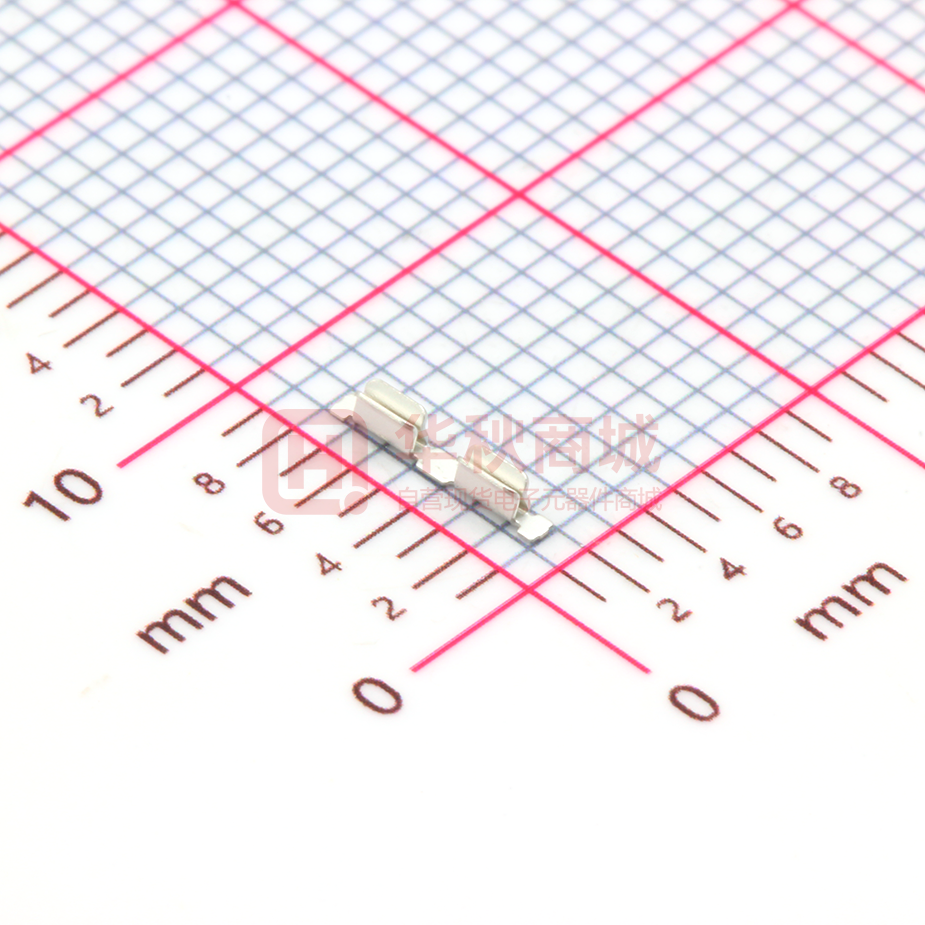

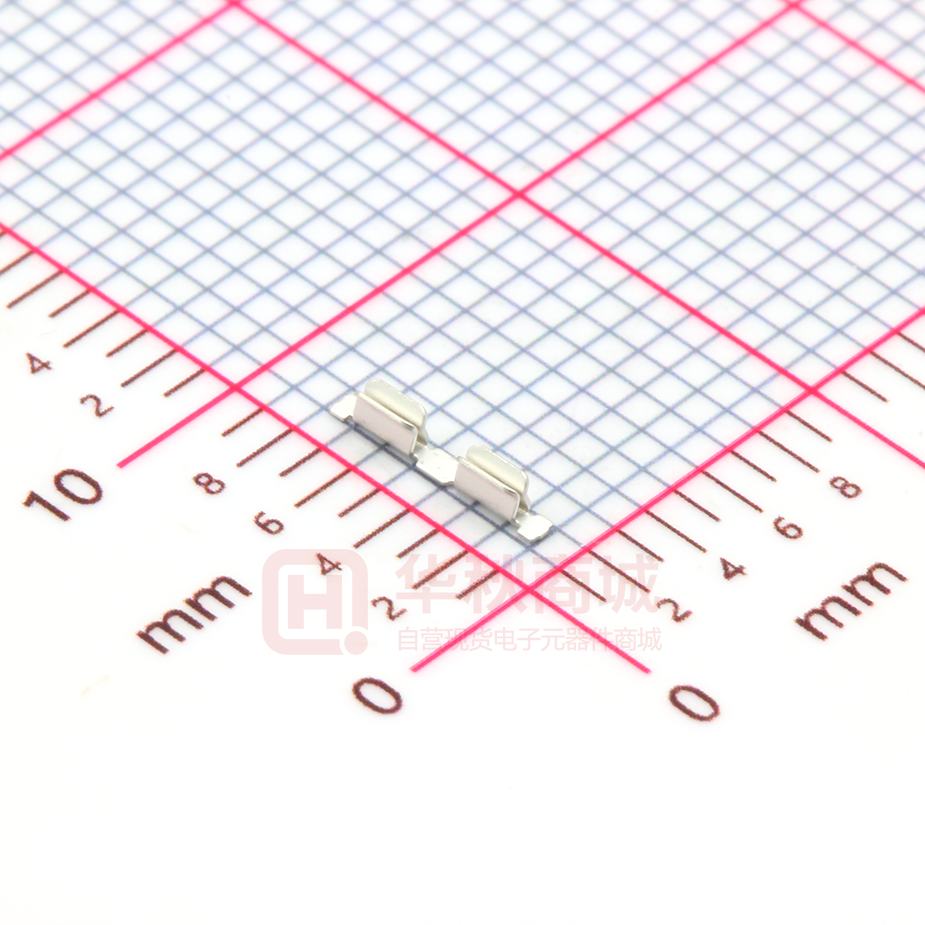

ICSRC6508-015SFR

0,8 0,4 REV 0,15 1,4 16 7,5 ±0.1 1,75 ±0.1 TAPING 사양도 (SCALE 2/1) 1,85 3,25 0,5 6,5 1 1,17 REVISION HISTORY DESCRIPTION 0,8 0,64 0,1 신신 제제 공차 차차 인인인 치치 차차 0.72 => 0.8 +0.1 -0.05 D SHIELD CASE THICKNESS 0.15±0.02 => 0.15 +0.02 -0 2 ±0.05 4 ±0.1 O 1,55 +0.1 0 4 ±0.1 NOTES 1. MATERIAL : SUS301 2. MATERIAL THICKNESS :0.15t 3. FINISHED : Sn(100%) PLATING ON BOTH SIDE (Ni0.5㎛ Sn1.27㎛) 4. PACKING MATERIALS. - REEL : HIPS 0.3t - COVER TAPE : PS _ Q'TY/REEL : 10,000ea 5. AVAILABLE SHIELD CASE THICKNESS : 0.15 +0.02 -0 6. CONTACT RESISTANE 300mmΩ MAX 7. INTENTION FORCE/RETENTION FORCE SPEC 0,8 +0.1 -0.05 +0.1 -0.05 +0.02 -0.03 A B C 0,76 SCALE : 15/1 SPEC DATE APPROVED 2009.10.05 P.K.KO 2010.05.10 P.K.KO 2011.11.24 P.K.KO 2012.03.30 P.K.KOH 0,3 1,5 INTENTION FORCE RETENTION FORCE MAX 0.8Kg MIN 0.1Kg 8. STENCIL THICKNESS : 0.12T 1,1 1 1,1 0,8 0,9 6,7 6,4 RECOMMENDED PCB LAYOUT RECOMMENDED STENCIL LAY-OUT 0.1T 9. Maintain 90˚±3 while engage & disengage shield can & shield clip to prevent deformation & to maintain retention force of shield clip UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS TOLERANCES ARE ANGLES ± 0. 3° 0 ~ 1 ± 0.05 1 ~ 5 ± 0.1 5 ~ 10 ± 0.15 TITLE SIZE DWG NO SHILED CLIP A3 ICSRC6508-015SFR FILE NAME: ICSRC6508-015SFR.dft SCALE: WEIGHT: SHEET 1 OF 1 REV D
