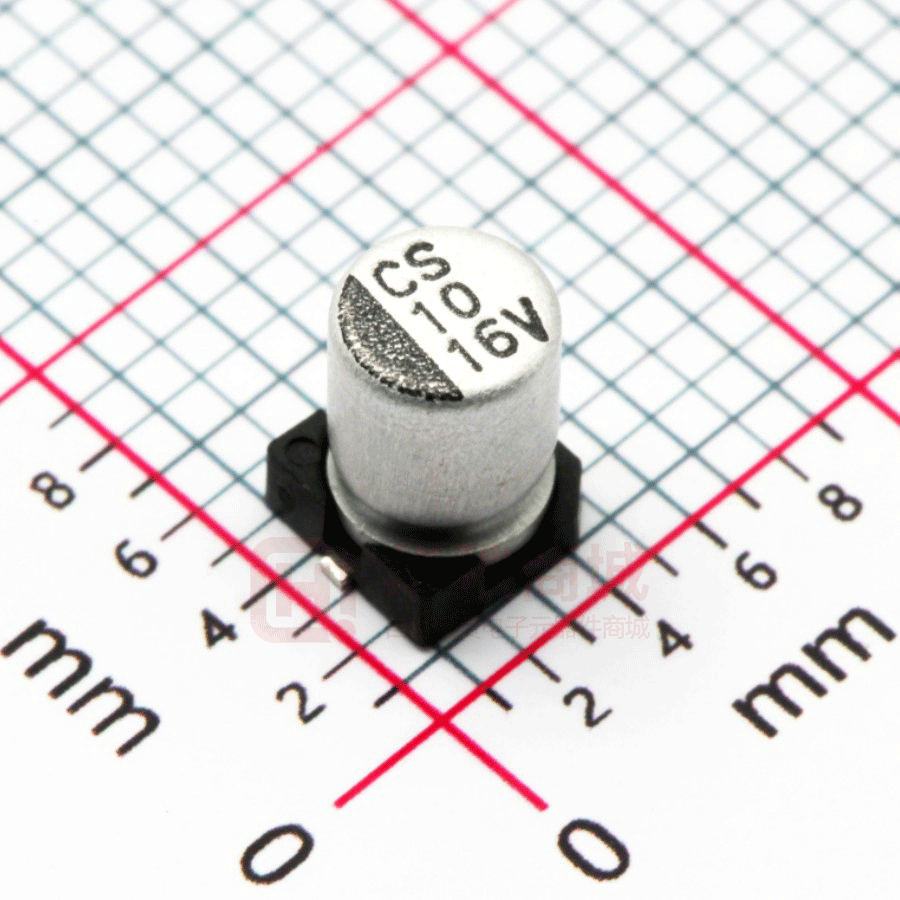

MCESL16V106M4X5.2

SL Series 85° SMD Ecap Features: • • • Designed for surface mounting on high density PC board Supplied with carrier taping for automatic mounting machine Guarantees 2,000 hours at 85°C Specifications Item Characteristics Operating Temperature Range -40°C to +85°C Working Voltage Range 4 to 100 V Capacitance Range 0.1 to 1,500 µF Capacitance Tolerance ±20% (120 Hz, 20°C) Maximum Leakage Current I ≤ 0.01 CV or 3 (µA) whichever is greater (after 2 mins.) Dissipation Factor at 120 Hz, 20°C tan δ (max.) Low Temperature Characteristics (Impedance ratio at 120 Hz) Load Life (After application of the rated voltage for 2,000 hrs at 85°C) Shelf Life (at 85°C) WV 4 6.3 10 16 25 35 50 63 100 Ø3 0.4 0.3 - 0.19 0.16 0.14 0.14 - - Ø4 to 6.3 0.35 0.26 0.2 0.16 0.14 0.12 Ø8 to 10 - 0.3 0.24 0.2 0.16 0.14 0.12 0.12 0.1 WV 4 6.3 10 16 25 35 50 93 100 Z-25°C / Z+20°C 7 4 3 2 2 2 2 2 2 Z-40°C / Z+20°C 15 8 8 4 4 3 3 3 3 Capacitance change Within ±25% of initial value (4 W V < ±30%) Tan δ Less than 200% of initial specified value Leakage current Less than specified value After 1,000 hrs no load test, leakage current, capacitance change and tan δ are as same as load life value Place terminal side surface on 250°C hot plate for 30 s allow test samples to be cooled down to room temperature Soldering Heat Resistance Capacitance change Tan δ Leakage Current Within ±10% of initial value Less than initial specified value www.element14.com www.farnell.com www.newark.com Page 10/09/11 V1.1 SL Series 85° SMD Ecap Diagram of Dimensions Dimensions : Millimetres ØD ±0.5 Maximum L 3 5.4 α 5.2 4 6 5 0.3 5.2 6.3 6 A ±0.2 B ±0.2 C ±0.2 W P ±0.2 3.3 3.3 1.5 0.45 to 0.75 0.6 4.3 4.3 1.8 5.3 5.3 2.1 6.6 6.6 2.4 8.3 8.3 2.9 10.3 10.3 3.2 1 0.5 to 0.8 1.4 2.2 7.7 8 10.5 10 0.5 0.7 to 1 3.2 4.6 Dimensions : Millimetres Dimensions and Maximum Permissible Ripple Current mA (rms) at 120 Hz, 105°C WV 4 µF 6.3 10 16 25 35 50 63 100 0.1 - - - - - - - - - - - - 1 1 - - 0.22 - - - - - - - - - - - - 2 2.3 - - 0.33 - - - - - - - - - - - - 3.5 - - 5 - - 10 4×5 10 0.47 - - - - - - - - - - - - 1 - - - - - - - - - - - - - * (8) - * (10) 2.2 3.3 - - - - - - - 4.7 - - - - - - - 10 - - - - - - *4 × 5.2 - - 16 *4 × 5.2 4 × 5.2 (12) 25 5 × 5.2 27 (15) 5 × 5.2 2.8 *4 × 5.2 4 4 × 5.2 5.4 (8) 13 (10) 4 × 5.2 15 17 18 5 × 5.2 20 29 6.3 × 5.2 33 20 5 × 5.2 6.3 × 5.2 20 6.3 × 6 23 34 28 35 6.3 × 7.7 90 www.element14.com www.farnell.com www.newark.com Page 10/09/11 V1.1 SL Series 85° SMD Ecap Dimensions and Maximum Permissible Ripple Current mA (rms) at 120 Hz, 105°C WV 4 µF 22 33 * 4 × 5.2 47 56 68 220 330 (19) *4 × 5.2 31 (19) 25 5 × 5.2 45 62 6.3 × 5.2 55 6.3 × 5.2 74 6.3 × 7.7 6.3 × 7.7 150 680 - - 1,000 - - 150 270 8 × 10.5 320 - 330 10 × 10.5 450 49 52 6.3 × 5.2 58 6.3 × 5.2 8× 10.5 250 300 88 8× 10.5 42 52 6.3 × 5.2 6.3 × 6 68 80 6.3 × 7.7 35 94 6.3 × 7.7 135 280 60 220 8 × 10.5 6.3 × 7.7 85 6.3 × 7.7 110 120 200 63 46 6.3 × 6 45 80 6.3 × 7.7 130 150 8 × 10.5 250 50 70 74 6.3 × 6 82 75 6.3 × 150 7.7 6.3 × 5.2 58 72 78 6.3 × 6 88 6.3 × 6 102 - 41 70 82 8.3 × 5 95 25 5 × 5.2 37 54 16 33 5 × 5.2 37 33 5 × 5.2 45 470 1,500 10 42 100 150 6.3 270 10 × 10.5 70 8 × 10.5 120 160 10 × 10.5 190 90 8 × 10.5 170 - - 110 200 - - 230 - - 280 - - 170 8 × 10.5 100 200 10 × 10.5 240 - - - - 320 - - - - 310 10 × 10.5 340 - - - - - - 330 10 × 10.5 430 - - - - - - - - 10 × 10.5 380 10 × 10.5 390 - - - - - - - - - - 450 - - - - - - - - - - - - - - - - - - - - - - - - - - *Ø3 is available Part Number Table Description Part Number Capacitor, Case B, 33µF, 4V MCESL4V336M4X5.2 Capacitor, Case B, 47µF, 4V MCESL4V476M4X5.2 Capacitor, Case D, 56µF, 4V MCESL4V566M5X5.2 Capacitor, Case D, 68µF, 4V MCESL4V686M5X5.2 Capacitor, Case D, 100µF, 4V MCESL4V107M5X5.2 Capacitor, Case E, 150µF, 4V MCESL4V157M6.3X5.2 Capacitor, Case E, 220µF, 4V MCESL4V227M6.3X5.2 Capacitor, Case F, 330µF, 4V MCESL4V337M6.3X7.7 Capacitor, Case G, 470µF, 4V MCESL4V477M6.3X7.7 Capacitor, Case D, 33µF, 6.3V MCESL6V3336M5X5.2 Capacitor, Case D, 47µF, 6.3V MCESL6V3476M5X5.2 Capacitor, Case D, 56µF, 6.3V MCESL6V3566M5X5.2 Capacitor, Case E, 68µF, 6.3V MCESL6V3686M6.3X5.2 Capacitor, Case E, 150µF, 6.3V MCESL6V3157M6.3X5.2 Capacitor, Case F, 220µF, 6.3V MCESL6V3227M6.3X5.4 www.element14.com www.farnell.com www.newark.com Page 10/09/11 V1.1 SL Series 85° SMD Ecap Part Number Table Description Part Number Capacitor, Case G, 330µF, 6.3V MCESL6V3337M6.3X7.7 Capacitor, Case H, 470µF, 6.3V MCESL6V3477M8X10.5 Capacitor, Case H, 680µF, 6.3V MCESL6V3687M8X10.5 Capacitor, Case H, 1000µF, 6.3V MCESL6V3108M8X10.5 Capacitor, Case J, 1500µF, 6.3V MCESL6V3158M10X10.5 Capacitor, Case D, 22µF, 10V MCESL10V226M5X5.2 Capacitor, Case D, 33µF, 10V MCESL10V336M5X5.2 Capacitor, Case E, 47µF, 10V MCESL10V476M6.3X5.2 Capacitor, Case E, 56µF, 10V MCESL10V566M6.3X5.2 Capacitor, Case E, 68µF, 10V MCESL10V686M6.3X5.2 Capacitor, Case E, 100µF, 10V MCESL10V107M6.3X5.2 Capacitor, Case F, 150µF, 10V MCESL10V157M6.3X5.4 Capacitor, Case H, 330µF, 10V MCESL10V337M8X10.5 Capacitor, Case H, 470µF, 10V MCESL10V477M8X10.5 Capacitor, Case J, 680µF, 10V MCESL10V687M10X10.5 Capacitor, Case J, 1000µF, 10V MCESL10V108M10X10.5 Capacitor, Case D, 22µF, 16V MCESL16V226M5X5.2 Capacitor, Case E, 33µF, 16V MCESL16V336M6.3X5.2 Capacitor, Case E, 56µF, 16V MCESL16V566M6.3X5.2 Capacitor, Case E, 68µF, 16V MCESL16V686M6.3X5.2 Capacitor, Case E, 100µF, 16V MCESL16V107M6.3X5.2 Capacitor, Case G, 150µF, 16V MCESL16V157M6.3X7.7 Capacitor, Case G, 220µF, 16V MCESL16V227M6.3X7.7 Capacitor, Case H, 330µF, 16V MCESL16V337M8X10.5 Capacitor, Case H, 470µF, 16V MCESL16V477M8X10.5 Capacitor, Case J, 680µF, 16V MCESL16V687M10X10.5 Capacitor, Case D, 10µF, 25V MCESL25V106M5X5.2 Capacitor, Case E, 22µF, 25V MCESL25V226M6.3X5.2 Capacitor, Case E, 33µF, 25V MCESL25V336M5X5.2 Capacitor, Case F, 47µF, 25V MCESL25V476M6.3X5.4 Capacitor, Case F, 56µF, 25V MCESL25V566M6.3X5.4 Capacitor, Case F, 68µF, 25V MCESL25V686M6.3X5.4 Capacitor, Case H, 150µF, 25V MCESL25V157M8X10.5 Capacitor, Case H, 220µF, 25V MCESL25V227M8X10.5 Capacitor, Case H, 330µF, 25V MCESL25V337M8X10.5 www.element14.com www.farnell.com www.newark.com Page 10/09/11 V1.1 SL Series 85° SMD Ecap Part Number Table Description Part Number Capacitor, Case J, 470µF, 25V MCESL25V477M10X10.5 Capacitor, Case D, 10µF, 35V MCESL35V106M5X5.2 Capacitor, Case F, 33µF, 35V MCESL35V336M6.3X5.4 Capacitor, Case F, 47µF, 35V MCESL35V476M6.3X5.4 Capacitor, Case G, 56µF, 35V MCESL35V566M6.3X7.7 Capacitor, Case G, 68µF, 35V MCESL35V686M6.3X7.7 Capacitor, Case G, 100µF, 35V MCESL35V107M6.3X7.7 Capacitor, Case H, 150µF, 35V MCESL35V157M8X10.5 Capacitor, Case H, 220µF, 35V MCESL35V227M8X10.5 Capacitor, Case J, 330µF, 35V MCESL35V337M10X10.5 Capacitor, Case B, 2.2µF, 50V MCESL50V225M4X5.2 Capacitor, Case B, 3.3µF, 50V MCESL50V335M4X5.2 Capacitor, Case F, 22µF, 50V MCESL50V226M6.3X5.4 Capacitor, Case G, 33µF, 50V MCESL50V336M6.3X7.7 Capacitor, Case G, 56µF, 50V MCESL50V566M6.3X7.7 Capacitor, Case H, 68µF, 50V MCESL50V686M8X10.5 Capacitor, Case J, 150µF, 50V MCESL50V157M10X10.5 Capacitor, Case J, 220µF, 50V MCESL50V227M10X10.5 Capacitor, Case B, 1µF, 63V MCESL63V105M4X5.2 Capacitor, Case B, 2.2µF, 63V MCESL63V225M4X5.2 Capacitor, Case D, 3.3µF, 63V MCESL63V335M5X5.2 Capacitor, Case D, 4.7µF, 63V MCESL63V475M5X5.2 Capacitor, Case E, 10µF, 63V MCESL63V106M6.3X5.2 Capacitor, Case G, 22µF, 63V MCESL63V226M6.3X7.7 Capacitor, Case H, 33µF, 63V MCESL63V336M8X10.5 Capacitor, Case H, 47µF, 63V MCESL63V476M8X10.5 Capacitor, Case H, 56µF, 63V MCESL63V566M8X10.5 Capacitor, Case J, 68µF, 63V MCESL63V686M10X10.5 Capacitor, Case J, 100µF, 63V MCESL63V107M10X10.5 Capacitor, Case C, 1µF, 100V MCESL100V105M4X5.4 Capacitor, Case F, 2.2µF, 100V MCESL100V225M6.3X5.4 Capacitor, Case F, 3.3µF, 100V MCESL100V335M6.3X5.4 Capacitor, Case F, 4.7µF, 100V MCESL100V475M6.3X5.4 Capacitor, Case G, 10µF, 100V MCESL100V106M6.3X7.7 Capacitor, Case H, 22µF, 100V MCESL100V226M8X10.5 www.element14.com www.farnell.com www.newark.com Page 10/09/11 V1.1 SL Series 85° SMD Ecap Part Number Table Description Part Number Capacitor, Case J, 33µF, 100V MCESL100V336M10X10.5 Capacitor, Case E 100µF 6.3V MCESL6V3107M6.3X5.2 Capacitor, Case G 220µF 10V MCESL10V227M6.3X7.7 Capacitor, Case B 10µF 16V MCESL16V106M4X5.2 Capacitor, Case E 47µF 16V MCESL16V476M6.3X5.2 Capacitor, Case G 100µF 25V MCESL25V107M6.3X7.7 Capacitor, Case B 4.7µF 35V MCESL35V475M4X5.2 Capacitor, Case E 22µF 35V MCESL35V226M6.3X5.2 Capacitor, Case B 1µF 50V MCESL50V105M4X5.2 Capacitor, Case D 4.7µF 50V MCESL50V475M5X5.2 Capacitor, Case E 10µF 50V MCESL50V106M6.3X5.2 Capacitor, Case G 47µF 50V MCESL50V476M6.3X7.7 Capacitor, Case H 100µF 50V MCESL50V107M8X10.5 Capacitor, Case E, 100µF, 6.3V MCESL6V3107M6.3X5.2 Capacitor, Case G, 220µF, 10V MCESL10V227M6.3X7.7 Capacitor, Case B, 10µF, 16V MCESL16V106M4X5.2 Capacitor, Case E, 47µF, 16V MCESL16V476M6.3X5.2 Capacitor, Case G, 100µF, 25V MCESL25V107M6.3X7.7 Capacitor, Case B, 4.7µF, 35V MCESL35V475M4X5.2 Capacitor, Case E, 22µF, 35V MCESL35V226M6.3X5.2 Capacitor, Case B, 1µF, 50V MCESL50V105M4X5.2 Capacitor, Case D, 4.7µF, 50V MCESL50V475M5X5.2 Capacitor, Case E, 10µF, 50V MCESL50V106M6.3X5.2 Capacitor, Case G, 47µF, 50V MCESL50V476M6.3X7.7 Capacitor, Case H, 100µF, 50V MCESL50V107M8X10.5 Important Notice : This data sheet and its contents (the "Information") belong to the members of the Premier Farnell group of companies (the "Group") or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group's liability for death or personal injury resulting from its negligence. Multicomp is the registered trademark of the Group. © Premier Farnell plc 2011. www.element14.com www.farnell.com www.newark.com Page 10/09/11 V1.1
