YTLP2403D
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
Description

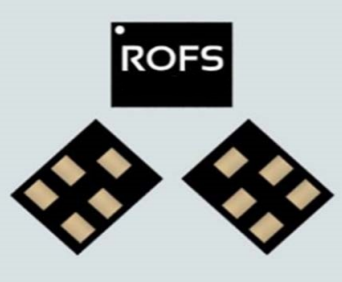

YTLP2403D is a high-performance, miniature
filter designed for mobile equipment with Wi-Fi
band. It is designed with Film Bulk Acoustic
Resonator (FBAR) technology, which can provide
low insertion loss and steep skirt. So that this
product enables coexistence of Wi-Fi and LTE
signals within the same device or in close
proximity to one another.
For general performance, the YTLP2403D typical
insertion loss in the pass band is less than 1.8dB.
Typical rejection at the LTE Band 38 and LTE
Band 7 and 41 is more than 45dB, at the LTE
Band 40 is more than 52dB.
For the chip package, the YTLP2403D uses
advanced module packing techniques to achieve
the industry standard 1.4x1.1x0.61mm footprint,
include bumping and flip chip.
Functional Block Diagram
Features
●
●
●
●
●
●
●
●
●
For Wi-Fi - LTE coexistence application
Plastic Chip Scale Package(CSP)
Miniature Size: 1.4mm x 1.1 mm x 0.61 mm
Fast Roll-off from Wi-Fi to near LTE Bands
High Rejection at LTE bands.
Low Temperature Coefficient of Frequency
ESD protection ability: HBM Class1C
Moisture Sensitivity : MSL3
Max Input Power Rating +28dBm
Applications
●
●
●
Wi-Fi bandpass filter enables the coexistence
of (LTE/TD-LTE) & Wi-Fi
ISM band applications such as Smart Meters
Portable Hotspots and Mobile Routers
Environmental
Pin Connection
No.
Function
1
Input
4
Output
2,3,5
Ground
●
●
Full implement with RoHS compliant
Lead Free (Pb free)
YTLP2403D
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
Electrical Specifications
Parameter(Operable Temperature:-20 to +90℃)
Min
Typ(1)
Max
Unit
Insertion Loss(2402.5 ~ 2421.5 MHz)
\
1.7
3.1
dB
Insertion Loss(2407.5 ~ 2476.5 MHz)
\
1.4
2.8
dB
Insertion Loss(2462.5 ~ 2481.5 MHz)
\
1.8
3.3
dB
Ripple(2402.5 ~ 2421.5 MHz)
\
0.9
1.3
dB
Ripple(2407.5 ~ 2476.5 MHz)
\
1.2
1.6
dB
Ripple(2462.5 ~ 2481.5 MHz)
\
1.4
1.8
dB
11
20
\
dB
800 ~ 2000 MHz
32
40
\
dB
2000 ~ 2170 MHz
32
38
\
dB
2300 ~ 2370 MHz
42
52
\
dB
2370 ~ 2375 MHz
45
53
\
dB
2375 ~ 2380 MHz
40
56
\
dB
2500 ~ 2505 MHz
30
52
\
dB
2505 ~ 2570 MHz
44
55
\
dB
2570 ~ 2620 MHz
40
48
\
dB
2620 ~ 2690 MHz
38
45
\
dB
4800 ~ 5805 MHz
32
40
\
dB
28
dBm
Return Loss(2402.5 ~ 2481.5 MHz)
Absolute Attenuation
Max RF Input Power(2)(2402.5 ~ 2481.5 MHz)
(1) Typ Data is the integrated value of the linear S-parameter over indicated band.
(2) Input power applied for a minimum of 5,000 hrs at 55°C in the specified frequency band.
YTLP2403D
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
Typical Performance at Tc=25˚C
Return Loss
S22
Figure.1 Passband Insertion Loss
S11
Figure.2 Passband Return Loss
0
Insertion Loss
-20
-40
-60
-80
1
2
3
4
5
freq,GHz
Figure.4 Wideband Insertion Loss
Figure.6 Output Smith Chart S22
10
20
5.0
-1.0
.0
-2
2.0
0.5
-0
.5
1.0
5
0.
S(2,2)
10
20
2.
0
.0
-2
-1.0
5.0
2.0
0.5
-0
.5
1.0
5
0.
S(1,1)
Figure.5 Input Smith Chart S11
2.
0
1.0
1.0
Figure.3 Narrowband Insertion Loss
6
YTLP2403D
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
Package Outline Drawing
Notes:
1. Dimension: mm
2. Dimensions nominal unless otherwise noted
3. Contact area are gold plated
4. Pad(1) to (5) are same size
5. XX is ROFS inside code
Pin Connection:
1
Input
4
Output
2.3.5
Ground
Test Circuit
50 ohm Output
(5)
(4)
50 ohm Input
L2=4.7nH
(1)
L1=6.2nH
(2)
(3)
Notes:
1. Matching component values shown are ROFS
evaluation board results, please adjust
component values by the actual use
environment.
PCB Footprint
1.25
3×0.25
5×0.325
2×0.25
5×0.25
0.9
Notes:
1. Black indicates metalized area.
2. This footprint represents a recommendation
only, some modification may be necessary to
suit end user assembly materials and
processes.
3. For solder pad recommendation see
mechanical information.
4. Dimensions shown are nominal in
millimeters.
YTLP2403D
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
Packing
1. Tape Dimension
4.0±0.1
2.00±0.05
+0.1
1.5-0.0
1.6±0.1
+0.1
0.8-0.0
4.0±0.1
3°max
8.0±0.2
2403
2403
2403
3.5±0.05
1.75±0.1
0.30±0.05
Direction of Feed
0.70±0.1
Cover Tape
Unit: mm
1.3±0.1
2. Reel Dimension
Trailer tape
160-190
Components
80-120
Leader Cavity
400-560
Unit:mm
2.0±0.5
60
13.5max
4000Pcs/Reel
13.0±0.5
178
9.0±0.5
YTLP2403D
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
Recommended IR Reflow Profile
Order Information
Part Number
Qty Per Reel
Container
YTLP2403D
4000
7 inch Reel
