YTLP2413E

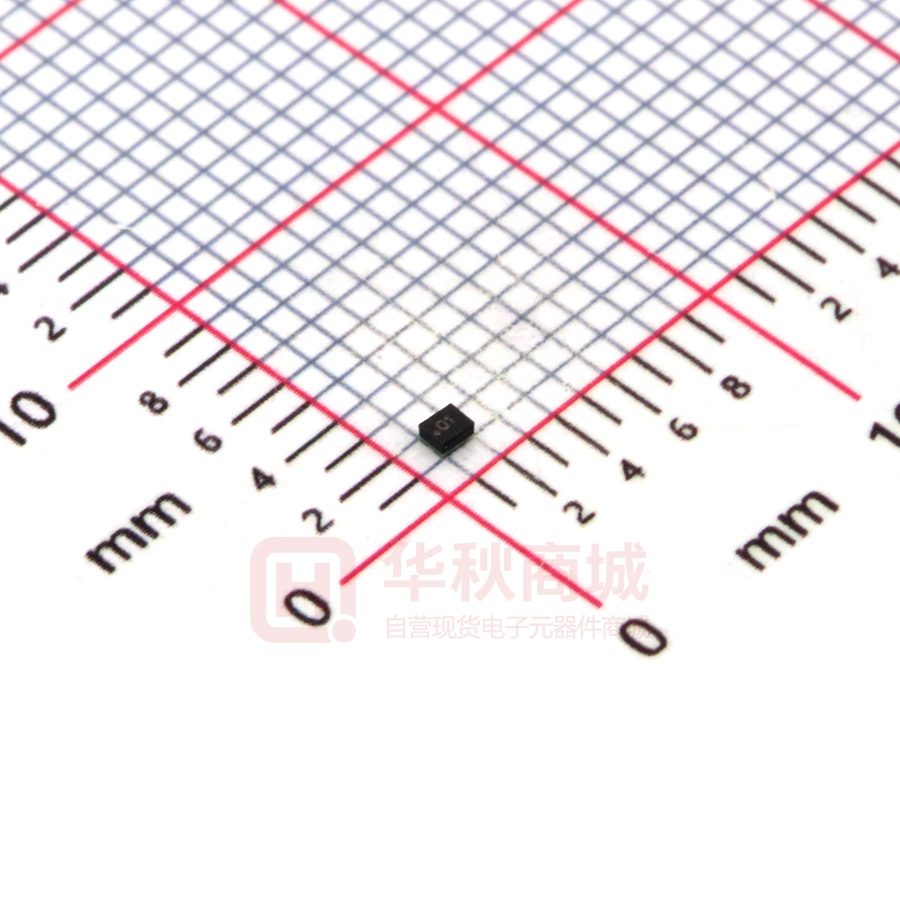

YTLP2413E Wi-Fi Filter for LTE (2402.5~2481.5MHz) Description YTLP2413E is a high-performance, miniature filter designed for mobile equipment with Wi-Fi band. It is designed with Film Bulk Acoustic Resonator (FBAR) technology, which can provide low insertion loss and steep skirt. So that this product enables coexistence of Wi-Fi and LTE signals within the same device or in close proximity to one another. For general performance, the YTLP2413E typical insertion loss in the pass band is less than 1.8dB. Typical rejection at the LTE Band 38 and LTE Band 7 and 41 is more than 44dB, at the LTE Band 40 is more than 48dB. For the chip package, the YTLP2413E uses advanced module packing techniques to achieve the industry standard 1.1x0.9x0.6mm footprint, include bumping and flip chip. Functional Block Diagram Features ● ● ● ● ● ● ● ● ● For Wi-Fi - LTE coexistence application Plastic Chip Scale Package(CSP) Miniature Size: 1.1mm x 0.9 mm x 0.6 mm Fast Roll-off from Wi-Fi to near LTE Bands High Rejection at LTE bands. Low Temperature Coefficient of Frequency Storage temperature range: -40 to +150 ℃ Excellent ESD protection ability: Class 1C Moisture Sensitivity : MSL3 Applications ● ● ● Wi-Fi bandpass filter enables the coexistence of (LTE/TD-LTE) & Wi-Fi ISM band applications such as Smart Meters Portable Hotspots and Mobile Routers Environmental Pin Connection ● ● No. Function 1 Input 4 Output 2,3,5 Ground Full implement with RoHS compliant Lead Free (Pb free) YTLP2413E Wi-Fi Filter for LTE (2402.5~2481.5MHz) Electrical Specifications Parameter(Operable Temperature:-20 to +90℃) Min Typ(1) Max Unit Insertion Loss(2402.5 ~ 2421.5 MHz) \ 1.5 2.3 dB Insertion Loss(2407.5 ~ 2476.5 MHz) \ 1.3 2.5 dB Insertion Loss(2462.5 ~ 2481.5 MHz) \ 1.8 3.0 dB Ripple(2402.5 ~ 2421.5 MHz) \ 0.5 1.0 dB Ripple(2407.5 ~ 2476.5 MHz) \ 1.2 1.6 dB Ripple(2462.5 ~ 2481.5 MHz) \ 1.4 1.8 dB 12 20 \ dB Return Loss(2402.5 ~ 2481.5 MHz) Absolute Attenuation \ 800 ~ 2000 MHz 33 40 \ dB 2000 ~ 2170 MHz 27 37 \ dB 2300 ~ 2370 MHz 45 54 \ dB 2370 ~ 2375 MHz 45 53 \ dB 2375 ~ 2380 MHz 25 48 \ dB 2500 ~ 2505 MHz 28 50 \ dB 2505 ~ 2570 MHz 40 57 \ dB 2570 ~ 2620 MHz 40 47 \ dB 2620 ~ 2690 MHz 40 44 \ dB 4800 ~ 5805 MHz 37 43 \ dB RF Input Power(2)(2402.5 ~ 2481.5 MHz) 25 (1) Typ Data is the integrated value of the linear S-parameter over indicated band. (2) Input power applied for a minimum of 5,000 hrs at 55°C in the specified frequency band         dBm YTLP2413E Wi-Fi Filter for LTE (2402.5~2481.5MHz) Typical Performance at Tc=25˚C Insertion Loss S11  S22  Figure.1 Passband Insertion Loss Figure.2 Passband Return Loss 0 -10 -20 -30 -40 -50 -60 -70 2.20 2.25 2.30 2.35 2.40 2.45 2.50 2.55 2.60 2.65 2.69 freq，GHz 5.0 0 5 2. 0.2 10 10 20 20 -10 -20 0. 5.0 2.0 Figure.4 Wideband Insertion Loss 0.5 Figure.3 Narrowband Insertion Loss 0.2 -10 -20 Figure.5 Input Smith Chart S11   .0 -2 5 -0 . . -2 -0 . 0 5 -5.0 freq (2.402GHz to 2.482GHz) -0.2 -5.0 -0.2 freq (2.402GHz to 2.482GHz) Figure.6 Output Smith Chart S22 YTLP2413E Wi-Fi Filter for LTE (2402.5~2481.5MHz) Package Outline Drawing Notes: 1. Dimension: mm 2. Dimensions nominal unless otherwise noted 3. Contact area are gold plated 4. Pad(1) to (5) are same size 5. XX is ROFS inside code Pin Connection: 1 Input 4 Output 2.3.5 Ground Test Circuit 50 ohm Output （5） （4） 50 ohm Input L2=5.6nH （1） L1=5.6nH （2） （3） Notes: 1. Matching component values shown are ROFS evaluation board results, please adjust component values by the actual use environment. PCB Footprint Notes: 1． Black indicates metalized area. 2． This footprint represents a recommendation only, some modification may be necessary to suit end user assembly materials and processes. 3． For solder pad recommendation see mechanical information. 4． Dimensions shown are nominal in millimeters.   YTLP2413E Wi-Fi Filter for LTE (2402.5~2481.5MHz) Packing 1. Tape Dimension 2. Reel Dimension 5000Pcs/Reel   YTLP2413E Wi-Fi Filter for LTE (2402.5~2481.5MHz) Recommended IR Reflow Profile Order Information   Part Number Qty Per Reel Container YTLP2413E 5000 7 inch Reel
