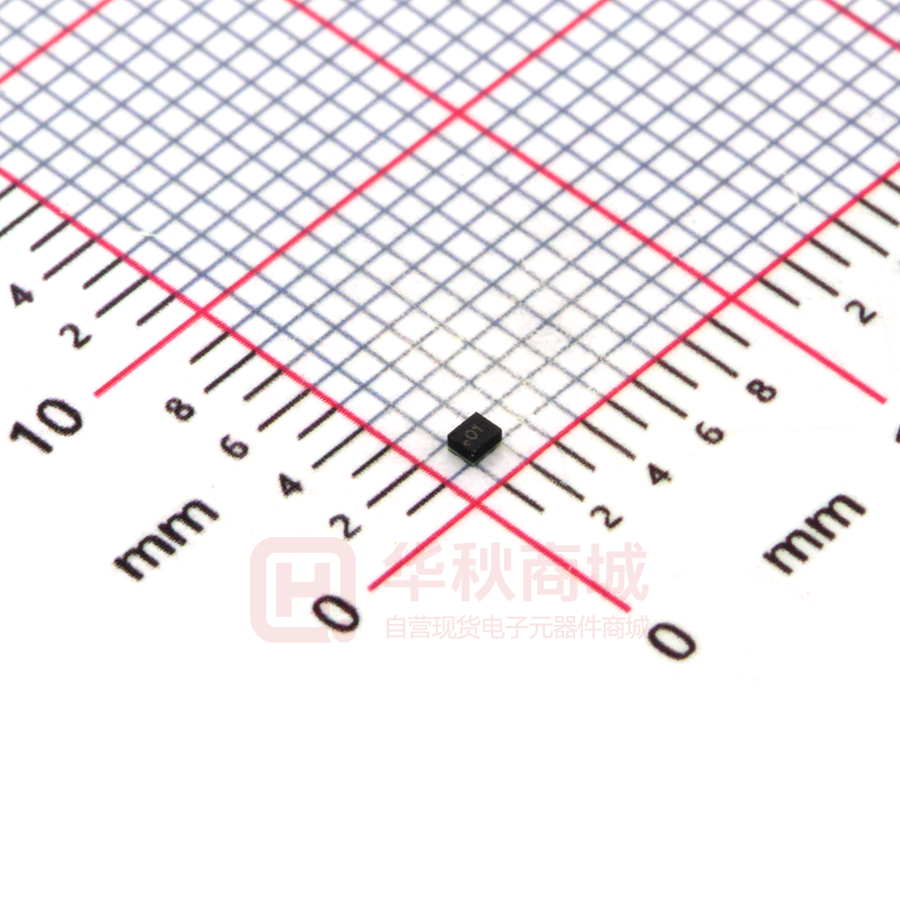

YTLC7924E
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
Description
YTLC7924E is a Wi-Fi band filter, which is designed
with Film Bulk Acoustic Resonator (FBAR)
technology. The product can provide low insertion
loss and steep skirt to enables coexistence of Wi-Fi
and LTE signals within the same device or in close
proximity to one another. The typical insertion loss
in the pass band is less than 1.8dB. Typical
rejection at the LTE Band 38 and LTE Band 7 and
41 is more than 40dB, at the LTE Band 40 is more
than 42dB.
For the chip package, the YTLC7924E uses
advanced module packing techniques to achieve
the industry standard 1.1x0.9x0.6mm footprint,
include bumping and flip chip.
Functional Block Diagram
Features
●
●
●
●
●
●
●
●
●
For Wi-Fi - LTE coexistence application
Plastic Chip Scale Package(CSP)
Miniature Size: 1.1mm x 0.9 mm x 0.6 mm
Fast Roll-off from Wi-Fi to near LTE Bands
High Rejection at LTE bands.
Low Temperature Coefficient of Frequency
Storage temperature range: -40 to +150 ℃
Excellent ESD protection ability: Class 1C
Moisture Sensitivity : MSL3
Applications
●
●
●
Wi-Fi bandpass filter enables the coexistence
of (LTE/TD-LTE) & Wi-Fi
ISM band applications such as Smart Meters
Portable Hotspots and Mobile Routers
Environmental
●
●
Pin Connection
No.
Function
1
Input
4
Output
2,3,5
Ground
Full implement with RoHS compliant
Lead Free (Pb free)
YTLC7924E
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
Electrical Specifications
Parameter(Operable Temperature:-30 to +85℃)
Min
Typ
Max
Unit
Insertion Loss(2402.5 ~ 2421.5 MHz)
\
1.5
2.3
dB
Insertion Loss(2407.5 ~ 2476.5 MHz)
\
1.3
2.5
dB
Insertion Loss(2462.5 ~ 2481.5 MHz)
\
1.8
3.0
dB
Ripple(2402.5 ~ 2421.5 MHz)
\
0.5
1.0
dB
Ripple(2407.5 ~ 2476.5 MHz)
\
1.2
1.6
dB
Ripple(2462.5 ~ 2481.5 MHz)
\
1.4
1.8
dB
12
20
\
dB
Return Loss(2402.5 ~ 2481.5 MHz)
Absolute Attenuation
\
800 ~ 2000 MHz
30
40
\
dB
2000 ~ 2170 MHz
25
37
\
dB
2300 ~ 2370 MHz
42
54
\
dB
2370 ~ 2375 MHz
42
53
\
dB
2375 ~ 2380 MHz
25
48
\
dB
2500 ~ 2505 MHz
25
50
\
dB
2505 ~ 2570 MHz
37
57
\
dB
2570 ~ 2620 MHz
37
47
\
dB
2620 ~ 2690 MHz
37
44
\
dB
4800 ~ 5805 MHz
37
43
\
dB
(1) Typ Data is the integrated value of the linear S-parameter over indicated band.
YTLC7924E
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
Typical Performance at Tc=25˚C
Insertion Loss
S11
S22
Figure.1 Passband Insertion Loss
Figure.2 Passband Return Loss
0
-10
-20
-30
-40
-50
-60
-70
2.20
2.25
2.30
2.35
2.40
2.45
2.50
2.55
2.60
2.65 2.69
freq,GHz
5.0
0
5
2.
0.2
10
10
20
20
-10
-20
0.
5.0
2.0
Figure.4 Wideband Insertion Loss
0.5
Figure.3 Narrowband Insertion Loss
0.2
-10
-20
Figure.5 Input Smith Chart S11
.0
-2
5
-0
.
.
-2
-0
.
0
5
-5.0
freq (2.402GHz to 2.482GHz)
-0.2
-5.0
-0.2
freq (2.402GHz to 2.482GHz)
Figure.6 Output Smith Chart S22
YTLC7924E
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
Package Outline Drawing
Notes:
1. Dimension: mm
2. Dimensions nominal unless otherwise noted
3. Contact area are gold plated
4. Pad(1) to (5) are same size
5. XX is ROFS inside code
Pin Connection:
1
Input
4
Output
2.3.5
Ground
Test Circuit
50 ohm Output
(5)
(4)
50 ohm Input
L2=5.6nH
(1)
L1=5.6nH
(2)
(3)
Notes:
1. Matching component values shown are ROFS
evaluation board results, please adjust
component values by the actual use
environment.
PCB Footprint
Notes:
1. Black indicates metalized area.
2. This footprint represents a recommendation
only, some modification may be necessary to
suit end user assembly materials and
processes.
3. For solder pad recommendation see
mechanical information.
4. Dimensions shown are nominal in millimeters.
YTLC7924E
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
Packing
1. Tape Dimension
2. Reel Dimension
5000Pcs/Reel
YTLC7924E
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
Recommended IR Reflow Profile
Order Information
Part Number
Qty Per Reel
Container
YTLC7924E
5000
7 inch Reel
