YTLP2416E
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
Description
YTLP2416E is a Wi-Fi band filter, which is
designed with Film Bulk Acoustic Resonator
(FBAR) technology. The product can provide low
insertion loss and steep skirt to enables
coexistence of Wi-Fi and LTE signals within the
same device or in close proximity to one another.
The typical insertion loss in the pass band is less
than 1.4dB. Typical rejection at the LTE Band 38
and LTE Band 7 and 41 is more than 42dB, at the
LTE Band 40 is more than 41dB.
For the chip package, the YTLP2416E uses
advanced module packing techniques to achieve
the industry standard 1.1x0.9x0.6mm footprint,
include bumping and flip chip.
Features
Functional Block Diagram
●
●
●
●
●
●
●
●
●
For Wi-Fi - LTE coexistence application
Plastic Chip Scale Package(CSP)

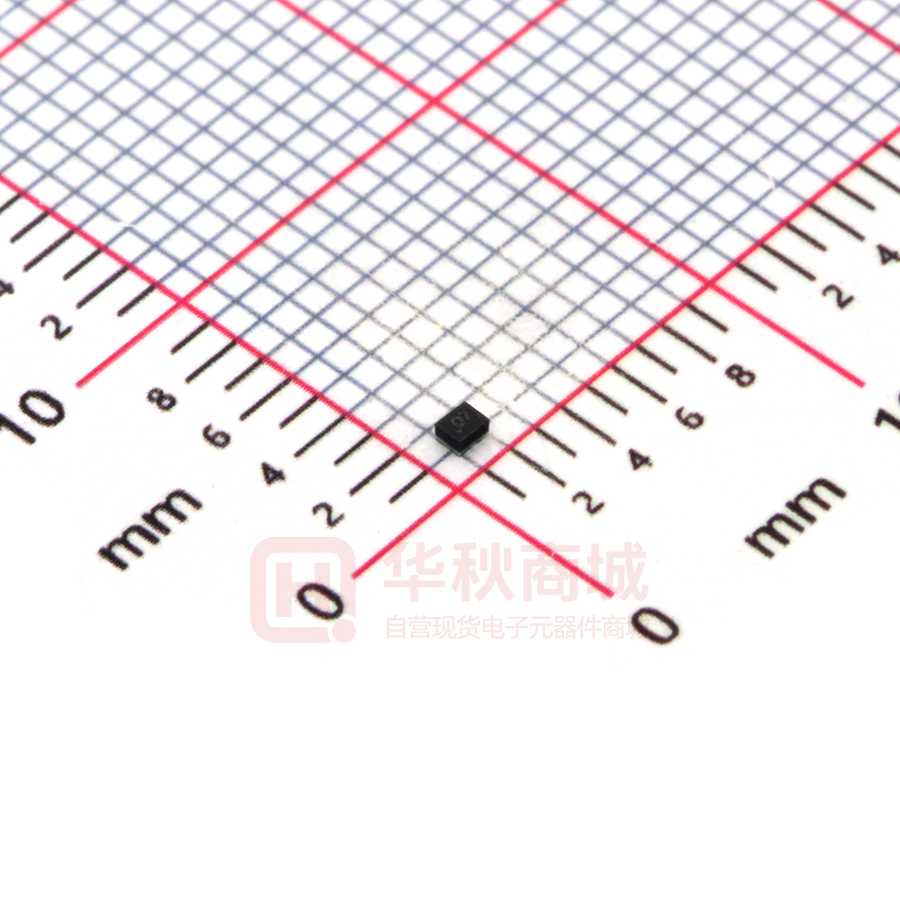

Miniature Size: 1.1mm x 0.9 mm x 0.6 mm
Fast Roll-off from Wi-Fi to near LTE Bands
High Rejection at LTE bands.
Low Temperature Coefficient of Frequency
Storage temperature range: -40 to +150 ℃
Excellent ESD protection ability: Class 1C
Moisture Sensitivity : MSL3
Applications
●
●
●
Wi-Fi bandpass filter enables the coexistence
of (LTE/TD-LTE) & Wi-Fi
ISM band applications such as Smart Meters
Portable Hotspots and Mobile Routers
Environmental
●
●
Pin Connection
No.
Function
1
Input
4
Output
2,3,5
Ground
1/6
Full implement with RoHS compliant
Lead Free (Pb free)
YTLP2416E
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
Electrical Specifications
Parameter(Operable Temperature:-25 to +85℃)
Min
Typ(1)
Max
Unit
Insertion Loss(2402.5 ~ 2421.5 MHz)
\
1.3
1.9
dB
Insertion Loss(2407.5 ~ 2476.5 MHz)
\
1.1
1.7
dB
Insertion Loss(2462.5 ~ 2481.5 MHz)
\
1.4
2.2
dB
Ripple(2402.5 ~ 2421.5 MHz)
\
0.6
1.0
dB
Ripple(2407.5 ~ 2476.5 MHz)
\
0.6
1.0
dB
Ripple(2462.5 ~ 2481.5 MHz)
\
0.8
1.2
dB
VSWR(2402.5 ~ 2481.5 MHz)
\
1.2
1.7
\
Absolute Attenuation
\
800 ~ 2000 MHz
32
37
\
dB
2000 ~ 2170 MHz
22
35
\
dB
2300 ~ 2370 MHz
45
53
\
dB
2370 ~ 2375 MHz
45
50
\
dB
2375 ~ 2380 MHz
22
41
\
dB
2500 ~ 2505 MHz
50
61
\
dB
2505 ~ 2570 MHz
46
60
\
dB
2570 ~ 2620 MHz
39
45
\
dB
2620 ~ 2690 MHz
38
42
\
dB
4800 ~ 5805 MHz
40
43
\
dB
\
\
28
dBm
RF Input Power(2)(2402.5 ~ 2481.5 MHz)
(1) Typ Data is the integrated value of the linear S-parameter over indicated band.
(2) Input power applied for a minimum of 5,000 hrs at 55°C in the specified frequency band
2/6
YTLP2416E
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
Typical Performance at Tc=25˚C
Figure.1 Passband Insertion Loss
Figure.2 VSWR
Figure.3 Narrowband Insertion Loss
Figure.4 Wideband Insertion Loss
Figure.5 Input Smith Chart S11
Figure.6 Output Smith Chart S22
3/6
YTLP2416E
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
Package Outline Drawing
0.395
0.59±0.06
1.10±0.05
0.395
5x0.25x0.20
0.055
0.500
0.90±0.05
07
0.075
PIN1 Mark
Notes:
1. Dimension: mm
2. Dimensions nominal unless otherwise noted
3. Contact area are gold plated
4. Pad(1) to (5) are same size
5. XX is ROFS inside code
Pin Connection:
1
Input
4
Output
2.3.5
Ground
Test Circuit
50ohm Input
5
4
2
3
1
L1=4.7nH
50ohm Output
L2=4.7nH
Top View
Notes:
1. Matching component values shown are ROFS
evaluation board results, please adjust
component values by the actual use
environment.
PCB Footprint
Notes:
1. Black indicates metalized area.
2. This footprint represents a recommendation
only, some modification may be necessary to
suit end user assembly materials and
processes.
3. For solder pad recommendation see
mechanical information.
4. Dimensions shown are nominal in
millimeters.
4/6
YTLP2416E
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
Packing
1. Tape Dimension
2. Reel Dimension
5000Pcs/Reel
5/6
YTLP2416E
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
Recommended IR Reflow Profile
Order Information
Part Number
Qty Per Reel
Container
YTLP2416E
5000
7 inch Reel
6/6
