YTLP2406D
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
Description
YTLP2406D is a Wi-Fi band filter, which is
designed with Film Bulk Acoustic Resonator
(FBAR) technology. The product can provide low
insertion loss and steep skirt to enables
coexistence of Wi-Fi and LTE signals within the
same device or in close proximity to one another.
The typical insertion loss in the pass band is less
than 1.4dB. Typical rejection at the LTE Band 38
and LTE Band 7 and 41 is more than 42dB, at the
LTE Band 40 is more than 41dB.

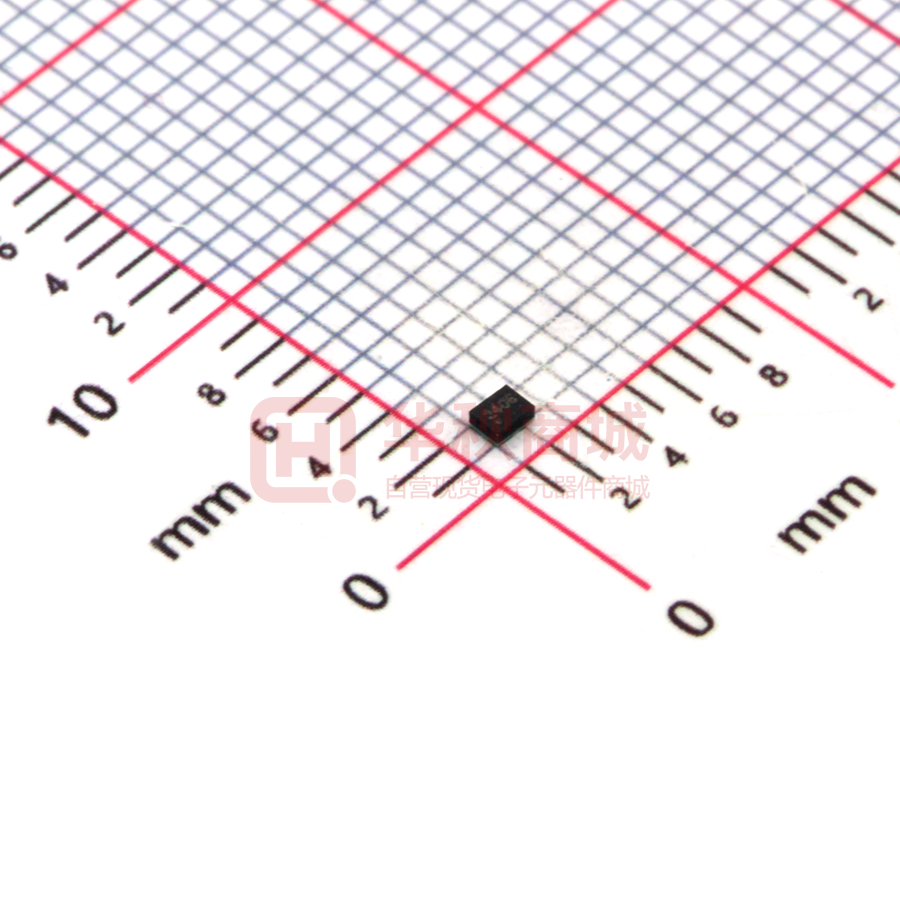

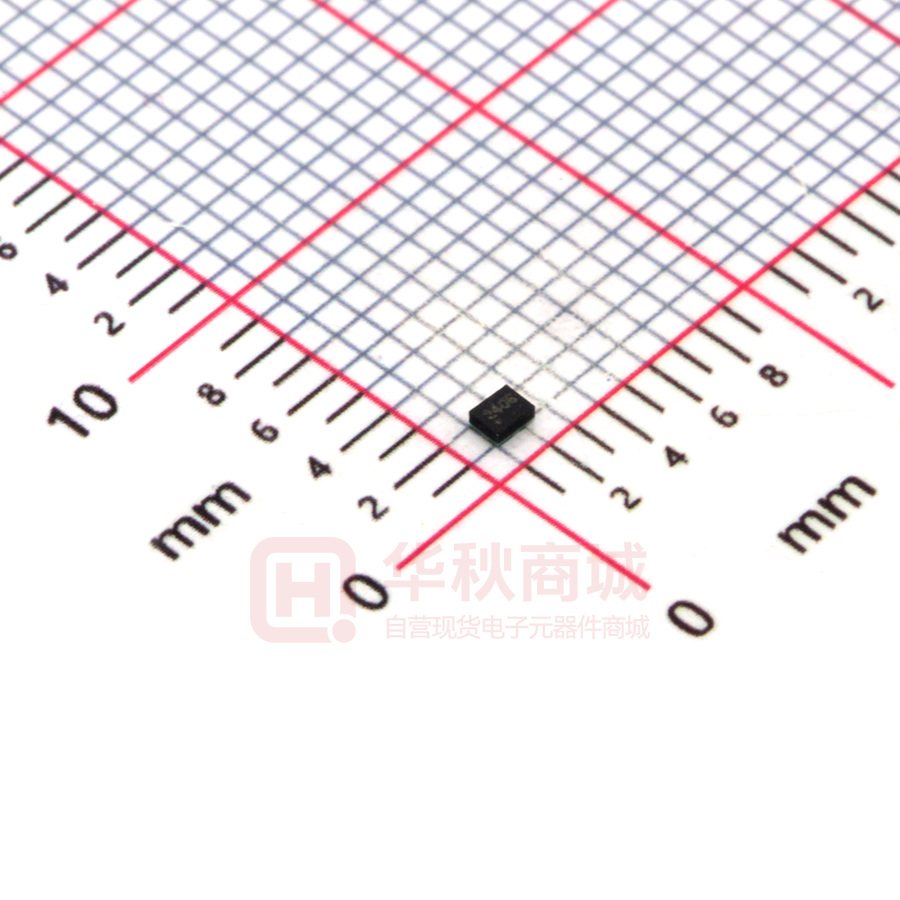

For the chip package, the YTLP2406D uses
advanced module packing techniques to achieve
the industry standard 1.4x1.1x0.6mm footprint,
include bumping and flip chip.
Features
Functional Block Diagram
●
●
●
●
●
●
●
●
●
For Wi-Fi - LTE coexistence application
Plastic Chip Scale Package(CSP)
Miniature Size: 1.4mm x 1.1 mm x 0.6 mm
Fast Roll-off from Wi-Fi to near LTE Bands
High Rejection at LTE bands.
Low Temperature Coefficient of Frequency
Storage temperature range: -40 to +150 ℃
Excellent ESD protection ability: Class 1C
Moisture Sensitivity : MSL3
Applications
●
●
●
Wi-Fi bandpass filter enables the coexistence
of (LTE/TD-LTE) & Wi-Fi
ISM band applications such as Smart Meters
Portable Hotspots and Mobile Routers
Environmental
●
●
Pin Connection
No.
Function
1
Input
4
Output
2,3,5
Ground
1/6
Full implement with RoHS compliant
Lead Free (Pb free)
YTLP2406D
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
Electrical Specifications
Parameter(Operable Temperature:-25 to +85℃)
Min
Typ
Max
Unit
Insertion Loss(2402.5 ~ 2421.5 MHz)
\
1.3
2.2
dB
Insertion Loss(2407.5 ~ 2476.5 MHz)
\
1.1
1.8
dB
Insertion Loss(2462.5 ~ 2481.5 MHz)
\
1.4
2.4
dB
Ripple(2402.5 ~ 2421.5 MHz)
\
0.6
1.0
dB
Ripple(2407.5 ~ 2476.5 MHz)
\
0.6
1.0
dB
Ripple(2462.5 ~ 2481.5 MHz)
\
0.8
1.2
dB
VSWR(2402.5 ~ 2481.5 MHz)
\
1.2
1.8
\
Absolute Attenuation
\
800 ~ 2000 MHz
32
40
\
dB
2000 ~ 2170 MHz
22
37
\
dB
2300 ~ 2370 MHz
41
50
\
dB
2370 ~ 2375 MHz
46
52
\
dB
2375 ~ 2380 MHz
10
49
\
dB
2500 ~ 2505 MHz
22
58
\
dB
2505 ~ 2570 MHz
45
62
\
dB
2570 ~ 2620 MHz
40
47
\
dB
2620 ~ 2690 MHz
38
44
\
dB
4800 ~ 5805 MHz
37
42
\
dB
RF Input Power(2)(2402.5 ~ 2481.5 MHz)
28
(1) Typ Data is the integrated value of the linear S-parameter over indicated band.
(2) Input power applied for a minimum of 5,000 hrs at 55°C in the specified frequency band
2/6
dBm
YTLP2406D
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
Insertion Loss
Typical Performance at Tc=25˚C
Figure.1 Passband Insertion Loss
Figure.4 Wideband Insertion Loss
.
-2
-1.0
Figure.6 Output Smith Chart S22
Package Outline Drawing
3/6
10
20
2.
0
0
2.0
1.0
0.5
5
-0
.
-1.0
Figure.5 Input Smith Chart S11
5.0
5
0.
S(2,2)
10
20
.0
-2
5.0
2.0
1.0
-0
.5
0.5
S(1,1)
0.5
2.
0
1.0
1.0
Figure.3 Narrowband Insertion Loss
Figure.2 VSWR
YTLP2406D
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
0.5
0.59±0.05
1.40±0.05
0.1±0.05
PIN1 Mark
Notes:
1. Dimension: mm
2. Dimensions nominal unless otherwise noted
3. Contact area are gold plated
4. Pad(1) to (5) are same size
5. XX is ROFS inside code
5x0.325x0.25
5
0.575
1.10±0.05
2406
4
0.5
1
3
2
0.075±0.05
Pin Connection:
1
Input
4
Output
2.3.5
Ground
Test Circuit
50ohm Input
5
4
2
3
50ohm Output
1
L1=5.1nH
L2=5.1nH
Notes:
1. Matching component values shown are ROFS
evaluation board results, please adjust
component values by the actual use
environment.
Top View
PCB Footprint
3x0.15
Notes:
1. Black indicates metalized area.
2. This footprint represents a recommendation
only, some modification may be necessary to
suit end user assembly materials and
processes.
3. For solder pad recommendation see
mechanical information.
4. Dimensions shown are nominal in
millimeters.
4x0.425
0.15
0.425
0.325
0.325
0.325
Packing
4/6
YTLP2406D
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
1. Tape Dimension
4.0±0.1
2.00±0.05
+0.1
1.5-0.0
+0.1
0.8-0.0
4.0±0.1
3°max
Direction of Feed
1.6±0.1
8.0±0.2
2403
2403
2403
3.5±0.05
1.75±0.1
0.30±0.05
0.70±0.1
Cover Tape
Unit: mm
1.3±0.1
2. Reel Dimension
4000Pcs/Reel
5/6
YTLP2406D
Wi-Fi Filter for LTE (2402.5~2481.5MHz)
Recommended IR Reflow Profile
Order Information
Part Number
Qty Per Reel
Container
YTLP2406D
4000
7 inch Reel
6/6
