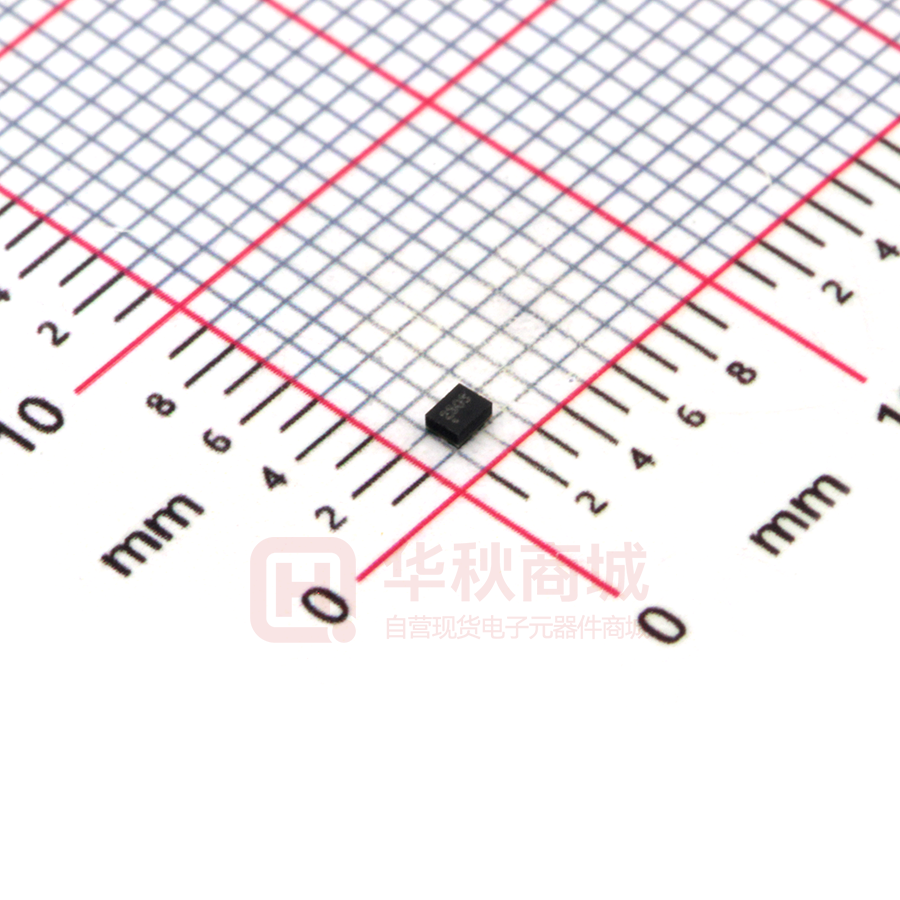

YTLP2303D
LTE Band 40 Filter (2300~2400MHz)
Description
YTLP2303D is a high-performance, miniature filter
designed for mobile equipment with LTE B40 band.
It is designed with Film Bulk Acoustic Resonator
(FBAR) technology, which can provide low
insertion loss and steep skirt. So that this product
enables coexistence of Wi-Fi signals within the
same device or in close proximity to one another.
For general performance, the YTLP2303D typical
insertion loss in the pass band is less than 1.0dB,
and max insertion loss is within 2.0dB over
-20~+85°C, while the typical rejection at the Wi-Fi
and LTE41 band are more than 35dB.
For the chip package, the YTLP2303D uses
advanced module packing techniques to achieve
the industry standard 1.4x1.1x0.6mm footprint,
include bumping and flip chip.
Functional Block Diagram
Features
●
●
●
●
●
●
●
●
Pin Connection
For Wi-Fi - LTE coexistence application
Plastic Chip Scale Package(CSP)
Miniature Size: 1.4mm x 1.1 mm x 0.6 mm
High Rejection at Wi-Fi and LTE B41 bands.
Low Temperature Coefficient of Frequency
Storage temperature range: -40 to +150 ℃
Excellent ESD protection ability: Class 1C
Moisture Sensitivity : MSL3
Environmental
No.
Function
1
Input
4
Output
2,3,5
Ground
●
●
1/6
Full implement with RoHS compliant
Lead Free (Pb free)
YTLP2303D
LTE Band 40 Filter (2300~2400MHz)
Electrical Specifications
Parameter(Operable Temperature:-20 to +85°C)
Min
Typ(1)
Max(2)
Unit
Insertion Loss (2300 ~ 2400 MHz)
\
0.9
2.0
dB
Ripple (2300 ~ 2400 MHz)
\
0.4
1.0
dB
VSWR Input (2300 ~ 2400 MHz)
\
1.2
1.5
VSWR Output (2300 ~ 2400 MHz)
\
1.2
1.5
10 ~ 1574 MHz
23
44
\
dB
1574 ~ 1577 MHz
23
25
\
dB
1577 ~ 1680 MHz
22
25
\
dB
1845 ~ 1880 MHz
22
24
\
dB
2110 ~ 2170 MHz
25
29
\
dB
2421 ~ 2443 MHz (ch05,18MHz-BW)
20
37
\
dB
2421 ~ 2443 MHz (ch05,18MHz-BW,+25~+85°C)
37
54
\
dB
2426 ~ 2448 MHz (ch06,18MHz-BW)
50
55
\
dB
2431 ~ 2483 MHz (ch07-13,18MHz-BW)
37
48
\
dB
4600 ~ 4800 MHz
45
49
\
dB
30
dBm
Absolute Attenuation
Max RF Input Power(3)(2300 ~ 2400 MHz)
(1) Typ Data is the integrated value of the linear S-parameter over indicated band at +25°C.
(2) Min/Max Data is being specified over -20 to +85°C.
(3) Input power applied for a minimum of 5,000 hrs at 55°C in the specified frequency band.
2/6
YTLP2303D
LTE Band 40 Filter (2300~2400MHz)
Typical Performance at Tc=25˚C
0
Insertion Loss
-10
-20
-30
-40
-50
-60
0
1
2
3
4
5
6
freq,GHz
Figure.1 Wideband Insertion Loss
Figure.2 Narrowband Insertion Loss
-0
.5
-5.0
.0
-2
10
20
5.0
2.0
1.0
-0.2
-1.0
-1.0
10
20
.0
-2
-10
-20
-0
.5
0.5
S(2,2)
10
20
5.0
2.0
0.5
1.0
0.2
S(1,1)
5.0
-5.0
10
20
0.2
-0.2
2.
0
5
0.
5.0
-10
-20
5
0.
2.
0
1.0
Figure.4 Output VSWR S22
1.0
Figure.3 Input VSWR S11
freq (2.300GHz to 2.400GHz)
freq (2.300GHz to 2.400GHz)
Figure.5 Input Smith Chart S11
Figure.6 Output Smith Chart S22
Package Outline Drawing
3/6
YTLP2303D
LTE Band 40 Filter (2300~2400MHz)
0.5
0.6±0.05
1.40±0.05
5x0.325x0.25
4
5
0.1±0.05
0.575
1.10±0.05
2303
0.5
PIN1 Mark
Notes:
1. Dimension: mm
2. Dimensions nominal unless otherwise noted
3. Contact area are gold plated
4. Pad(1) to (5) are same size
5. XX is ROFS inside code
1
3
0.075±0.05
2
Pin Connection:
1 Input
4 Output
2.3.5 Ground
Test Circuit
5
50ohm Input
50ohm Output
4
1
L2=6.2nH
2
L1=4.7nH
3
Notes:
1. Matching component values shown are ROFS
evaluation board results, please adjust component
values by the actual use environment.
Top View
PCB Footprint
Notes:
1. Black indicates metalized area.
2. This footprint represents a recommendation only,
some modification may be necessary to suit end
user assembly materials and processes.
3. For solder pad recommendation see mechanical
information.
4. Dimensions shown are nominal in millimeters.
3x0.15
4x0.425
0.15
0.425
0.325
0.325
0.325
Packing
4/6
YTLP2303D
LTE Band 40 Filter (2300~2400MHz)
1. Tape Dimension
4.0±0.1
2.00±0.05
+0.1
1.5-0.0
+0.1
0.8-0.0
4.0±0.1
3°max
Direction of Feed
1.6±0.1
8.0±0.2
2403
2403
2403
3.5±0.05
1.75±0.1
0.30±0.05
0.70±0.1
Cover Tape
Unit: mm
1.3±0.1
2. Reel Dimension
4000Pcs/Reel
5/6
YTLP2303D
LTE Band 40 Filter (2300~2400MHz)
Recommended IR Reflow Profile
Order Information
Part Number
Qty Per Reel
Container
YTLP2303D
4000
7 inch Reel
6/6
