YTLP2602D

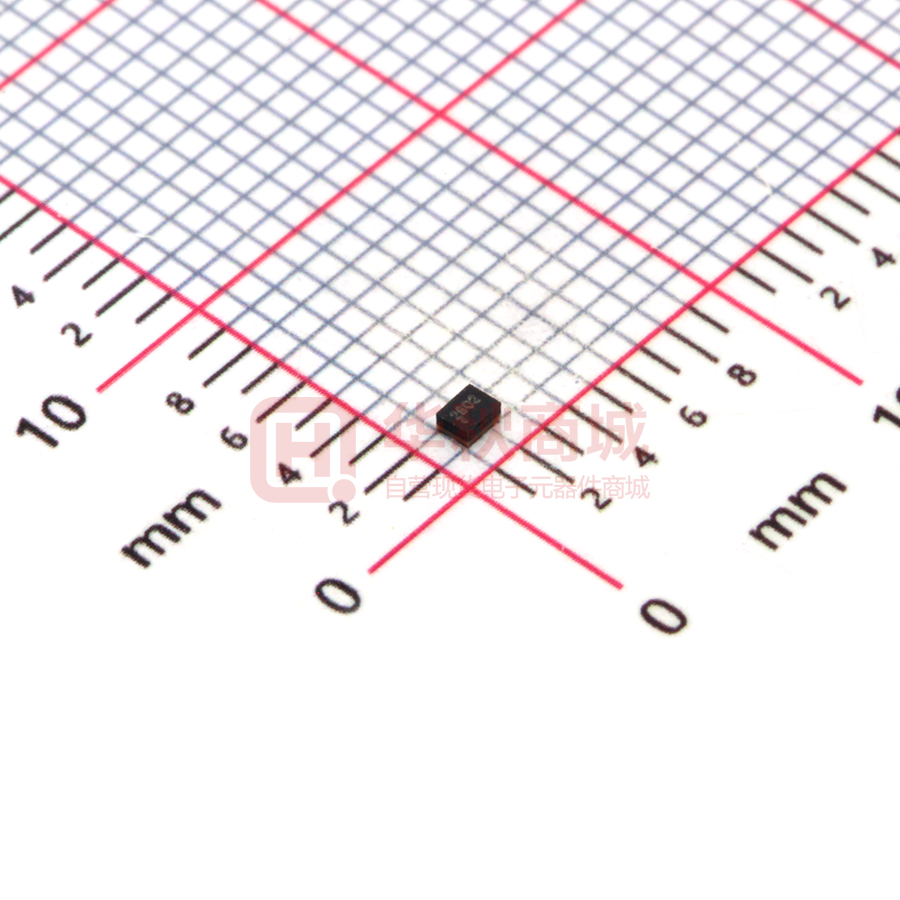

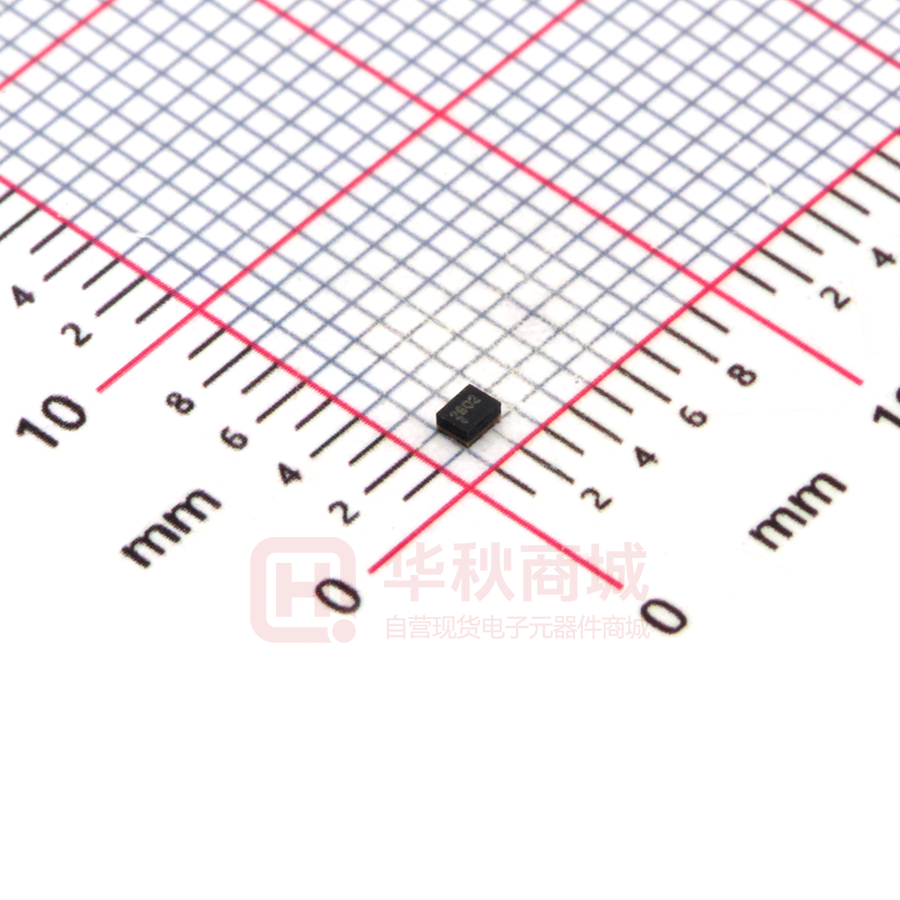

YTLP2602D Band41 Full Band Filter For HPUE Description YTLP2602D is a LTE Band 41 (2496-2690MHz) Tx/Rx bandpass filter designer for use in High Power User Equipment applications with a package size of only 1.4x1.1mm. YTLP2602D is designed with Film Bulk Acoustic Resonator (FBAR) technology, which provides high-Q filters and meet requirements of low insertion loss, high out-of-band attenuation, high power handling and stringent linearity. YTLP2602D uses chip scale packaging (CSP) technology to assembly the filters into a molded chip-on-board module. Features  Functional Block Diagram (Top View) Miniature Size 1.4mm x 1.1 mm x 0.65 mm Low insertion loss Tx/Rx bandpass, 2496-2690MHz: 1.6dB Typ. High Rejection in 2.4G Wi-Fi and 5G New Band 2.4G Wi-Fi: 40dB Typ. Tx Input Power +32 dBm CW for 5000h @ +50℃ ESD protection ability：Class1C Moisture Sensitivity: MSL3 Operation Temperature：-20 to +85℃ Storage Temperature：-40 to +85℃        Environmental     Value Description R1 50ohm R2 50ohm L1 3.1nH Inductor L2 3.1nH Inductor Pin Connection Full implement with RoHS compliant Lead Free (Pb free)   Reference Des. No. Function 1 Tx/Rx 2 GND 3 GND 4 Ant 5 GND Manuf. YTLP2602D Band41 Full Band Filter For HPUE Electrical Specification Transmit Port to Antenna Port Parameter(Operable Temperature: TBD) Min Typ* Max Unit Insertion Loss (2496~2500MHz) \ 2.4 3.0 dB (2500~2690MHz) \ 1.5 2.5 dB (2496~2500MHz) \ 1.2 2 dB (2500~2690MHz) \ 0.5 1.5 dB Tx/Rx Port (2496~2690MHz) \ 1.2 1.6 dB Ant Port (2496~2690MHz) \ 1.2 1.5 dB (10~699MHz) 40 50 \ dB (699~916MHz) 40 50 \ dB (916~1565MHz) 30 40 \ dB (1565~1615MHz) 30 35 \ dB (1615~1710MHz) 30 35 \ dB (1710~1785MHz) 35 40 \ dB (1805~1880MHz) 30 40 \ dB (1880~1920MHz) 30 40 \ dB (1920~1980MHz) 25 33 \ dB (2110~2170MHz) 15 20 \ dB (2300~2400MHz) 10 20 \ dB (2401~2468MHz) 35 43 \ dB (2451~2473MHz) 40 45 \ dB (2456~2478MHz) 30 43 \ dB (2461~2483MHz) 10 38 \ dB (2760~2850MHz) 30 50 \ dB (2850~3300MHz) 10 18 \ dB (3300~4200MHz) 20 28 \ dB (4400~4992MHz) 30 45 \ dB (4992~5380MHz) 35 50 \ dB (5380~7487MHz) 20 35 \ dB (7487~8070MHz) 25 30 \ dB Ripple VSWR Absolute Attenuation   YTLP2602D Band41 Full Band Filter For HPUE Typical Performance at Tc=25℃ Figure1. Pass Band Figure2. Narrow Band Figure3. Wide Band Figure4. Rejection in Wi‐Fi Band Figure5. VSWR1 Figure6. VSWR2   YTLP2602D Band41 Full Band Filter For HPUE -1.2 -1.5 .0 -2 -0 .5 0.5 2. 0 1.5 1.2 Figure7. S11 Figure8. S22   YTLP2602D Band41 Full Band Filter For HPUE Package Outline Top view Side view Bottom view Note: 1. 2. 3. 4.   Dimension: mm Dimensions nominal unless otherwise noted Contact area are gold plated 2602is product code No. Function 1 Tx/Rx 2 GND 3 GND 4 Ant 5 GND
