YTLD2602D

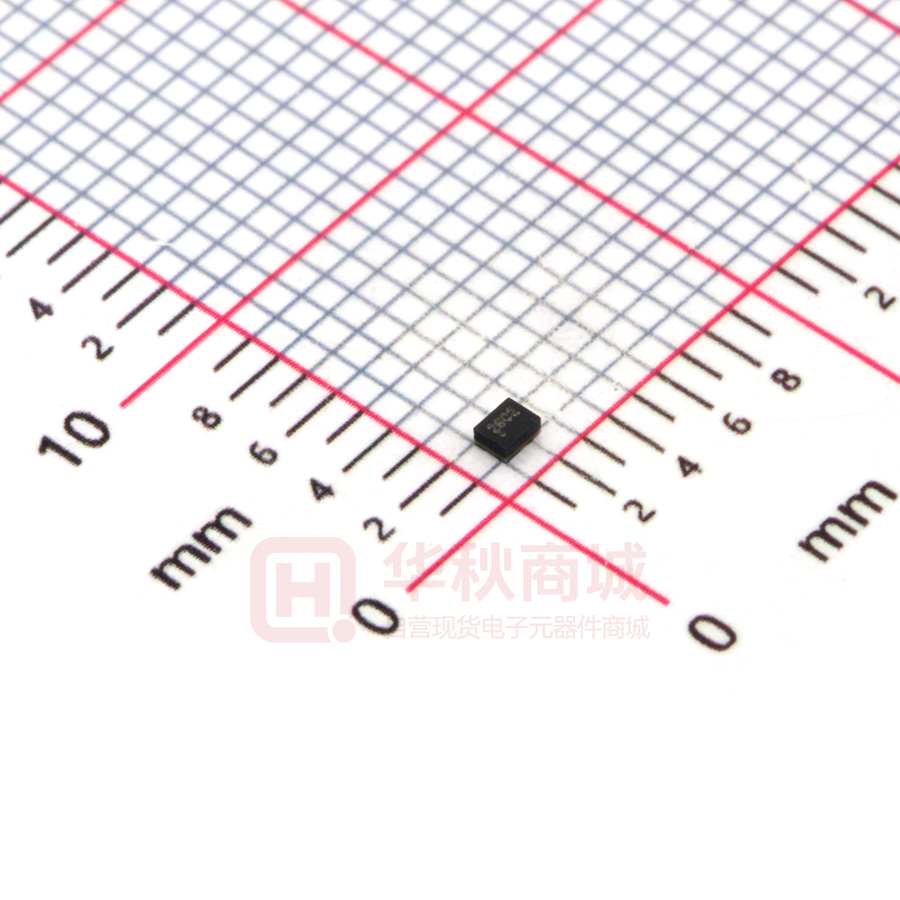

YTL D2602D Band 41 Full Band Filter Description YTLD2602D is a LTE Band 41 (2496-2690MHz) Tx/Rx bandpass filter with a package size of only 1.4x1.1mm. YTLD2602D is designed with Film Bulk Acoustic Resonator (FBAR) technology, which provides high-Q filters and meet requirements of low insertion loss, high out-of-band attenuation, high power handling and stringent linearity. YTLD2602D uses chip scale packaging (CSP) technology to assembly the filters into a molded chip-on-board module. Functional Block Diagram (Top View) Features • • • • • • • • Miniature Size 1.4mm x 1.1 mm x 0.65 mm Low insertion loss Tx/Rx bandpass, 2496-2690MHz: 1.6dB Typ. High Rejection in 2.4G Wi-Fi and 5G New Band 2.4G Wi-Fi: 40dB Typ. Tx Input Power +29 dBm CW for 5000h @ +50℃ ESD protection ability：Class1A Moisture Sensitivity: MSL3 Operation Temperature：-20 to +85℃ Storage Temperature：-40 to +85℃ Environmental • • Full implement with RoHS compliant Lead Free (Pb free) Reference Des. Value R1 50ohm R2 50ohm L1 3.1nH Inductor L2 3.1nH Inductor 1/7 Description Manuf. YTL D2602D Band 41 Full Band Filter Electrical Specification Transmit Port to Antenna Port Parameter(Operable Temperature: TBD) Min Typ* Max Unit Insertion Loss (2496~2500MHz) \ 2.7 3.1 dB (2500~2690MHz) \ 1.5 2.5 dB (2496~2500MHz) \ 1.2 2 dB (2500~2690MHz) \ 0.5 1.5 dB Tx/Rx Port (2496~2690MHz) \ 1.2 1.6 dB Ant Port (2496~2690MHz) \ 1.2 1.5 dB (10~699MHz) 40 50 \ dB (699~916MHz) 40 50 \ dB (916~1565MHz) 30 40 \ dB (1565~1615MHz) 30 35 \ dB (1615~1710MHz) 30 35 \ dB (1710~1785MHz) 35 40 \ dB (1805~1880MHz) 30 40 \ dB (1880~1920MHz) 30 40 \ dB (1920~1980MHz) 25 33 \ dB (2110~2170MHz) 15 20 \ dB (2300~2400MHz) 10 20 \ dB (2401~2468MHz) 35 43 \ dB (2451~2473MHz) 40 45 \ dB (2456~2478MHz) 30 43 \ dB (2461~2483MHz) 10 38 \ dB (2760~2850MHz) 30 50 \ dB (2850~3300MHz) 10 18 \ dB (3300~4200MHz) 20 28 \ dB (4400~4992MHz) 30 45 \ dB (4992~5380MHz) 35 50 \ dB (5380~7487MHz) 20 35 \ dB (7487~8070MHz) 25 30 \ dB Ripple VSWR Absolute Attenuation 2/7 YTL D2602D Band 41 Full Band Filter Typical Performance at Tc=25℃ Figure1. Pass Band Figure2. Narrow Band Figure3. Wide Band Figure4. Rejection in Wi-Fi Band Figure5. VSWR1 Figure6. VSWR2 3/7 YTL D2602D Band 41 Full Band Filter Figure7. S11 Figure8. S22 4/7 YTL D2602D Band 41 Full Band Filter Package Outline 0.5 0.65±0.05 1.40±0.05 4 2602 0.5 5x0.325x0.25 5 1 3 2 0.075±0.05 PIN1 Mark Top view Side view Bottom view Note: 1. Dimension: mm 2. Dimensions nominal unless otherwise noted 3. Contact area are gold plated 4. 5. 2602 is product code Pad(1) to (5) are same size No. Function 1 Tx/Rx 4 Ant 2. 3. 5 GND Test Circuit 5 50ohm Input 4 1 L2=3.1nH 2 L1=3.1nH 50ohm Output 3 Notes: 1. Matching component values shown are ROFS evaluation board results, please adjust component values by the actual use environment. Top View PCB Footprint Notes: 3x0.15 1. Black indicates metalized area. 2. This footprint represents a recommendation only, 0.35 some modification may be necessary to suit end user assembly materials and processes. 3. For solder pad recommendation see mechanical information. 4. Dimensions shown are nominal in millimeters. 0.35 0.35 5/7 YTL D2602D Band 41 Full Band Filter Packing 1. Tape Dimension 1.3±0.1 2. Reel Dimension 4000Pcs/Reel 6/7 YTL D2602D Band 41 Full Band Filter Recommended IR Reflow Profile Order Information Part Number Qty Per Reel Container YTLP2602D 4000 7 inch Reel 7/7
