YTLD1950C

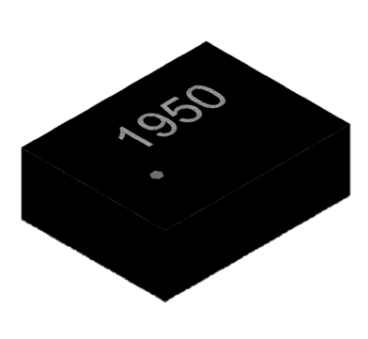

YTLD1950C Band1 BAW Duplexer Description YTLD1950C is a high performance duplexer designed for applications in LTE Band1 (1920~1980 MHz UL, 2110~2170 MHz DL). YTLD1950C is designed with ROFS’s MEMS BAW technology, which provides high-Q resonator and first-class reliability. Low insertion loss and high power handling capability of Tx port reduces the current from power amplifier under working condition. High isolation of Rx port improve excellent sensitivity in the receive band . 8 Pin 1.8 x 1.4 x 0.61mm Package YTLD1950C uses chip scale packaging (CSP) technology to assembly the filters into a molded chip-on-board module with the footprint of 1.8mm x 1.4mm and height of 0.61mm. Functional Block Diagram（Top Thru View） Features Ant  Miniature Size 1.8 mm x 1.4 mm x 0.61 mm  Insertion Loss: o Tx 1.3 dB Typ. o Rx 1.5 dB Typ.  Tx-RX Isolation: o Tx Pass Band 53 dB Typ. o Rx Pass Band 60 dB Typ. 7 6 8 1 Rx R3 5 4 2 3 L1 R1 L2 R2 Tx L3 Reference Des. Value R1 50ohm R2 50ohm  ESD protection ability：Class1C R3 50ohm  Moisture Sensitivity: L1 2.7 nH Ideal Inductor L2 8.2 nH Ideal Inductor  L3 3.9 nH Ideal Inductor   Tx Input Power o 31 dBm MSL3  Storage Temperature：-40 to +85 ℃ Environmental  Full implement with RoHS compliant  Lead Free (Pb free) Description Pin Connection No. Function 1 Rx 3 Tx 6 Ant 2,4,5,7,8 Ground   YTLD1950C Band1 BAW Duplexer Electrical Specification Transmit Port to Antenna Port Parameter (Operation Temperature: -20~85℃) Min Typ* Max Unit Insertion Loss (1920~1980MHz) / 1.3 2.0 dB Ripple(1920~1980MHz) / 0.4 1.0 dB VSWR (1920~1980MHz,ANT Port) / 1.2 1.8 / VSWR (1920~1980MHz,TX Port) / 1.3 1.8 / (500~1560MHz) 32 37 / dB (1565 ~1606MHz) 34 39 / dB (1805~1880MHz) 26 31 / dB (2010~2025MHz) 20 28 / dB (2110~2170MHz) 49 54 / dB (2300~2400MHz) 36 41 / dB (2400~2483MHz) 33 38 / dB (2620~2690MHz) 30 35 / dB (3400~3800MHz) 20 26 / dB (3840~3960MHz, 2f0) 20 25 / dB (4400~5400MHz) 10 19 / dB (5760~5940MHz, 3f0) 19 24 / dB (6000~7000 MHz) 16 23 / dB Absolute Attenuation(500~8000MHz)   YTLD1950C Band1 BAW Duplexer Antenna Port to Receive Port Parameter (Operation Temperature: -20~85℃) Min Typ* Max Unit Insertion Loss (2110~2170MHz) / 1.5 2.1 dB Ripple(2110~2170MHz) / 0.6 1.2 dB VSWR(2110~2170MHz, ANT Port) / 1.3 1.9 / VSWR (2110~2170MHz, RX Port) / 1.4 1.9 / (500~1680MHz) 29 34 / dB (1710~1785MHz) 32 37 / dB (1920~1980MHz) 46 51 / dB (2300~2400MHz) 46 51 / dB (2400~2500MHz) 47 52 / dB (2500~2570MHz) 51 56 / dB (3300~4200MHz) 33 38 / dB (4220~4340MHz, 2f0) 38 43 / dB (4400~5900MHz) 15 22 / dB (6330~6510MHz, 3f0) 29 6 34 / dB 12 / dB Min Typ* Max Unit 1920~1980MHz 50 53 / dB 2110~2170MHz 55 60 / dB Absolute Attenuation(500~8000MHz) (6600~8000 MHz) Transmit Port to Receive Port Parameter(Operation Temperature: -20~85℃) Isolation *Data is the integrated value of the linear s-parameter over indicated band * Typical value at 25±3 ℃   YTLD1950C Band1 BAW Duplexer Typical Performance at Tc=25℃ 0.0 0.0 -0.5 -0.5 -1.0 -1.0 -1.5 -1.5 -2.0 -2.0 -2.5 -2.5 -3.0 -3.0 1.92 1.93 1.94 1.95 1.96 1.97 1.98 freq, GHz Figure1. TX‐ANT Passband 2.11 2.12 2.13 2.14 2.15 2.16 freq, GHz Figure2. ANT‐RX Passband Figure4. ANT‐RX Figure3. TX‐ANT Figure6. ANT‐RX Wideband Figure5. TX‐ANT Wideband   2.17 YTLD1950C Band1 BAW Duplexer Typical Performance at Tc=25℃ Figure7. TX ‐ RX Isolation   YTLD1950C Band1 BAW Duplexer Typical Performance at Tc=25℃ 2.0 2.0 1.8 1.8 1.6 1.6 1.4 1.4 1.2 1.2 1.0 1.0 1.92 1.94 1.96 freq, GHz 1.98 2.11 2.13 2.15 2.17 Figure9. RX(RX/Ant Port) VSWR Figure8. TX (Tx/Ant Port)VSWR Figure10. TX (Tx/Ant Port)Smith Chart   freq, GHz Figure11. RX (RX/Ant Port) Smith Chart YTLD1950C Band1 BAW Duplexer Package Outline Top View Side View Bottom View Note: 1. 2. 3. 4. 5. Dimension: mm Dimensions nominal unless otherwise noted Contact area are gold plated Pad(1)(2) is single size, others are same size 1950 is product code No. Function 1 Rx 3 Tx 6 Ant 2,4,5,7,8 Ground Order Information P/N Qty./Reel Container YTLD1950C 4000 7 inch Reel   YTLD1950C Band1 BAW Duplexer Packing 1. Tape Dimension 2. Reel Dimension 4000Pcs/Reel Trailer tape 160-190 Components 80-120 Leader Cavity 400-560 Unit:mm 2.0±0.5 13.5max 13.0±0.5   178 60 9.0±0.5 YTLD1950C Band1 BAW Duplexer Recommended Reflow Profile
