YTLD1702C

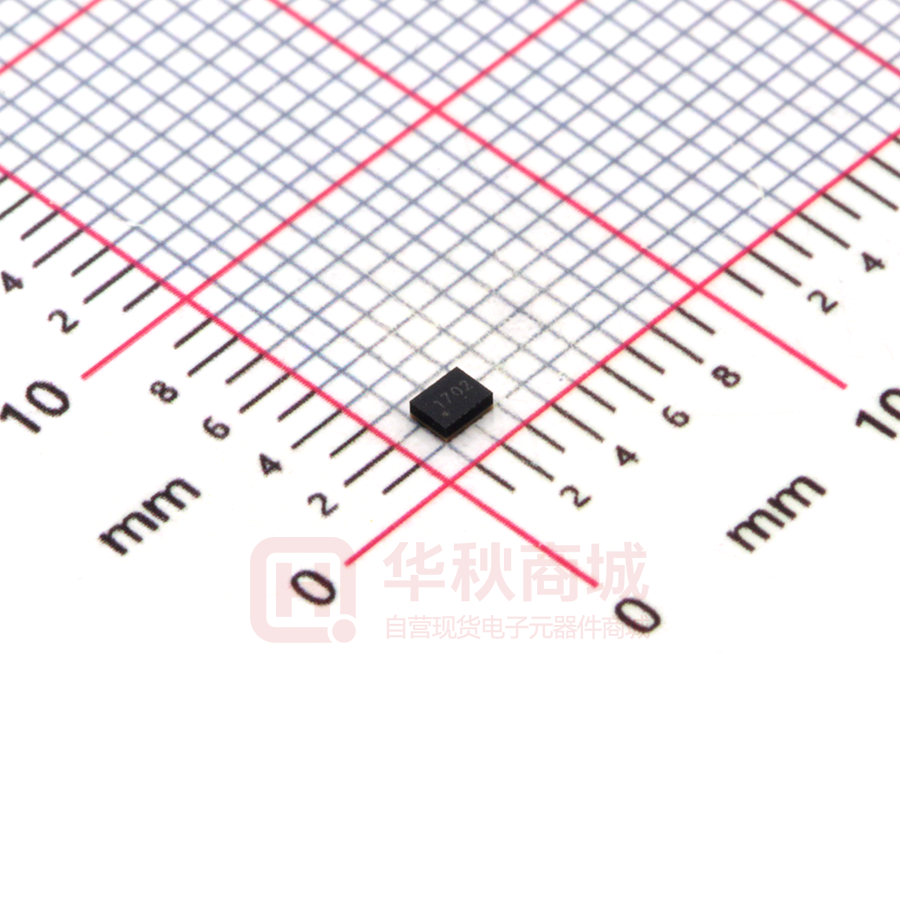

YTLD1702C Band3 FBAR Duplexer Description YTLD1702C is a high performance duplexer designed for applications in LTE Band 3 (1710 – 1785 MHz UL, 1805 – 1880 MHz DL). YTLD1702C is designed with Film Bulk Acoustic Resonator (FBAR) technology, which provides high-Q filters and meet requirements of low insertion loss, high out-of-band attenuation, high power handling and stringent linearity. YTLD1702C uses chip scale packaging (CSP) technology to assembly the filters into a molded chip-on-board module with the footprint of 1.8mm x 1.4mm and height of 0.61mm. Functional Block Diagram (Top Thru View) Ant 7 6 8 Features       Miniature Size 1.8 mm x 1.4 mm x 0.61 mm Low insertion loss o TX band, 1710-1785MHz: 1.5dB Typ. o RX band, 1805-1880MHz: 1.8dB Typ. High Isolation o TX isolation: 60dB Typ. o RX isolation: 58dB Typ. Input power o +29 dBm CW for 5000h @ +55 deg.C Single-ended(SE) 50ohm receive & transmit ports Storage Temperature：-40 to +85 deg.C Environmental   Full implement with RoHS compliant Lead Free (Pb free) Rx R3 2 3 L1 R1 L2 R2 Tx L3 Reference Des. Value Description R1 50ohm R2 50ohm R3 50ohm L1 3nH Ideal inductor L2 7.5nH Ideal inductor L3 5.1nH Ideal inductor Pin Connection   4     1 5 No. Function 1 Rx 3 Tx 6 Ant 2,4,5,7,8 Ground Manuf. YTLD1702C Band3 FBAR Duplexer Electrical Specification Transmit Port to Antenna Port Parameter(Operable Temperature: -20 to +85 deg.C) Min Typ* Max Unit Insertion Loss (1710~1785MHz) \ 1.5 Ripple(1710~1785MHz) \ 0.4 VSWR (1710~1785MHz,ANT) \ 1.3 1.5 \ VSWR (1710~1785MHz,TX) \ 1.3 1.5 \ (10~1565.4MHz) 30 45 \ dB Wideband GPS (1565.4~1573.4MHz) 40 43 \ dB Regular GPS (1573.4~1577.5MHz) 40 43 \ dB Wideband GPS (1577.5~1585.4MHz) 40 44 \ dB GLONASS (1597.6~1605.9MHz) 42 48 \ dB (1605.9~1680MHz) 8 40 \ dB RX Band (1805~1880MHz) 43 53 \ dB Band1 RX (2110~2170MHz) 36 40 \ dB ISM Band (2400~2500MHz) 42 46 \ dB Band7 RX (2620~2690MHz) 36 40 \ dB (3420~3570MHz, 2f0) 30 34 \ dB (5130~5355MHz, 3f0) 15 17 \ dB Min Typ* Max Unit Insertion Loss (1805~1880MHz) \ 1.8 3.5 dB Ripple(1805~1880MHz) \ 0.5 1(1) dB VSWR(1805~1880MHz,ANT) \ 1.6 1.9 \ VSWR (1805~1880MHz,RX) \ 1.6 1.9 \ (10~1710MHz) 25 50 \ dB TX Band (1710~1785MHz) 43 60 \ dB (1920~6000MHz) 30 45 \ dB ISM Band (2400~2500MHz) 44 50 \ dB Band7 TX (2500~2570MHz) 47 51 \ dB (2570~3515MHz) 50 55 \ dB (3515~3760MHz, 2f0) 50 53 \ dB ISM 5G (4900~5950MHz) 31 39 \ dB (5205~5660MHz, 3f0) 32 36 \ dB 2.5 1(1) dB dB Absolute Attenuation Antenna Port to Receive Port Parameter(Operable Temperature: -20 to +85 deg.C) Absolute Attenuation     YTLD1702C Band3 FBAR Duplexer Parameter(Operable Temperature: -20 to +85 deg.C) Min Typ* Max Unit Transmit Port to Receive Port Isolation 1710~1785MHz 50 60 \ dB 1805~1880MHz 50 58 \ dB *Data is the integrated value of the linear s-parameter over indicated band. (1) Data is the integrated Max value of the linear S-parameter over 5MHz.     YTLD1702C Band3 FBAR Duplexer Typical Performance at Tc=25 deg.C VSWR Figure5. ANT Port VSWR Figure1. TX‐ANT Passband VSWR Figure2. ANT‐RX Passband Figure3. TX Port VSWR VSWR Figure4. RX Port VSWR     YTLD1702C Band3 FBAR Duplexer Figure6. TX RX Isolation Figure7. TX‐ANT Figure11. TX Port (TX Passband) Smith Chart Figure8. ANT‐RX Insertion Loss(dB) Insertion Loss(dB) Figure9. TX‐ANT Wideband     Figure10. ANT‐RX Wideband YTLD1702C Band3 FBAR Duplexer Figure13. RX Port (RX Passband) Smith Chart Figure12. ANT Port (TX Passband) Smith Chart Figure14. ANT Port (RX Passband) Smith Chart 1.80 ±0.05 1.2 0.61 ±0.06 0.625 ANT Ground (5) Ground 1702 Ground (6) + 1.40 ±0.05 (7) + 0.95 0.05 (4) + + TX (3) Ground + + (2) 0.25 0.35 (1) 0.10±0.05 4x 0.75 0.35 Top view Side view Bottom view Note:   0.30 (8) + PIN1 Mark   6 0.35 0.25 + 0.475 (Ground) RX Package Outline Ground No. Function 1 Rx 3 Tx YTLD1702C Band3 FBAR Duplexer 1. 2. 3. 4. 5. Dimension: mm Dimensions nominal unless otherwise noted Contact area are gold plated Pad(1) (2) is single size, others are same size 1702 is product code 6 Ant 2,4,5,7,8 Ground Order Information P/N Qty/Reel Container YTLD1702C 4000 7 inch Reel     YTLD1702C Band3 FBAR Duplexer Packing 1. Tape Dimension 2. Reel Dimension 4000Pcs/Reel Trailer tape 160-190 Components 80-120 Leader Cavity 400-560 Unit:mm 2.0±0.5 13.5max   13.0±0.5   178 60 9.0±0.5 YTLD1702C Band3 FBAR Duplexer Recommended Reflow Profile
