YTLD2503C

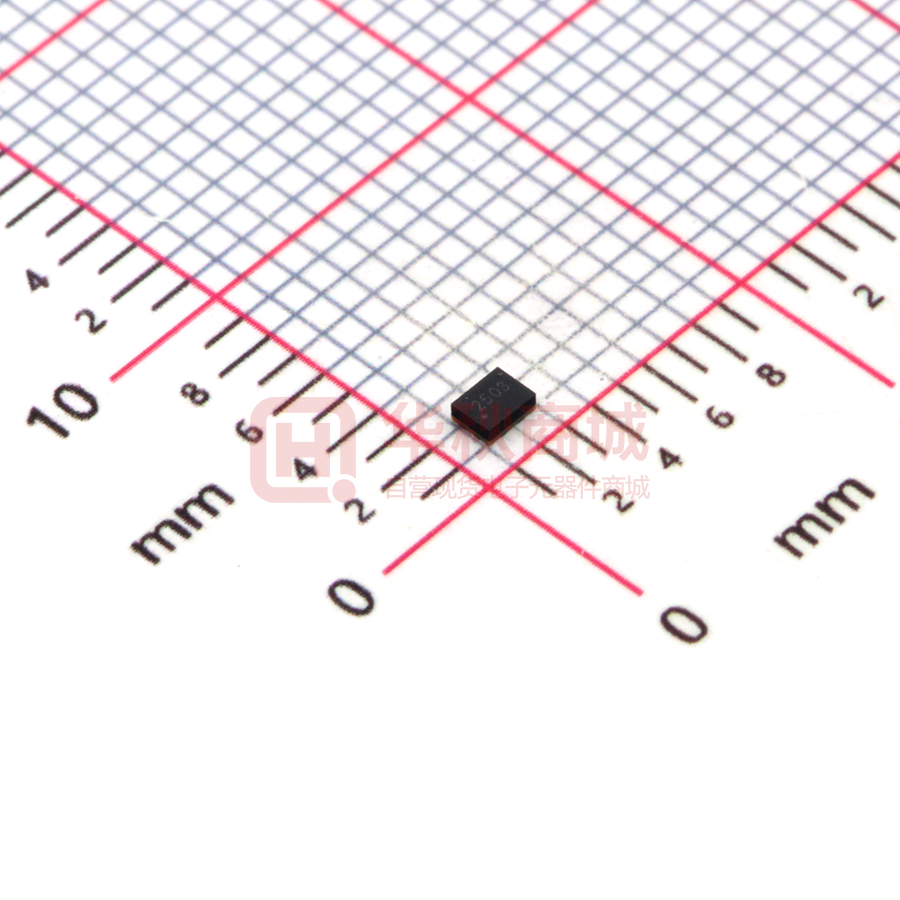

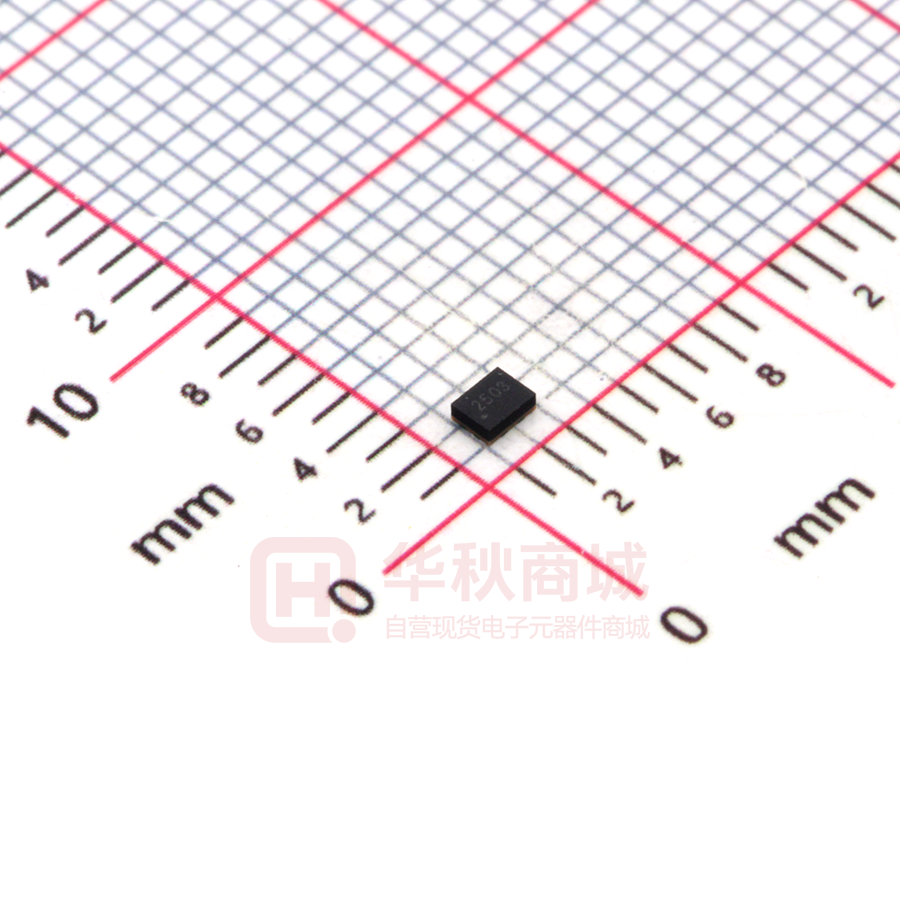

YTLD2503C Band7 BAW Duplexer Description YTLD2503C is a high performance duplexer designed for applications in LTE Band7 (2500~2570 MHz UL, 2620~2690 MHz DL). YTLD2503C is designed with ROFS’s MEMS BAW technology, which provides high Q filters and firstclass reliability. Low insertion loss and return loss of Tx port reduce the current from power amplifier. High out-of-band attenuation in the Wi-Fi band coexist with Wi-Fi signal under working condition. High isolation of Rx port improve sensitivity in the receive band . YTLD2503C uses chip scale packaging (CSP) technology to assembly the filters into a molded chip-on-board module with the footprint of 1.8mm x 1.4mm and height of 0.61mm. Features 8 Pin 1.8 x 1.4 x 0.61mm Package  Miniature Size 1.8 mm x 1.4 mm x 0.61 mm  Insertion Loss: o Tx 1.8 dB Typ. o Rx 1.6 dB Typ.  Tx-RX Isolation: o Tx Pass Band 53 dB Typ. o Rx Pass Band 61 dB Typ.  Functional Block Diagram（Top Thru View） Tx Input Power o Ant 30 dBm 7 8  ESD protection ability：Class1C  Moisture Sensitivity: Rx MSL3  Storage Temperature：-40 to +85 ℃ Environmental  Full implement with RoHS compliant  Lead Free (Pb free) R3 1 5 4 2 L3 3 L1 R1 L2 R2 Tx Reference Des. Value R1 50ohm R2 50ohm R3 50ohm L1 2.7nH Ideal Inductor L2 4.7nH Ideal Inductor  L3 3.9nH Ideal Inductor  Pin Connection   6 Description YTLD2503C Band7 BAW Duplexer No. Function 1 Rx 3 Tx 6 Ant 2,4,5,7,8 Ground   YTLD2503C Band7 BAW Duplexer Electrical Specification Transmit Port to Antenna Port Parameter (Operation Temperature: -20~85℃) Min Typ* Max Unit Insertion Loss (2500~2570MHz) / 1.8 2.7 dB Ripple(2500~2570MHz) / 0.8 1.6 dB VSWR (2500~2570MHz,ANT Port) / 1.3 1.9 / VSWR (2500~2570MHz,TX Port) / 1.2 1.9 / (500~1560MHz) 33 40 / dB (1565 ~1606MHz) 32 39 / dB (1805~1880MHz) 30 36 / dB (2110~2170MHz) 29 35 / dB (2300~2400MHz) 23 29 / dB (2400~2472MHz) 36 41 / dB (2472~2481MHz) 22 33 / dB (2620~2690MHz) 52 59 / dB (3400~3600MHz) 44 51 / dB (4500~5500MHz, 2f0) 32 38 / dB (5600~7200MHz) 26 33 / dB (7200~8000MHz, 3f0) 19 25 / dB Min Typ* Max Unit Insertion Loss (2620~2690MHz) / 1.6 2.5 dB Ripple(2620~2690MHz) / 0.6 1.4 dB VSWR(2620~2690MHz,ANT Port) / 1.6 2.0 / VSWR (2620~2690MHz,RX Port) / 1.6 2.0 / (500~1680MHz) 37 44 / dB (1710~1785MHz) 36 42 / dB (1920~1980MHz) 33 39 / dB (2400~2500MHz) 39 45 / dB (2500~2570MHz) 48 53 / dB (2750~4900MHz) 37 44 / dB (4900~5600MHz, 2f0) 43 49 / dB (5600~7400MHz) 40 47 / dB (7400~8000MHz, 3f0) 28 34 / dB Absolute Attenuation(500~8000MHz) Antenna Port to Receive Port Parameter (Operation Temperature: -20~85℃) Absolute Attenuation(500~8000MHz)   YTLD2503C Band7 BAW Duplexer Transmit Port to Receive Port Min Typ* Max Unit 2500~2570MHz 50 53 / dB 2620~2690MHz 56 61 / dB Parameter(Operation Temperature: -20~85℃) Isolation *Data is the integrated value of the linear s-parameter over indicated band * Typical value at 25±3 ℃   YTLD2503C Band7 BAW Duplexer Typical Performance at Tc=25℃ Figure1. TX‐ANT Passband Figure3. TX‐ANT Figure2. ANT‐RX Passband Figure4. ANT‐RX Figure6. ANT‐RX Wideband Figure5. TX‐ANT Wideband   YTLD2503C Band7 BAW Duplexer Typical Performance at Tc=25℃ Figure7. TX Port VSWR Figure9. Ant Port VSWR   Figure8. RX Port VSWR Figure10. TX ‐ RX Isolation YTLD2503C Band7 BAW Duplexer Typical Performance at Tc=25℃ .0 -2 10 20 2.0 2.0 1.0 0.5 5.0 5 0. -1.0 -1.0 .0 -2 -0 .5 10 20 5.0 2.0 1.0 -0 .5 0.5 0. 5 2.0 1.0 1.0 Figure11. TX Smith Chart -1.0 .0 -2 10 20 2.0 2.0 1.0 0.5 5.0 5 0. -0 .5 10 20 5.0 -1.0 -0 . .0 -2 2.0 1.0 5 0.5 0 .5 2. 0 1.0 1.0 Figure12. RX Smith Chart Figure13.Ant (Tx Pass Band) Smith Chart Figure14. Ant (Rx Pass Band) Smith Chart   YTLD2503C Band7 BAW Duplexer Package Outline Top View Side View Bottom View Note: 1. 2. 3. 4. 5. Dimension: mm Dimensions nominal unless otherwise noted Contact area are gold plated Pad(1)(2) is single size, others are same size 2503 is product code No. Function 1 Rx 3 Tx 6 Ant 2,4,5,7,8 Ground Order Information P/N Qty./Reel Container YTLD2503C 4000 7 inch Reel   YTLD2503C Band7 BAW Duplexer Packing 1. Tape Dimension 2. Reel Dimension 4000Pcs/Reel Trailer tape 160-190 Components 80-120 Leader Cavity 400-560 Unit:mm 2.0±0.5 13.5max 13.0±0.5   178 60 9.0±0.5 YTLD2503C Band7 BAW Duplexer Recommended Reflow Profile
