YTLP2511E
Band41n
Description

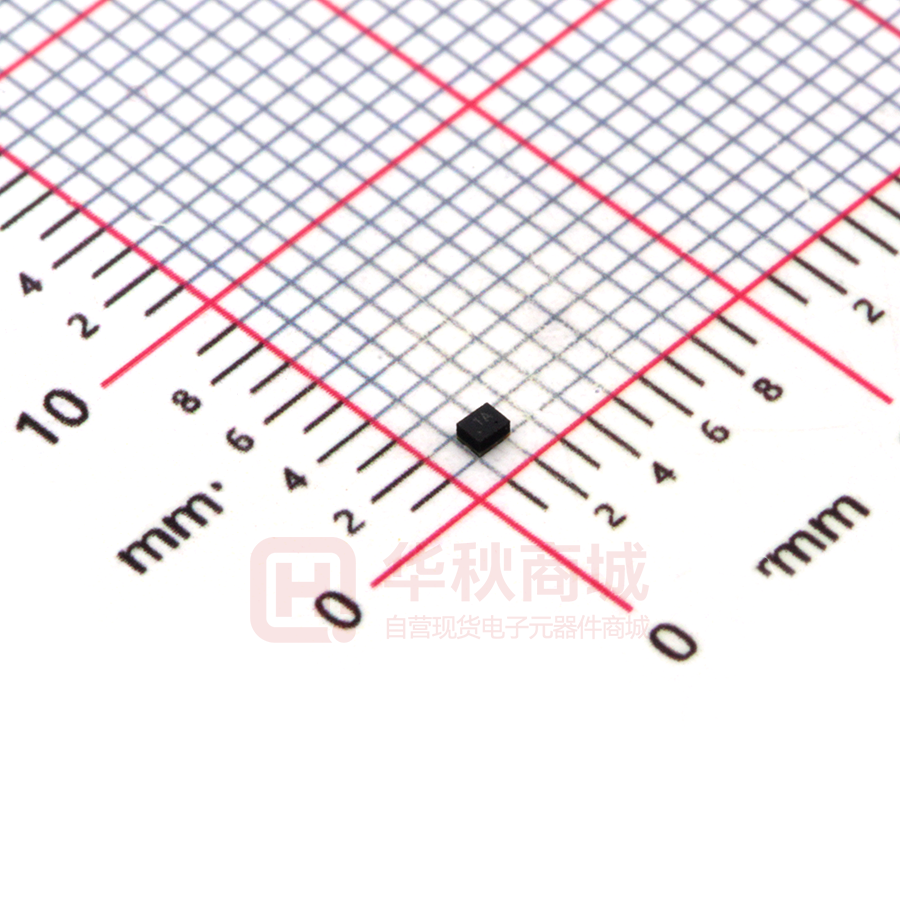

YTLP2511E is a LTE Band 41 (2535-2655MHz)
Tx/Rx bandpass filter designer for use in High
Power User Equipment applications with a package
size of only 1.1x0.9mm.
YTLP2511E is designed with Film Bulk
Acoustic Resonator (FBAR) technology, which
provides high-Q filters and meet requirements of
low insertion loss, high out-of-band attenuation,
high power handling and stringent linearity.
Functional Block Diagram (Top View)
YTLP2511E uses chip scale packaging (CSP)
technology to assembly the filters into a molded
chip-on-board module.
Features
Miniature Size
1.1mm x 0.9 mm x 0.6 mm
Low insertion loss
o Tx/Rx bandpass, 2535-2655MHz: 0.9dB Typ.
High Rejection in 2.4G Wi-Fi and 5G New Band
o 2.4G Wi-Fi: 45dB Typ.
HPUE:32dBm, 55℃, 5000h
Operation Temperature:-20 to +85℃
Storage Temperature:-40 to +85℃
Environmental
Description
4.3nH
Inductor
Pin1_Input
5.1nH
Inductor
Pin4_Output
Reference Des.
Value
R1
50ohm
R2
50ohm
L1
L2
Pin Connection
Full implement with RoHS compliant
Lead Free (Pb free)
No.
Function
1
Tx/Rx
2
GND
3
GND
4
Ant
5
GND
Electrical Specification
YTLP2511E
Band41n
Transmit Port to Antenna Port
Parameter(Operable Temperature: -20 to +85℃)
Min
Typ*
Max
Unit
Insertion Loss (2535~2655MHz)
\
1.2
2.0
dB
Ripple (2535~2655MHz)
\
0.3
1
dB
VSWR (2535~2655MHz, Tx/Rx Port)
\
1.15
1.35
\
VSWR (2535~2655MHz, Ant Port)
\
1.15
1.35
\
(10~699MHz)
37
42
\
dB
(699~916MHz)
30
35
\
dB
(916~1565MHz)
17
22
\
dB
(1565~1615MHz)
17
22
\
dB
(1615~1710MHz)
17
22
\
dB
(1710~1785MHz)
17
22
\
dB
(1805~1880MHz)
17
22
\
dB
(1880~1920MHz)
17
22
\
dB
(1920~1980MHz)
17
22
\
dB
(2110~2170MHz)
18
23
\
dB
(2300~2400MHz)
15
19
\
dB
(2401~2468MHz)
34
39
\
dB
(2451~2473MHz)
35
40
\
dB
(2456~2478MHz)
35
40
\
dB
(2461~2483MHz)
35
40
\
dB
(2760~2850MHz)
25
29
\
dB
(2850~3300MHz)
27
27
\
dB
(3300~4200MHz)
25
29
\
dB
(4400~4992MHz)
40
44
\
dB
(4992~5380MHz)
45
51
\
dB
(5380~7487MHz)
28
33
\
dB
(7487~8070MHz)
26
31
\
dB
Absolute Attenuation
Typical Performance at Tc=25℃
YTLP2511E
Band41n
0
0
-1
-20
IL (d B )
IL (d B )
-2
-3
-40
-60
-4
-80
-5
2.45
2.50
2.55
2.60
2.65
2.70
2.4
2.75
2.5
Freq.(GHz)
-20
-20
IL (d B )
IL (d B )
0
-40
-60
-80
-80
3
4
5
6
7
2.400
8
Freq.(GHz)
Freq.(GHz)
Figure4. Rejection in 2.4G Wi‐Fi
0
0
-20
-20
IL (d B )
IL (d B )
2.485
Figure3. Wide Band
-40
-60
-40
-60
-80
3.0
3.5
4.0
4.5
Figure5. Rejection in LTE5G
-80
5.0
5.0
Freq.(GHz)
5.2
5.4
5.6
5.8
Freq.(GHz)
Figure6. Rejection in 5G Wi‐Fi
-40
-60
2
2.8
Figure2. Narrow Band
0
1
2.7
Freq.(GHz)
Figure1. Pass Band
0
2.6
6.0
YTLP2511E
S(2,2)
S(1,1)
Band41n
freq (2.535GHz to 2.655GHz)
Figure7. S11
Figure8. S22
Package Outline
freq (2.535GHz to 2.655GHz)
YTLP2511E
Band41n
1A
Note:
1.
2.
3.
4.
Dimension: mm
Dimensions nominal unless otherwise noted
Contact area are gold plated
1A is product code
No.
Function
1
Tx/Rx
2
GND
3
GND
4
Ant
5
GND
