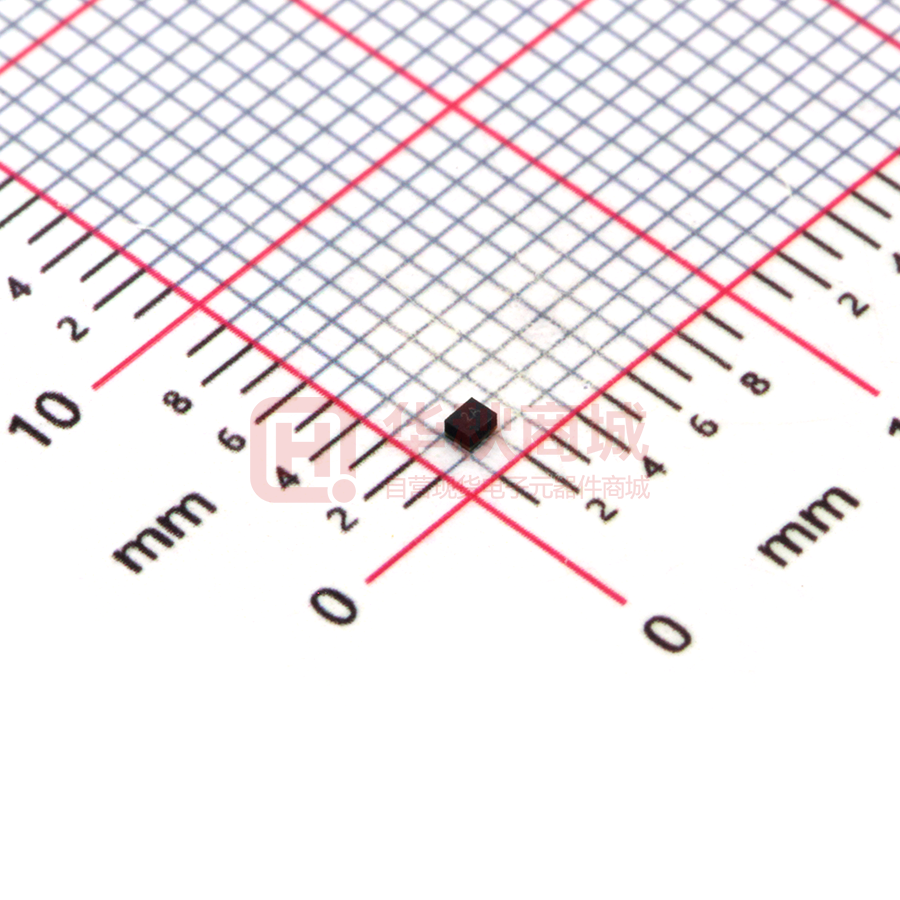

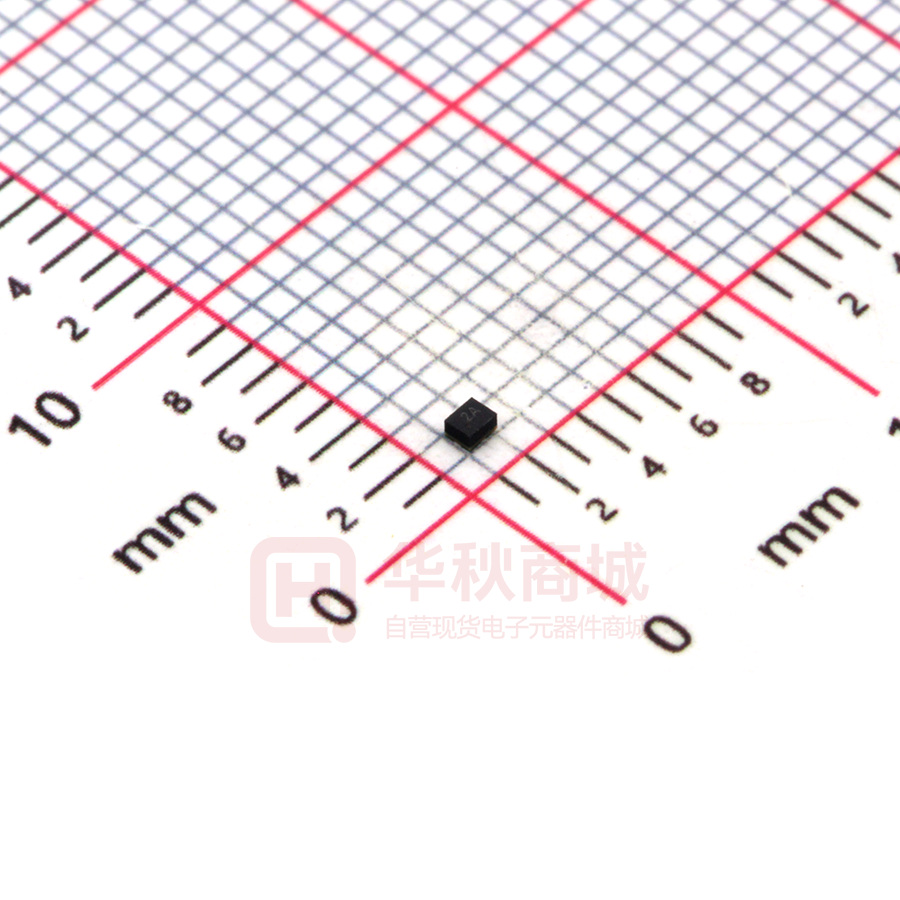

YTLP2521E
Band41n
Description
YTLP2521E is a LTE Band 41 (2555~2675MHz)
Tx/Rx bandpass filter designer for use in High
Power User Equipment applications with a package
size of only 1.1 x 0.9 mm.
YTLP2521E is designed with Film Bulk
Acoustic Resonator (FBAR) technology, which
provides high-Q filters and meet requirements of
low insertion loss, high out-of-band attenuation,
high power handling and stringent linearity.
Functional Block Diagram (Top View)
YTLP2521E uses chip scale packaging (CSP)
technology to assembly the filters into a molded
chip-on-board module.
Features
2521
Miniature Size
1.4mm x 1.1 mm x 0.59 mm
Low insertion loss
o Tx/Rx passband(2555-2675MHz): 1.4dB Typ.
High Rejection in 2.4G Wi-Fi and 5G New Band
o 2.4G Wi-Fi: 40dB Typ.
HPUE:32dBm, 55℃, 5000h
Operation Temperature:-40 to +95℃
Storage Temperature:-40 to +95℃
Description
5.1nH
Inductor
Pin1_Input
5.1nH
Inductor
Pin4_Output
Reference Des.
Value
R1
50ohm
R2
50ohm
L1
L2
Pin Connection
Environmental
Full implement with RoHS compliant
Lead Free (Pb free)
No.
Function
1
Tx/Rx
2
GND
3
GND
4
Ant
5
GND
Electrical Specification
YTLP2521E
Band41n
Transmit Port to Antenna Port
Parameter(Operable Temperature: -40 to +95℃)
Min
Typ*
Max
Unit
Insertion Loss (2555~2675MHz)
\
1.4
2.0
dB
Ripple (2555~2675MHz)
\
0.7
1.3
dB
VSWR (2555~2675MHz, Tx/Rx Port)
\
1.3
1.6
dB
VSWR (2555~2675MHz, Ant Port)
\
1.3
1.6
dB
(10~699MHz)
37
41
\
dB
(699~916MHz)
30
34
\
dB
(916~1565MHz)
18
23
\
dB
(1565~1615MHz)
18
22
\
dB
(1615~1710MHz)
18
22
\
dB
(1710~1785MHz)
18
22
\
dB
(1805~1880MHz)
18
22
\
dB
(1880~1920MHz)
18
22
\
dB
(1920~1980MHz)
18
23
\
dB
(2110~2170MHz)
19
24
\
dB
(2300~2400MHz)
19
24
\
dB
(2401~2468MHz)
36
41
\
dB
(2451~2473MHz)
36
41
\
dB
(2456~2478MHz)
36
41
\
dB
(2461~2483MHz)
36
41
\
dB
(2760~2850MHz)
28
33
\
dB
(2850~3300MHz)
27
32
\
dB
(3300~4200MHz)
31
36
\
dB
(4400~4992MHz)
30
35
\
dB
(4992~5380MHz)
30
35
\
dB
Absolute Attenuation
Typical Performance at Tc=25℃
YTLP2521E
Band41n
Figure1. Pass Band
Figure2. Narrow Band
Figure3. Wide Band
Figure4. Rejection in 2.4G Wi‐Fi
Figure5. Rejection in LTE5G & 5G Wi‐Fi
Figure6. Return Loss
YTLP2521E
Band41n
Figure7. Smith chart
Package Outline
YTLP2521E
Band41n
2A
Note:
1.
2.
3.
4.
Dimension: mm
Dimensions nominal unless otherwise noted
Contact area are gold plated
2A is product code.
No.
Function
1
Tx/Rx
2
GND
3
GND
4
Ant
5
GND
