YTLP2651E
Band41F_DRx
Description

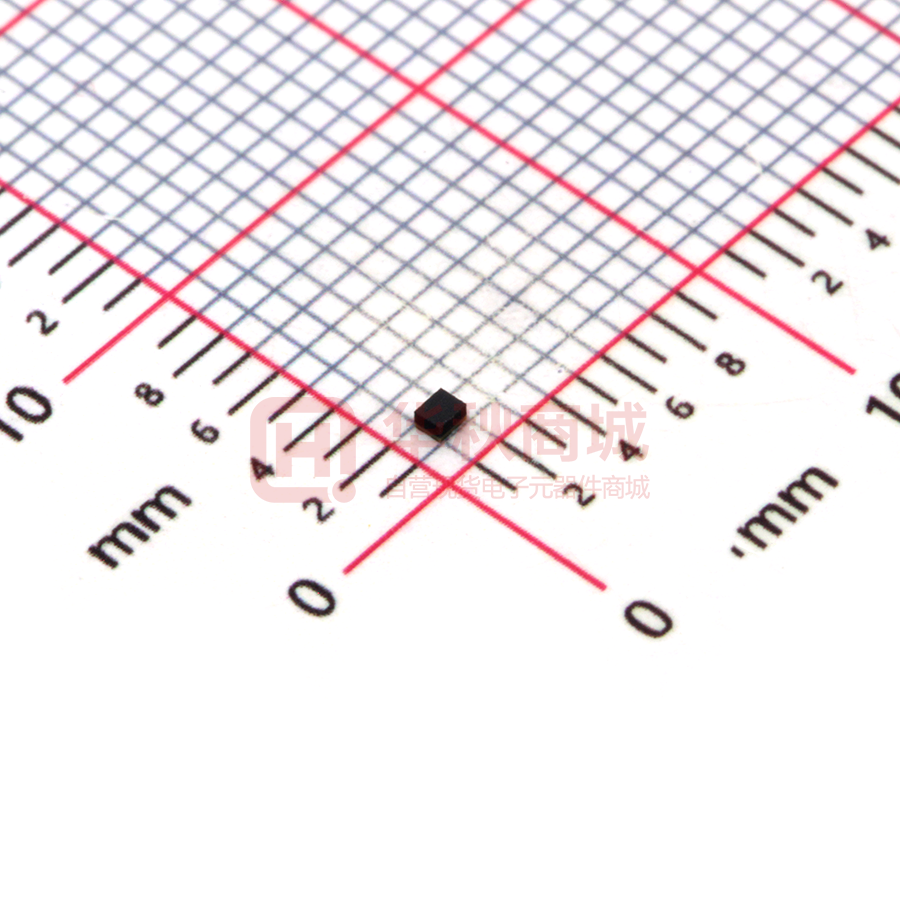

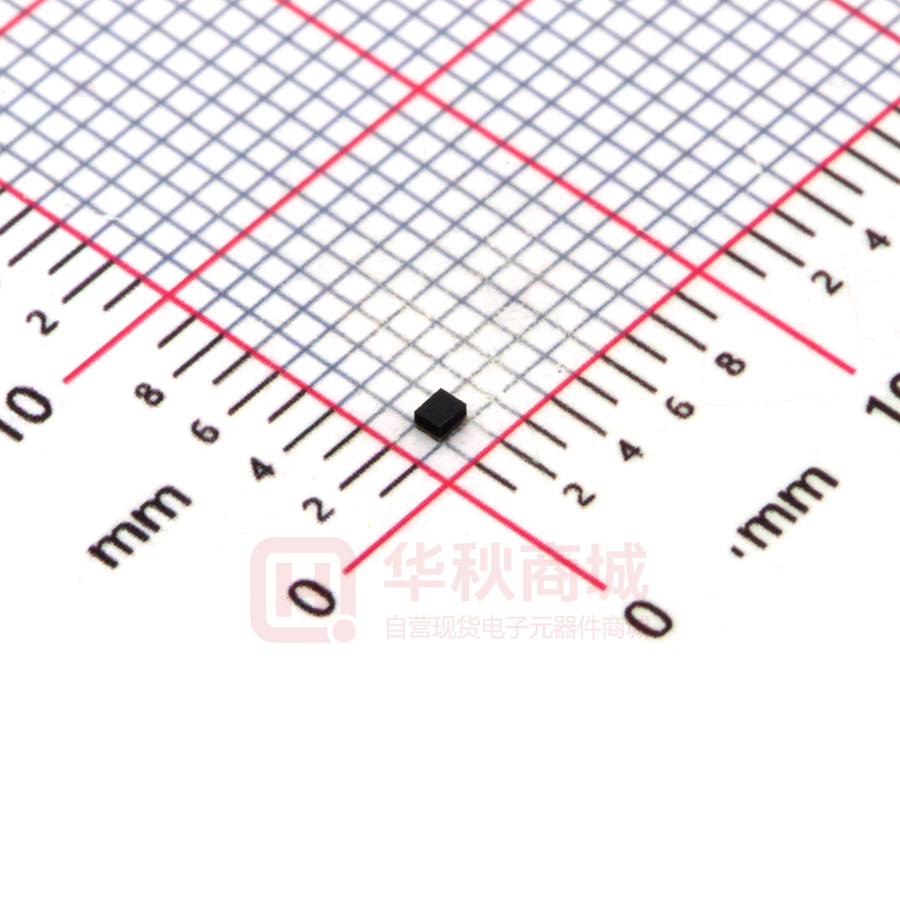

YTLP2651E is a LTE Band 41F (2496-2690MHz)
Rx bandpass filter designer for use in High Power
User Equipment applications with a package size of
only 1.1x0.9mm.
YTLP2651E is designed with Film Bulk
Acoustic Resonator (FBAR) technology, which
provides high-Q filters and meet requirements of
low insertion loss, high out-of-band attenuation
and stringent linearity.
YTLP2651E uses chip scale packaging (CSP)
technology to assembly the filters into a molded
chip-on-board module.
Features
Functional Block Diagram (Top View)
Miniature Size
1.1mm x 0.9 mm x 0.59 mm
Low insertion loss
o Rx bandpass, 2496-2690MHz: 1.8dB Typ.
High Rejection in 2.4G Wi-Fi and 5G New Band
o 2.4G Wi-Fi: 40dB Typ.
Operation Temperature:-20 to +85℃
Storage Temperature:-40 to +85℃
Environmental
Full implement with RoHS compliant
Lead Free (Pb free)
Value
Description
R1
50ohm
R2
50ohm
L1
5.1nH
Inductor
Pin1_Input
L2
4.7nH
Inductor
Pin4_Output
Pin Connection
Reference Des.
No.
Function
1
Rx
2
GND
3
GND
4
Ant
5
GND
YTLP2651E
Band41F_DRx
Electrical Specification
Transmit Port to Antenna Port
Parameter(Operable Temperature: -20 to +85℃)
Min
Typ*
Max
Unit
Insertion Loss
(2496~2690MHz)
\
1.8
2.5
dB
(2500~2570MHz)
\
1.6
2.3
dB
(2570~2620MHz)
(2535~2655MHz)
Ripple
\
\
0.9
1.1
1.4
1.5
dB
dB
(2496~2690MHz)
\
0.4
0.9
dB
Rx Port (2535~2655MHz)
\
1.4
1.67
dB
Ant Port (2535~2655MHz)
\
1.4
1.67
dB
(10~703MHz)
40
48
\
dB
(703~748MHz)
40
48
\
dB
(814~849MHz)
40
45
\
dB
(849~880MHz)
38
44
\
dB
(880~915MHz)
38
43
\
dB
(915~1248MHz)
30
36
\
dB
(1248~1710MHz)
25
30
\
dB
(1710~1785MHz)
25
30
\
dB
(1850~1915MHz)
22
28
\
dB
(1920~1980MHz)
22
28
\
dB
(2300~2400MHz)
26
32
\
dB
(2403~2461MHz)
28
35
\
dB
(2448~2466MHz)
22
26
\
dB
(2453~2471MHz)
10
15
\
dB
(2750~2775MHz)
40
50
\
dB
(2775~2850MHz)
40
50
\
dB
(2850~3300MHz)
28
33
\
dB
(3300~4200MHz)
35
40
\
dB
(4400~4992MHz)
30
35
\
dB
(4992~5380MHz)
30
37
\
dB
(5380~7487MHz)
15
20
\
dB
(7487~8000MHz)
8
12
\
dB
VSWR
Absolute Attenuation
YTLP2651E
Band41F_DRx
Typical Performance at Tc=25℃
Figure1. Pass Band
Figure2. Narrow Band
Figure3. Wide Band
Figure4. Rejection in 2.4G Wi‐Fi
Figure5. Rejection in LTE5G
Figure6. Rejection in 5G Wi‐Fi
Figure7. S11
-0
5
5
Figure8. S22
.0
-2
8
-1.
-1.6
-1.4
-1.2
20
10
5.0
4.0
3.0
1.6
1.8
2.0
1.4
1.6
1.4
1.2
1.2
1.0
0.8
0.7
0.9
1.8
0.6
0.9
1.0
2.
0
0.
1.6
1.4
1.2
-1.0
0.7
0.6
0.5
0.4
0.3
0.2
0.1
20
10
5.0
4.0
3.0
1.6
1.8
2.0
1.4
1.2
1.0
0.8
0.7
0.9
1.8
0.6
0.9
1.0
2.0
0.
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.
4
0.8
.4
-0.9
-0.8
.4
-0.7
-0.6
-0
.5
.0
-2
8
-1.
-1.6
-1.4
-1.2
-1.0
-0.9
-0.8
-0.7
-0.
6
-0
.5
-0
0.
4
0.1
YTLP2651E
Band41F_DRx
YTLP2651E
Band41F_DRx
Package Outline
Note:
1.
Dimension: mm
2.
Dimensions nominal unless otherwise noted
3.
Contact area are gold plated
No.
Function
1
Rx
2
GND
3
GND
4
Ant
5
GND
