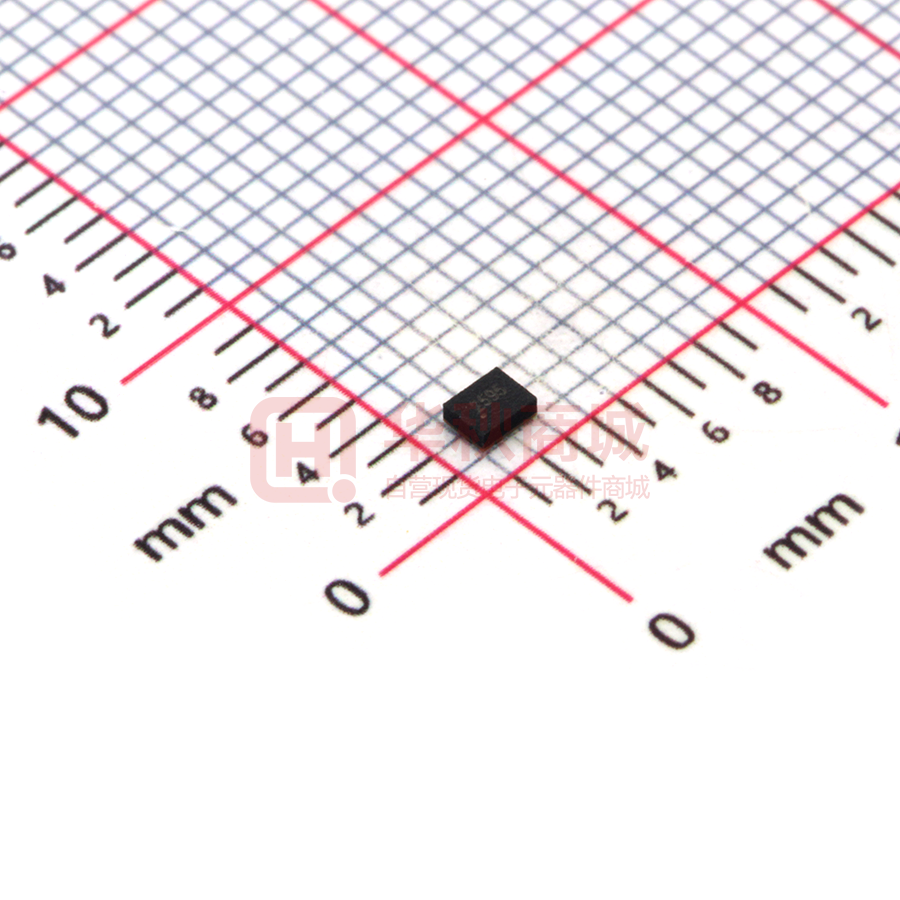

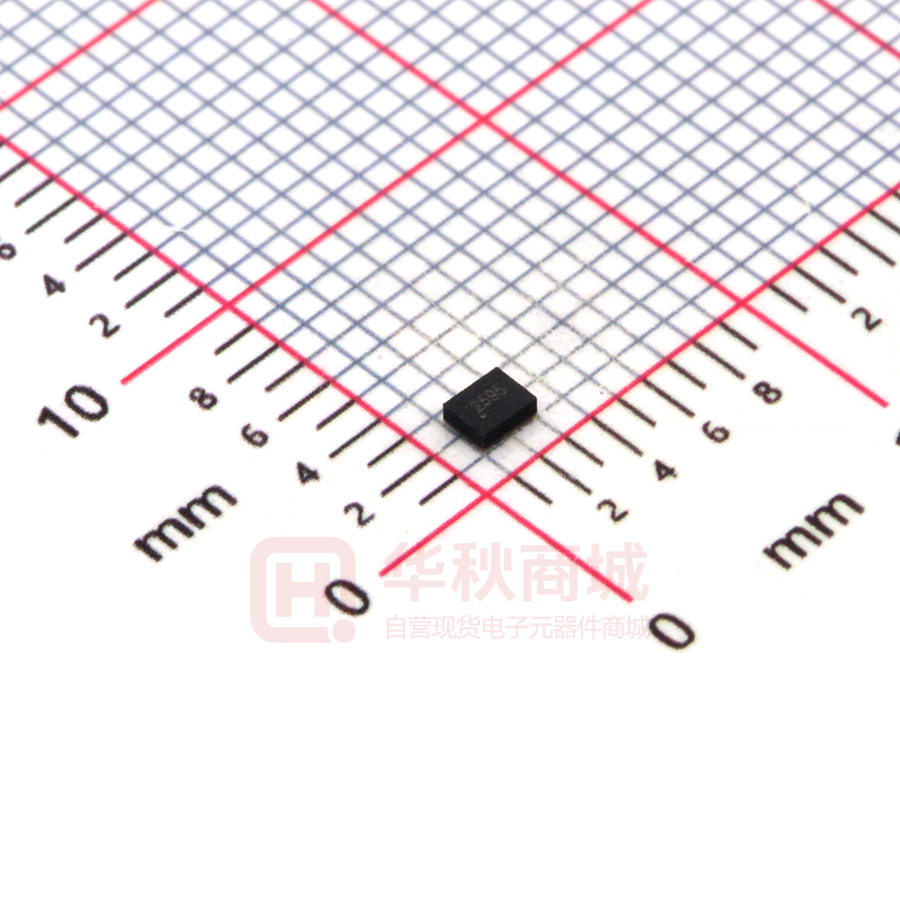

YTLP2595B Band41 160MHz For HPUE Description YTLP2595B is a LTE Band 41 (2515-2675MHz) Tx/Rx bandpass filter designer for use in High Power User Equipment applications with a package size of only 2.0x1.6mm. 2595 YTLP2595B is designed with Film Bulk Acoustic Resonator (FBAR) technology, which provides high-Q filters and meet requirements of low insertion loss, high out-of-band attenuation, high power handling and stringent linearity. Functional Block Diagram (Top View) YTLP2595B uses chip scale packaging (CSP) technology to assembly the filters into a molded chip-on-board module. Features    Miniature Size 2.0mm x 1.6 mm x 0.69 mm Low insertion loss Tx/Rx bandpass, 2515-2675MHz: 1.3dB Typ. High Rejection in 2.4G Wi-Fi and 5G New Band 2.4G Wi-Fi: 50dB Typ. Tx Input Power +32 dBm CW for 5000h @ +50℃ ESD protection ability：Class1C Moisture Sensitivity: MSL3 Operation Temperature：-40 to +95℃ Storage Temperature：-40 to +95℃        Environmental         Value Description R1 50ohm R2 50ohm L1 3.6nH Inductor L2 3.6nH Inductor Pin Connection Full implement with RoHS compliant Lead Free (Pb free)   Reference Des. No. Function 1 Tx/Rx 2 Ant. 3 GND Manuf. YTLP2595B Band41 160MHz For HPUE Electrical Specification Transmit Port to Antenna Port Parameter(Operable Temperature: TBD) Min Typ* Max Unit Insertion Loss (2515~2675MHz) \ 1.3 3.5 dB \ \ 1.5 dB Tx/Rx Port (2515~2675MHz) \ 1.4 1.6 dB Ant Port (2515~2675MHz) \ 1.4 1.6 dB (10~2170MHz) 30 47 \ dB (2320~2370MHz) 30 52 \ dB (2400~2440MHz) 50 57 \ dB (2440~2483.5MHz) 48 50 \ dB (2483.5~2500MHz) 5 25 (2700-2745MHz) 5 25 \ dB (2745-2900MHz) 30 65 \ dB (3300-3600MHz) 30 58 \ (4700-5000MHz) 30 48 \ (5030-5350MHz) 40 48 (5725-5850MHz) 20 50 Ripple (2515~2675MHz) VSWR Absolute Attenuation Typical Performance at Tc=25℃   YTLP2595B Band41 160MHz For HPUE Figure2. Narrow Band Figure1. Pass Band Figure4. Rejection in Wi‐Fi Band Figure3. Wide Band Figure5. VSWR1 Figure6. VSWR2   YTLP2595B Band41 160MHz For HPUE Figure7. S11 Figure8. S22   Package Outline YTLP2595B Band41 160MHz For HPUE 2595 0.500±0.050 0.191±0.030 2.000±0.100 Top view Side view 2.000±0.100 0.700±0.050 0.025±0.010 0.545±0.050 1 0.136 X 45º 1.600±0.100 3 0.250±0.050 2 0.350±0.050（4x） 0.100±0.050 Bottom view Note: 1. 2. 3. 4.   Dimension: mm Dimensions nominal unless otherwise noted Contact area are gold plated 2595is product code No. Function 1 Tx/Rx 2 Ant. 3 GND
