YTLM1801A

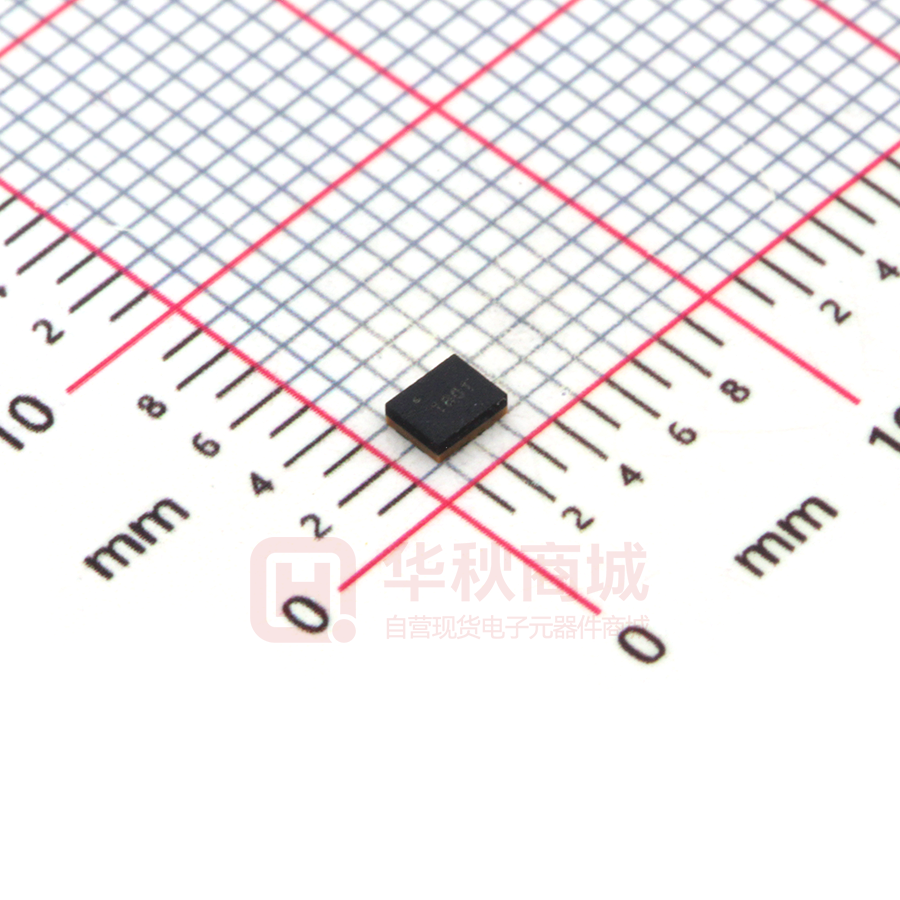

YTLM1801A Band1, Band3 BAW Quadplexer Features  Miniature Size 2.5 mm x 2.0 mm x 0.8 mm  Insertion Loss: o Band3 Tx 2.0 dB Typ. o Band3 Rx 2.3 dB Typ. o Band1 Tx 1.8 dB Typ. o Band1 Rx 1.8 dB Typ.  Tx-RX Isolation: o Band3 Tx Pass Band 57 dB Typ. o Band3 Rx Pass Band 61 dB Typ. o Band1 Tx Pass Band 60 dB Typ. o Band1 Rx Pass Band 63 dB Typ.  6 Pin 2.5 x 2.0 x 0.8 mm Package Functional Block Diagram (Top Thru View) Tx Input Power o o Band1 TX Power: 30dBm Band3 TX Power: 30dBm  ESD protection ability：Class 1C  Moisture Sensitivity: MSL3  Storage Temperature：-45℃~85℃ Environmental  Full implement with RoHS compliant  Lead Free (Pb free) Reference Des. Value Description R1 50ohm R2 50ohm R3 50ohm R4 50ohm R5 50ohm   L1 7.5 nH Ideal Inductor L2 7.5 nH Ideal Inductor L3 0.8 nH Ideal Inductor L4 8.1 nH Ideal Inductor L5 8.1 nH Ideal Inductor  Pin Connection   No. Function 1 Band1 Tx 2 Band3 Tx 3 Ant 4 Band1 Rx 5 Band3 Rx 6 Ground YTLM1801A Band1, Band3 BAW Quadplexer Electrical Specification Band3 Transmit Port to Antenna Port Parameter (Operation Temperature: -20~85℃) Min Typ* Max Unit Insertion Loss (1710~1785MHz) / 2.0 2.9 dB Ripple(1710~1785MHz) / 1.5 dB VSWR (1710~1785MHz, ANT Port) / 0.8 1.4  2.0 / VSWR (1710~1785MHz, TX Port) / 1.4  2.0 / (0~1000 MHz) 43 50 / dB (1000~1560 MHz) 38 44 / dB (1565~1606 MHz) 41 46 / dB (1805~1880 MHz) 50 58 / dB (2010~2025 MHz) 42 49 / dB (2110~2170 MHz) 46 51 / dB (2300~2400 MHz) 45 50 / dB (2400~2483 MHz) 49 54 / dB (2620~2690 MHz) 52 57 / dB (2700~3400 MHz) 44 51 / dB (3420~3570 MHz),2f0 46 51 / dB (3600~5100 MHz) 43 50 / dB (5130~5355 MHz),3f0 54 59 / dB (5400~8000 MHz) 21 28 / dB Absolute Attenuation(0~8000MHz)   YTLM1801A Band1, Band3 BAW Quadplexer Band3 Antenna Port to Receive Port Parameter (Operation Temperature: -20~85℃) Min Typ* Max Unit Insertion Loss (1805~1880MHz) / 2.3 3.3 dB Ripple(1805~1880MHz) / 1.0 1.8 dB VSWR (1805~1880MHz, ANT Port) / 1.5 2.0 / VSWR (1805~1880MHz, RX Port) / 1.3 2.0 / (0~1000 MHz) 48 54 / dB (1000~1680 MHz) 40 46 / dB (1710~1785 MHz) 51 56 / dB (1920~1980 MHz) 56 63 / dB (2300~2400 MHz) 46 52 / dB (2400~2500 MHz) 52 58 / dB (2500~2570 MHz) 58 65 / dB (3300~3600 MHz) 43 50 / dB (3610~3760 MHz),2f0 44 49 / dB (3800~5400 MHz) 42 49 / dB (5415~5640 MHz),3f0 49 54 / dB (5700~8000 MHz) 20 27 / dB Absolute Attenuation(0~8000MHz)   YTLM1801A Band1, Band3 BAW Quadplexer Band1 Transmit Port to Antenna Port Parameter (Operation Temperature: -20~85℃) Min Typ* Max Unit Insertion Loss (1920~1980MHz) / 1.8 2.7 dB Ripple(1920~1980MHz) / 0.6 1.4 dB VSWR (1920~1980MHz, ANT Port) / 1.3 2.0 / VSWR (1920~1980MHz, TX Port) / 1.3 2.0 / (0~1000 MHz) 54 59 / dB (1000~1560 MHz) 44 49 / dB (1565~1606 MHz) 44 50 / dB (1805~1880 MHz) 47 51 / dB (2010~2025 MHz) 15 26 / dB (2110~2170 MHz) 55 61 / dB (2300~2400 MHz) 56 63 / dB (2400~2483 MHz) 57 62 / dB (2620~2690 MHz) 50 55 / dB (2700~3800 MHz) 40 47 / dB (3840~3960 MHz),2f0 42 47 / dB (4000~5400 MHz) 39 46 / dB (5760~5940 MHz),3f0 44 49 / dB (5950~8000 MHz) 30 36 / dB Absolute Attenuation(0~8000MHz)   YTLM1801A Band1, Band3 BAW Quadplexer Band1 Antenna Port to Receive Port Parameter (Operation Temperature: -20~85℃) Min Typ* Max Unit Insertion Loss (2110~2170MHz) / 1.8 2.7 dB Ripple(2110~2170MHz) / 0.8 1.6 dB VSWR (2110~2170MHz, ANT Port) / 1.2 2.0 / VSWR (2110~2170MHz, RX Port) / 1.3 2.0 / (0~1000 MHz) 52 57 / dB (1000~1680 MHz) 43 48 / dB (1710~1785 MHz) 49 54 / dB (1920~1980 MHz) 55 62 / dB (2010~2025 MHz) 50 58 / dB (2300~2400 MHz) 46 51 / dB (2400~2500 MHz) 50 56 / dB (2500~2570 MHz) 52 57 / dB (2600~4200 MHz) 50 56 / dB (4220~4340 MHz),2f0 58 66 / dB (4400~6000 MHz) 38 43 / dB (6330~6510 MHz),3f0 35 41 / dB (6600~8000 MHz) 18 24 / dB Min Typ* Max Unit 1710~1785MHz 50 57 / dB 1805~1880MHz 53 61 / dB 1920~1980MHz 55 60 / dB 2110~2170MHz 58 63 / dB 1710~1785MHz 51 55 / dB 2110~2170MHz 50 53 / dB 1920~1980MHz 57 62 / dB 1805~1880MHz 48 51 / dB Absolute Attenuation(0~8000MHz) Transmit Port to Receive Port Parameter (Operation Temperature: -20~85℃) Band3 Isolation Band1 Isolation Band3 Tx to Band1 RX Cross‐Isolation Band1 Tx to Band3 RX Cross‐Isolation *Data is the integrated value of the linear s-parameter over indicated band * Typical value at 25±3 ℃   YTLM1801A Band1, Band3 BAW Quadplexer Typical Performance at Tc=25℃ Figure1. Band3 TX‐ANT Passband Figure3. Band1 TX‐ANT Attenuation Figure2. Band3 ANT‐RX Passband Figure4. Band1 ANT‐RX Attenuation Figure6. Band1 TX/RX Attenuation Figure5. Bnad3 TX/RX Attenuation   YTLM1801A Band1, Band3 BAW Quadplexer Typical Performance at Tc=25℃ Figure9. Band3 TX ‐ RX Isolation Figure10. Band1 TX ‐ RX Isolation Figure11. Band3 TX – Band1 RX Cross Isolation Figure12. Band1 TX – Band3 RX Cross Isolation   8.5 Figure8. Bnad1 TX/RX Wideband 8.0 7.0 6.0 5.0 4.0 3.0 2.0 1.0 0.0 8.5 8.0 7.0 6.0 5.0 4.0 3.0 2.0 1.0 0.0 Figure7. Bnad3 TX/RX Wideband YTLM1801A Band1, Band3 BAW Quadplexer Typical Performance at Tc=25℃ Figure14. Band3 RX(RX/Ant Port) Return Loss Figure13. Band3 TX (Tx/Ant Port) Return Loss Figure15. Band1 TX (Tx/Ant Port) Return Loss   Figure16. Band1 RX (RX/Ant Port) Return Loss YTLM1801A Band1, Band3 BAW Quadplexer Typical Performance at Tc=25℃ 2 .0 5 0. 10 20 5.0 2.0 1.0 0.5 .0 -2 .5 -1.0 -1.0 -0 .0 -2 -0 .5 ( 10 20 5.0 2.0 1.0 0.5 ) 0. 5 2 .0 1.0 1.0 Figure17. Band3 TX (Tx/Ant Port) Smith Chart Figure18. Band3 TX (Rx/Ant Port) Smith Chart Figure19. Band1 TX (Tx/Ant Port) Smith Chart   10 20 2 .0 .0 -2 -1.0 -1.0 5.0 2.0 1.0 0.5 0 .5 -0 .5 10 20 5.0 .0 -2 2.0 1.0 -0 .5 0.5 0. 5 2 .0 1.0 1.0 Figure20. Band1 RX (RX/Ant Port) Smith Chart YTLM1801A Band1, Band3 BAW Quadplexer Package Outline                   Top View Front View Bottom View Note: 1. 2. 3. 4. 5. Dimension: mm Dimensions nominal unless otherwise noted Contact area are gold plated Pad(6) is single size, others are same size 1801 is product code No. Function 1 Band1 Tx 2 Band3 Tx 3 Ant 4 Band1 Rx 5 Band3 Rx 6 Ground Order Information P/N Qty/Reel Container YTLM1801A 3000 7 inch Reel   YTLM1801A Band1, Band3 BAW Quadplexer Packing 1. Tape Dimension Dimension(mm) E F P2 D D1 P0 10P0 W P A0 B0 K0 t 1.75±0.10 3.50±0.05 2.0±0.1 1.55±0.05 1.0MIN 4.0±0.1 40.0±0.20 8.00±0.3 4.0±0.1 2.25±0.05 2.80±0.05 1.10±0.10 0.30±0.05 2. Reel Dimension 3000Pcs/Reel   YTLM1801A Band1, Band3 BAW Quadplexer Recommended Reflow Profile
