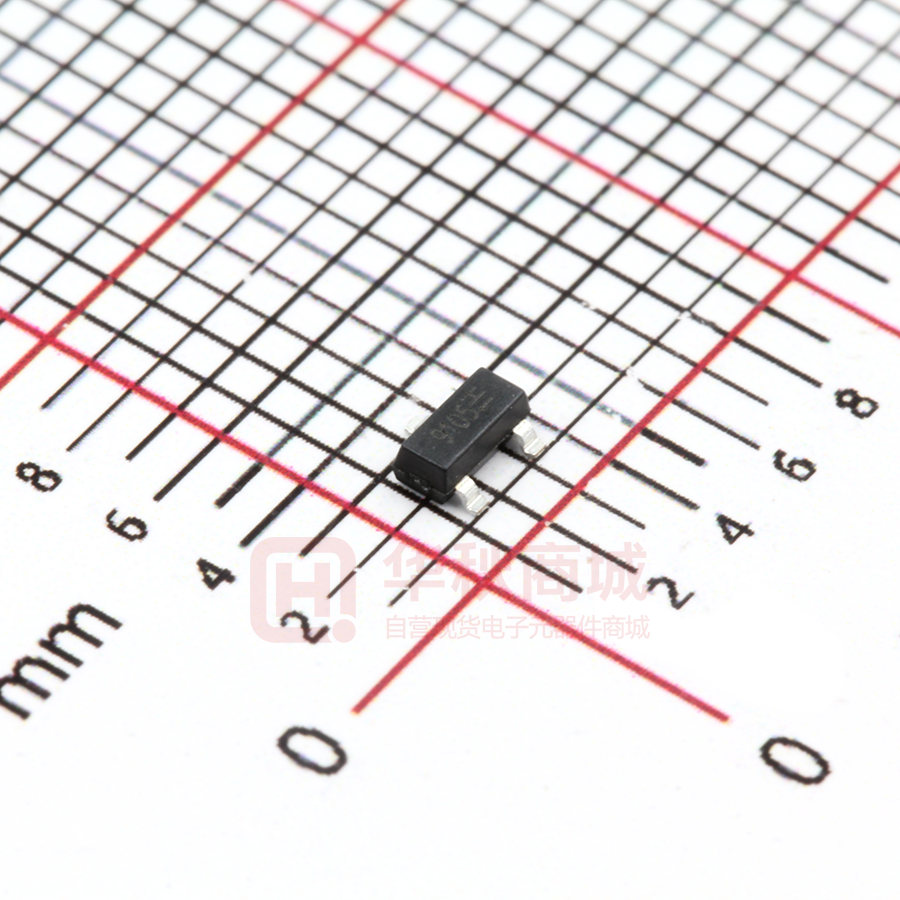

MT9105ET

MT910X Ratiometric Linear Hall-Effect IC, Analog Output 1 Product Description The MT910X device is a linear Hall effect IC that responds proportionally to magnetic flux density. The device can be used for accurate position sensing in a wide range of applications. The device operates from 3.0V to 5.5V power supplies. When no magnetic field is present, the analog output drives ½ of VCC. The output changes linearly with the applied magnetic flux density, and four sensitivity options enable maximal output voltage swing based on the required sensing range. North and south magnetic poles produce unique voltages. The MT910X family provides a variety of packages to customers. SOT-23 (Thin Outline) for surface mount and flat TO-92 for through-hole mount. All packages are RoHS compliant. 2 Features ￭ ￭ ￭ ￭ ￭ ￭ ￭ BCD Technology Factory-programmed Ratiometric Rail to Rail Analog Output Low-Noise Output 3.0~5.5V Operating Vcc Range -40℃~150℃ Operating Temperature Package Option: Flat TO-92 SOT-23 (Thin Outline) ￭ Magnetic Sensitivity Option: 1.50mV/Gs MT9101 Series @Vcc = 5V 2.50mV/Gs MT9102 Series @Vcc = 5V 3.40mV/Gs MT9103 Series @Vcc = 5V 5.00mV/Gs MT9105 Series @Vcc = 5V 1.00mV/Gs MT9101 Series @Vcc = 3.3V 1.60mV/Gs MT9102 Series @Vcc = 3.3V 2.15mV/Gs MT9103 Series @Vcc = 3.3V 3.15mV/Gs MT9105 Series @Vcc = 3.3V ￭ RoHS Compliant: (EU)2015/863 4 Applications ￭ ￭ ￭ ￭ ￭ ￭ ￭ ￭ Home appliances Industrial Speed Detection Position Detection Magnetic Encoder Ferrous Metal Sensing Vibration Sensing Weight Sensing 5. Pin Configuration and Functions VCC Out GND SOT-23 1 2 3 Flat TO-92 1 3 2 Description Power Output Ground (Thin Outline) SOT-23 Thin Outline Top-View GND 3 3 按钮 Description MT910XA Flat TO-92, bulk packaging (1000pcs/bag) MT910XET SOT-23 (Thin Outline), tape & reel (3000pcs/bag) Magntek.com.cn | Magnetic Tech Makes Magic Change OUT Vcc 3 Product Overview of MT910X Part No. 22 11 TO-92 Top-View Figure.1 1 OUT 3 GND 2 Vcc 1 Pin Configuration & Functions Rev 1.4 MT910X Ratiometric Linear Hall-Effect IC, Analog Output Table of Contents 1 Product Description………….…………………………...…………………………………….…….………1 2 Features…………………………….……..……………………………………….……………………….…….1 3 Product Overview of MT910X ..………….………………………………………………………………1 4 Applications……………………………………………………………………………………………………….1 5 Pin Configuration and Functions…………………………………………………….………………….1 6 Transfer Characteristics……………...……………………………………………………………………….3 7 Function Description……...…………………………………………………………………………………..3 8 Feature Description……………………………………………………………………………………………3 9 Functional Block Diagram…………………………………………………………………………………..4 10 Electrical and Magnetic Characteristics………………………………………………………………4 10.1 Absolute Maximum Ratings……………………………………………………………………………….4 10.2 ESD Ratings………………………………………………………………………………………………………..4 10.3 Electrical Specifications………..…………………………………………………………………………..5 10.4 Magnetic Characteristics……………………………………………………………………………………5 10.5 Characteristic Performance………………………………………………………………….…………….6 11 Typical Application Circuit………………………………………………………………………………….8 12 Package Material Information……………………………………………………………………………9 12.1 SOT-23 (Thin Outline) Package Information………………………………………………………9 12.2 Flat TO-92 Package Information……………………………………………………………...………10 13 Copy Rights and Disclaimer……………………………………………………………………………..11 1 2 3 4 5 Originally Version Version 1.1 Version 1.2 Version 1.3 Version 1.4 Reversion History Update characteristic performance & Noise Update parameters @ 3.3V Vcc Update the marking spec of SOT-23 (Thin Outline) Update the drawing information of flat TO-92 Magntek.com.cn | Magnetic Tech Makes Magic Change 2 Rev 1.4 MT910X Ratiometric Linear Hall-Effect IC, Analog Output 6 Transfer Characteristics Finure.2 shows four sensitivity options enable maximal output voltage swing based on the required sensing range VCC = 5VDC VCC = 3.3VDC 4.7 3.0 VOUT (V) MT9101 1.5mV/Gs MT9101 1.0mV/Gs MT9102 2.5mV/Gs 2.5 MT9102 1.6mV/Gs MT9103 3.4mV/Gs 1.625 MT9103 2.15mV/Gs MT9105 5.0mV/Gs MT9105 3.15mV/Gs 0.3 0.3 -1466 (N) -880 -650 -440 Figure.2 0 440 650 880 Magnetic Range (Gauss) 1466 (S) -1350 (N) Transfer Characteristics (VCC=5V) -850 -630 -430 Figure.3 0 430 630 850 Magnetic Range (Gauss) 1350 (S) Transfer Characteristics (VCC=3.3V) 7 Function Description The device produces a linear response when the output voltage is within the specified voltage range. Outside this range, sensitivity is reduced and nonlinear 8 Feature Description The MT910X device is sensitive to the magnetic field component that is perpendicular to the top of the package When the magnetic field moving from the left side of the IC to the middle which showed in the left of the Figure.3, the VOUT changing from 0.3 to 2.5V linearity when VCC=5V When the magnetic field located at the middle of the IC which showed in the middle of the Figure.3, the VOUT is 2.5V (1/2 of the VCC=5V) When the magnetic field moving from the middle side of the IC to the right which showed in the right of the Figure.3, the VOUT changing from 2.5 to 4.7V linearity when VCC=5V Figure.4 Feature Description Magntek.com.cn | Magnetic Tech Makes Magic Change 3 Rev 1.4 MT910X Ratiometric Linear Hall-Effect IC, Analog Output 9 Functional Block Diagram Vcc BG VREF Regulator IREF OSC Phase Power Clamp Out Drv TC-R Spinning current Hall Plates AMP GND Figure.5 Functional Block Diagram 10 Electrical and Magnetic Characteristics 10.1 Absolute Maximum Ratings Absolute maximum ratings are limited values to be applied individually, and beyond which the serviceability of the circuit may be impaired. Functional operability is not necessarily implied. Exposure to absolute maximum rating conditions for an extended period of time may affect device reliability. Symbol Parameters Min Max Units VCC Supply Voltage - 30 V VRCC Reverse Battery Voltage -0.2 - V VOUT Output Voltage - 30 V IOUT Continuous Output Current -5 5 mA TA Operating Ambient Temperature -40 150 ℃ TS Storage Temperature -40 160 ℃ TJ Junction Temperature - 165 ℃ 10.2 ESD Ratings Symbol VESD Reference Values Unit Human-body model (HBM) AEC-Q100-002 ±3000 V Charged-device model (CDM) AEC-Q100-011 ±1000 V Magntek.com.cn | Magnetic Tech Makes Magic Change 4 Rev 1.4 MT910X Ratiometric Linear Hall-Effect IC, Analog Output 10.3 Electrical Specifications At TA=-40~150 ℃, Vcc=3.0V~5.5V (unless otherwise specified) Symbol Parameters VCC Supply Voltage ICC Supply Current TPO Min Typ Max Unit 3.0 - 5.5 V VCC=5V; B=0 - 6.7 8.6 mA VCC=3.3V; B=0 - 6.0 7.0 mA Power on Time dVCC/dt≥5V/us - - 30 us ISINK Sink Current B=0; VOUT=VCC -1.5 - - mA ISOURCE Source Current B=0; VOUT=0 - - 1.5 mA BW Bandwidth 20 30 - KHz FC Chopper Frequency - 780 - KHz B=0; TA=25℃ - 1.9 2.6 mG/root(Hz) MT9101; TA=25℃ - 1.46 - mVRMS MT9102; TA=25℃ - 2.44 - mVRMS MT9103; TA=25℃ - 3.32 - mVRMS MT9105; TA=25℃ - 4.88 - mVRMS - 2 4 Ohm 4.7 - - Kohm - - 10 nF Thermal Resistance of SOT-23 (Thin outline) - 301 - ℃/W Thermal Resistance of Flat TO-92 - 230 - ℃/W NF Noise Test Condition ROUT Output Resistance IOUT
