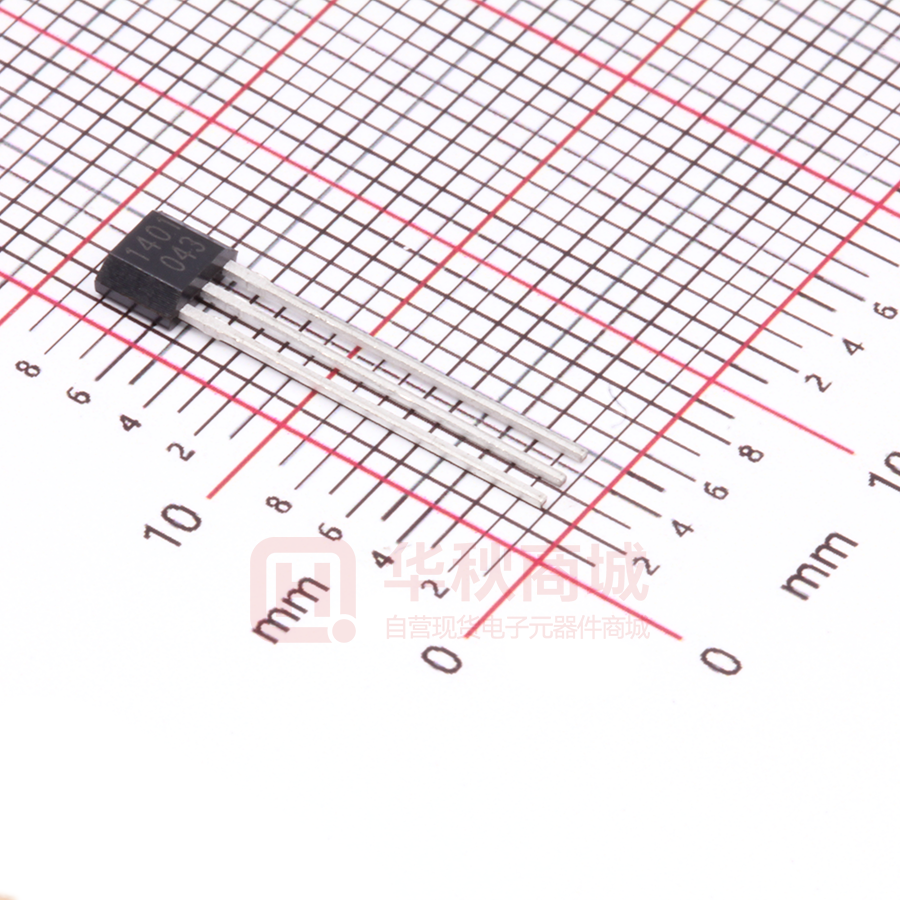

MT1401A-EN

MT1401-EN Latch, Hall-Effect Magnetic Position Sensor 1 Product Description The MT1401-EN family is produced by BCD technology with both high performance and high reliability. The Hall IC internally includes an on-chip Hall voltage generator, a voltage regulator for operation with supply voltage of 2.8V to 24V, a smallsignal amplifier, Hall sensors with dynamic offset cancellation, a schmitt trigger and an open-drain output with over-current protection. It features temperature compensation technique to make the magnetic switching points stable over a wide temperature range. Other key features such as reverse supply voltage protection, output over-current protection and ESD level exceeding ±6KV (HBM) make the IC extremely robust and fault tolerant, which is important in demanding application environment such as automotive. Its extremely low operating supply voltage 2.8V also makes it possible to add external resistance in series with the supply pin for even greater protection against high voltage transients from the power supply. 4 Applications ￭ Home appliances，Industrial ￭ DC Fan, Electric tools ￭ Magnetic Encoder When the magnetic flux density (B) is greater than the operating point (BOP), the output turns on (Low). The output is held steady till the magnetic flux density (B) is less than the releasing point (BRP), at which point it turns off (High). 5. Pin Configuration and Functions 2 Features ￭ ￭ ￭ ￭ ￭ ￭ ￭ ￭ ￭ BCD Technology Latch Switch 2.8~24V Operating Vcc Range -40℃~150℃ Operating Temperature Magnetic Sensitivity Option: BOP=24Gs, BRP=-24Gs Open-Drain Output -27V Reversed Power Supply Protection Output Limiting Current Protection RoHS Compliant: (EU)2015/863 VCC Out GND SOT-23 1 2 3 SOT-23 (Thin Outline) 1 2 3 Flat TO-92 (Radial Lead) 1 3 2 Flat TO-92 1 3 2 SOT-89B 1 3 2 Description Power Output Ground Open-Drain GND 3 Product Overview of MT1401-EN SOT-89B Top-View SOT-23 Thin Outline Top-View SOT-23 Top-View 2 OUT 3 3 MT1401ET-EN MT1401BT-EN 2 3 OUT 1 Vcc TO-92 Radial Lead Top-View TO-92 Top-View SOT-23, tape & reel (3000pcs/bag) SOT-23 (Thin Outline), tape & reel (3000pcs/bag) OUT 3 GND 2 Vcc 1 OUT GND Vcc SOT-89B, tape & reel (1000pcs/bag) magntek.com.cn | Magnetic Tech Makes Magic Change 1 GND Vcc MT1401AT-EN 按钮 Vcc Flat TO-92, radial lead, bulk packaging (1000pcs/bag) 按钮 MT1401A-T-EN 3 按钮 Flat TO-92, bulk packaging (1000pcs/bag) OUT MT1401A-EN GND 22 Description 11 Part No. Figure.1 1 Pin Configuration & Functions Rev 1.1 3 2 1 MT1401-EN Latch, Hall-Effect Magnetic Position Sensor Table of Contents 1 Product Description………….……………….……...………………………...……………….…….………1 2 Features……………………………….……..……………………………………………………………….…….1 3 Product Overview of MT1401-EN ..……………………………………………………………………1 4 Applications……………………………………………………………………………………………………….1 5 Pin Configuration and Functions…………………………………………………….………………….1 6 Definition of Switching Function……………………………………………………………………….3 7 Function Description……...…………………………………………………………………………………..3 8 Feature Description……………………………………………………………………………………………3 9 Functional Block Diagram…………………………………………………………………………………..4 10 Electrical and Magnetic Characteristics………………………………………………………………4 10.1 Absolute Maximum Ratings……………………………………………………………………………….4 10.2 Electrical Specifications………..……………………………………………………………………………..5 10.3 Magnetic Characteristics……………………………………………………………………………………5 10.4 ESD Ratings………………………………………………………………………………………………………..5 10.5 Characteristic Performance………………………………………………………………….…………….6 10.6 Typical Output Waveform…………………………………………………………………………………..7 11 Typical Application Circuit………………………………………………………………………………….7 12 Package Material Information……………………………………………………………………………8 12.1 SOT-23 Package Information……………………………...………………………………………………8 12.2 SOT-23 Thin Outline Package Information………………………………………………………….9 12.3 Flat TO-92 Package Information……………………………………………………………………….10 12.4 Flat TO-92 (Radial Lead) Package Information…………………………………………………11 12.5 SOT-89B Package Information……...…………………………………………………………………12 13 1 2 Copy Rights and Disclaimer……………………………………………………………………………..13 Originally Version 1.1 Version Reversion History Update format Update the marking spec of SOT-23 & SOT- 23 (Thin Outline) magntek.com.cn | Magnetic Tech Makes Magic Change 2 Rev 1.1 MT1401-EN Latch, Hall-Effect Magnetic Position Sensor 6 Definition of Switching Function Figure.2 & Figure.3 shows the device functionality and hysteresis Vcc North Vcc BRP Figure.2 BOP South Switching Function of Flat TO-92 & SOT-89B North BOP Figure.3 South BRP Switching Function of SOT-23 & SOT-23 (Thin Outline) 7 Function Description BOP: Operating Point, Magnetic flux density applied on the branded side of the package which turns the output driver ON (VOUT=Low) BRP: Releasing Point, Magnetic flux density applied on the branded side of the package which turns the output driver OFF (VOUT=High) BHYST: Hysteresis Window, |BOP - BRP| Devices that have a lower magnetic threshold (VOUT=High) detect magnets at a farther distance. Higher thresholds (VOUT=Low) generally require a closer distance or larger magnet. 8 Feature Description S N N N N S S S SOT-23 Flat TO-92 SOT-89B Figure.4 Motion The MT1401-EN device is sensitive to the magnetic field component that is perpendicular to the top of the package SOT-23 (Thin Outline) N S S S S N N N SOT-23 Flat TO-92 SOT-89B PCB PCB VOUT = Low VOUT= High SOT-23 (Thin Outline) Flux Direction Polarity magntek.com.cn | Magnetic Tech Makes Magic Change 3 Rev 1.1 MT1401-EN Latch, Hall-Effect Magnetic Position Sensor 9 Functional Block Diagram Vcc Reference Dynamic Offset Cancelation Regulator Limiting Current Protection Out ESD ESD Hall Plate ITA COMP Output Driver GND Figure.5 Functional Block Diagram 10 Electrical and Magnetic Characteristics 10.1 Absolute Maximum Ratings Absolute maximum ratings are limited values to be applied individually, and beyond which the serviceability of the circuit may be impaired. Functional operability is not necessarily implied. Exposure to absolute maximum rating conditions for an extended period of time may affect device reliability. Symbol Parameters Min Max Units VCC Supply Voltage - 27 V VRCC Reverse Battery Voltage -27 - V VOUT Output Voltage - 27 V IOUT Continuous Output Current - 50 mA TA Operating Ambient Temperature -40 150 ℃ TS Storage Temperature -50 150 ℃ TJ Junction Temperature - 165 ℃ B Magnetic Flux Density magntek.com.cn | Magnetic Tech Makes Magic Change No Limit 4 Gs Rev 1.1 MT1401-EN Latch, Hall-Effect Magnetic Position Sensor 10.2 Electrical Specifications At TA=-40~150 ℃, VCC=2.8V~24V (unless otherwise specified) Symbol Parameters Test Condition Min Typ Max Unit VCC Supply Voltage Operating 2.8 - 24 V ICC Supply Current BBOP, VOUT=VCC - 50 - mA VDSON Output Saturation Voltage IOUT=20mA, B>BOP - - 0.4 V IOFF Output Leakage Current VOUT=24V - - 10 uA TR Output Rise Time RL=1KOhm, CL=20pF - - 1.0 us TF Output Fall Time RL=1KOhm, CL=20pF - - 1.0 us TPO Power on Time dVcc/dt>5V/uS B>BOP(MAX) - - 10 us FC Chopping Frequency - 800 - KHz FS Sampling Frequency - 400 - KHz Thermal Resistance of SOT-23 - 301 - ℃/W Thermal Resistance of SOT-23 (Thin Outline) - 301 - ℃/W Thermal Resistance of SOT-89B - 230 - ℃/W Thermal Resistance of TO-92 - 230 - ℃/W RTH 10.3 Magnetic Characteristics At VCC=2.8V~24V (unless otherwise specified) Part No. Symbol MT1401-EN Series Min Typ Max Unit BOP, TA =25℃ 5 24 40 Gs BRP, TA =25℃ -40 -24 -5 Gs BHYST, TA =25℃ 10 48 80 Gs 10.4 ESD Ratings Symbol VESD Reference Values Unit Human-body model (HBM) AEC-Q100-002 ±6000 V Charged-device model (CDM) AEC-Q100-011 ±1000 V magntek.com.cn | Magnetic Tech Makes Magic Change 5 Rev 1.1 MT1401-EN Latch, Hall-Effect Magnetic Position Sensor 10.5 Characteristic Performance Supply Current (mA) At VCC=5V 3.5 3 2.5 2 1.5 1 0.5 0 -40 25 85 125 150 125 150 125 150 Temperature ℃ Magnetic Field Intensity (Gs) Figure.6 Magnetic Field Intensity (Gs) Figure.7 Supply Current vs. Temperature 30 20 10 Bop 0 -40 -10 Brp 25 85 -20 -30 Temperature ℃ Magnetic Characteristics vs. Temperature (BOP & BRP) 80 70 60 50 40 30 20 10 0 -40 25 85 Temperature ℃ Figure.8 Magnetic Characteristics vs. Temperature (BHYST) magntek.com.cn | Magnetic Tech Makes Magic Change 6 Rev 1.1 MT1401-EN Latch, Hall-Effect Magnetic Position Sensor 10.6 Typical Output Waveform MT1401A-EN as example B BOP BRP T V High Low Figure.9 T Digital Output vs. Magnetic Flux Density 11 Typical Application Circuit MT1401AT-EN as example Note: Recommended value for RL is 1KOhms to 10KOhms C1=100nF Vcc 1 RL 按钮 Vcc OUT 3 GND GND 2 Out C2=1nF Figure.10 Typical Application Circuit magntek.com.cn | Magnetic Tech Makes Magic Change 7 Rev 1.1 MT1401-EN Latch, Hall-Effect Magnetic Position Sensor 12 Package Material Information （For Reference Only – Not for Tooling Use） 12.1 SOT-23 Package Information GND XXXX YW 按钮 Product ID 按钮 2 1 OUT Vcc Figure.11 YW 3 XXXX DateCode: Y: Year W: Week SOT-23 Chip Marking Spec Sensing Center Figure.12 SOT-23 Package Drawing Symbol Dimensions in Millimeters Dimensions in Inches Min Max Min Max A 1.050 1.250 0.041 0.049 A1 0.000 0.100 0.000 0.004 A2 1.050 1.150 0.041 0.045 b 0.300 0.500 0.012 0.020 c 0.100 0.200 0.004 0.008 D 2.820 3.020 0.111 0.119 E 1.500 1.700 0.059 0.067 E1 2.650 2.950 0.104 0.116 e 0.950 TYP 0.037 TYP e1 1.800 2.000 0.071 0.079 L 0.300 0.600 0.012 0.024 θ 0︒ 8︒ 0︒ 8︒ x 1.460 TYP 0.057 TYP y 0.800 TYP 0.032 TYP z 0.600 TYP 0.024 TYP magntek.com.cn | Magnetic Tech Makes Magic Change 8 Rev 1.1 MT1401-EN Latch, Hall-Effect Magnetic Position Sensor 12.2 SOT-23 (Thin Outline) Package Information GND XXXX YW 3 Product ID 22 11 OUT Vcc Figure.13 YW 3 XXXX 按钮 DateCode: Y: Year W: Week SOT-23 (Thin Outline) Chip Marking Spec Sensing Center Figure.14 SOT-23 (Thin Outline) Package Drawing Symbol Dimensions in Millimeters Dimensions in Inches Min Max Min Max A 0.900 1.150 0.035 0.045 A1 0.000 0.100 0.000 0.004 A2 0.900 1.050 0.035 0.041 b 0.300 0.500 0.012 0.020 c 0.080 0.150 0.003 0.006 D 2.800 3.000 0.110 0.118 E 1.200 1.400 0.047 0.055 E1 2.250 2.550 0.089 0.100 e e1 0.950 TYP 1.800 L 0.037 TYP 2.000 0.071 0.550 REF 0.079 0.022 REF L1 0.300 0.500 0.012 0.020 θ 0︒ 8︒ 0︒ 8︒ x 1.460 TYP 0.057 TYP y 0.650 TYP 0.026 TYP z 0.500 TYP 0.020 TYP magntek.com.cn | Magnetic Tech Makes Magic Change 9 Rev 1.1 MT1401-EN Latch, Hall-Effect Magnetic Position Sensor 12.3 Flat TO-92 Package Information XXXX XXXX YWW Product ID YWW DateCode: week (01~55) DateCode: year (0~9) 3 OUT 2 GND 1 Vcc Figure.15 Flat TO-92 Chip Marking Spec Sensing Center Figure.16 Flat TO-92 Package Drawing Symbol Dimensions in Millimeters Dimensions in Inches Min Max Min Max A 1.420 1.620 0.056 0.064 A1 0.660 0.860 0.026 0.034 b 0.350 0.480 0.013 0.019 b1 0.400 0.510 0.016 0.020 c 0.330 0.510 0.013 0.020 D 3.900 4.100 0.154 0.161 D1 2.280 2.680 0.090 0.106 E 3.050 3.250 0.120 0.128 e 1.270 TYP 0.050 TYP e1 2.440 2.640 0.096 0.104 L 14.350 14.750 0.565 0.581 θ 45︒ TYP 45︒ TYP x 2.025 TYP 0.080 TYP y 1.545 TYP 0.061 TYP z 0.500 TYP 0.020 TYP magntek.com.cn | Magnetic Tech Makes Magic Change 10 Rev 1.1 MT1401-EN Latch, Hall-Effect Magnetic Position Sensor 12.4 Flat TO-92 Package Information (Radial Lead) XXXX XXXX YWW Product ID YWW DateCode: week (01~55) DateCode: year (0~9) 3 OUT 2 GND 1 Vcc Figure.17 Flat TO-92 (Radial Lead) Chip Marking Spec Sensing Center Figure.18 Flat TO-92 (Radial Lead) Package Drawing Symbol Dimensions in Millimeters Dimensions in Inches Min Max Min Max A 1.420 1.620 0.056 0.064 A1 0.660 0.860 0.026 0.034 b 0.350 0.480 0.013 0.019 b1 0.400 0.510 0.016 0.020 c 0.330 0.510 0.013 0.020 D 3.900 4.100 0.154 0.161 D1 2.280 2.680 0.090 0.106 E 3.050 3.250 0.120 0.128 e 2.540 TYP 0.100 TYP e1 5.000 TYP 0.197 TYP L1 2.000 TYP 0.079 TYP L 13.88 TYP 0.546 TYP θ 45︒ TYP 45︒ TYP x 2.025 TYP 0.080 TYP y 1.545 TYP 0.061 TYP z 0.500 TYP 0.020 TYP magntek.com.cn | Magnetic Tech Makes Magic Change 11 Rev 1.1 MT1401-EN Latch, Hall-Effect Magnetic Position Sensor 12.5 SOT-89B Package Information XXXX XXXX YWW Product ID 3 2 1 按钮 YWW OUT GND Vcc DateCode: week (01~55) DateCode: year (0~9) Figure.19 SOT-89B Chip Marking Spec Sensing Center Figure.20 SOT-89B Package Drawing Symbol Dimensions in Millimeters Dimensions in Inches Min Max Min Max A2 1.220 1.420 0.048 0.056 A1 0.000 0.100 0.000 0.004 b 0.300 0.500 0.012 0.020 c 0.052 0.252 0.002 0.010 D 4.400 4.600 0.173 0.181 b1 1.600 1.800 0.063 0.071 E 2.400 2.600 0.094 0.102 HE 4.000 4.400 0.157 0.173 e 1.400 1.600 0.055 0.063 L 0.350 0.550 0.014 0.022 x 2.250 TYP 0.089 TYP y 1.250 TYP 0.049 TYP z 0.300 TYP 0.012 TYP magntek.com.cn | Magnetic Tech Makes Magic Change 12 Rev 1.1 MT1401-EN Latch, Hall-Effect Magnetic Position Sensor 13 Copy Rights and Disclaimer 1. This document may not be reproduced or duplicated, in any form, in whole or in part without prior written consent of MagnTek . Copyrights © 2019, MagnTek Incorporated. 2. MagnTek reserves the right to make changes to the information published in this document at anytime without notice. 3. MagnTek’s products are limited for use in normal commercial applications. MagnTek’s products are not to be used in any device or system, including but not limited to medical life support equipment and system. For the latest version of this document, please visit our website: www.magntek.com.cn magntek.com.cn | Magnetic Tech Makes Magic Change 13 Rev 1.1
