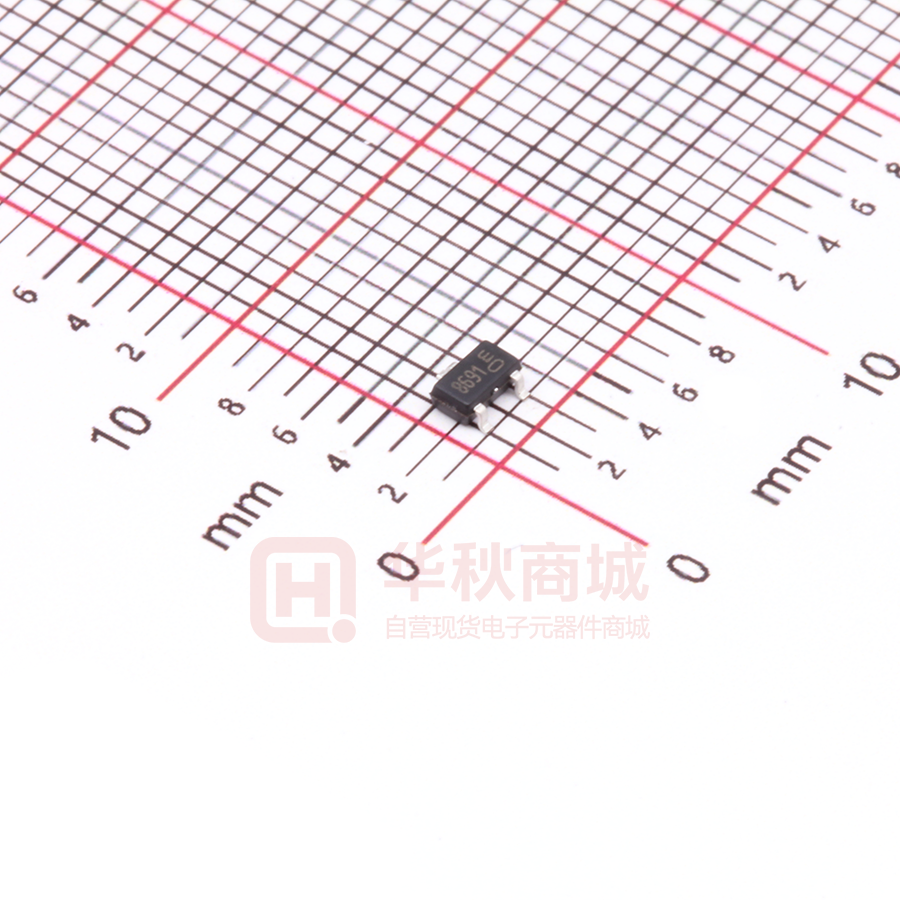

MT8691AT

MT869X Uni-polar, Nano Power Hall-Effect Switch IC 1 Product Description The MT869X family is produced with CMOS technology. The Hall IC internally includes high sensitivity horizontal hall plates, sleep/awake logics for mode control, a low-power on-chip oscillator, low noise analog signal chain with dynamic offset cancellation, hysteresis comparators and an output driver. The product responds to North pole or South pole magnetic fields. The output will be turned on (Low) when the magnetic flux density (B) is larger than the operating point (BOP), and be turned off (High) when the magnetic flux density (B) is lower than the releasing point (BRP). 4 Applications ￭ ￭ ￭ ￭ ￭ ￭ ￭ The MT869X family provides a variety of packages to customers: DFN & SOT-23 for surface mount and flat TO-92 for through-hole mount. All packages are RoHS compliant. 2 Features Out GND SOT-23 1 2 3 Flat TO-92 1 3 2 DFN1608 1 2 3 DFN1616 4 5 2 Description Power Output Ground SOT-23 Top-View OUT OUT Vcc Vcc 5 54 4 1 3 NCNC GND NC 2 2 GND NC 按钮 OUT 13 OUT 2 1 3 2 GND TO-92 Top-View OUT 3 3 GND 2 2 Vcc 1 1 OUT GND Vcc Figure.1 magntek.com.cn | Magnetic Tech Makes Magic Change Vcc OUT MT8691DT-1616 3 MT8691DT-1608 DFN1608 Top-View TO-92 Top-View SOT-23, tape & reel (3000pcs/bag) DFN1608, tape & reel (10000pcs/bag) DFN1616, tape & reel (3000pcs/bag) SOT-553 Top-View SOT-553 Top-View GND MT8691AT Vcc Flat TO-92, bulk packaging (1000pcs/bag) 2 1 MT8691A Vcc Description 1 Part No. 3 3 Product Overview of MT869X Push Pull SOT-23 Top-View GND ￭ VCC 按钮 ￭ ￭ 5. Pin Configuration and Functions 按钮 ￭ CMOS Technology Uni-polar Switch 2.0～5.5V Operating Vcc Range -40℃~125℃ Operating Temperature Package Option: SOT-23 Flat TO-92 DFN1608 DFN1616 Magnetic Sensitivity Option: BOP=35Gs, BRP=25Gs Push Pull Output Nano Power Consumption: Average Supply Current =600nA (Vcc=2.0V) RoHS Compliant: (EU)2015/863 按钮 ￭ ￭ ￭ ￭ ￭ Home appliances, Industrial Position Detection Solid-State Switch Proximity Switch Smart Meter Handheld Device Consumer Device 1 Pin Configuration & Functions Rev 1.3 MT869X Uni-polar, Nano Power Hall-Effect Switch IC Table of Contents 1 Product Description…………...….……………….……...…………………………………….…….………1 2 Features……………………………….……..……………………………………………………………….…….1 3 Product Overview of MT869X ..…………………………………………………………………………1 4 Applications……………………………………………………………………………………………………….1 5 Pin Configuration and Functions…………………………………………………….………………….1 6 Definition of Switching Function……………………………………………………………………….3 7 Function Description…......…………………………………………………………………………………..3 8 Feature Description……………………………………………………………………………………………3 9 Functional Block Diagram…………………………………………………………………………………..4 10 Electrical and Magnetic Characteristics………………………………………………………………4 10.1 Absolute Maximum Ratings……………………………………………………………………………….4 10.2 Electrical Specifications………………………………….………………………………………………..5 10.3 Magnetic Characteristics……………………………………………………………………………………5 10.4 ESD Ratings………………………………………………………………………………………………………..5 10.5 Characteristic Performance………………………………………………………………….…………….6 10.6 Typical Output Waveform…………………………………………………………………………………..7 11 Typical Application Circuit………………………………………………………………………………….7 12 Package Material Information……………………………………………………………………………8 12.1 SOT-23 Package Information…………………………...………………………………………………8 12.2 Flat TO-92 Package Information……………..…………………………………………………………..9 12.3 DFN1608 Package Information…..…………..………………………………………………………10 12.4 DFN1616 Package Information…..…………..………………………………………………………11 13 Copy Rights and Disclaimer…………...………….……………………………………………………..12 1 2 3 4 Originally Version 1.1 Version 1.2 Version 1.3 Version Reversion History Update the IAW max spec from 4mA to 5mA Update the marking spec of SOT-23 Update DFN1616 magntek.com.cn | Magnetic Tech Makes Magic Change 2 Rev 1.3 MT869X Uni-polar, Nano Power Hall-Effect Switch IC 6 Definition of Switching Function Figure.2 & Figure.3 shows the device functionality and hysteresis Vcc Vcc North Figure.2 BOP South BRP Switching Function Uni-polar (North) North BOP South Switching Function Uni-polar (South) Figure.3 SOT-23 BRP Flat TO-92 / DFN1608 / DFN1616 7 Function Description BOP: Operating Point, Magnetic flux density applied on the branded side of the package which turns the output driver ON (VOUT=Low） BRP: Releasing Point, Magnetic flux density applied on the branded side of the package which turns the output driver OFF (VOUT=High) BHYST: Hysteresis Window, |BOP - BRP| Devices that have a lower magnetic threshold (VOUT=High) detect magnets at a farther distance. Higher thresholds (VOUT=Low) generally require a closer distance or larger magnet. 8 Feature Description S N N N S SOT-23 Flat TO-92 Figure.4 N S S DFN1608 DFN1616 Motion The MT869X device is sensitive to the magnetic field component that is perpendicular to the top of the package S N N N N S S S DFN1608 DFN1616 SOT-23 Flat TO-92 PCB PCB VOUT = Low VOUT= High Flux Direction Polarity magntek.com.cn | Magnetic Tech Makes Magic Change 3 Rev 1.3 MT869X Uni-polar, Nano Power Hall-Effect Switch IC 9 Functional Block Diagram Vcc OSC Sleep/Awake Logic Phase Gen POR ESD Output Control Out ESD Hall Plate SW AMP Filter COMP Latch ESD Bias VREF GND Figure.5 Functional Block Diagram 10 Electrical and Magnetic Characteristics 10.1 Absolute Maximum Ratings Absolute maximum ratings are limited values to be applied individually, and beyond which the serviceability of the circuit may be impaired. Functional operability is not necessarily implied. Exposure to absolute maximum rating conditions for an extended period of time may affect device reliability. Symbol Parameters Min Max Units VCC Supply Voltage - 7 V VRCC Reverse Battery Voltage -0.5 - V VOUT Output Voltage - 7 V IOUT Continuous Output Current - 8 mA TA Operating Ambient Temperature -40 125 ℃ TS Storage Temperature -50 150 ℃ TJ Junction Temperature - 165 ℃ B Magnetic Flux Density magntek.com.cn | Magnetic Tech Makes Magic Change No Limit 4 Gs Rev 1.3 MT869X Uni-polar, Nano Power Hall-Effect Switch IC 10.2 Electrical Specifications At TA=-40~125℃, VCC=2.0V~5.5V (unless otherwise specified) Symbol Parameters Test Condition Min Typ Max Unit VCC Supply Voltage Operating 2.0 3.6 5.5 V ICC Supply Current VCC=3.6V - 1.2 2.0 uA VCC=2.0V - 600 - nA IAW Awake Current VCC=3.6V - 3.0 5.0 mA ISL Sleep Current VCC=3.6V - 0.6 1.4 uA VOL Output Low Voltage IOUT=5mA, ∣B∣>∣BOP∣ - - 0.4 V VOH Output High Voltage IOUT=5mA, ∣B∣5V/us, ∣B∣>∣BOP∣ - - 120 us Thermal Resistance of SOT-23 - 301 - ℃/W Thermal Resistance of DFN - 301 - ℃/W Thermal Resistance of Flat TO-92 - 230 - ℃/W RTH 10.3 Magnetic Characteristics At VCC=2.0V~5.5V (unless otherwise specified) Part No. Symbol MT8691 Series Min Typ Max Unit BOP, TA =25℃ 15 35 55 Gs BRP, TA =25℃ 10 25 40 Gs - 10 - Gs BHYST, TA =25℃ 10.4 ESD Ratings Symbol VESD Reference Values Unit Human-body model (HBM) AEC-Q100-002 ±5000 V Charged-device model (CDM) AEC-Q100-011 ±1000 V magntek.com.cn | Magnetic Tech Makes Magic Change 5 Rev 1.3 MT869X Uni-polar, Nano Power Hall-Effect Switch IC 10.5 Characteristic Performance At VCC=3.6V Supply Current (uA) 1.8 1.3 0.8 0.3 -0.2 -40 -20 0 25 55 85 125 150 Temperature ℃ Magnetic Field Intensity (Gs) Figure.6 Supply Current vs. Temperature 60 50 40 30 20 10 Bop 0 -40 Magnetic Field Intensity (Gs) Figure.7 -20 0 25 55 Temperature ℃ 85 Brp 125 150 Magnetic Characteristics vs. Temperature (BOP & BRP) 20 15 10 5 Bhyst 0 -40 Figure.8 -20 0 25 55 Temperature ℃ 85 125 150 Magnetic Characteristics vs. Temperature (BHYST) magntek.com.cn | Magnetic Tech Makes Magic Change 6 Rev 1.3 MT869X Uni-polar, Nano Power Hall-Effect Switch IC 10.6 Typical Output Waveform MT8691A as example B BOP S BRP S T BRP N BOP N V High Low Figure.9 T Digital Output vs. Magnetic Flux Density 11 Typical Application Circuit MT8691AT as example C1=100nF Vcc 1 按钮 Vcc OUT 3 GND GND 2 Out C2=1nF Figure.10 Typical Application Circuit magntek.com.cn | Magnetic Tech Makes Magic Change 7 Rev 1.3 MT869X Uni-polar, Nano Power Hall-Effect Switch IC 12 Package Material Information （For Reference Only – Not for Tooling Use） 12.1 SOT-23 Package Information 3 XXXX 按钮 Product ID 按钮 2 1 OUT Vcc Figure.11 DateCode: Y: Year W: Week YW GND XXXX YW SOT-23 Chip Marking Spec Sensing Center Figure.12 SOT-23 Package Drawing Symbol Dimensions in Millimeters Dimensions in Inches Min Max Min Max A - 1.300 - 0.0512 A1 0.000 0.150 0.0000 0.0059 A2 1.000 1.200 0.0394 0.0472 b 0.300 0.500 0.0118 0.0197 c 0.080 0.220 0.0031 0.0087 D 2.800 3.000 0.1102 0.1181 E 1.500 1.700 0.0591 0.0669 E1 2.600 3.000 0.1024 0.1181 e 0.870 1.030 0.0343 0.0406 e1 1.820 1.980 0.0717 0.0780 L 0.300 0.600 0.0118 0.0236 θ 0︒ 8︒ 0︒ 8︒ x 1.450 TYP 0.057 TYP y 0.800 TYP 0.032 TYP z 0.600 TYP 0.024 TYP magntek.com.cn | Magnetic Tech Makes Magic Change 8 Rev 1.3 MT869X Uni-polar, Nano Power Hall-Effect Switch IC 12.2 Flat TO-92 Package Information XXXX XXXX YWW Product ID YWW DateCode: week (01~55) DateCode: year (0~9) 3 OUT 2 GND 1 Vcc Figure.13 Flat TO-92 Chip Marking Spec Sensing Center Figure.14 Flat TO-92 Package Drawing Symbol Dimensions in Millimeters Dimensions in Inches Min Max Min Max A 1.420 1.620 0.056 0.064 A1 0.660 0.860 0.026 0.034 b 0.350 0.480 0.013 0.019 b1 0.400 0.510 0.016 0.020 c 0.330 0.510 0.013 0.020 D 3.900 4.100 0.154 0.161 D1 2.280 2.680 0.090 0.106 E 3.050 3.250 0.120 0.128 e 1.270 TYP 0.050 TYP e1 2.440 2.640 0.096 0.104 L 14.350 14.750 0.565 0.581 θ 45︒ TYP 45︒ TYP x 2.025 TYP 0.080 TYP y 1.545 TYP 0.061 TYP z 0.500 TYP 0.020 TYP magntek.com.cn | Magnetic Tech Makes Magic Change 9 Rev 1.3 MT869X Uni-polar, Nano Power Hall-Effect Switch IC 12.3 DFN1608 Package Information Vcc GND XXXX Y XXXXY Figure.15 DFN1608 Chip Marking Spec Figure.16 DFN1608 Package Drawing Symbol OUT DateCode: week (A~z) Product ID Dimensions in Millimeters Dimensions in Inches Min Max Min Max A 0.450 0.550 0.018 0.022 A1 0.000 0.050 0.000 0.002 A2 0.150 TYP 0.006 TYP D 1.550 1.650 0.061 0.065 E 0.750 0.850 0.030 0.033 D1 0.580 0.680 0.023 0.027 E1 0.350 0.450 0.014 0.018 b 0.170 0.270 0.007 0.011 e L 0.420 TYP 0.185 magntek.com.cn | Magnetic Tech Makes Magic Change 0.017 TYP 0.285 10 0.007 0.011 Rev 1.3 MT869X Uni-polar, Nano Power Hall-Effect Switch IC 12.4 DFN1616 Package Information Figure.17 DFN1616 Chip Marking Spec b e b A L A1 A2 L Figure.18 DFN1616 Package Drawing Symbol Dimensions in Millimeters Dimensions in Inches Min Max Min Max A 0.450 0.550 0.018 0.022 A1 0.000 0.050 0.000 0.002 A2 0.150 TYP 0.006 TYP L 1.550 1.650 0.061 0.065 b 0.200 0.300 0.008 0.012 e 1.000 TYP magntek.com.cn | Magnetic Tech Makes Magic Change 0.039 TYP 11 Rev 1.3 MT869X Uni-polar, Nano Power Hall-Effect Switch IC 13 Copy Rights and Disclaimer 1. This document may not be reproduced or duplicated, in any form, in whole or in part without prior written consent of MagnTek . Copyrights © 2019, MagnTek Incorporated. 2. MagnTek reserves the right to make changes to the information published in this document at anytime without notice. 3. MagnTek’s products are limited for use in normal commercial applications. MagnTek’s products are not to be used in any device or system, including but not limited to medical life support equipment and system. For the latest version of this document, please visit our website: www.magntek.com.cn magntek.com.cn | Magnetic Tech Makes Magic Change 12 Rev 1.3
