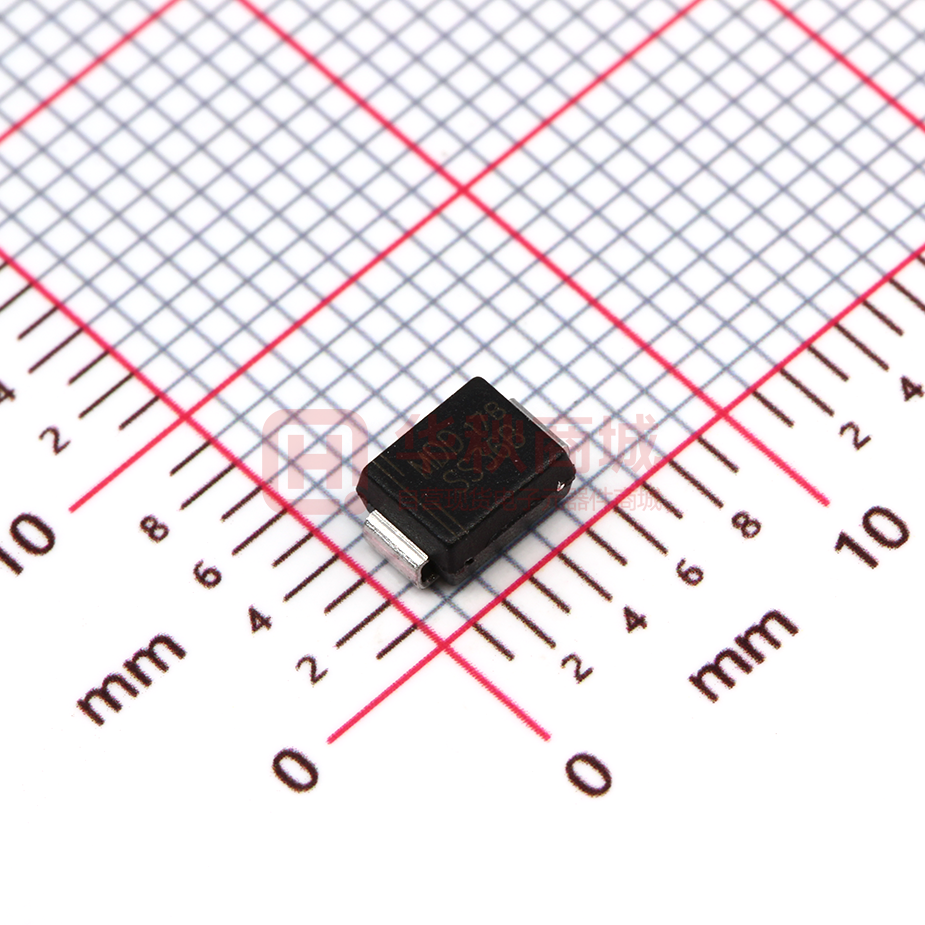

SS32B THRU SS3200B
Reverse Voltage - 20 to 200 Volts
Forward Current - 3.0 Ampere
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
DO-214AA/SMB
Features
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
For surface mounted applications
Metal silicon junction,majority carrier conduction
Low power loss,high efficiency
0.155(3.94)
0.130(3.30)
0.086 (2.20)
0.071 (1.80)
Built-in strain relief,ideal for automated placement
0.185(4.70)
0.160(4.06)
High forward surge current capability
High temperature soldering guaranteed:
0.012(0.305)
0.006(0.152)
250 °C/10 seconds at terminals
0.096(2.44)
0.084(2.13)
0.060(1.52)
0.030(0.76)
0.008(0.203)MAX.
Mechanical Data
0.220(5.59)
0.200(5.08)
Case: JEDEC DO-214AA/SMB molded plastic body
Terminals: Solderable per MIL-STD-750,Method 2026
Polarity: Color band denotes cathode end Mounting
Position: Any
Weight : 0.003 ounce, 0.095 grams
Dimensions in inches and (millimeters)
Maximum Ratings And Electrical Characteristics
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
Parameter
SYMBOLS
Marking Code
Maximum repetitive peak reverse voltage
VRRM
Maximum RMS voltage
Maximum DC blocking voltage
VRMS
VDC
SS32B
SS33B
SS34B
SS35B
SS36B
SS38B
SS310B SS3150B SS3200B
MDD
SS32B
MDD
SS33B
MDD
SS34B
MDD
SS35B
MDD
SS36B
MDD
SS38B
MDD
SS310B
MDD
SS3150B
MDD
SS3200B
20
14
20
30
21
30
40
28
40
50
35
50
60
42
60
80
56
80
100
70
100
150
105
150
200
140
200
UNITS
V
V
V
Maximum average forward rectified current
at TL(see fig.1)
I(AV)
3.0
A
Peak forward surge current
8.3ms single half sine-wave
superimposed onrated load (JEDEC Method)
IFSM
100
A
Maximum instantaneous forward voltage at 3.0A
VF
Maximum DC reverse current
at rated DCblocking voltage
TA=25℃
TA=125℃
Typical junction capacitance (NOTE 1)
IR
CJ
Typical thermal resistance (NOTE 2)
RJA
Operating junction temperature range
TJ
Storage temperature range
0.55
TSTG
0.70
0.5
0.85
20
10
300
500
0.95
0.2
2.0
mA
pF
55.0
-55 to +125
V
℃/W
℃
-55 to +150
℃
-55 to +150
Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas
DN:T20825A0
http://www.microdiode.com
Rev:2020A1
Page :1
SS32B THRU SS3200B
Reverse Voltage - 20 to 200 Volts
Forward Current - 3.0 Ampere
Typical Characterisitics
Fig.2 Typical Reverse Characteristics
3.5
3.0
2.4
1.8
1.2
0.6
0.0
25
50
75
100
125
150
Instaneous Reverse Current ( μA)
Average Forward Current (A)
Fig.1 Forward Current Derating Curve
10 4
T J =100°C
10 3
T J =75°C
10 2
SS32B/SS36
10
T J =25°C
10 0
0
Case Temperature (°C)
40
60
80
100
Fig.4 Typical Junction Capacitance
T J =25°C
Junction Capacitance (pF)
20
10
1.0
SS32B/SS34B
SS36B/SS38B
SS310B
SS3150B/SS3200B
0.1
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
500
200
100
20
SS32B~SS36B
SS38B~SS3200B
10
0.1
10
1
100
Instaneous Forward Voltage (V)
Reverse Voltage (V)
Fig.5 Maximum Non-Repetitive Peak
Forward Surge Current
Fig.6- Typical Transient Thermal Impedance
90
80
70
60
50
40
30
1000
1.8
8.3 ms Single Half Sine Wave
(JEDEC Method)
20
1
10
Number of Cycles at 60Hz
100
Transient Thermal Impedance( °C /W)
Instaneous Forward Current (A)
20
Percent of Rated Peak Reverse Voltage(%)
Fig.3 Typical Forward Characteristic
Peak Forward Surge Current (A)
SS38~SS3200B
1
100
10
1
0.01
0.1
1
10
100
t, Pulse Duration(sec)
The curve above is for reference only.
http://www.microdiode.com
Rev:2020A1
Page :2
SS32B THRU SS3200B
Reverse Voltage - 20 to 200 Volts
Forward Current - 3.0 Ampere
Packing information
unit:mm
P0
P1
Item
Symbol
Tolerance
SMB
Carrier width
Carrier length
Carrier depth
Sprocket hole
13" Reel outside diameter
13" Reel inner diameter
Feed hole diameter
Sprocket hole position
Punch hole position
Punch hole pitch
Sprocket hole pitch
Embossment center
Overall tape thickness
Tape width
A
B
C
d
D
D1
D2
E
F
P
P0
P1
T
W
Reel width
W1
0.1
0.1
0.1
0.05
2.0
min
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.3
1.0
3.81
5.41
2.42
1 50
.
330.00
50.00
13.00
1.75
5.55
8.00
4.00
2.00
0.30
12.00
12.30
d
E
F
B
A
W
P
D2
T
D1
C
W1
D
Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above.
Reel packing
PACKAGE
REEL SIZE
REEL
(pcs)
COMPONENT
SPACING
(mm)
BOX
(pcs)
INNER
BOX
(mm)
REEL
DIA,
(mm)
SMB
13"
3,000
4.0
6,000
190*190*41
330
CARTON
SIZE
(mm)
365*365*360
CARTON
(pcs)
48,000
APPROX.
GROSS WEIGHT
(kg)
14.0
Suggested Pad Layout
Unit (inch)
Symbol
Unit (mm)
A
2.8
0.110
B
0.094
C
2.4
4.6
0.181
D
2.2
0.086
E
7.0
0.276
Important Notice and Disclaimer
Microdiode Electronics (Jiangsu) reserves the right to make changes to this document and its products and
specifications at any time without notice. Customers should obtain and confirm the latest product information and
specifications before final design,purchase or use.
Microdiode Electronics (Jiangsu) makes no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, not does Microdiode Electronics (Jiangsu) assume any liability for application
assistance or customer product design. Microdiode Electronics (Jiangsu) does not warrant or accept any liability with
products which are purchased or used for any unintended or unauthorized application.
No license is granted by implication or otherwise under any intellectual property rights of Microdiode
Electronics (Jiangsu).
Microdiode Electronics (Jiangsu) products are not authorized for use as critical components in life support
devices or systems without express written approval of Microdiode Electronics (Jiangsu).
http://www.microdiode.com
Rev:2020A1
Page :3
