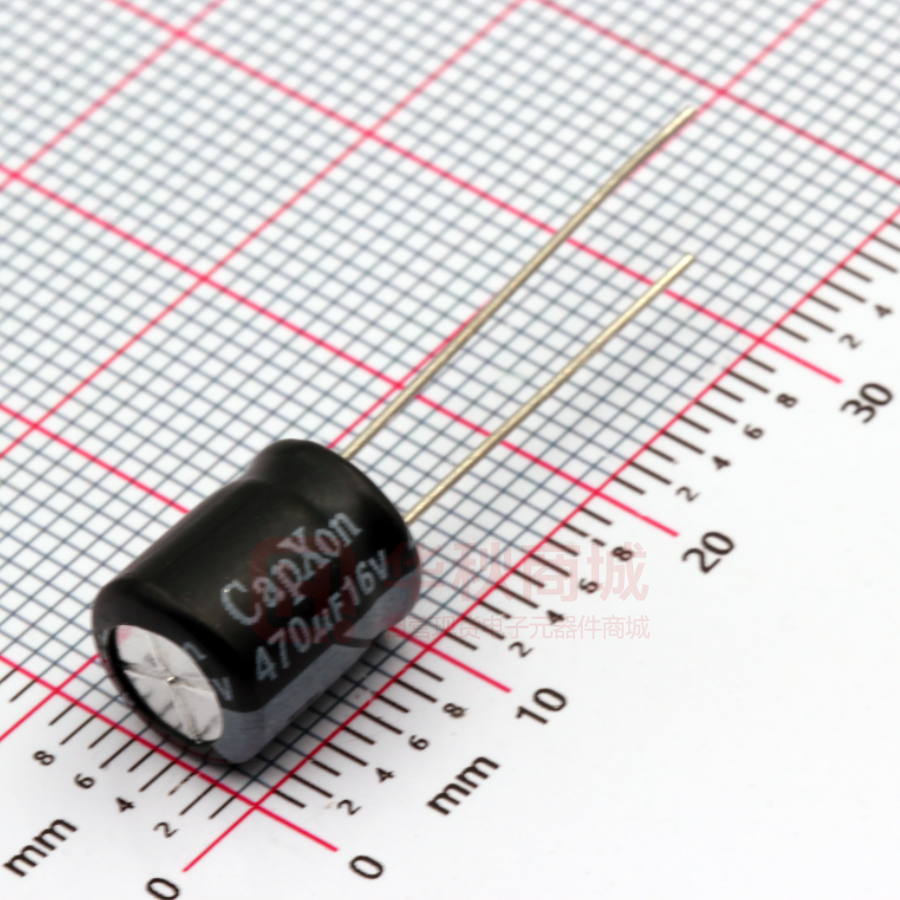

KW471M016F090A

KW Series KW Series 9-25mm Low Profile 105℃ Features ◆ Used space-savinq eguipment, low profile. ◆ Load life 2000 hrs at 105℃. ◆ Safety vent construction design. ◆ For detail specifications, please refer to Engineering Bulletin No. E124 ◆ RoHS Compliant Specifications Item Performance Characteristics Operating Temperature Range Rated Voltage Range Capacitance Range Capacitance Tolerance Leakage Current (+20℃,max.) Dissipation Factor (tanδ，at 20℃，120Hz) -40 to +105℃ 6.3 to 100 VDC 2.2 to 10000 μF -25 to +105℃ 160 to 450 VDC 1.5 to 220 μF ±20% (120Hz, +20℃) I≦0.01 CV or 3 (μA) I≦0.04 CV +100 (μA) After 2 minutes whichever is greater measures with rated working voltage applied. Working Voltage(VDC) D.F. (%)max. 6.3 24 10 22 16 20 25 16 After 2 minutes with rated working voltage applied. 35 14 50 12 63 10 100 10 63 2 3 100 2 3 Working Voltage(VDC) 160 200 250 350 400 450 D.F. (%)max. 15 15 15 15 20 20 For capacitance ＞1000, add 2％ per another 1000 μF. Low Temperature Characteristics (at 120Hz) Working Voltage(VDC) Z-25℃ Z+20℃ Z-40℃ Z+20℃ 6.3 4 8 10 3 6 16 2 4 25 2 4 35 2 3 50 2 3 Working Voltage(VDC) Z-25℃ Z+20℃ 160 200 250 350 400 450 3 3 3 6 6 6 Radial Impedance ratio max For Capacitance ＞1000 μF, add 0.5 per another 1000 μF for -25℃ +20℃ add 1 per another 1000 μF for -40℃ +20℃ Load Life Test conditions Duration time :2000Hrs Ambient temperature :+105℃ :Rated DC working voltage Applied voltage After test requirement at +20℃ Capacitance change :≦ ±20% of the initial measured value Dissipation factor :≦ 200% of the initial specified value Leakage current :≦ The initial specified value Shelf Life Test conditions Duration time :1000Hrs Ambient temperature :+105℃ Applied voltage :None After test requirement at +20℃:Same limits as Load life. Pre-treatment for measurements shall be conducted after application of DC working voltage for 30 minutes. Multiplier for Ripple Current vs. Frequency CAP(μF) Frequency(Hz) 50(60) 120 0.8 1 0.47＜CAP≦68 0.8 1 100＜CAP≦1000 2200＜CAP≦10000 0.8 1 400 1.20 1.10 1.05 1K ≧10K 1.30 1.50 1.15 1.20 1.10 1.15 Diagram of Dimensions:(unit:mm) Dφ F dφ 113 5 2.0 6.3 2.5 0.5 8 3.5 10 5.0 13 5.0 0.6 16 7.5 18 7.5 0.8 KW Series Case Size φDxL(mm) WV (SV) Cap(μF) 2.2 3.3 4.7 6.8 10 22 33 47 68 100 150 220 330 470 680 1000 2200 3300 4700 6800 10000 WV (SV) Cap(μF) 1.5 2.2 3.3 4.7 6.8 10 22 33 47 68 100 150 220 330 470 6.3 (8) Size Ripple 10 (13) Size Ripple 16 (20) Size Ripple 25 (32) Size Ripple 5x9 5x9 6.3x9 6.3x9 8x9 115 135 150 165 205 5x9 6.3x9 6.3x9 6.3x9 8x9 8x9 105 125 150 160 200 250 5x9 6.3x9 6.3x9 8x9 8x9 10x9 110 130 160 185 230 310 275 280 360 450 690 10x9 310 10x12.5 370 13x13 13x13 16x16 390 520 850 950 1150 1350 1700 16x21 18x21 18x25 1180 1480 1600 13x16 13x16 16x21 18x15 18x21 18x25 520 600 950 940 1250 1470 5x9 5x9 6.3x9 6.3x9 120 135 165 185 8x9 260 10x9 10x9 13x16 310 370 620 8x9 10x9 10x9 10x12.5 13x16 16x16 16x16 16x16 18x21 860 1010 1210 1450 16x16 16x21 18x21 18x25 100 (125) Size Ripple 160 (200) Size Ripple 200 (250) Size Ripple 250 (300) Size Ripple 5x9 5x9 5x9 6.3x9 8x9 20 27 42 56 72 8x9 8x9 10x9 50 55 80 8x9 8x9 10x9 50 58 78 8x9 10x9 13x16 50 65 82 8x9 114 13x16 120 13x16 145 10x9 10x16 10x16 13x13 13x16 16x16 16x16 16x21 18x25 141 197 200 247 295 346 373 500 745 13x16 16x16 16x21 16x21 18x21 175 225 305 380 530 16x16 16x16 16x21 18x21 18x25 200 240 360 410 560 13x16 16x16 16x16 18x16 18x21 18x25 165 180 225 350 390 450 18x25 600 35 (44) Size Ripple 5x9 6.3x9 8x9 8x9 8x9 10x9 10x12.5 90 120 145 180 210 255 360 13x13 13x16 13x16 16x16 18x21 410 430 580 750 1200 18x25 1450 350 (400) Size Ripple 8x9 10x9 13x16 13x16 35 50 80 95 16x16 180 16x21 18x21 18x25 225 300 390 50 (63) Size Ripple 5x9 19 5x9 25 5x9 40 5x9 48 5x9 54 5x9 75 6.3x9 115 6.3x9 130 8x9 169 10x9 200 10x9 250 10x12.5 290 13x13 375 13x16 400 16x16 550 16x16 16x21 18x25 700 850 1300 400 (450) Size Ripple 8x9 10x9 13x16 13x16 13x16 16x16 16x21 35 40 50 80 100 105 185 18x21 18x21 230 309 63 (79) Size Ripple 5x9 20 5x9 26 5x9 41 5x9 49 5x9 55 6.3x9 107 6.3x9 114 8x9 136 10x9 170 10x9 173 10x16 245 13x13 317 13x16 382 16x16 490 16x21 16x25 730 1050 450 (500) Size Ripple 8x9 18 10x9 25 10x9 30 13x16 48 13x16 68 16x16 100 16x21 170 18x25 18x25 225 270 Ripple Current ( mA, rms ) at 105℃ 120Hz 114
