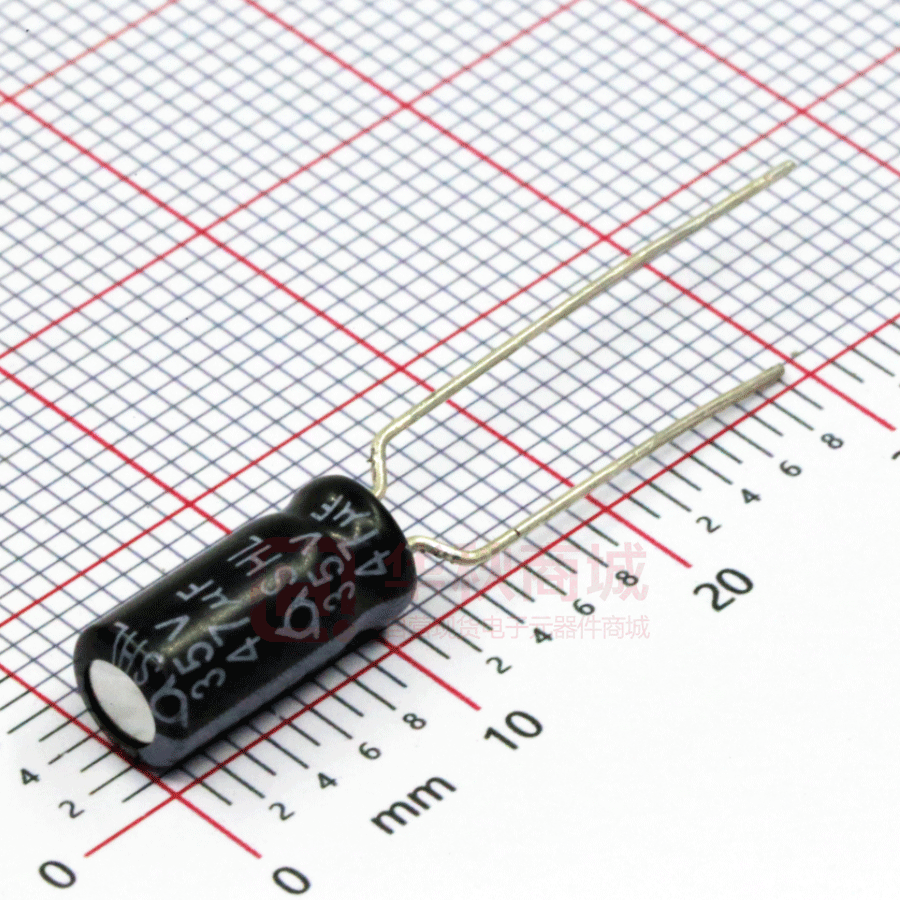

SHL35VB47M5*11_5.0TP

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS SHL Series ● 85℃ 2,000Hrs assured. Non-solvent proof. General ● RoHS compliant. ● Halogen-free capacitors are also available. SHL ● MHA ● Downsized SPECIFICATIONS Item Characteristics Series SHL Rated Voltage Range 100VDC or less 160 ~ 450VDC Operating Temperature Range -40 ~ +85℃ -25 ~ +85℃ Capacitance Tolerance ±20% (M) (at 20℃, 120㎐) The following specifications shall be satisfied when the rated voltage is applied for the required time. ≤100VDC Leakage Current ＞100VDC After 1minute:0.03 CV(㎂) or 4㎂ whichever is greater After 1 minute After 2minutes:0.01 CV(㎂) or 3㎂ whichever is greater Where, C=Nominal Capacitance(㎌) V=Rated Voltage(V DC) After 5 minutes CV≤1000 CV>1000 CV≤1000 CV>1000 0.1CV+40 0.04CV+100 0.03CV+15 0.02CV+25 Rated Voltage(VDC) 6.3 10 16 25 35 50 63 100 Tan δ 0.34 0.24 0.20 0.16 0.14 0.12 0.10 0.09 Dissipation Factor(Tanδ) 160~250 350~450 0.20 When the capacitance exceeds 1,000㎌, 0.02 shall be added every 1,000㎌ increase. Temperature Characteristic (Max. Impedance ratio) 0.24 (at 20℃,120㎐) Rated voltage(VDC) 6.3 10 16 25 35 50 Z(-25℃)/Z(20℃) 5 4 3 2 2 2 3 4 8 16 Z(-40℃)/Z(20℃) 12 10 8 5 4 3 4 - - - 63~100 160 200~250 350~450 (at 120㎐) The following specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage is applied for 2000 hours at 85℃. Load life Capacitance change ≤ ± 20% of the initial value Tanδ ≤ 200% of the initial specified value Leakage current ≤ The initial specified value The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1000 hours at 85℃, without voltage applied. The rated voltage shall be applied to the capacitors for a minimum of 30 minutes, at least 24 hours and not more than 48 hours Shelf life before the measurement. Capacitance change ≤ ± 20% of the initial value Others Tanδ ≤ 200% of the initial specified value Leakage current ≤ The initial specified value(where, 200% for ≥ WV 160VDC) Satisfied characteristics W of KS C6421 RATED RIPPLE CURRENT MULTIPLIERS Frequency Multipliers Freq.(㎐) Cap.(㎌) ~ 6.8 60 120 300 1k 10k~ 0.65 1.00 1.35 1.75 2.30 10 ~ 68 0.75 1.00 0.25 1.50 1.75 100 ~ 1000 0.80 1.00 1.15 1.30 1.40 2200 ~ 0.85 1.00 1.03 1.05 1.08 MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS RATINGS OF SHL Series VDC ㎌ 6.3 10 16 25 35 0.1 0.22 0.33 0.47 0.68 1 2.2 3.3 4.7 6.8 10 22 33 47 68 100 220 330 470 680 1000 2200 3300 4700 6800 10000 15000 5×11 41 5×11 59 5×11 90 5×11 135 5×11 211 6.3×11 297 6.3×11 355 8×11.5 503 8×11.5 610 10×20 1147 10×20 1350 12.5×20 1822 12.5×25 2235 16×25 2760 16×35.5 3453 5×11 52 5×11 70 5×11 88 5×11 110 5×11 150 5×11 229 6.3×11 322 6.3×11 384 8×11.5 546 10×12.5 791 10×20 1226 12.5×20 1685 12.5×25 2103 16×25 2606 16×35.5 3302 18×35.5 3826 5×11 39 5×11 68 5×11 76 5×11 98 5×11 130 5×11 170 6.3×11 290 8×11.5 419 8×11.5 499 10×12.5 690 10×16 928 12.5×20 1555 12.5×25 1970 16×25 2487 16×31.5 3010 18×35.5 3705 DIMEMSIONS OF SHL Series 5×11 49 5×11 73 5×11 83 5×11 126 5×11 151 6.3×11 211 8×11.5 370 8×11.5 453 10×12.5 628 10×16 826 10×20 1094 12.5×25 1800 16×25 2304 16×31.5 2854 18×35.5 3528 5×11 35 5×11 46 5×11 53 5×11 80 5×11 100 5×11 138 6.3×11 191 6.3×11 231 8×11.5 405 10×12.5 576 10×16 753 10×20 988 12.5×20 1407 16×25 2134 16×35.5 2806 18×35.5 3386 50 63 100 160 200 250 350 400 5×11 5.5 5×11 8 5×11 10 5×11 15 5×11 18 5×11 22 5×11 34 5×11 41 5×11 48 5×11 59 5×11 71 5×11 106 5×11 129 6.3×11 177 6.3×11 213 8×11.5 306 10×12.5 506 10×16 706 10×20 918 12.5×20 1296 12.5×25 1715 16×35.5 2645 18×35.5 3218 5×11 6.2 5×11 9 5×11 11 5×11 16 5×11 19 5×11 24 5×11 35 5×11 43 5×11 53 5×11 63 5×11 76 5×11 113 6.3×11 159 6.3×11 190 8×11.5 269 8×11.5 321 10×16 315 10×20 823 12.5×20 1153 12.5×25 1512 16×25 2037 5×11 6.5 5×11 11 5×11 13 5×11 17 5×11 19 5×11 24 5×11 37 5×11 44 5×11 55 5×11 64 6.3×11 87 6.3×11 130 8×11.5 187 10×12.5 259 10×16 342 10×20 453 12.5×25 860 16×20 1169 16×25 1394 16×35.5 1620 18×40 2130 6.3×11 18 6.3×11 21 6.3×11 25 6.3×11 38 6.3×11 46 6.3×11 56 8×11.5 78 10×12.5 110 10×20 181 10×20 243 12.5×20 341 12.5×20 410 12.5×25 541 16×31.5 976 18×35.5 1346 6.3×11 18 6.3×11 21 6.3×11 26 6.3×11 39 6.3×11 47 8×11.5 64 8×11.5 80 10×12.5 112 10×20 183 10×20 245 12.5×20 343 12.5×20 447 16×25 601 18×35.5 1099 6.3×11 19 6.3×11 22 6.3×11 27 6.3×11 41 8×11.5 54 8×11.5 66 8×11.5 82 10×16 114 10×20 198 12.5×20 286 12.5×25 371 16×25 495 16×31.5 658 18×40 1152 6.3×11 20 6.3×11 23 6.3×11 28 8×11.5 46 8×11.5 56 10×12.5 77 10×12.5 92 10×20 123 12.5×20 233 16×25 312 16×25 413 16×31.5 542 18×31.5 691 6.3×11 20 6.3×11 23 6.3×11 29 8×11.5 47 10×12.5 64 10×16 77 10×16 100 10×20 134 12.5×25 254 16×25 345 16×31.5 451 16×35.5 569 18×40 778 Case Size ØD × L (mm) Rated Ripple Current (mArms/ 85 ℃,120㎐) Unit (mm) 450 8×11.5 26 8×11.5 40 10×16 58 10×20 76 10×20 90 12.5×20 120 16×25 228 16×31.5 309 16×35.5 403 18×40 573
