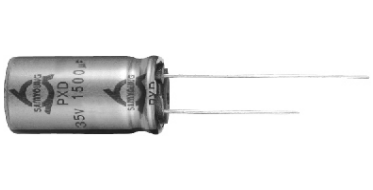

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS PXD Series Solventproof •1 2 5 ℃ 2 , 0 0 0 ~ 5 , 0 0 0 H r s a s s u r e d . •Ultra Low Impedance. •Wide Temperature range. •Long Life. •Suitable to fit for automotive equipment. •RoHS compliant. •Halogen-free capacitors are also available. WV ≦ 80VDC PXD PXC Low lmp. SPECIFICATIONS ltem Characteristics Rated Voltage Range 10 ~ 80 VDC Operating Temperature Range -40 ~ +125℃ Capacitance Tolerance ±20%(M) Leakage Current (at 20℃,120Hz) I = 0.03CV (㎂) or 4㎂, whichever is greater. Where, I:Max. leakage current(㎂),C:Nominal capacitance(㎌),V:Rated voltage(VDC) (at 20℃, 1 minute) Dissipation Factor(Tan δ) Temperature Characteristics (Max. Impedance ratio) Load Life Shelf Life Rated Volatag(VDC) 10 16 25 35 50~63 80 TANδ (Max.) 0.20 0.16 0.14 0.12 0.10 0.08 When the capacitance exceeds 1.000㎌, 0.02 shall be added every 1.000㎌ increase. (at 20℃,120Hz) Rated Voltage(VDC) 10 16 ~ 35 50 63~80 Z(-25℃)/Z(+20℃) 3 2 3 2 Z(-40℃)/Z(+20℃) 6 4 5 4 The following specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage is applied at 125℃. Capacitance change ≦ ±30% of the initial value Tanδ ≦ 300% of the initial specified value Leakage current ≦ The initial specified value (at 120Hz) ØD 10~50V 8Ø 2,000 63~80V - 10Ø~ 4,000 5,000 The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 125℃ without voltage applied. The rated voltage shall be applied to the capacitors for a minimum of 30 minutes, at least 24 hours and not more than 48 hours before the measurements. Capacitance change ≦ ±30% of the initial value Tanδ ≦ 300% of the initial specified value Leakage current ≦ The initial specified value Others Satisfied characteristics KS C IEC 60384-4 DIMENSIONS OF PXD Series Unit(mm) Marking : GREEN SLEEVE, BLACK INK ØD 8 10 12.5 16 Ød 0.6 0.6 0.6 0.8 F 3.5 5.0 5.0 7.5 ØD′ ØD+0.5 max. L+2.0max. L′ L+1.5max. 182 18 0.8 7.5 MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS RATINGS OF PXD Series V DC ltem ㎌ 10 ØD×L (mm) 16 Rated Ripple Imp. Current (Ωmax./100kHz) (mArms) ØD×L (mm) -40℃ (125℃,100kHz) 20℃ 100 25 Rated Ripple Imp. Current (Ωmax./100kHz) (mArms) ØD×L (mm) -40 ℃ (125℃,100kHz) 20℃ 8×11.5 0.24 3.6 400 8×11.5 0.24 3.6 400 10×12.5 0.11 1.1 720 10×12.5 330 10×12.5 0.11 1.1 720 10×12.5 0.11 1.1 720 470 10×12.5 0.11 1.1 720 10×16 0.071 0.71 950 12.5×20 0.044 0.31 1.1 720 10×16 0.071 0.71 950 10×20 0.056 0.56 1,100 1,250 12.5×25 0.030 0.21 1,550 16×31.5 0.019 0.13 2,500 1,000 10×20 0.056 0.56 1,100 2,200 12.5×25 0.030 0.21 1,550 16×25 0.023 0.16 2,000 3,300 16×25 0.023 0.16 2,000 16×31.5 0.019 0.13 2,500 4,700 16×31.5 0.019 0.13 2,500 ltem ㎌ 35 ØD×L (mm) ØD×L (mm) -40℃ (125℃,100kHz) 20℃ 63 Rated Ripple Imp. Current (Ωmax./100kHz) (mArms) 8×11.5 0.30 4.5 230 22 8×11.5 0.30 4.5 320 33 8×11.5 0.30 4.5 340 47 8×11.5 0.30 4.5 340 10×12.5 0.18 1.5 590 8×11.5 0.24 3.60 400 10×12.5 0.11 1.10 720 ØD×L (mm) -40 ℃ (125℃,100kHz) 20℃ 10 100 0.11 50 Rated Ripple Imp. Current (Ωmax./100kHz) (mArms) -40 ℃ (125℃,100kHz) 20℃ 220 V DC Rated Ripple Imp. Current (Ωmax./100kHz) (mArms) Rated Ripple Imp. Current (Ωmax./100kHz) (mArms) 20℃ -40 ℃ (125℃,100kHz) 220 10×16 0.071 0.71 950 10×20 0.074 0.74 950 12.5 X 20 0.19 1.5 950 330 10×20 0.056 0.56 1,100 12.5×20 0.061 0.43 1,150 12.5 X 25 0.15 1.2 1,450 470 12.5×20 0.044 0.31 1,250 12.5×25 0.040 0.28 1,400 12.5 X 30 0.090 0.71 1,700 1,000 16×25 0.023 0.16 2,000 16×31.5 0.028 0.15 2,200 16 X 31.5 0.058 0.46 2,100 V DC ltem ㎌ 330 Rated Ripple Imp. Current (Ωmax./100kHz) (mArms) 20℃ 12.5 X 25 -40 ℃ (125℃,100kHz) 0.15 1.2 1,450 12.5 X 30 0.090 0.71 1,700 0.085 0.58 1,790 12.5 X 35 0.070 0.55 2,000 16 X 20 RATED RIPPLE CURRENT MULTIPLIERS Frequency Multipliers Freq.(Hz) 120 1k 10k 50k 100k 10~100 0.40 0.75 0.90 0.93 1.00 Cap.(㎌) 16 X 25 0.061 0.48 2,030 220~470 0.50 0.85 0.94 0.96 1.00 560 18 X 25 0.049 0.34 2,280 1,000 0.60 0.87 0.95 0.97 1.00 680 18 X 30 0.041 0.26 2,580 2,200~3,300 0.75 0.90 0.95 0.97 1.00 2,890 4,700 0.85 0.95 0.98 0.99 1.00 820 18 X 35.5 0.035 0.21 Series 470 ØD×L (mm) PXD 220 80 183
