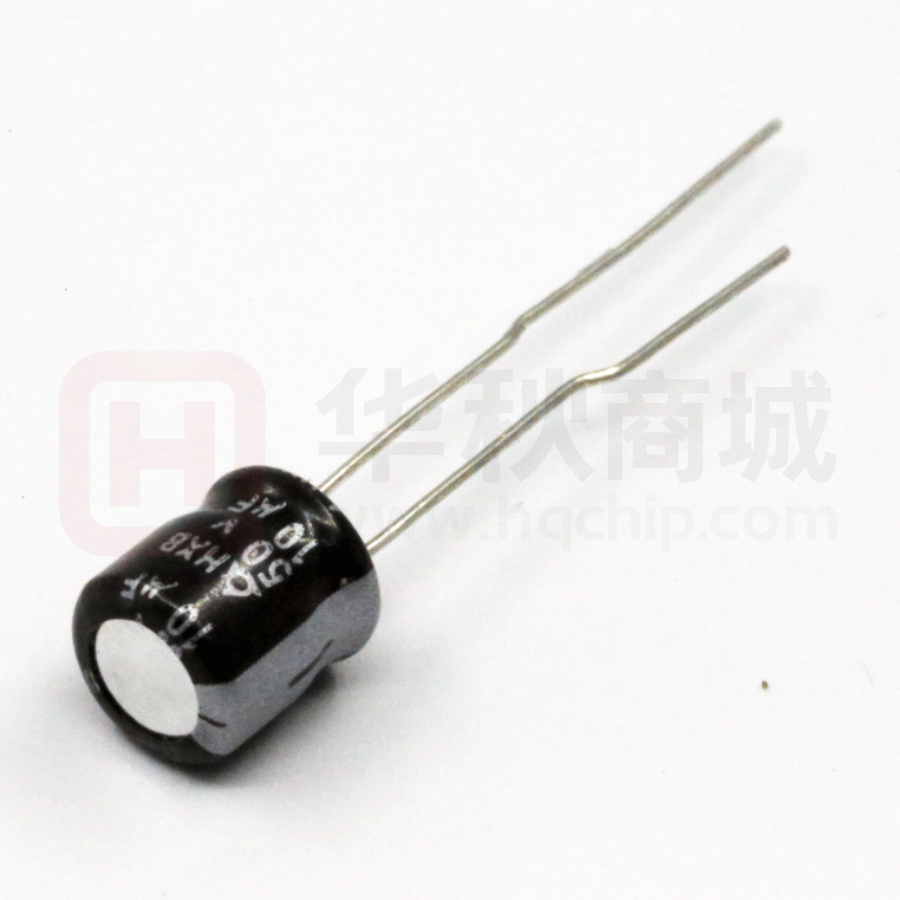

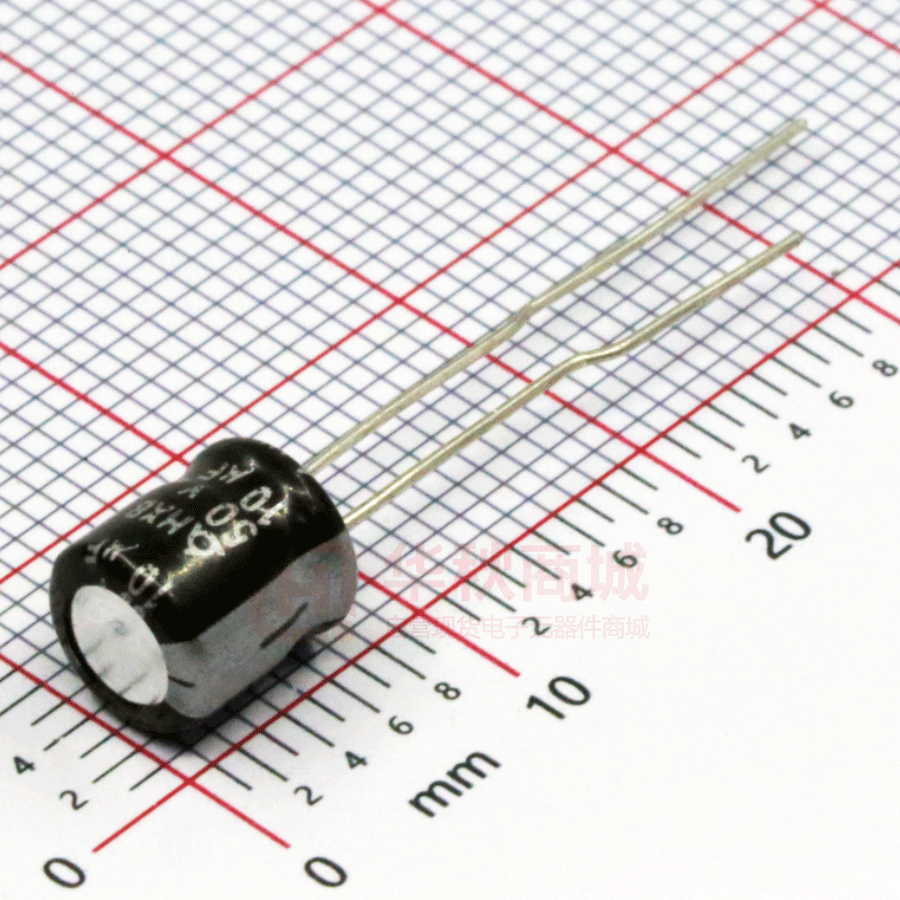

HXB50VB10M6.3*7_2.5TP

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS HXB Series •105℃ 1,000~2,000Hrs assured. •Non-solvent proof. •Low Impedance, Long Life. •Height 7mm. •For LED TV PSU, DVD Driver. •RoHS compliant. •Halogen-free capacitors are also available. HXA HXB Low lmp. Long Life SPECIFICATIONS Item Characteristics Rated Voltage Range Operating Temperature Range Capacitance Tolerance 6.3 ~ 50 V DC -40 ~ +105℃ ±20%(M) (at 20℃, 120Hz) I=0.01CV(μA) or 3 μA, whichever is greater. Where, I:Max. Leakage current(μA), C:Nominal capacitance(μ F), V:Rated voltage(VDC) (at 20℃, 2 minutes) Leakage Current Rated voltage(VDC) Dissipation Factor(Tan δ) Tan δ(Max.) Temperature Characteristics (Max. Impedance ratio) 6.3 0.22 10 0.19 16 0.16 25 0.14 35 0.12 Rated voltage(VDC) 6.3 10 16 25~50 Z(-25℃)/Z(20℃) 2 2 2 2 Z(-40℃)/Z(20℃) 6 4 3 3 50 0.10 (at 20℃, 120Hz) (at 120Hz) The following specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage is applied for 2,000 hours at 105℃. (where 1,000 hours for Ø4) Load Life Capacitance change ≦ ±25% of the initial value Tan δ ≦ 200% of the initial specified value Leakage current ≦ The initial specified value The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 105℃ without voltage applied. The rated voltage shall be applied to the capacitors for a minimum of 30 minutes, at least 24 hours and not more than 48 hours before the measurements. Shelf Life Capacitance change ≦ ±25% of the initial value Tan δ ≦ 200% of the initial specified value Leakage current ≦ The initial specified value Others Satisfied characteristics KS C IEC 60384-4 RATINGS OF HXB Series ㎌ VDC 6.3 DIMENSIONS OF HXB Series 10 16 25 2.2 1.50 0.70 0.70 0.35 0.35 0.35 0.17 0.17 130 165 165 260 260 260 450 450 4X7 5X7 5X7 6.3X7 6.3X7 6.3X7 8X7 1.50 0.70 0.70 0.35 0.35 0.35 0.17 130 165 165 260 260 260 450 53 80 70 120 85 165 260 260 5X7 0.70 165 5X7 0.70 165 6.3X7 0.35 260 8X7 0.17 450 5X7 6.3X7 6.3X7 8X7 0.70 0.35 0.35 0.17 165 6.3X7 0.35 260 8X7 0.17 450 8X7 0.17 450 260 6.3X7 0.35 260 8X7 0.17 450 260 8X7 0.17 450 450 Marking : DARK BROWN SLEEVE, SILVER INK ØD Ød 5 6.3 8 0.45 F 2.0 2.5 3.5 ØD 、 ØD+0.5max Rated Ripple Current (mArms/105℃, 100kHz) Impedance (Ωmax./20℃, 100kHz) Case Size ØD×L(mm) L、 L+1.0max RATED RIPPLE CURRENT MULTIPLIERS Frequency Multipliers Freq.(Hz) Cap.(㎌) 120 1k 10k 50k 100k 1~150 220~330 0.40 0.50 0.75 0.85 0.90 0.94 0.95 0.97 1.00 1.00 93 Series 4X7 5X7 5X7 6.3X7 6.3X7 6.3X7 8X7 8X7 50 3.00 2.20 2.50 1.15 2.00 0.70 0.35 0.35 HMA/HXB 4X7 5X7 4X7 5X7 4X7 5X7 6.3X7 5X7 0.70 165 6.3X7 1 4.7 10 22 33 47 68 100 150 220 330 35 Unit(mm)
