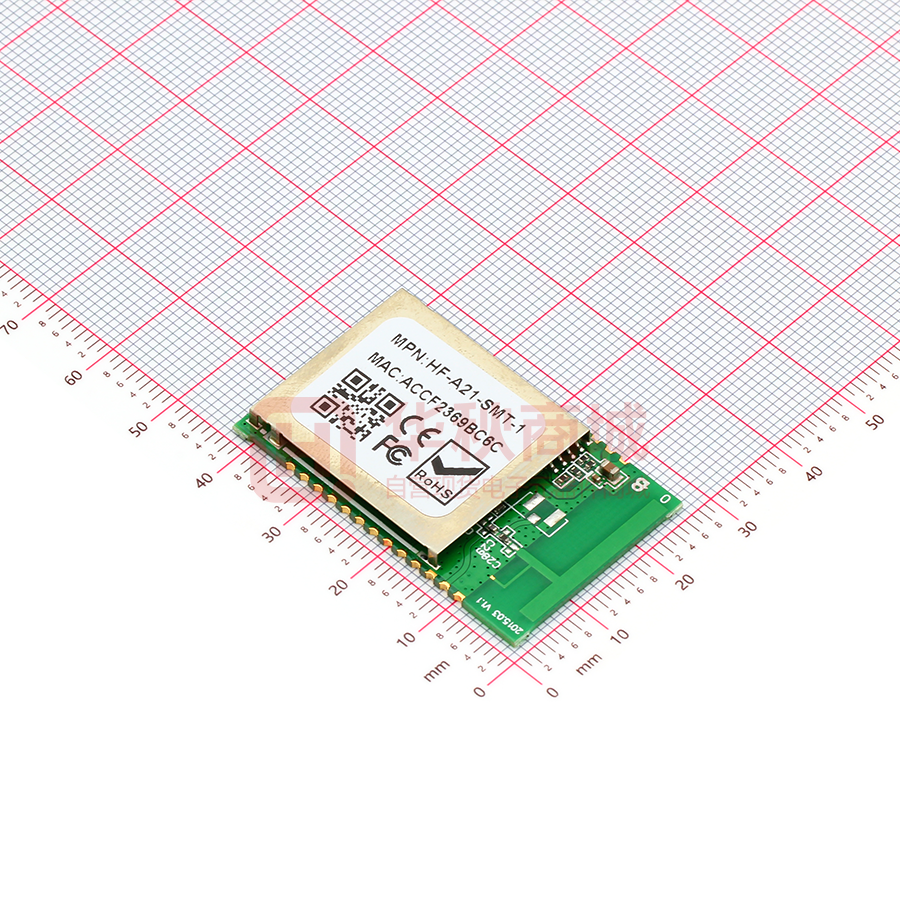

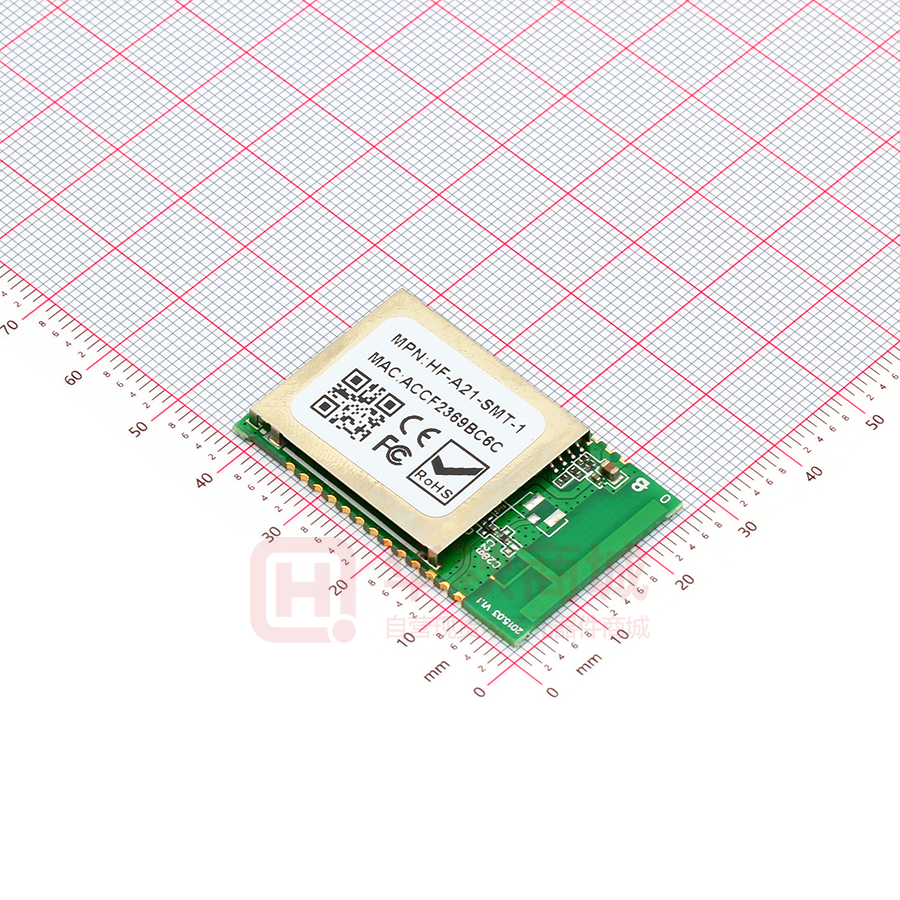

HF-A21-SMT Embedded WiFi Module User Manual
HF-A21-SMT
Embedded WiFi Module User Manual
V1.2
Overview of Characteristic
Support IEEE802.11b/g/n Wireless Standards
Support TCP/UDP/HTTP Network Protocols
Support UART/Ethernet Data Interface
Support Work As STA/AP/AP+STA Mode
Support Router/Bridge Mode Networking
Support Internal/External Antenna Option
Support AT+ Instruction Set for Configuration
Support Friendly Web Configuration Page
Support Heatbeat Signal
Support Smart Link Application Tools
Support UART Free/Auto-Frame Function
Single +3.3V Power Supply
Small Size: 25 x 40mm
FCC/CE Certificated
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
1
