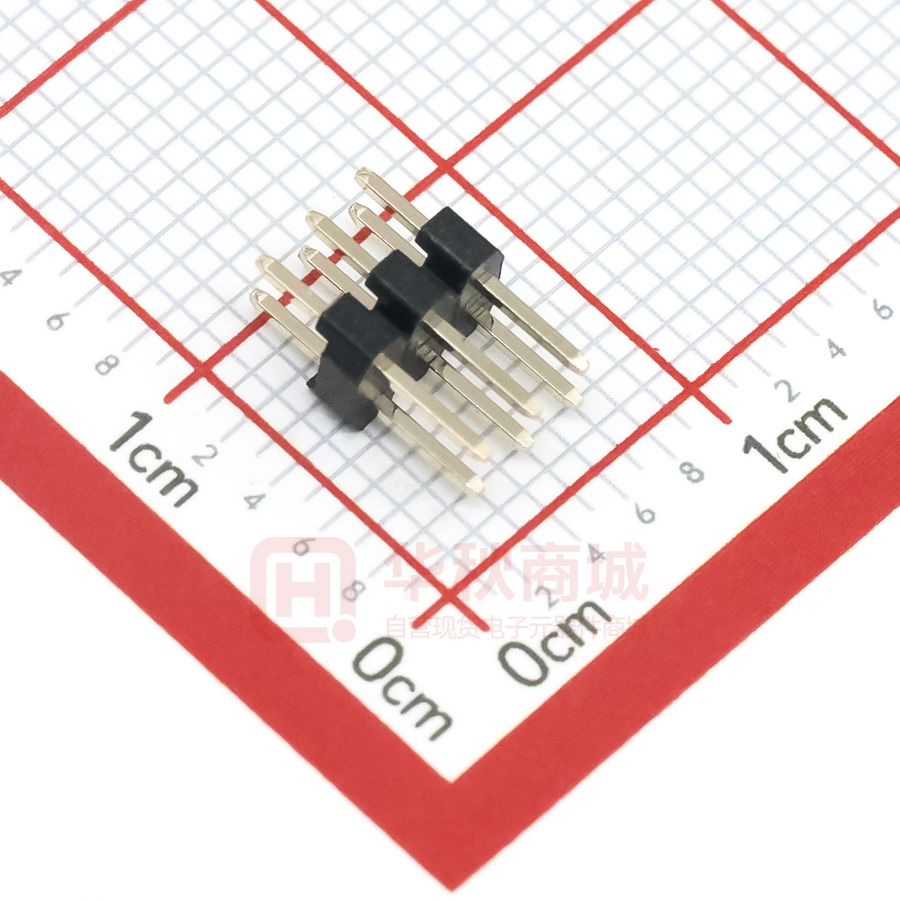

PZ200V-12-06P

RoHS REV ECN NO. DESRIPTION A1 NEW 更换图框 DESIGN APPROVAL DATE 2024.05.24 B±0.1/-0.5 4.0 PIN/ROW 2x02 2x03 2x04 2x05 2x06 2x07 2x08 2x09 2x10 2x11 2x12 2x13 2x14 2x15 2x16 2x17 2x18 2x19 2x20 2x21 2x22 2x23 2x24 2x25 2x26 2x27 2x28 2x29 2x30 2x31 2x32 2x33 2x34 2x35 2x36 2x37 2x38 2x39 2x40 Material: Insulator Material:PA6T (UL 94V-0) Black Contact Material:Brass Plating:Matte Tin or gold plated over Nickel Mate with XFCN PM200 Double Row series A±0.2 2.00±0.05 0.5*0.5 Ordering Code: PZ200V-12-XX 2 1.序列号 2.Pin位数: 2x2=04P 2x10=20P 2x20=40P 2.00±0.05 2.8±0.20 4.0±0.20 1 2.00 2.00±0.05 No.of SPECIFICATIONS 1. Current rating: 2A 2. Temperature range: -40°C ~ +105°C 3. Insulation resistance: 1000MΩ Min. 4. Withstanding voltage: 600V AC/ minute. 5. Contact resistance: 20mΩ Max. 2.00±0.05 .8 Ø0 5 .0 ±0 P.C.B Hole Layout X.±0.50 X.°± .X±0.25 .XX±0.15 .XXX±0.10 UNITS: .X°± .XX°± .XXX°± mm THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF XFCN AND SHALL NOT BE REPRODUCED,COPIED OR CUED IN ANY MANNER WITHOUT THE PRIOR WRITTEN CONSENT OF XFCN PART NO: Dimension A B 2.00 4.00 4.00 6.00 6.00 8.00 8.00 10.00 10.00 12.00 12.00 14.00 14.00 16.00 16.00 18.00 18.00 20.00 20.00 22.00 22.00 24.00 24.00 26.00 26.00 28.00 28.00 30.00 30.00 32.00 32.00 34.00 34.00 36.00 36.00 38.00 38.00 40.00 40.00 42.00 42.00 44.00 44.00 46.00 46.00 48.00 48.00 50.00 50.00 52.00 52.00 54.00 54.00 56.00 56.00 58.00 58.00 60.00 60.00 62.00 62.00 64.00 64.00 66.00 66.00 68.00 68.00 70.00 70.00 72.00 72.00 74.00 74.00 76.00 76.00 78.00 78.00 80.00 XFCN兴飞连接器 PZ200V-12-XX TITLE: 0769-82001899 2.00mm Pin Header Connectors www.xfconn.com DWG NO: / APPD Chen ZhiQiang CHKD Liu Wei VIEW DRAW Chen HongJiang SCALE SHEET REV DATE 2024.06.18 NONE 1/1 A1
