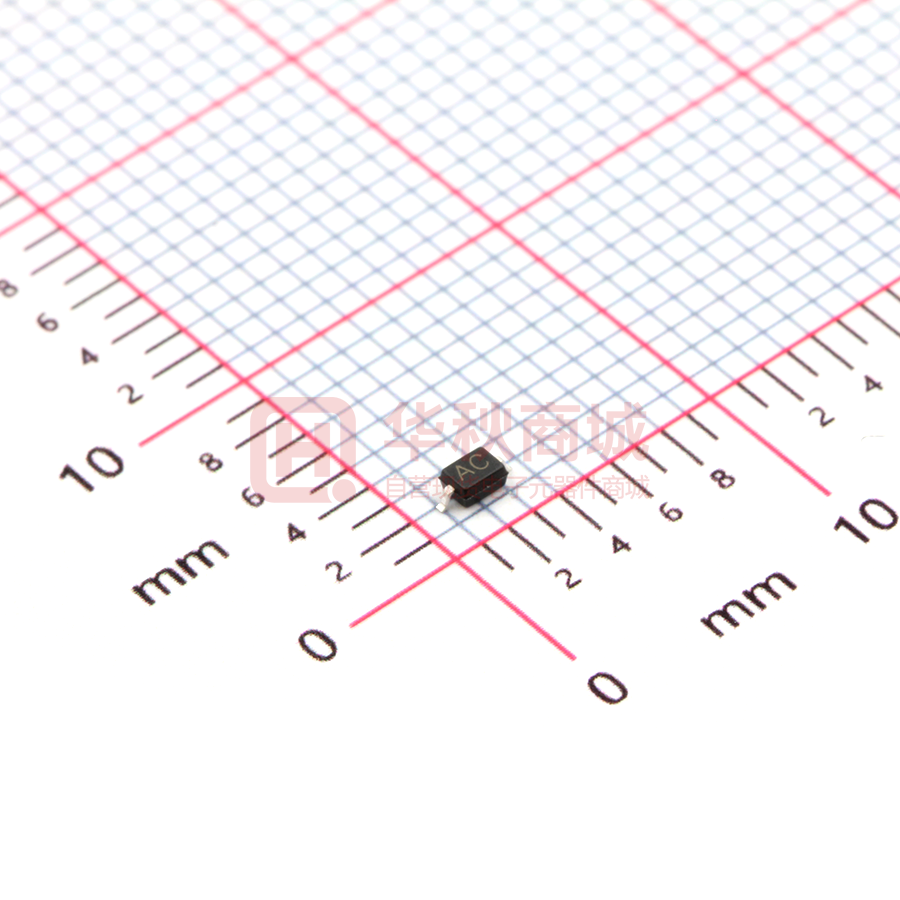

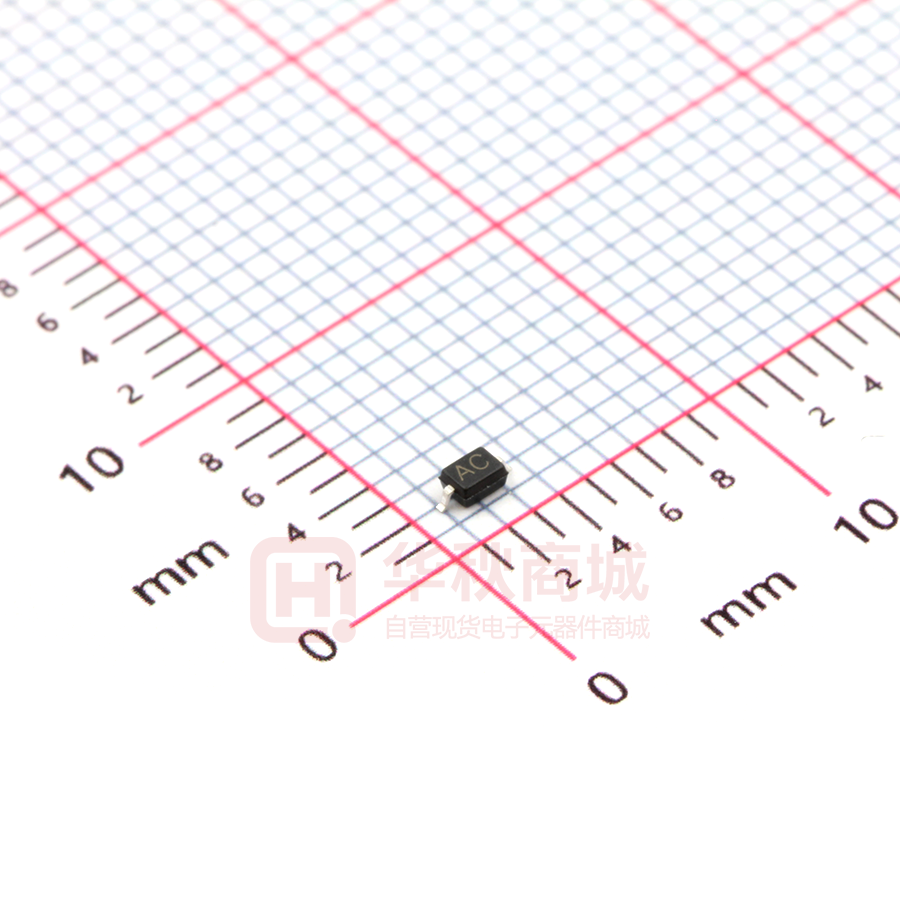

BV05C

BV05C Order Code: BV05C Version: A1 Transient Voltage Suppressor Features 2016-06-23 Exterior IEC 61000-4-2(ESD)±25KV(air), ±25KV(contact) 150Watts peak pulse power (tp=8/20μs) Ultra low capacitance: 1.5pF maximum Low clamping voltage Moisture sensitivity level：Level 1 Weight 5.0mg Small package: SOD323 2 1 SOD323 Agency Approvals Application information rmation xDSL Icon Description Compliance with 2011/65/EU Compliance with IEC61249-2-21:2003 Mean lead free Part Number and Electrical Parameter Part Number BV05C VBR①@IR IDRM@VDRM μA V MAX V Vc@Ipp② mA MIN 5 5 6 V A MAX 1 9.8 CO③ Vc@Ipp② V A MAX 1 18.3 pF MAX 8 1.5 Absolute maximum ratings measured at T= 25ºC RH = 45%-75% (unless otherwise noted). ① VBR is measured at IR=1mA ② Surge Waveform: 8/20us. ③ Off-state capacitance is measured in VDC=0V,VRMS=1V,f=1MHz. Part Numbering System BV 05 (1) (2) Mark C (3) (1) Bencent Transient Voltage Suppressor (2) Series: 05 etc. (3)Bidirectional TVS 1/4 www.bencent.com.cn B42LC B006U2 AC 0909 AC: Part G Number 0909 Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BV05C Order Code: Version: A1 Transient Voltage Suppressor V-I Curve Parameters Definition VC Clamping voltage Ipp Surge waveform 8/20us VDRM Stand-off Voltage VBR Breakdown Voltage IDRM Reverse Leakage Current IR Test current Ppp Peak Pulse Power Dissipation BV05C 2016-06-23 IPP VC VBR VDRM IR IDRM IDRM IR V VDRM VBR VC IPP Typical Characteristics Thermal Considerations symbol Parameter Value Unit TJ Operating Junction Temperature Range -55 to +150 ℃ TS Storage Temperature Range -55 to +150 ℃ 2/4 www.bencent.com.cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BV05C Order Code: Version: A1 Transient Voltage Suppressor BV05C 2016-06-23 Environmental Characteristics Technical standards Testing items High temperature Reverse Bias Test High Temperature Life Test High-low Temperature Cycle test High Temperature &High Humidity Test Pressure cooker Test Resistance of soldering heat Temperature: 150±3℃ Bias=80%VDRM Time:168H Temperature: 150℃ Time:168H Temperature: From -40℃ to125℃ Dwell time ：30min,10cycles Temperature: 85℃Humidity:85% Time:168H Temperature: 121℃，2atm. Humidity:100% Time:24H Temperature: 260±5℃ Time of dip soldering：10s，3times Note: The above testing items can be specified by customer’s special request Product Dimensions REF mm inch A 1.17 0.046 A1 0.1 0.004 b 0.34±0.10 0.013±0.0039 c 0.17±0.08 0.007±0.0032 D 1.66±0.14 0.065±0.0055 E 1.28±0.17 0.050±0.0066 H 2.5±0.2 0.098±0.0079 L 0.28±0.18 0.011±0.0071 Q1 0.25±0.15 0.010±0.0059 Recommended Soldering Pad A D C 3/4 REF mm inch A 3.20 0.126 B 1.08 0.043 C 1.06 0.042 D 0.54 0.021 B www.bencent.com.cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BV05C Order Code: Version: A1 Transient Voltage Suppressor BV05C 2016-06-23 Reflow Profile Pre Heat Pb-Free assembly Temperature Min 150°C Temperature Max 200°C Time （min to max） 60 – 180 secs Average ramp up rate（Liquid） Tamp（TL） to peal 3°C/s TS(max) to TL - Ramp-up Rate 3°C/s Reflow TP TP max - Temperature (TL) (Liquid) 217°C - Temperature (TL) 60 – 150 secs Peak Temperature (TP) 260+0/-5 °C Time within 5°C of actual peak Temperature (TP) 30 secs Ramp-down Rate 6°C/s Time 25°C to peak Temperature (TP) 8 mins Max. Do not exceed 260°C Package Reel max TL TS(max) Ramp-down Preheat TS(min) TS 25 Time time to peak temperature Information REF mm inch A 1.46+/-0.1 0.057+/-0.004 B 2.9+/-0.1 0.114+/-0.004 d 1.25+/-0.1 0.049+/-0.004 D 178+/-1.0 7.01+/-0.039 D1 55+/-3 2.165+/-0.118 D2 13+/-0.5 0.512+/-0.020 E 1.75+/-0.1 0.069+/-0.004 F 3.5+/-0.2 0.138+/-0.008 P 4.0+/-0.2 0.158+/-0.008 P0 4.0+/-0.2 0.158+/-0.008 P1 2.0+/-0.2 0.079+/-0.008 W 8.0+/-0.2 0.315+/-0.008 W1 14.4+/-0.5 0.567+/-0.020 OUTLINE REEL (PCS) PER CARTON (PCS) REEL DIAMETERS (mm) TAPING 3,000 90,000 177 4/4 Critical Zone TL to TP Ramp-up TL max Temperature Reflow Condition www.bencent.com.cn CARTON SIZE(mm) L W H 360 370 220 Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications
