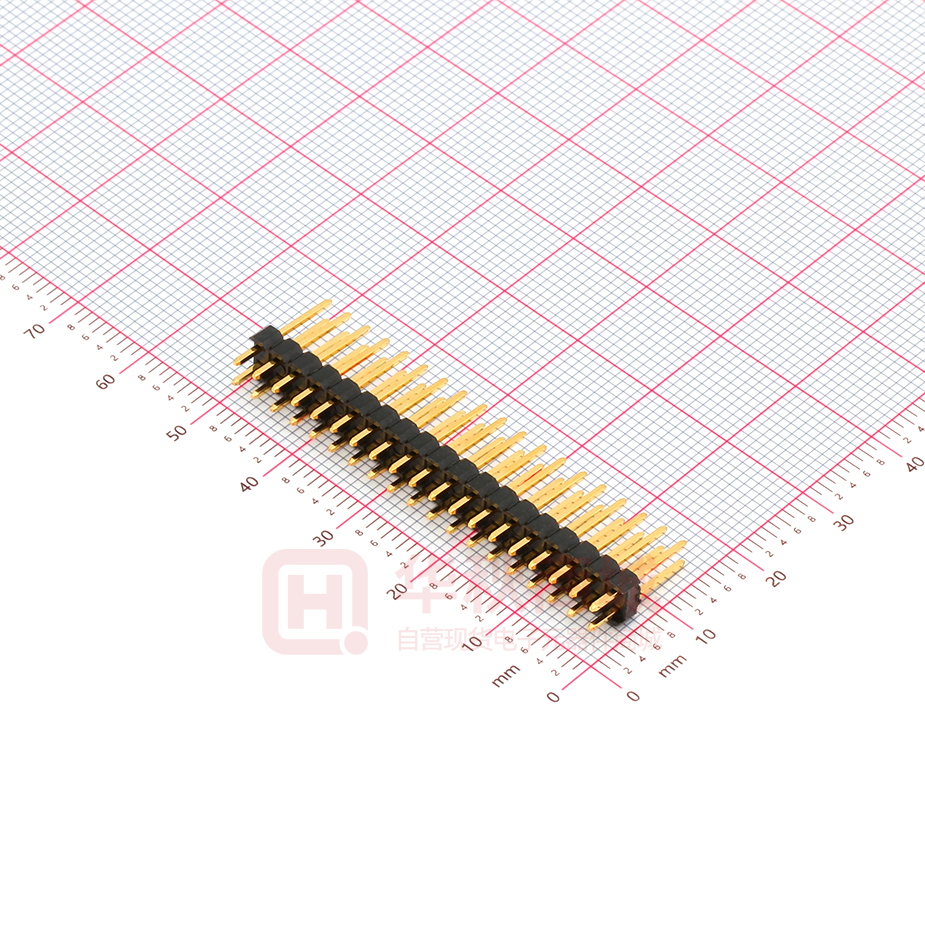

PH-00347

A 2.54*No.of positions±0.3 CHECK APPROVE SIZE UNIT SCALE 1/1 A4 mm FIT PROJ. SHEET 0.64 SQ YiYuSheng 12.03.28 2.54*(N-1)Positions±0.2 ±0.30 TOL ±3° DRAW 2.54±0.1 X.X ±0.20 OPERATION X.XX Angle X.XXX ±0.10 DIM Recommended P.C.B Layout(Top Side) (PCB BOARD TOLERANCE±0.05) 2.54 2.54*(N-1)Positions TITLE: PART NO. 2.54PH H2.5mm 2X19P DIP PA7.7 PC3.0 PH-00347 深圳市连盛精密连接器有限公司 2.54 1 2P 1P CHANGE 7.70±0.25 02 ∅1 . FILE NO :E362810 NEW DRAWING MODIFICATION DESCRIPTION 5.0±0.15 HSF RoHS 2012.03.28 DATE 3.00±0.25 SPECIFICATIONS Rated Current:3.0AMP Contact Resistance:20mΩ Max Withstand Voltage:1000V AC/DC Insulation Resistance:1000MΩ Min Operation Temperature:-40°c to +105°c 1 Contact Material:Brass Contact Plating:Au3U Over Ni Insulator Material:Polyester(UL94V-0) Standard: PA6T Max.Processing Temp: 230°C for 30-60 seconds (260°C for 10 seconds) A0 REV 2.54±0.1 2.5±0.15 A
