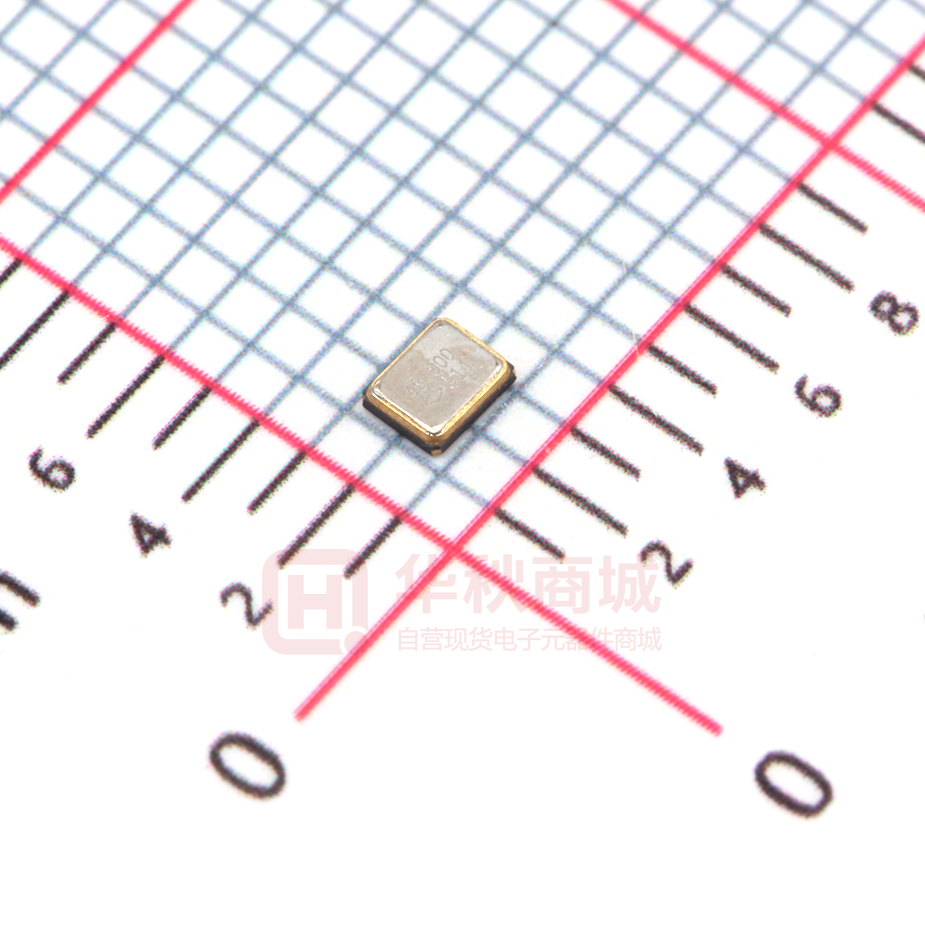

XZDBCLNANF-48MHz

XZ Type 2.0 x 1.6 mm SMD Crystal Actual Size FEATURE - Typical 2.05 x 1.65 x 0.45 mm ultra thin ceramic package. - 8 mm width Tape & Reel package for automatic assembly. - Tight tolerance 10 ppm available. T YPICAL APPLICATION - Bluetooth , Mobile phone, Wireless LAN. - Office Automation - Audio & Video [ TOP VIEW ] 2.05±0.10 GND #4 RoHS Compliant #3 1.65±0.10 1.40 #1 [ BOTTON VIEW ] 1.27±0.10 GND 1.10 #2 0.97±0.10 #1 #2 #2 and #4 are connected to the cover (please connect to ground) 0.80 0.45±0.10 [ SIDE VIEW] #4 0.47±0.10 0.90 #3 0.57±0.10 Parameter Storage Temp. Range Standard Frequency Level of Drive Shunt Capacitance (Co) Insulation Resistance Aging Min. Typical Max. -55 26, 30, 32, 40 10 ±1.0 to ±3.0 125 500 MΩ@ DC100V Unit MHz µw pF 200 3.0 - ppm / year Standard frequencies are frequencies which the crystal has been designed and does not imply a stock position. Frequency Range 16 MHz Fo 20 MHz < Fo 30 MHz < Fo Temp. ( o C) ppm 20 MHz 30 MHz 60 MHz ±5 ±10 MODE E.S.R A1 A1 A1
