WPE0531P

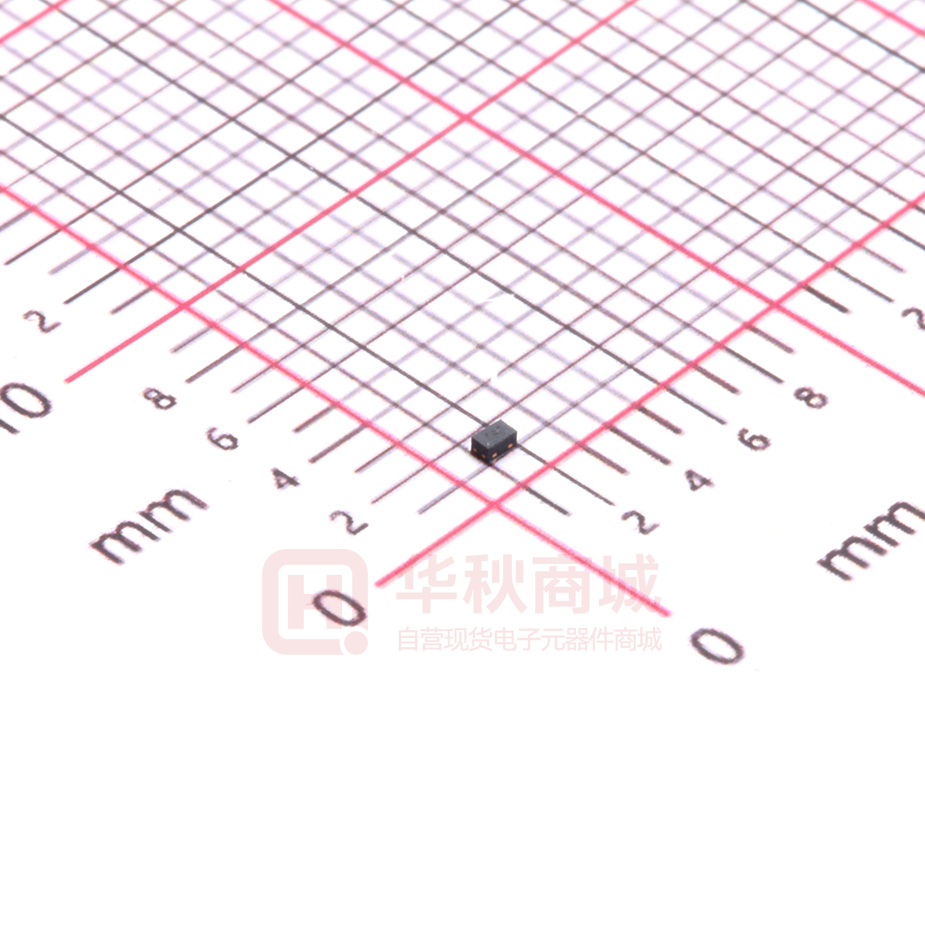

WPE0531P Integrated in OVP&OCP products provider 2-Line Ultra Low Capacitance TVS Diode Description Mechanical Characteristics The WPE0531P is an uni-directional TVS diode, utilizing n Package: DFN1006-3 (1.0×0.6×0.5mm) leading monolithic silicon technology to provide fast n Lead Finish: NiPdAu response time and low ESD clamping voltage, making this n Case Material: “Green” Molding Compound. device an ideal solution for protecting voltage sensitive n Moisture Sensitivity: Level 3 per J-STD-020 n Terminal Connections: See Diagram Below n Marking Information: See Below high-speed data lines. The WPE0531P has an ultra-low capacitance with a typical value at 0.6pF, and complies with the IEC 61000-4-2 (ESD) standard with ±25kV air and ±20kV contact discharge. It is assembled into an ultra small 1.0x0.6x0.5mm lead-free DFN package. The small Applications size, ultra-low capacitance and high ESD surge protection make WPE0531P an ideal choice to protect cell phone, digital video interfaces and other high-speed ports. Features n Ultra small package: 1.0x0.6x0.5mm n Ultra low capacitance: 0.6pF typical n Ultra low leakage: nA level n Working voltage: 5V n Low clamping voltage n 3-pin leadless package n Complies with following standards: n Cellular Handsets and Accessories n Display Ports n MDDI Ports n HDMI 1.3 and 1.4 n Digital Video Interface (DVI) n PCI Express and Serial SATA Ports n Notebook Computer n USB 2.0 and 3.0 Ports Marking Information – IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV n – IEC61000-4-5 (Lightning) 5A (8/20μs) n RoHS Compliant Dimensions & Symbol（Unit: mm Max） Dot denotes pin1 Details marking code reference customer approval list Ordering Information Part Number WPE0531P Rev.A_Aug,2016 -1- Packaging 10000/Tape & Reel Reel Size 7 inch www.wpmtek.com WPE0531P Integrated in OVP&OCP products provider 2-Line Ultra Low Capacitance TVS Diode Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 75 W Peak Pulse Current (8/20µs) Ipp 5 A ESD per IEC 61000−4−2 (Air) ±25 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range kV ±20 TJ −55 to +125 °C Tstg −55 to +150 °C Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Symbol Reverse Working Voltage VRWM Breakdown Voltage VBR Min Typ Max Unit 5 V 6 V Test Condition Pin 1 or pin 2 to pin 3 and between pin 1 and pin 2 IT = 1mA, pin 1 or pin 2 to pin 3 and between pin 1 and pin 2 VRWM = 5V, Pin 1 or pin 2 to pin 3 Reverse Leakage Current IR 0.5 uA Clamping Voltage VC 10 V IPP = 1A (8 x 20uS pulse), pin 1 or pin 2 to pin 3 Clamping Voltage VC 15.5 V IPP = 5A (8 x 20uS pulse), pin 1 or pin 2 to pin 3 Junction Capacitance CJ 0.2 0.3 pF Junction Capacitance CJ 0.4 0.6 pF Rev.A_Aug,2016 -2- and between pin 1 and pin 2 VR = 0V, f = 1MHz, between pin 1 and pin 2 VR = 0V, f = 1MHz, pin 1 or pin 2 to pin 3 www.wpmtek.com WPE0531P Integrated in OVP&OCP products provider 2-Line Ultra Low Capacitance TVS Diode Typical Performance Characteristics (TA=25°C unless otherwise Specified) Rev.A_Aug,2016 -3- www.wpmtek.com WPE0531P Integrated in OVP&OCP products provider 2-Line Ultra Low Capacitance TVS Diode Soldering Parameters Reflow Condition Pre Heat Pb-Free assembly -Temperature Min (Ts(min)) +150℃ -Temperature Max(Ts(max)) +200℃ -Time (Min to Max) (ts) 60-180 secs. Average ramp up rate (Liquid us Temp (TL) to peak) 3℃/sec. Max Ts(max) to TL - Ramp-up Rate 3℃/sec. Max Reflow -Temperature(TL) (Liquid us) +217℃ -Temperature(tL) 60-150 secs. Peak Temp (Tp) +260(+0/-5)℃ Time within 5℃ of actual Peak Temp (tp) 30 secs. Max Ramp-down Rate 6℃/sec. Max Time 25℃ to Peak Temp (TP) 8 min. Max Do not exceed +260℃ Rev.A_Aug,2016 -4- www.wpmtek.com WPE0531P Integrated in OVP&OCP products provider 2-Line Ultra Low Capacitance TVS Diode Package Mechanical Data Suggested Land Pattern Contact Information WPMTEK Incorporated Limited Floor 1 Building 4#, Binxianghua Industry Park, No.7, Huada Road, Hualian Community, Longhua New District, Shenzhen TEL：86755-29308003 FAX：86755-23739900 wpmtek Incorporated Limited (WPM) reserves the right to make changes to the product specification and data in this document without notice. WPM makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does WPM assume any liability arising from the application or use of any products or circuits, and specifically dis- claims any and all liability, including without limitation special, consequential or incidental damages. Rev.A_Aug,2016 -5- www.wpmtek.com
