WPE3361HD5

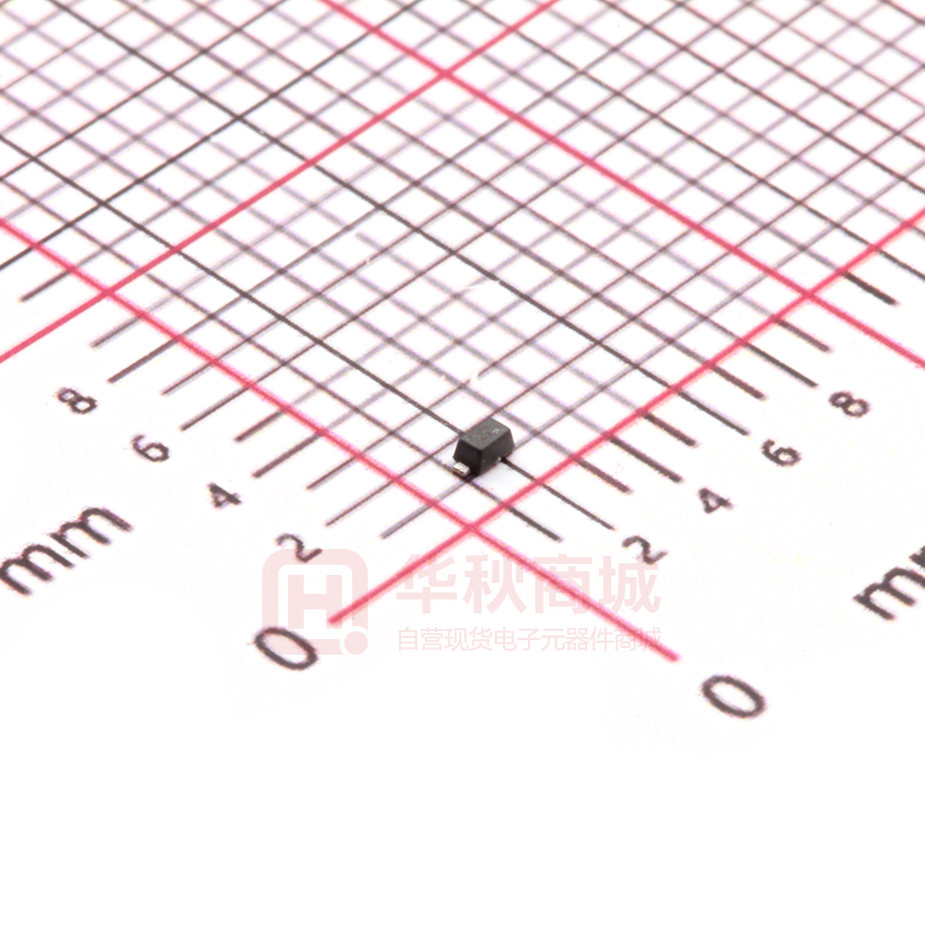

WPE3361HD5 Integrated in OVP&OCP products provider Bi-directional TVS Diode Description Mechanical Characteristics The WPE3361HD5 is designed to protect voltage sensitive  components from ESD and transient voltage events. Package: SOD-523  Lead Finish: Matte Tin  Case Material: “Green” Molding Compound. on designs where board space is at a premium. Because  UL Flammability Classification Rating 94V-0 of its small size, it is suited for use in cellular phones,  Moisture Sensitivity: Level 3 per J-STD-020 portable devices, digital cameras, power supplies and  Terminal Connections: See Diagram Below many other portable applications where board space  Marking Information: See Below Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection comes at a premium. Also because of its low capacitance, it is suited for use in high frequency designs such as USB Applications 2.0 high speed, VGA, DVI, SDI and other high speed line applications. Features  Cellular Handsets and Accessories  Personal Digital Assistants  Notebooks and Handhelds  Protects one data line  Portable Instrumentation  Ultra low leakage: nA level  Digital Cameras  Low operating voltage: 3.3V  Peripherals  Low clamping voltage  Audio Players  Complies with following standards:  Keypads, Side Keys, LCD Displays – IEC 61000-4-2 (ESD) immunity test Air Marking Information discharge: ±30kV Contact discharge: ±30kV  IEC61000-4-5 (Lightning) 8A (8/20μs)  RoHS Compliant Dimensions & Symbol（Unit: mm Max） Details marking code reference customer approval list Ordering Information Part Number WPE3361HD5 SOD523(TOP Viev) Package Dimensions Rev.A_Aug,2017 Packaging 3000/Tape & Reel Reel Size 7 inch Circuit and Pin Schematic -1- www.wpmtek.com WPE3361HD5 Integrated in OVP&OCP products provider Bi-directional TVS Diode Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 80 W Peak Pulse Current (8/20µs) Ipp 8 A ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range ±30 kV TJ −55 to +125 °C Tstg −55 to +150 °C Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Reverse Working Voltage Symbol Min Typ VRWM Max Unit 3.3 V Test Condition Punch-Through Voltage VPT 3.8 V IT = 2µA Snap-Back Voltage VSB 3.5 V IT = 50mA 0.2 μA VRWM = 3.3V 6 V IPP = 1A (8 x 20µs pulse) 8 V IPP = 5A (8 x 20µs pulse) 10 V IPP = 8A (8 x 20µs pulse) 25 pF VR = 0V, f = 1MHz Reverse Leakage Current Clamping Voltage Junction Capacitance Rev.A_Aug,2017 IR 0.01 VC CJ 12.5 -2- www.wpmtek.com WPE3361HD5 Integrated in OVP&OCP products provider Bi-directional TVS Diode Typical Performance Characteristics (TA=25°C unless otherwise Specified) Junction Capacitance vs. Reverse Voltage Peak Pulse Power vs. Pulse Time Power Derating Curve Clamping Voltage vs. Peak Pulse Current Note：Data is taken with a 10x attenuator ESD Clamping Voltage 8 kV Contact per IEC61000−4−2 8 X 20μs Pulse Waveform Rev.A_Aug,2017 -3- www.wpmtek.com WPE3361HD5 Integrated in OVP&OCP products provider Bi-directional TVS Diode Soldering Parameters Pb-Free assembly (see FIG.2) Reflow Condition Pre Heat -Temperature Min (Ts(min)) +150℃ -Temperature Max(Ts(max)) +200℃ -Time (Min to Max) (ts) 60-180 secs. Average ramp up rate (Liquid us Temp (TL) to peak) 3℃/sec. Max Ts(max) to TL - Ramp-up Rate 3℃/sec. Max Reflow -Temperature(TL) (Liquid us) +217℃ -Temperature(tL) 60-150 secs. Peak Temp (Tp) +260(+0/-5)℃ Time within 5℃ of actual Peak Temp (tp) 30 secs. Max Ramp-down Rate 6℃/sec. Max Time 25℃ to Peak Temp (TP) 8 min. Max Do not exceed +260℃ Rev.A_Aug,2017 -4- www.wpmtek.com WPE3361HD5 Integrated in OVP&OCP products provider Bi-directional TVS Diode Package Mechanical Data Suggested Land Pattern Contact Information WPMTEK Incorporated Limited Floor 1 Building 4#, Binxianghua Industry Park, No.7, Huada Road, Hualian Community, Longhua New District, Shenzhen TEL：86755-29308003 FAX：86755-23739900 wpmtek Incorporated Limited (WPM) reserves the right to make changes to the product specification and data in this document without notice. WPM makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does WPM assume any liability arising from the application or use of any products or circuits, and specifically dis- claims any and all liability, including without limitation special, consequential or incidental damages. Rev.A_Aug,2017 -5- www.wpmtek.com
