WPE5201N

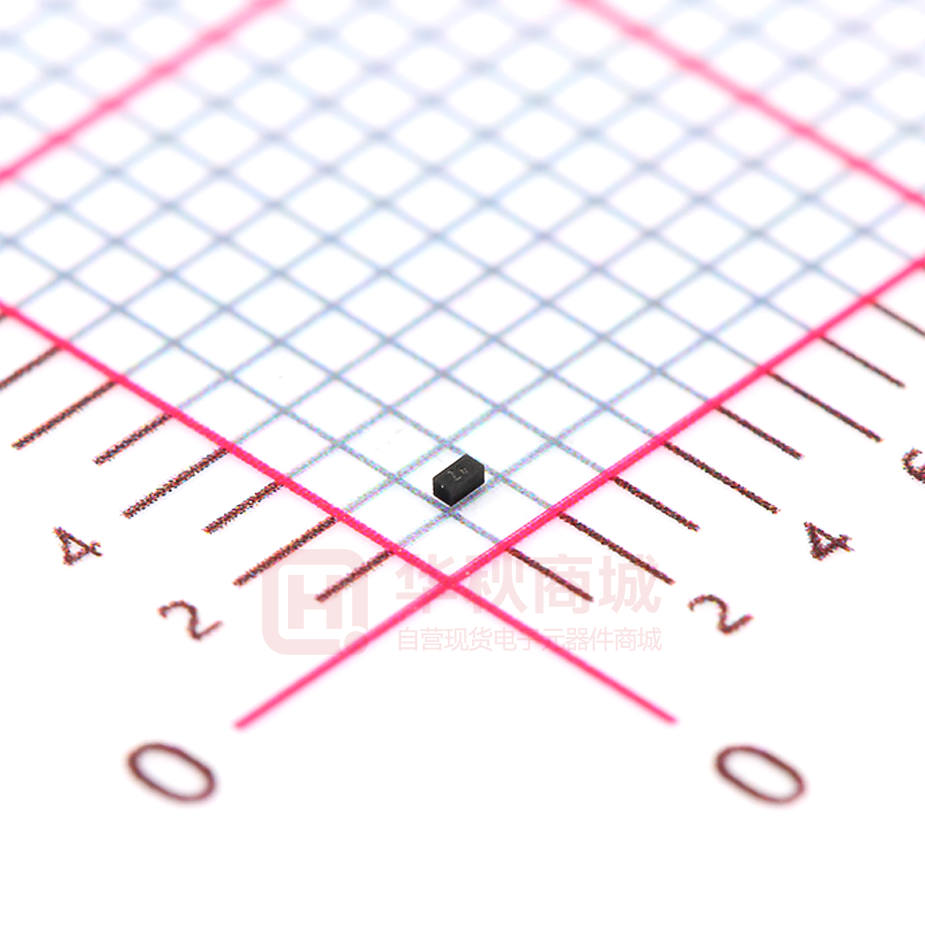

Transient Voltage Suppressors (TVS) 1-Line Low Capacitance Bi-directional TVS Diode WPE5201N Features ■ Ultra small package: 0.6x0.3x0.3mm ■ Very low capacitance: 2.5pF typical ■ Protects one data or power line ■ Ultra low leakage: nA level ■ Low operating voltage: 5V ■ Low clamping voltage ■ 2-pin leadless package DFN0603-2L ■ Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±8kV –EC61000-4-5 (Lightning) 2A (8/20μs) ■ RoHS Compliant Mechanical Characteristics ■ Package: DFN0603-2 (0.6×0.3×0.3mm) ■ Lead Finish: NiPdAu ■ Case Material: “Green” Molding Compound. ■ Moisture Sensitivity: Level 3 per J-STD-020 Bi-directional ■ Terminal Connections: See symbol ■ Marking Information: Refer to customer approval list SYMBOL Absolute Maximum Ratings (TA=25ºC, RH=45%-75%, unless otherwise noted) Parameter Symbol ESD per IEC 61000−4−2 (Air) ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range Value Unit ±15 VESD ±8 kV TJ −55 to +125 °C Tstg −55 to +150 °C Copyright © 2018 WPMTEK INC. 1 Specifications are subject to change without notice. Revised: July 9, 2018 Please refer to http://www.wpmtek.com for updated information. Transient Voltage Suppressors (TVS) 1-Line Low Capacitance Bi-directional TVS Diode WPE5201N Electrical characteristics (TA=25℃ unless otherwise specified) Parameter Reverse Working Voltage Breakdown Voltage Symbol Min Typ VRWM VBR Max Unit 5 V 6 V Test Condition Pin 1 to Pin 2 or Pin 2 to Pin 1 IT = 1mA, Pin 1 to Pin 2 or Pin 2 to Pin 1 Reverse Leakage Current IR 0.2 µA VRWM = 5V Clamping Voltage VC 10 V IPP = 1A (8 x 20µs pulse) Junction Capacitance CJ 3 pF VR = 0V, f = 1MHz 2.5 I-V Curve Characteristics PPPM Peak Pulse Power Dissipation ------------------------------------------------------------------------------ Max power dissipation VR Stand-off Voltage ------------------------------ Maximum voltage that can be applied to the TVS without operation VBR Breakdown Voltage --------------- Maximum voltage that flows though the TVS at a specified test current (IT) VC Clamping Voltage ----- Peak voltage measured across the TVS at a specified IPPM (peak impulse current) IR Reverse Leakage Current -------------------------------------------------------------------------------------- Current measured at VR VF Forward Voltage Drop for Uni-directional Copyright © 2018 WPMTEK INC. 2 Specifications are subject to change without notice. Revised: July 9, 2018 Please refer to http://www.wpmtek.com for updated information. Transient Voltage Suppressors (TVS) 1-Line Low Capacitance Bi-directional TVS Diode WPE5201N Typical Performance Characteristics (TA=25°C unless otherwise Specified) Copyright © 2018 WPMTEK INC. 3 Specifications are subject to change without notice. Revised: July 9, 2018 Please refer to http://www.wpmtek.com for updated information. Transient Voltage Suppressors (TVS) 1-Line Low Capacitance Bi-directional TVS Diode WPE5201N Soldering Parameters Pre Heat Reflow Condition Pb-Free assembly -Temperature Min (Ts(min)) +150℃ -Temperature Max (Ts(max)) +200℃ -Time (Min to Max) (ts) 60-180 secs. Average ramp up rate (Liquid us Temp (TL) to peak) 3℃/sec. Max Ts(max) to TL - Ramp-up Rate 3℃/sec. Max Reflow -Temperature (TL) (Liquid us) -Temperature(tL) +217℃ 60-150 secs. Peak Temp (Tp) +260(+0/-5)℃ Time within 5℃ of actual Peak Temp (tp) 30 secs. Max Ramp-down Rate 6℃/sec. Max Time 25℃ to Peak Temp (TP) 8 min. Max Do not exceed +260℃ Copyright © 2018 WPMTEK INC. 4 Specifications are subject to change without notice. Revised: July 9, 2018 Please refer to http://www.wpmtek.com for updated information. Transient Voltage Suppressors (TVS) 1-Line Low Capacitance Bi-directional TVS Diode WPE5201N Package Outline Dimensions DIMENSIONS SYM MILLIMETERS MIN NOM MAX A 0.230 0.330 A1 0.000 0.020 0.050 b 0.215 0.245 0.275 c 0.120 0.150 0.180 D 0.550 0.600 0.650 e 0.355 BSC E 0.250 0.300 0.350 L 0.160 0.190 0.220 h 0.079 BSC Suggested PAD Layout DIMENSIONS SYM MILLIMETERS INCHES X 0.30 0.012 Y1 0.25 0.010 Y2 0.15 0.006 Y3 0.40 0.016 Z 0.65 0.026 Ordering Information Part Number Package WPE5201N DFN0603 Weight Base qty Reel Size grams(approx.) (pcs) (inch) 10000 7 Delivery mode Tape and Reel Contact Information WPMtek Incorporated Limited Room 206-207, 2ndFloor, Block 3, Minxing Industry Park, Minzhi, Longhua New District, Shenzhen TEL：86755-29308003 FAX：86755-23739900 Copyright © 2018 WPMTEK INC. 5 Specifications are subject to change without notice. Revised: July 9, 2018 Please refer to http://www.wpmtek.com for updated information.
