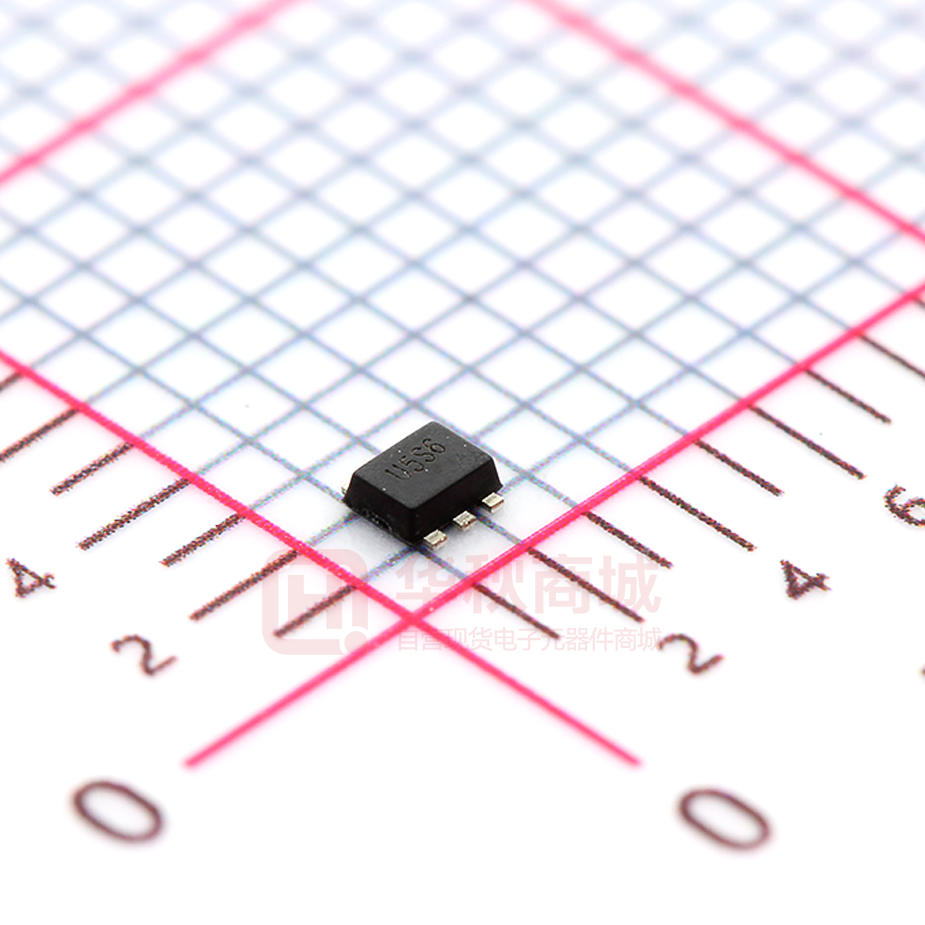

WPE5605C WPE5605C Integrated in OVP&OCP products provider TVS Diode Array For ESD and Latch-Up Protection WPE5605C TVS Diode Array For ESD and Latch-Up Protection The WPE5605C TVS array is designed to protect sensitive electronics from damage or latch-up due to ESD and other voltage-induced transient events. It is designed for use in applications where board space is at a premium. Each device will protect up to five lines. It is unidirectional devices and may be used on lines where the signal polarities are above ground. TVS Diode Array For ESD and Latch-Up Protection Features  Protects five I/O lines  Low capacitance  Working voltages : 5V  Low leakage current  Response Time is < 1 ns  Low operating and clamping voltages  ROHS compliant  Meets MSL 1 Requirements  Solid-state silicon avalanche technology  Weight 3 milligrams (Approximate)  WeiPan technology SOT-563 Main applications  Cellular Handsets and Accessories  Cordless Phones  Personal Digital Assistants (PDA’s)  Notebooks and Handhelds  Portable Instrumentation  Digital Cameras  Peripherals  MP3 Players Protection solution to meet  IEC61000-4-2 (ESD) ±30kV (air), ±30kV (contact)  IEC61000-4-4 (EFT) 40A (5/50ns) 6 5 4 1 2 3 Ordering Information Device Qty per Reel Reel Size WPE5605C 3000 7 Inch Rev.E_Aug,2017 -1 - www.wpmtek.com WPE5605C WPE5605C Integrated in OVP&OCP products provider TVS Diode Array For ESD and Latch-Up Protection Maximum ratings (Tamb=25℃ Unless Otherwise Specified) Parameter Symbol Value Unit Peak Pulse Power (tp=8/20μs waveform) PPPP 100 Watts Peak Pulse Current(tp=8/20μs waveform) IPP 8 A ESD Rating per IEC61000-4-2： Contact 30 Air 30 KV Lead Soldering Temperature TL 260 (10 sec.) ℃ Operating Temperature Range TJ -55 ~ 125 ℃ TSTG -55 ~ 150 ℃ Storage Temperature Range Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected. *Other voltages may be available upon request. 1. Non-repetitive current pulse, per Figure 1. Electrical characteristics ( Tamb=25℃ Unless Otherwise Specified) Symbol Parameter Conditions VRWM Reverse Working Voltage VBR Reverse Breakdown Voltage IT = 1mA, IR Reverse Leakage Current VRWM = 5V, VF Diode Forward Voltage IF = 15mA VC Clamping Voltage IPP CJ Min. Typ. Max. Units 5.0 V 8.5 V 0.05 0.2 uA 0.85 1.2 V IPP = 1A, tp =8/20μs, 8 V IPP = 8A, tp =8/20μs, 12 V Peak Pulse Current tp =8/20μs 8 A Junction Capacitance VR = 0V, f = 1MHz, 6.0 55 pF Junction capacitance is measured in VR=0V,F=1MHz Symbol VRWM Working Peak Reverse Voltage VBR Breakdown Voltage @ IT VC Clamping Voltage @ IPP IT Test Current IRM Leakage current at VRWM IPP Peak pulse current CO Off-state Capacitance CJ Junction Capacitance Rev.E_Aug,2017 I Parameter IF VC VBR VRWM IR IT VF V IPP -2- www.wpmtek.com WPE5605C WPE5605C Integrated in OVP&OCP products provider TVS Diode Array For ESD and Latch-Up Protection Typical Performance Characteristics (TA=25°C unless otherwise Specified) Junction Capacitance vs. Reverse Voltage Peak Pulse Power vs. Pulse Time Power Derating Curve Clamping Voltage vs. Peak Pulse Current Note：Data is taken with a 10x attenuator ESD Clamping Voltage 8 X 20μs Pulse Waveform Rev.E_Aug,2017 8 kV Contact per IEC61000−4−2 -3- www.wpmtek.com WPE5605C WPE5605C Integrated in OVP&OCP products provider TVS Diode Array For ESD and Latch-Up Protection Typical applications I/O 1 IC I/O 2 I/O 3 I/O 4 I/O 5 Device Connection for Protection of Five Data Lines The WPE5605C is designed to protect up to five unidirectional data lines. The device is connected as follows: Unidirectional protection of five I/O lines is achieved by connecting pins 1, 3, 4, 5 and 6 to the data lines. Pin 2 is connected to ground. The ground connection should be made directly to the ground plane for best results. The path length is kept as short as possible to reduce the effects of parasitic inductance in the board traces. Rev.E_Aug,2017 -4 - www.wpmtek.com WPE5605C WPE5605C Integrated in OVP&OCP products provider TVS Diode Array For ESD and Latch-Up Protection Package Information SOT-563 Mechanical Data Case: SOT-563 Case Material: Molded Plastic. UL Flammability D 5 6 A L 4 E 2 HE 3 Min Max A 0.525 0.60 b 0.17 0.27 c 0.09 0.16 D 1.50 1.70 E 1.10 1.30 E 1 Millimeters Dim e b c 0.50BSC e SOT-563 Recommended Pad outline L 0.10 0.30 HE 1.50 1.70 1.0 0.5 0.3 0.3 1.4 Contact information WPMTEK Incorporated Limited Room 206-207,2nd Floor,Block 3,Minxing lndustry Park,Minzhi Longhua New District,Shenzhen TEL：86755-29308003 FAX：86755-23739900 wpmtek Incorporated Limited (WPM) reserves the right to make changes to the product specification and data in this document without notice. WPM makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does WPM assume any liability arising from the application or use of any products or circuits, and specifically dis- claims any and all liability, including without limitation special, consequential or incidental damages. Rev.E_Aug,2017 -5 - www.wpmtek.com
