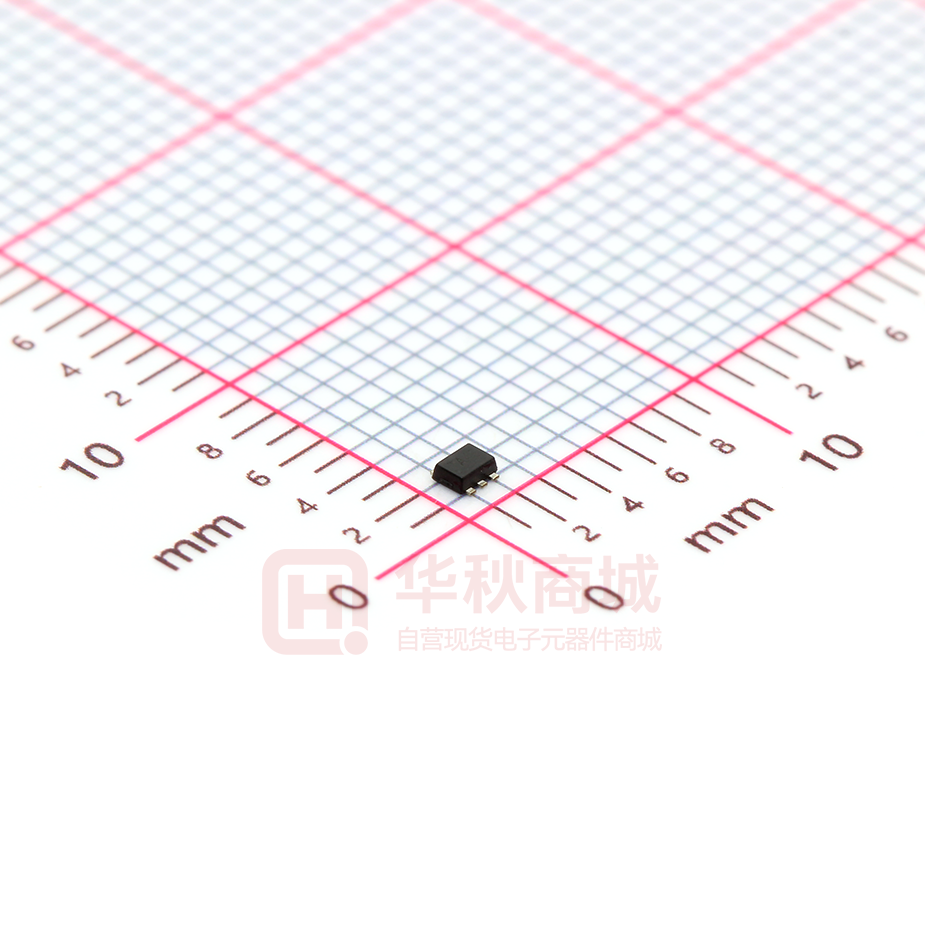

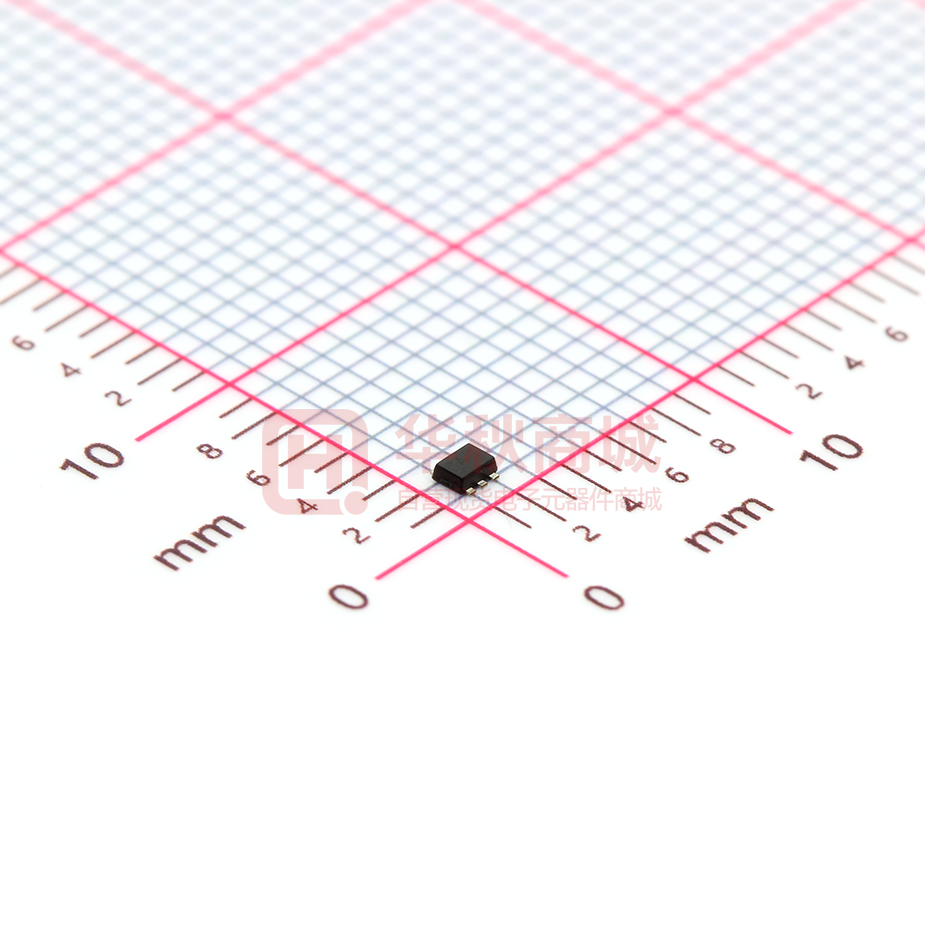

VBTA4250N

VBTA4250N www.VBsemi.com Dual P-Channel -20 V (D-S) MOSFET FEATURES PRODUCT SUMMARY VDS (V) -20 RDS(on) () ID (A) 0.65 at VGS = -4.5 V -0.30 0.84 at VGS = -2.5 V -0.25 1.20 at VGS = -1.8 V -0.18 Qg (Typ.) • TrenchFET® Power MOSFET • 100 % Rg Tested • Gate-Source ESD Protected: 1000 V 0.75 APPLICATIONS • Load/Power Switching for Portable Devices • Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories • Battery Operated Systems • Power Supply Converter Circuits SC-75-6 Top View ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C)a Pulsed Drain Current Continuous Source-Drain Diode Current Maximum Power Dissipationa Symbol VDS VGS TA = 25 °C TA = 70 °C TA = 25 °C TA = 25 °C TA = 70 °C ID IDM IS PD TJ, Tstg Operating Junction and Storage Temperature Range Limit Unit -20 ± 12 V -0.30a, b -0.15a, b -2 A A -0.18a, b 0.22a, b 0.14a, b - 55 to 150 W °C THERMAL RESISTANCE RATINGS Parameter Maximum Junction-to-Ambientb Symbol t 5 s Steady State RthJA Typ. Max. 470 565 560 675 Unit °C/W Notes: a. Surface mounted on 1" x 1" FR4 board. b. t = 5 s. 1 VBTA4250N www.VBsemi.com SPECIFICATIONS (TJ = 25 °C, unless otherwise noted) Parameter Symbol Test Conditions Min. VDS VGS = 0 V, ID = -250 µA -20 Typ. Max. Unit Static Drain-Source Breakdown Voltage VDS/TJ VDS Temperature Coefficient VGS(th) Temperature Coefficient VGS(th)/TJ Gate-Source Threshold Voltage VGS(th) Gate-Source Leakage IGSS Zero Gate Voltage Drain Current IDSS On-State Drain Currenta ID(on) Drain-Source On-State Resistancea Forward Transconductance RDS(on) gfs ID = -250 µA VDS = VGS, ID = -250 µA VDS = 0 V, VGS = ± 8 V V -17 - 1.8 -0.5 mV/°C -1.5 ± 30 VDS = 0 V, VGS = ± 4.5 V ±1 VDS = -20 V, VGS = 0 V VDS= -20 V, VGS = 0 V, TJ = 85 °C -1 -3 DS = ≥ - 5 V, VGS = -4.5 V V µA A -2 VGS = -4.5 V, ID = -0.3A 0.650 VGS = -2.5 V, ID = -0.25A 0.840 VGS = -1.8 V, ID = -0.18A 1.20  VDS = -10 V, ID = -0.3A 7.5 S VDS = 10 V, VGS = 0 V, f = 1 MHz 120 14 pF Dynamicb Input Capacitance Ciss Output Capacitance Coss Reverse Transfer Capacitance Crss Total Gate Charge Qg Gate-Source Charge Qgs Gate-Drain Charge Qgd Gate Resistance Rg Turn-On Delay Time Rise Time Turn-Off Delay Time Fall Time 8 VDS = -10 V, VGS =- 8V, ID = -0.3 A VDS = -10 V, VGS =- 4.5 V, ID = 0.3 A tr 2 1.2 0.15 nC 0.13 f = 1 MHz td(on) td(off) 1.3 0.75 VDD = -10 V, RL = 20 Ω ID ≅ 0.5 A, VGEN = -4.5 V, Rg = 1 Ω tf 2.4  12.2 24.4 11 20 16 24 26 39 11 20 -2 A - 0.8 10 - 1.2 15 V ns 2 4 nC ns Drain-Source Body Diode Characteristics Pulse Diode Forward Currenta ISM Body Diode Voltage VSD Body Diode Reverse Recovery Time trr Body Diode Reverse Recovery Charge Qrr Reverse Recovery Fall Time ta Reverse Recovery Rise Time tb IS =- 0.3 A IF = 0.5 A, dI/dt = 100 A/µs 5 5 ns Notes: a. Pulse test; pulse width  300 µs, duty cycle  2 %. b. Guaranteed by design, not subject to production testing. Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. 2 VBTA4250N www.VBsemi.com TYPICAL CHARACTERISTICS (25 °C, unless otherwise noted) 1.0E-04 0.8 TJ = 150 °C IGSS - Gate Current (A) IGSS - Gate Current (mA) 1.0E-05 0.6 1.0E-06 0.4 TJ = 25 °C TJ = 25 °C 1.0E-07 0.2 1.0E-08 0 0 2 4 6 8 10 VGS - Gate-Source Voltage (V) 12 14 1.0E-09 0 Gate Current vs. Gate-Source Voltage 11 4 7 VGS - Gate-to-Source Voltage (V) 14 Gate Current vs. Gate-Source Voltage 2 0.5 VGS = 5 V thru 2 V 0.4 ID - Drain Current (A) ID - Drain Current (A) 1.5 VGS = 1.5 V 1 0.3 TC = 25 °C 0.2 0.5 0.1 TC = 125 °C VGS = 1 V TC = - 55 °C 0 0 0 0.5 1 1.5 VDS - Drain-to-Source Voltage (V) 2 0 0.3 0.6 0.9 1.2 1.5 VGS - Gate-to-Source Voltage (V) Output Characteristics Transfer Characteristics 60 0.80 Ciss VGS = 1.8 V 45 C - Capacitance (pF) RDS(on) - On-Resistance (Ω) VGS = 1.5 V 0.60 VGS = 4.5 V 0.40 30 Coss 15 VGS = 10 V Crss 0 0.20 0 0.5 1 ID - Drain Current (A) 1.5 On-Resistance vs. Drain Current 2 0 5 10 15 VDS - Drain-to-Source Voltage (V) 20 Capacitance 3 VBTA4250N www.VBsemi.com TYPICAL CHARACTERISTICS (25 °C, unless otherwise noted) 1.6 VGS - Gate-to-Source Voltage (V) ID = -0.3 A 6 RDS(on) - On-Resistance (Normalized) 8 VDS = -5 V VDS = -10 V 4 VDS = 16 V 2 ID = -0.3 A VGS = -4.5 V 1.4 1.2 1.0 0.8 VGS = -2.5 V 0 0 0.5 1 0.6 - 50 1.5 - 25 0 Qg - Total Gate Charge (nC) 25 50 75 100 125 150 TJ - Junction Temperature (°C) Gate Charge On-Resistance vs. Junction Temperature 0.8 10 RDS(on) - On-Resistance (Ω) IS - Source Current (A) ID = -0.3A TJ = 150 °C 1 TJ = 25 °C 0.1 0.0 0.6 TJ = 125 °C 0.4 TJ = 25 °C 0.2 0 0.3 0.6 0.9 1.2 VSD - Source-to-Drain Voltage (V) 1.5 0 Soure-Drain Diode Forward Voltage 1 2 3 4 VGS - Gate-to-Source Voltage (V) 5 On-Resistance vs. Gate-to-Source Voltage 2.7 0.75 ID = 250 μA 2.25 0.65 Power (W) VGS(th) (V) 1.8 0.55 1.35 0.9 0.45 0.45 0.35 - 50 - 25 0 25 50 75 100 TJ - Temperature (°C) Threshold Voltage 4 125 150 0 0.01 0.1 1 Time (s) 10 100 Single Pulse Power, Junction-to-Ambient VBTA4250N www.VBsemi.com TYPICAL CHARACTERISTICS (25 °C, unless otherwise noted) 0.24 10 0.18 BVDSS Limited 100 μs 1 Power (W) ID - Drain Current (A) Limited by RDS(on)* 1 ms 10 ms 0.12 0.1 0.06 100 ms TC = 25 °C Single Pulse 1s 10 s, DC 0.01 0.1 0 1 10 100 VDS - Drain-to-Source Voltage (V) * VGS > minimum VGS at which RDS(on) is specified 0 25 50 75 100 125 TA - Ambient Temperature (°C) 150 Power Derating, Junction-to-Ambient Safe Operating Area, Junction-to-Ambient * The power dissipation PD is based on TJ(max) = 150 °C, using junction-to-case thermal resistance, and is more useful in settling the upper dissipation limit for cases where additional heatsinking is used. It is used to determine the current rating, when this rating falls below the package limit. 1 Normalized Effective Transient Thermal Impedance Duty Cycle = 0.5 0.2 0.1 0.1 0.05 0.02 0.01 0.0001 Single Pulse 0.001 0.01 0.1 1 10 100 Square Wave Pulse Duration (s) Normalized Thermal Transient Impedance, Junction-to-Ambient 5 VBTA4250N www.VBsemi.com SC-75-6 E1/2 2 3 aaa D e1 4 C 2x 4 A B D 6 4 5 SECTION B-B C E/2 2 E E1 3 6 2x DETAIL “A” aaa C 1 5 2 2x 3 bbb C e B 6x b 4 ddd M C A–B D L1 A1 L A A1 SEE DETAIL “A” Notes 1. Dimensions in millimeters. 2. Dimension D does not include mold flash, protrusions or gate burrs. Mold flush, protrusions or gate burrs shall not exceed 0.15 mm per dimension E1 does not include interlead flash or protrusion, interlead flash or protrusion shall not exceed 0.15 mm per side. 3. Dimensions D and E1 are determined at the outmost extremes of the plastic body exclusive of mold flash, the bar burrs, gate burrs and interlead flash, but including any mismatch between the top and the bottom of the plastic body. 4. Datums A, B and D to be determined 0.10 mm from the lead tip. 5. Terminal numbers are shown for reference only. 6. These dimensions apply to the flat section of the lead between 0.08 mm and 0.15 mm from the lead tip. 6 DIM. MILLIMETERS MIN. NOM. A 0.56 0.58 MAX. 0.60 A1 0 0.02 0.10 b 0.15 0.22 0.30 c 0.10 0.14 0.18 D 1.50 1.60 1.70 E 1.50 1.60 1.70 E1 1.15 1.20 1.25 e 0.45 0.50 0.55 e1 0.95 1.00 1.05 L 0.25 0.35 0.50 L1 0.10 0.20 0.30 VBTA4250N www.VBsemi.com RECOMMENDED MINIMUM PADS FOR SC-75-6: 6-Lead 0.051 0.012 0.020 (0.300) (0.500) 0.019 (0.478) 0.031 (0.798) 0.069 (1.753) (1.300) 0.051 (0.201) Recommended Minimum Pads Dimensions in Inches/(mm) 7 VBTA4250N www.VBsemi.com Disclaimer All products due to improve reliability, function or design or for other reasons, product specifications and data are subject to change without notice. Taiwan VBsemi Electronics Co., Ltd., branches, agents, employees, and all persons acting on its or their representatives (collectively, the "Taiwan VBsemi"), assumes no responsibility for any errors, inaccuracies or incomplete data contained in the table or any other any disclosure of any information related to the product.(www.VBsemi.com) Taiwan VBsemi makes no guarantee, representation or warranty on the product for any particular purpose of any goods or continuous production. To the maximum extent permitted by applicable law on Taiwan VBsemi relinquished: (1) any application and all liability arising out of or use of any products; (2) any and all liability, including but not limited to special, consequential damages or incidental ; (3) any and all implied warranties, including a particular purpose, non-infringement and merchantability guarantee. Statement on certain types of applications are based on knowledge of the product is often used in a typical application of the general product VBsemi Taiwan demand that the Taiwan VBsemi of. Statement on whether the product is suitable for a particular application is non-binding. It is the customer's responsibility to verify specific product features in the products described in the specification is appropriate for use in a particular application. Parameter data sheets and technical specifications can be provided may vary depending on the application and performance over time. All operating parameters, including typical parameters must be made by customer's technical experts validated for each customer application. Product specifications do not expand or modify Taiwan VBsemi purchasing terms and conditions, including but not limited to warranty herein. Unless expressly stated in writing, Taiwan VBsemi products are not intended for use in medical, life saving, or life sustaining applications or any other application. Wherein VBsemi product failure could lead to personal injury or death, use or sale of products used in Taiwan VBsemi such applications using client did not express their own risk. Contact your authorized Taiwan VBsemi people who are related to product design applications and other terms and conditions in writing. The information provided in this document and the company's products without a license, express or implied, by estoppel or otherwise, to any intellectual property rights granted to the VBsemi act or document. Product names and trademarks referred to herein are trademarks of their respective representatives will be all. Material Category Policy Taiwan VBsemi Electronics Co., Ltd., hereby certify that all of the products are determined to be oHS compliant and meets the definition of restrictions under Directive of the European Parliament 2011/65 / EU, 2011 Nian. 6. 8 Ri Yue restrict the use of certain hazardous substances in electrical and electronic equipment (EEE) - modification, unless otherwise specified as inconsistent.(www.VBsemi.com) Please note that some documents may still refer to Taiwan VBsemi RoHS Directive 2002/95 / EC. We confirm that all products identified as consistent with the Directive 2002/95 / EC European Directive 2011/65 /. Taiwan VBsemi Electronics Co., Ltd. hereby certify that all of its products comply identified as halogen-free halogen-free standards required by the JEDEC JS709A. Please note that some Taiwanese VBsemi documents still refer to the definition of IEC 61249-2-21, and we are sure that all products conform to confirm compliance with IEC 61249-2-21 standard level JS709A.
