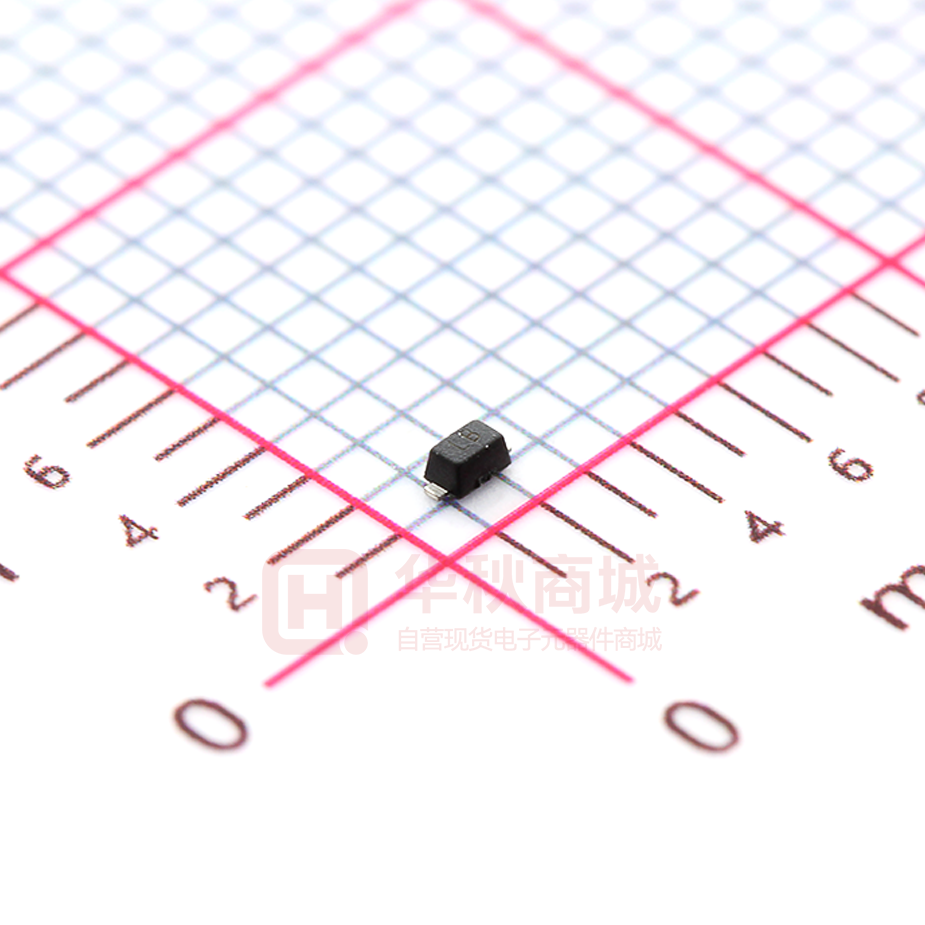

ESD5G5CL

ESD5G5CL Integrated in OVP&OCP products provider Low Capacitance Bi-directional TVS Diode Description Mechanical Characteristics The ESD5G5CL is a bi-directional TVS diode, utilizing  Package: SOD-523  Lead Finish: Matte Tin  Case Material: “Green” Molding Compound. data and power line. The ESD5G5CL complies with the  UL Flammability Classification Rating 94V-0 IEC 61000-4-2 (ESD) standard with ±15 kV air and ±15 kV  Moisture Sensitivity: Level 3 per J-STD-020 contact discharge. It is assembled into an ultra-small  Terminal Connections: See Diagram Below SOD-523 lead-free package. The small size and high ESD  Marking Information: See Below leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive surge protection make ESD5G5CL an ideal choice to protect cell phone, digital cameras, audio players and Applications many other portable applications. Features  Cellular Handsets and Accessories  Personal Digital Assistants  Protects one data line  Notebooks and Handhelds  Ultra low leakage: nA level  Portable Instrumentation  Low operating voltage: 5V  Digital Cameras  Low clamping voltage  Peripherals  Complies with following standards:  Audio Players – IEC 61000-4-2 (ESD) immunity test  Keypads, Side Keys, LCD Displays Air discharge: ±15kV Marking information Contact discharge: ±15kV – IEC61000-4-4 (EFT) 40A (5/50ns)  RoHS Compliant Dimensions & Symbol（Unit: mm Max） Details marking code reference customer approval list Ordering Information Part Number ESD5G5CL SOD523(TOP Viev) Package Dimensions !"#$B%&'()*+,- Packaging 5000/Tape & Reel Reel Size 7 inch Circuit and Pin Schematic -1- www.wpmtek.com ESD5G5CL Integrated in OVP&OCP products provider Low Capacitance Bi-directional TVS Diode Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 40 W Peak Pulse Current (8/20µs) Ipp 2.0 A ESD per IEC 61000−4−2 (Air) ±15 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range kV ±15 TJ −55 to +125 °C Tstg −55 to +150 °C Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Reverse Working Voltage Symbol Typ VRWM Breakdown Voltage VBR Reverse Leakage Current IR Clamping Voltage VC Junction Capacitance CJ !"#$B%&'()*+,- Min Max Unit 5 V Test Condition V IT = 1mA 0.15 uA VRWM = 5V 11 13 V 2.5 3.5 pF 6.0 -2- IPP = 2.0A (8 x 20uS pulse) VR = 0V, f = 1MHz www.wpmtek.com ESD5G5CL Integrated in OVP&OCP products provider Low Capacitance Bi-directional TVS Diode Typical Performance Characteristics (TA=25°C unless otherwise Specified) !"#$B%&'()*+,- -3- www.wpmtek.com ESD5G5CL Integrated in OVP&OCP products provider Low Capacitance Bi-directional TVS Diode Soldering parameters Pb-Free assembly (see FIG.2) Reflow Condition Pre Heat -Temperature Min (Ts(min)) +150℃ -Temperature Max(Ts(max)) +200℃ -Time (Min to Max) (ts) 60-180 secs. Average ramp up rate (Liquid us Temp (TL) to peak) 3℃/sec. Max Ts(max) to TL - Ramp-up Rate 3℃/sec. Max Reflow -Temperature(TL) (Liquid us) +217℃ -Temperature(tL) 60-150 secs. Peak Temp (Tp) +260(+0/-5)℃ Time within 5℃ of actual Peak Temp (tp) 30 secs. Max Ramp-down Rate 6℃/sec. Max Time 25℃ to Peak Temp (TP) 8 min. Max Do not exceed +260℃ !"#$B%&'()*+,- -4- www.wpmtek.com ESD5G5CL Integrated in OVP&OCP products provider Low Capacitance Bi-directional TVS Diode Package mechanical data Suggested Land Pattern Contact information WPMTEK Incorporated Limited Room 206-207,2nd Floor,Block3, Minxing Industry Park,Minzhi,Long Hua New District,Shenzhen TEL!86755-29308003 FAX!86755-23739900 wpmtek Incorporated Limited (WPM) reserves the right to make changes to the product specification and data in this document without notice. WPM makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does WPM assume any liability arising from the application or use of any products or circuits, and specifically dis- claims any and all liability, including without limitation special, consequential or incidental damages. !"#$B%&'()*+,- -5- www.wpmtek.com
